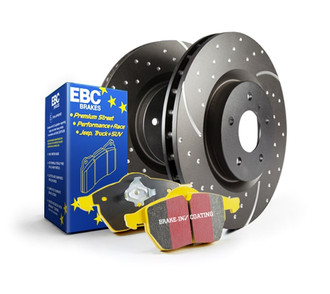

S5 Brake Kits Features

Castings or Finished Rotors

• Where castings or finished rotors have been bought in to complement the range, the strictest quality controls you can imagine ensure the safety and quality of the parts we sell. EBC adds value to its products by strictest quality controls and specifications and a 100% run out and dimensional check, plus all USA sport rotors are slotted at the Las Vegas facility of the USA operation. We employ 14 people in our USA rotor machining facility alone and have a bank of 8 HAAS and Feeler CNC machines using the latest CNC controls and tooling for superb accuracy.

• EBC Brakes produces all of its GD series and USR discs with a long lasting corrosion resistant finish. The coating is either the world famous thermic or for less popular smaller batch items we use the new NITROTHERM™ process of anti corrosive paint applied using this revolutionary process that coats with warm Nitrogen producing a better finish.

Thermic Black & Nitrotherm

• EBC Brakes produces all of its GD series and USR discs with a long lasting corrosion resistant finish. The coating is either the world famous thermic or for less popular smaller batch items we use the new NITROTHERM™ process of anti corrosive paint applied using this revolutionary process that coats with warm Nitrogen producing a better finish. Choose from EBC plain non drilled rotors or sport rotors in two choices – wide aperture GD Sport Rotors series for cooler running or new super silent Ultimax USR slotted series. On a global scale Most EBC rotors are made from high quality G3000 castings and 100% of these are precision machined in either the UK or the USA.

• EBC Brakes has 14 machining centres in these two countries to manufacture these precision parts. Rotors are made from high quality grey iron to exacting standards and undergo extensive testing and rigorous quality control and are then precision machined to your chosen slot or dimple pattern.

Dimple Drilled Rotor

• The dimple drilled rotor was invented by EBC back in the 90’s and has been imitated by many because of its ability to offer pad degassing without “Through Drilling” disc or rotor holes which has been shown to promote rotor cracks.

• The wide aperture slots on the EBC units actually draw cool air under the brake pad and rotor interface and help cool the temperatures of the pad contact which can shoot up to well over 1000 degrees at the very heart of the brake pad during heavy braking and can cause brake fade or loss of brake effect.

Full Sweep

• Apollo Series brake calipers are cast in UK, machined in the UK, painted in the UK and then assembled in the UK. Reinforcing the EBC philosophy of providing quality British made braking products yet at affordable prices.

• With so many callipers in this segment of the market being bought in from far East, surely this is the ultimate testament to EBC’s devotion to quality. EBC are, and will always be a true champion of Great British engineering.

Before Making Your Choice

Where castings or finished rotors have been bought in to complement the range, the strictest quality controls you can imagine ensure the safety and quality of the parts we sell. EBC adds value to its products by strictest quality controls and specifications and a 100% run out and dimensional check, plus all USA sport rotors are slotted at the Las Vegas facility of the USA operation. We employ 14 people in our USA rotor machining facility alone and have a bank of 8 HAAS and Feeler CNC machines using the latest CNC controls and tooling for superb accuracy.

EBC Brakes produces all of its GD series and USR discs with a long lasting corrosion resistant finish. The coating is either the world famous thermic or for less popular smaller batch items we use the new NITROTHERM™ process of anti corrosive paint applied using this revolutionary process that coats with warm Nitrogen producing a better finish.

Statement of Quality

Geometry Issues

One in seven cars suffers geometry problems during its life that can affect steering and cause brake vibration. These are NOT a product quality issue! These can happen by simply nudging a kerb or by driving over a pothole. EBC is not alone in recognising this problem but is the only brake supplier on the planet prepared to offer diagnosis and a solutions.

Installation or hub run-out issues

These cause what is known as DTV. The videos below show how to correct for brake vibration caused by DTV (Disc thickness variation). DTV develops in a car after 3000-4000 miles caused by runout built in to the car or due to incorrect alignment of the rotors at install. This is quite a common fault on modern cars and many cars require this at every rotor change. drivers also confuse hub distortion with a rotor quality issue but in 99% of cases the dtv is a car problem, not a rotor quality problem. you can replace the rotors as many times as you like trying to solve vibration and the problem will only go away for a few thousand miles and then return. this means you have purchased new rotors in good faith but the problem is not solved and will not go away permanently until you perform this procedure. after this skimming of the rotor surface you will have smooth brakes , more effective brakes and zero vibration. it is even a very worthwhile practice when fitting new rotors to have all four rotors skimmed into perfect alignment on your car with this inexpensive procedure.

Rotor Distortion

Rotor distortion due to DTV is very common, in fact one in seven cars has a steering geometry problem either when it is built new or after nudging a kerb or hitting a large pothole. Uneducated people still say “My rotors are warped”. Well the engineering facts are rotors do not warp, they are made of cast iron, they are very tough and can be run to red heat and cooled time after time and they will not distort, we do this day in day out on our dynos in the EBC lab. Thats why the whole world still uses cast iron as a vehicle brake rotor material, there has never been anything to beat it and probably never will be. Pro Cut machines Work on both plain rotors and even better on slotted and drilled rotors of all types.

Who are Pro-Cut?

Pro Cut are a USA based multi national and extremely professional Corporation. Their machines are used and approved by many major car manufacturers and used all over the world to do exactly what they do best, correct for rotor mis-alignment no matter how it arises on a car. You cannot achieve this with any other device.

Videos

EBC Truck Yellowstuff™ Sport Brake Pads

Because of its huge heat range, the applications where EBC Yellowstuff will deliver benefits range from fastest street use on higher horsepower cars and race use on most street based cars and even as a brake upgrade on Trucks and SUV.

High Efficiency Performance

• Truck Yellowstuff Sport brake pads are especially appreciated on Trucks for towing and heavy loads and where wheel and tire oversize upgrades have been fitted.
• Truck Yellowstuff Sport brake pads are not rated as low dust but create lower dust to OEM pads. These pads are a full FMVSS grade higher in friction level than most stock pads and as such will feel stronger on the pedal after install and bedding.
• The pads are also a race developed friction material designed for heavy heat and brake abuse. As an ideal upgrade pad when fitting oversize tyres and wheels, the EBC yellowstuff brake pads have been tested to destruction by the likes of Randy Merritt of Mongo Racing in off road desert racing.

Features

• Truck Yellowstuff Sport brake pads are a high friction formula that improves brake effect 30%
• Zero brake fade makes this material perfect for heavier loads such as towing
• Capable of repeated heavy brake use without brake “Fall-Off”
• Very minimal disc/rotor damage characteristics
• Suitable for all light trucks, Jeep and SUV in highway use
• Superb brake control and pedal response
• Features red “brake in’ surface coating for instant safe braking after install

Performance

Ultra high friction brake pads for US built trucks and 4×4 vehicles.

• If you want improved stopping power with just a pad change, this is the perfect pad choice. This refined version of the famous EBC Yellowstuff race formulation is now available in pad designs to fit popular American trucks/pick-ups and many Asian and European built 4x4s. This fast growing market for improved horsepower trucks and oversize wheel conversions has thrown up a black hole requiring a performance pad to fit these makes and models that will stop even the fastest driver in a heartbeat. Average friction coefficient 0.5 with similar dust to original pads and the dust is the same or perhaps slightly more than many original pads, this is not a low dust pad.
• Stretched limos is another superb application for this material. EBC Brakes is now supplying this compound for stretched F250s, stretched Excursions, stretched Hummers which are subject to a PSV (public service vehicle) test. Vehicles which failed the PSV test with standard brakes passed the test quoting a 20% brake improvement when using this material.
• Yellowstuff performance range is a high friction aramid fiber pad, totally resistant to brake rotor vibration, and easy on rotors.
• Many part numbers now carry ECE R90 approval.

Trucks

USA Light Truck Drivers love it because…

Normally race pads require warm up….but not the EBC Yellowstuff. This compound works well from cold and is therefore a perfect solution if you simply want the best stopping power you can get for street use on a truck or SUV where the brakes are “Marginal” from the factory or you have enhanced your ride with oversize wheels tyres or raised suspension, all of which place much higher demands on the brakes.

Drivers with Trailers love it because…

Towing brings extra loads and that mushy feel of many stock or low friction aftermarket pads does not inspire confidence. EBC Yellowstuff gives you as much bite as you can get from a stock system and in most cases will give a noticeable brake improvement under loads of towing.
