ACT® AI4-XTG6 - Extreme Race Sprung Clutch Kit

4 reviews|Item # mpn4743547931
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $642.00
    In Stock (5)
    See similar products
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Honda

    Specifications

    Clutch Disc Diameter
    8.7" / 220 mm
    Disc Material
    Ceramic
    Disc Type
    Race Sprung
    Input Shaft Diameter
    1.03125"
    Pad Quantity
    6
    Pressure Plate Type
    Xtreme
    Product Weight
    13.4 lbs.
    Torque Capacity
    410 ft/lbs.
    Torque Capacity Over OE
    1.2

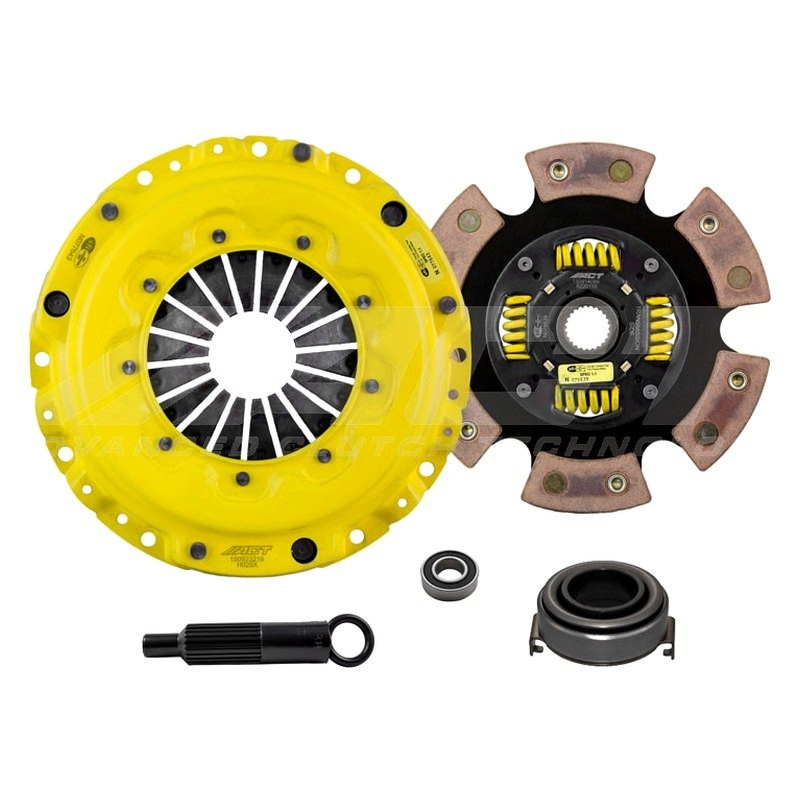

    Includes

    • H025X - ACT Extreme Clutch Pressure Plate
    • 6220110 - ACT 6 Pad Sprung Race Clutch Disc
    • AT88 - ACT Clutch Alignment Tool
    • PB1002 - ACT Clutch Pilot Bearing
    • RB817 - ACT Clutch Release Bearing

    Features

    • Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
    • Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
    • Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
    • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

    Product Details

    Extreme Race Sprung Clutch Kit by ACT®This kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. The race disc is well-suited for the smaller disc sizes in smaller engines.

    Installation

    ACT® - Extreme Race Sprung Clutch Kit - Installation Instruction
    ACT® - Installation Instructions
