ACT® AI4-XXG6 - MaX Extreme Race Sprung Clutch Kit

4 reviews|Item # mpn4723036575
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $693.00
    In Stock (3) - Ships Tomorrow 06.29.26
    See similar products

    Vehicle Fitment

    Honda

    Specifications

    Clutch Disc Diameter
    8.7" / 220 mm
    Disc Material
    Ceramic
    Disc Type
    Race Sprung
    Input Shaft Diameter
    1.03125"
    Pad Quantity
    6
    Pressure Plate Type
    Maxx Xtreme
    Product Weight
    13.4 lbs.
    Torque Capacity
    485 ft/lbs.
    Torque Capacity Over OE
    1.62

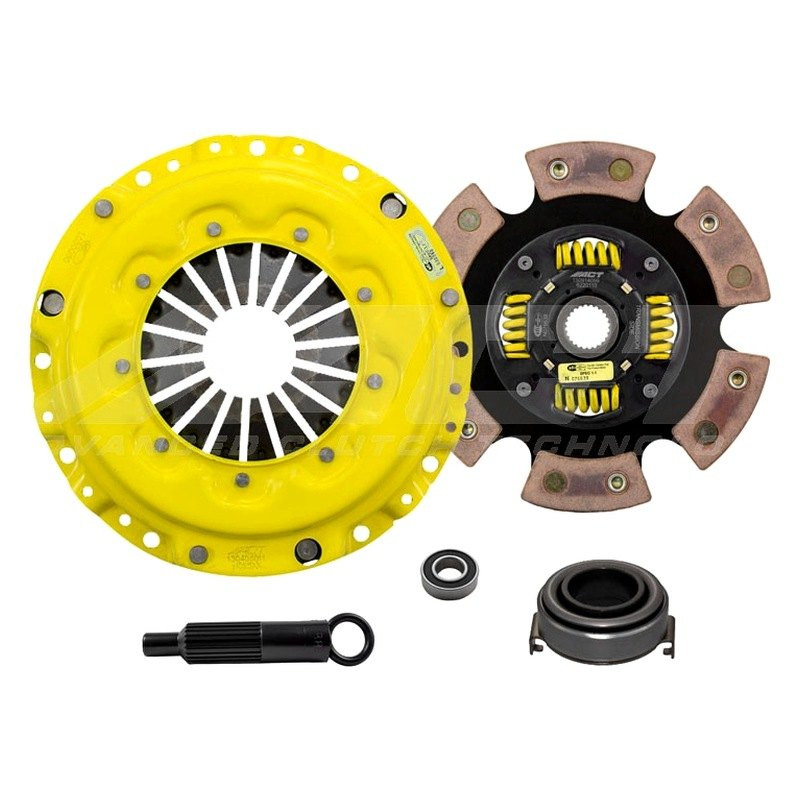

    Includes

    • H025XX - ACT Maxx Extreme Clutch Pressure Plate
    • 6220110 - ACT 6 Pad Sprung Race Clutch Disc
    • AT88 - ACT Clutch Alignment Tool
    • PB1002 - ACT Clutch Pilot Bearing
    • RB817 - ACT Clutch Release Bearing

    Features

    • Heavy to very heavy pedal effort, aggressive engagement, quickest shifts, increased gear rattle
    • Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
    • Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
    • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

    Product Details

    MaX Extreme Race Sprung Clutch Kit by ACT®ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. The race disc is well-suited for the smaller disc sizes in smaller engines.

    Installation

    ACT® - MaX Extreme Race Sprung Clutch Kit - Installation Instruction
    ACT® - Installation Instructions
    ACT® - MaX Extreme Race Sprung Clutch Kit - Installation InstructionACT® - Installation InstructionsACT® - WarrantyACT® - CatalogACT® - Selecting the Right Clutch InformationACT® - Products FeaturesACT® - Important!ACT Authorized DealerProduct linesFAQAbout us
    Brand:
    ACT
    Part Number:
    AI4-XXG6
    UPC:
    842385004163
    Alternate MPN:
    AI4XXG6

    Reviews

    (4)
    Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
    /5
    1-4 of 4 Reviews
    5 of 5
    Be ready for the bite
    Nice solid clutch, but don't rush the break-in. If you don't get at least 500 miles of normal driving first its gonna feel rough. Also this clutch is for people who actually drive their car hard, it grabs aggressive and def takes some adjustment. Pedal feel is stiff but not unbearable.
    ACT® - Xtreme Race Single Disc Clutch Kit
    Posted by User (Trenton, NJ) / February 06, 20252016 Ford Focus
    5 of 5
    Solid
    Installed this clutch on my '13 WRX after the stock one gave out. I love that there's no clunk going into 2nd or 3rd anymore
    Posted by Dominic (Seattle, WA) / December 23, 20242013 Subaru WRX
    5 of 5
    High-Quality
    The clutch kit arrived earlier than expected and was well-packaged. You can tell it's high-quality right out of the box. Everything was included and my wrx feels nice after installing it.
    Posted by Logan (Chicago, IL) / December 21, 20242017 Subaru WRX
    5 of 5
    Handles Power Like a Champ
    The pedal feel is heavier but not unbearable and it grabs so much better than stock. Engagement is smooth, it feels way more solid than the stock clutch. So far, it's holding up great with my stage 2 setup.
    Posted by Jayden (Asheville, NC) / November 30, 20242016 Subaru WRX
