Name: ACT® SB5-HDG6 - Heavy Duty Race Sprung Clutch Kit
Brand: ACT
SKU: mpn4947928355
Price: 1001.00 USD
Availability: InStock
Rating: 5 (4 reviews)

Vehicle Fitment

Subaru

Specifications

Clutch Disc Diameter	9" / 228 mm
Disc Material	Ceramic
Disc Type	Race Sprung
Input Shaft Diameter	1"
Pad Quantity	6
Pressure Plate Type	Heavy Duty
Product Weight	14.9 lbs.
Torque Capacity	535 ft/lbs.
Torque Capacity Over OE	0.69

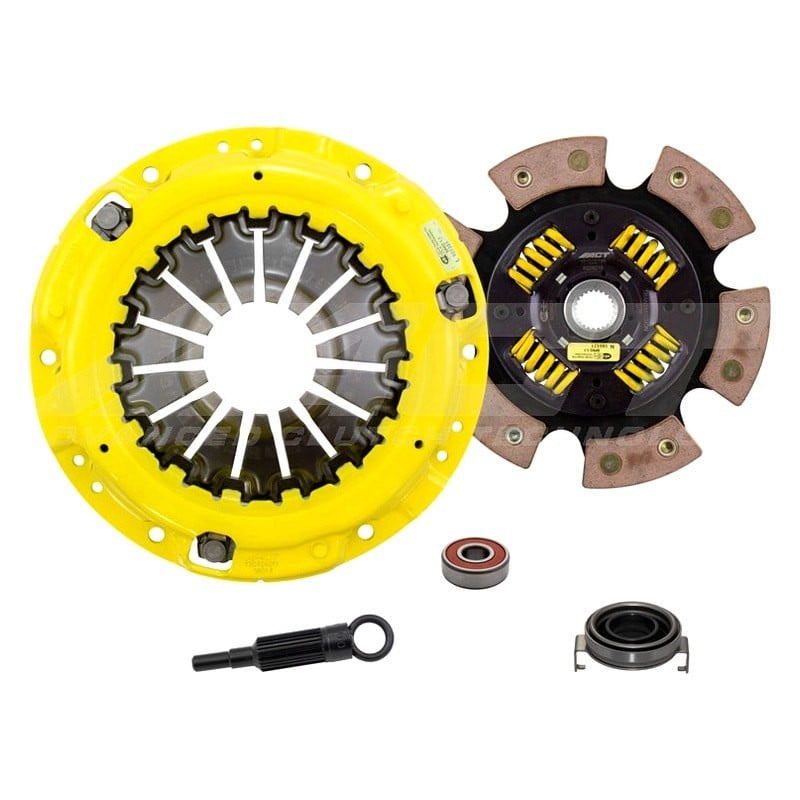

Includes

SB014 - ACT Heavy Duty Clutch Pressure Plate
6228218 - ACT 6 Pad Sprung Race Clutch Disc
RB846 - ACT Clutch Release Bearing
AT90 - ACT Clutch Alignment Tool
PB1004 - ACT Clutch Pilot Bearing

Features

Light to moderate pedal effort, aggressive engagement, increased gear rattle
Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Product Details

Heavy Duty Race Sprung Clutch Kit (SB5-HDG6) by ACT®This kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the rigid race disc, engagement is harsher, but shifting is faster. The rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Installation

ACT® - Heavy Duty Race Sprung Clutch Kit - Installation Instruction

ACT® - Installation Instructions

ACT® - Heavy Duty Race Sprung Clutch Kit - Installation Instruction ACT® - Installation Instructions ACT® - Warranty ACT® - Catalog ACT® - Selecting the Right Clutch Information ACT® - Products Features ACT® - Important!ACT Authorized Dealer Product lines FAQ About us

Brand:

ACT

Part Number:

SB5-HDG6

UPC:

842385011154

Alternate MPN:

SB5HDG6

Warranty

ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase. Written notice must be immediately given to ACT within the warranty period. ACT requires a copy of the purchase receipt showing the unit was purchased from an Authorized Dealer to verify the product is under warranty. Products purchased used do not carry a warranty. This warranty is to the original purchaser and is non-transferable.

ACT reserves the right to examine any part returned for warranty claim to determine, to ACT’s satisfaction, whether the material or workmanship of the part does not conform to this limited warranty. ACT’s obligation under this warranty shall be limited to repairing, replacing, or crediting, at its option, any part which is deemed covered by ACT. No labor, lift or storage charges will be reimbursed for any reason. Damage to ACT’s parts resulting from misuse, improper use, or abuse shall void this limited warranty. Failure to follow ACT’s installation instructions and the vehicle manufacturer’s installation procedures and specifications shall void this limited warranty.

ACT undertakes no responsibility for the quality of the goods except as otherwise provided in this contract. ACT assumes no responsibility that the goods will be fit for any particular purpose for which you may be buying these goods, except as otherwise provided in the contract. ACT shall not be liable for any damage or injury to persons or property resulting from improper installation or misuse of any part subject to this warranty.
