Features
- Patented X-Digital Technology makes it the Fastest Responding Wideband AFR Controller

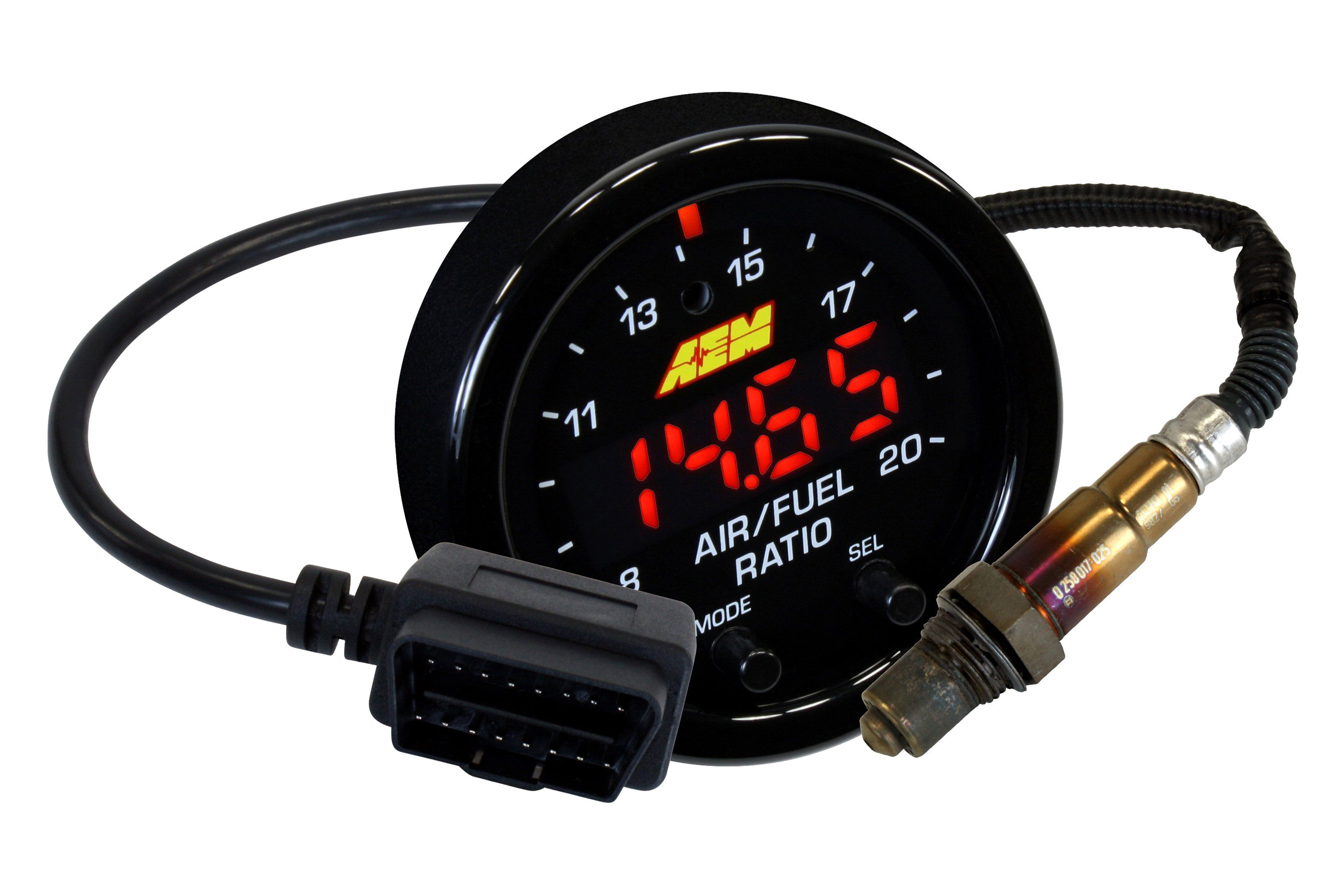

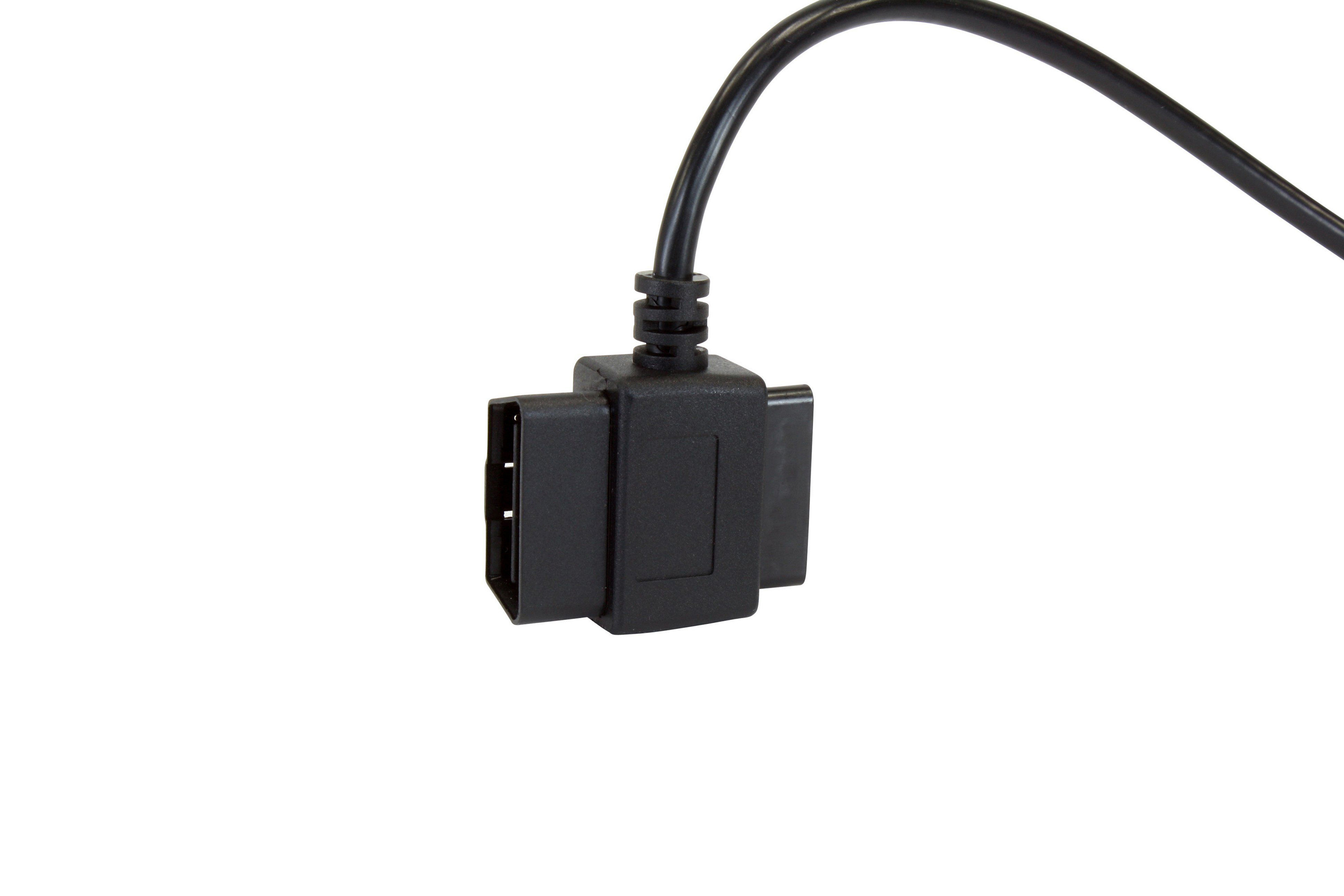

- OBDII pass-through provides AFR readings through the factory ECU CAN-bus – Ideal for users with piggyback programmers or open source tuning software
- Use the factory 02 calibration or free-air calibrate using buttons on faceplate
- Compatible with vehicle/system voltages up to 16V
- Optional outputs for 0-5 V & RS232 for data logging and feedback control (requires wiring)
- Can display AFR values in hundredths of %
- 52mm gauge diameter and slim 0.825” gauge depth
- Gauge cup depth only .200” deep!
- Auto dimming feature

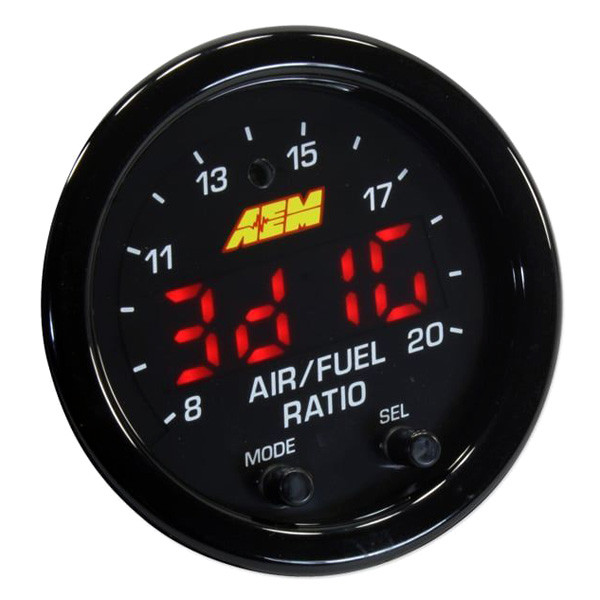

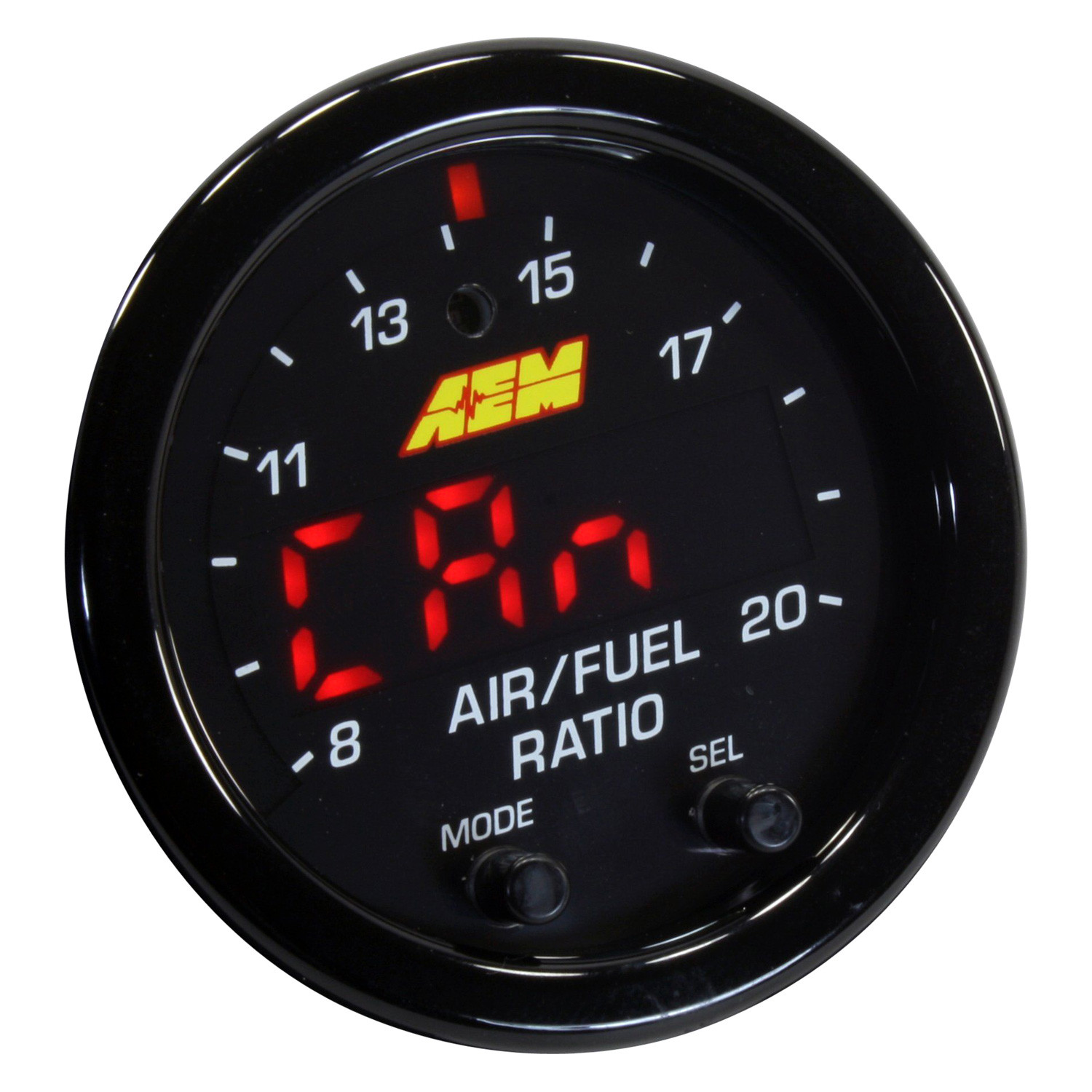

- User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, 3- or 4-digit display and OBDII output settings (if necessary)
Product Details

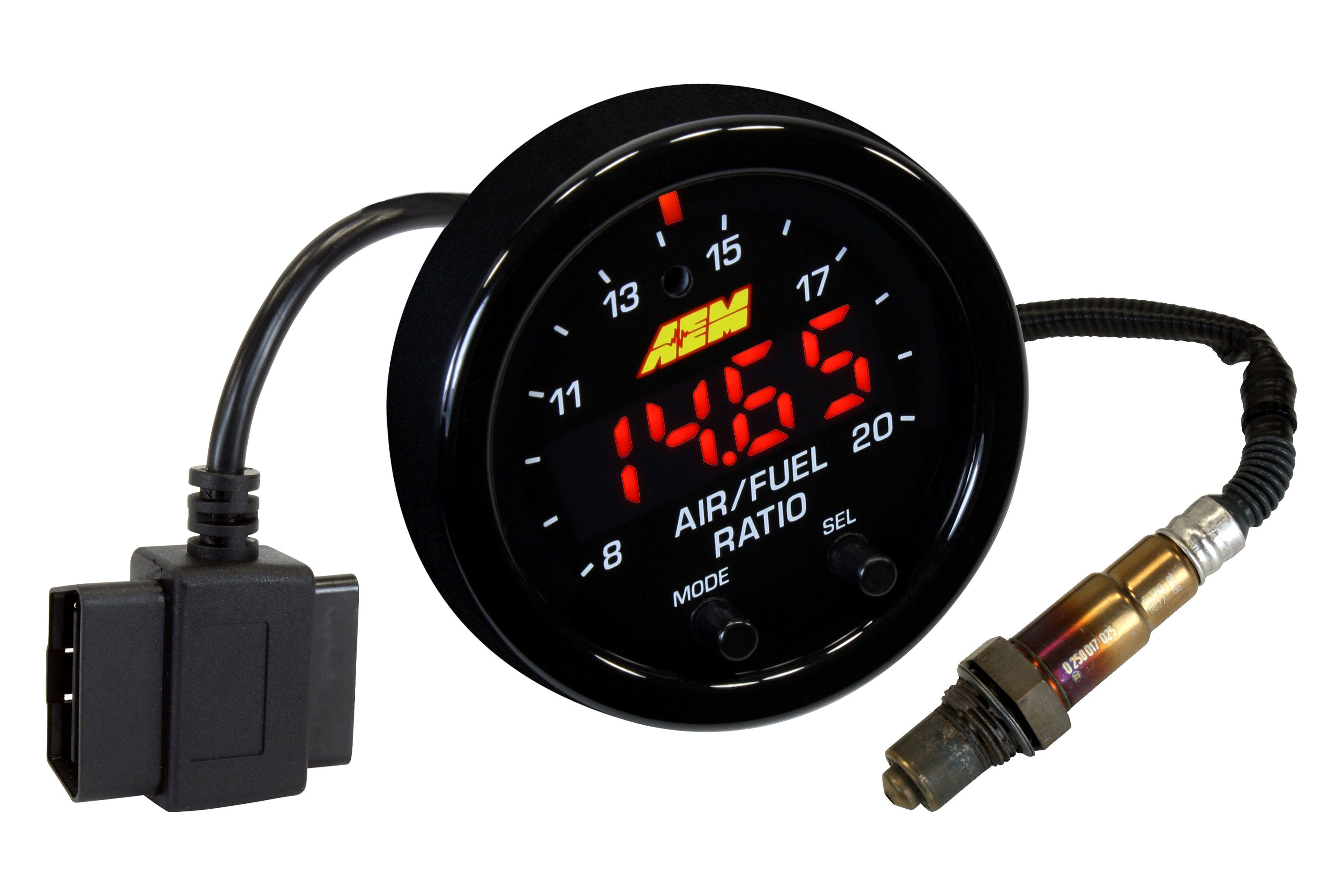

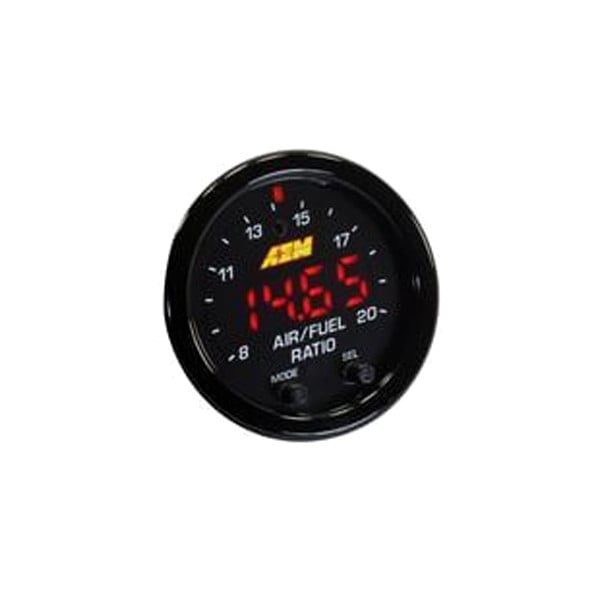

Universal X-Series AFR Controller Gauges by AEM Performance Electronics®. Diameter: 2-1/16". Face Color: Black. Built upon unique, patented 100% Digital technology that makes them the fastest responding wideband air/fuel ratio controllers in independent testing. The X-Series Wideband Air Fuel Ratio Gauge has a user configurable display via buttons on the gauge face that allow you to change AFR values for different fuels, Lambda or O2%, change the center display to three or four digits, perform a free-air calibration if desired as the sensor ages, and change the CAN message ID when linking multiple X-Series Inline Controllers or X-Series Controller Gauges.

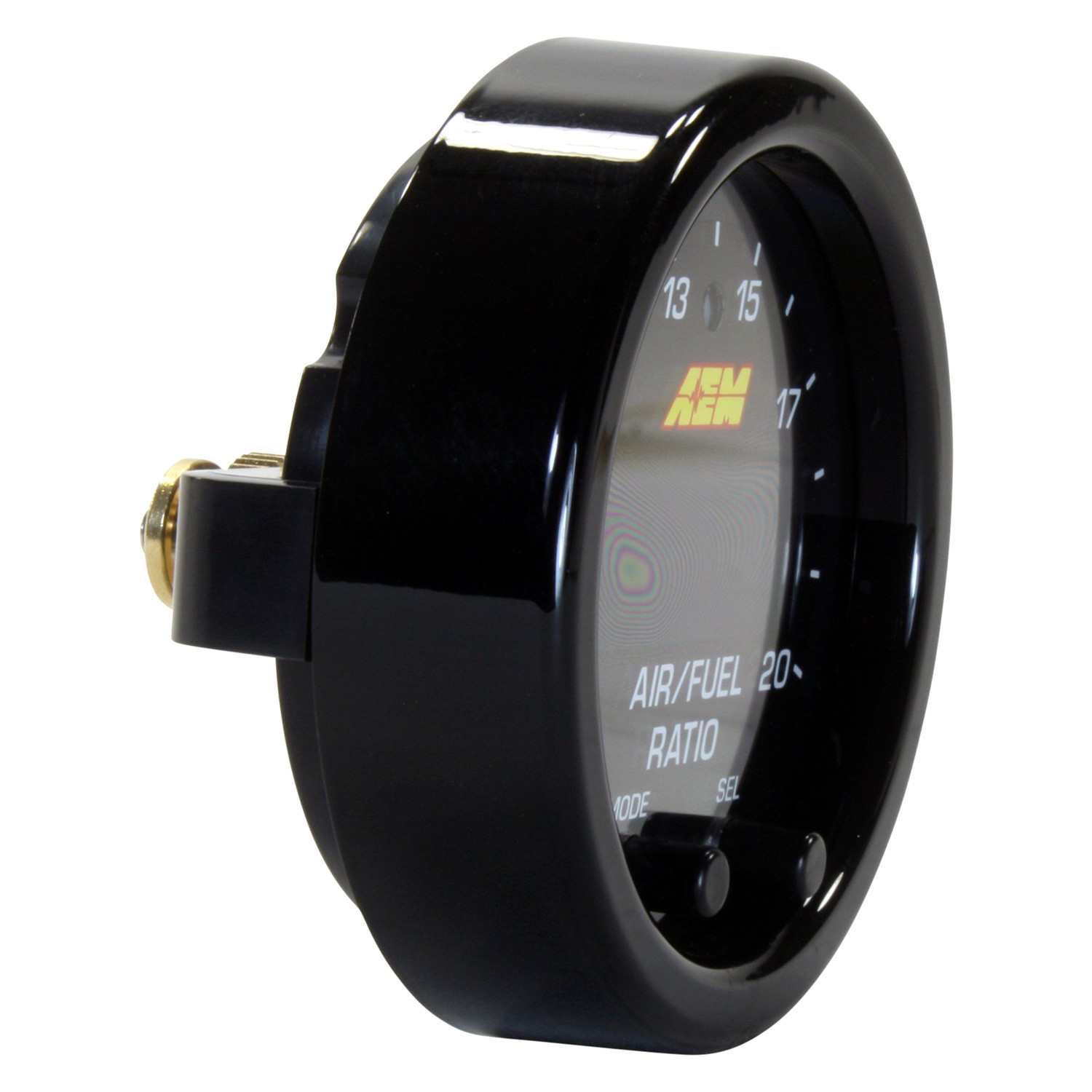

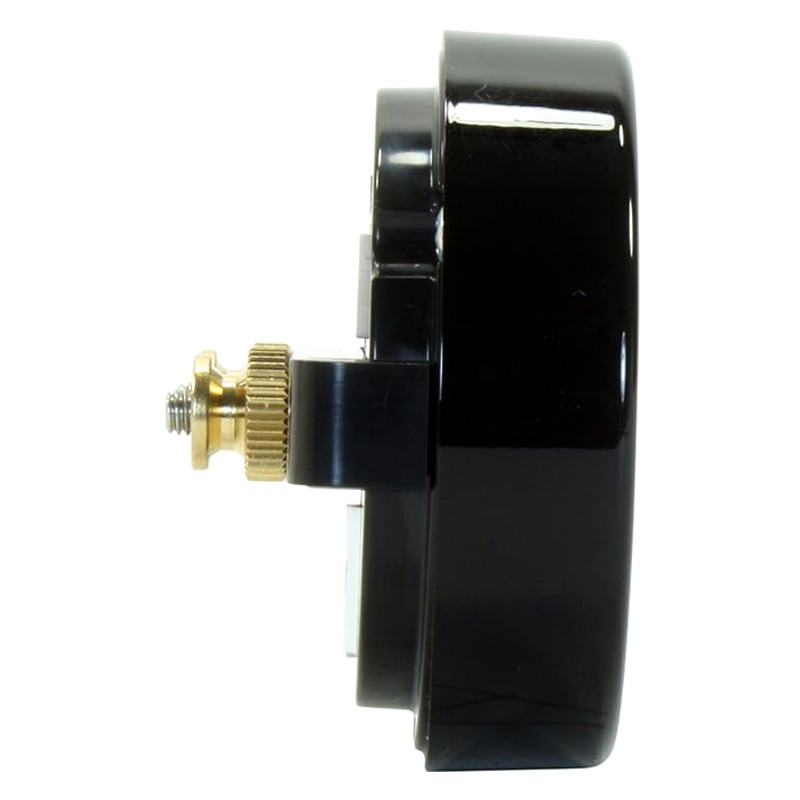

Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825”, with a cup depth of only 0.200". This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.
