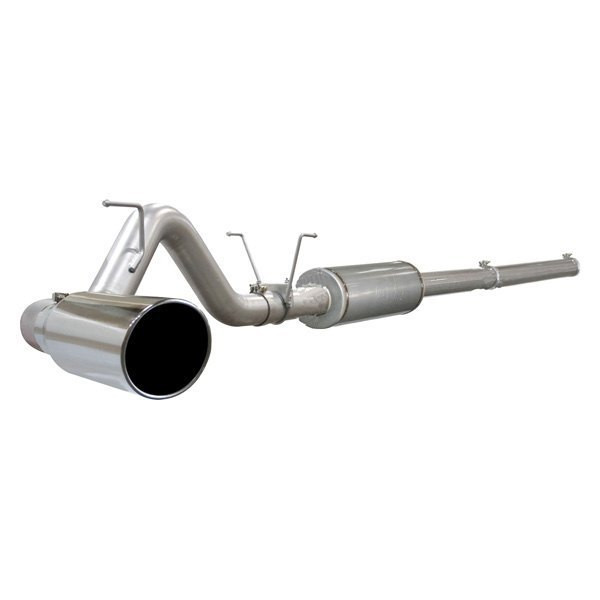

aFe® 49-42002 - Large Bore HD™ 409 SS Cat-Back Exhaust System with Single Side Exit

23 reviews|Item # mpn672756
Vehicle Specific
    Select Vehicle
    Notes:
    • Remember to check your local or state laws regarding vehicle noise restrictions and Emission Standards.
    Authorized Dealer
    $660.00
    In Stock (2) - Ships within 24 hrs
    See similar products

    Vehicle Fitment

    Dodge

    Specifications

    Exhaust System Type
    Cat-Back
    Exhaust Tubing Material
    409 SS
    Exit Location
    Single Passenger Side
    Main Tubing Diameter
    4"
    Exhaust System Sound
    Aggressive / Loud
    Muffler Body Length
    24"
    Tip Finish
    Polished
    Tip Material
    304 SS
    Tip Cut Type
    Slash-Cut
    Hardware Included
    OE Style Band Clamps, OE Style Bayonet Hangers
    Catalytic Converter(s) Included
    No
    Exhaust Type
    Single
    Exit Location
    Passenger side
    Hardware Included
    Yes
    Intermediate Pipe Diameter (in.)
    4.00 in.
    Muffler Configuration
    Single inlet/Single outlet
    Muffler Finish
    Natural
    Muffler Included
    Yes
    Muffler Material
    409 stainless steel
    Muffler Quantity
    One
    Muffler Style
    Turbo
    Quantity
    Sold as a kit.
    Remanufactured
    No
    System Finish
    Natural
    System Material
    409 stainless steel
    System Style
    Cat-back
    Tailpipe Diameter (in.)
    4.00 in.
    Tip Color
    Polished
    Tip Cut
    Slant
    Tip Edge Style
    Rolled edge
    Tip Included
    Yes
    Tip Material
    304 stainless steel
    Tip Outlet Size (in.)
    5.00
    Tip Quantity
    1
    Tip Shape
    Round
    Additional Info
    Uses factory mounting locations

    Includes

    • (1) 304 SS Exhaust Tip (Part Number 49-90002)
    • (1) Hanger Clamp (Part Number 05-41037)
    • (1) Mid-Pipe (LWB) (Part Number 05-44118)
    • (1) Mid-Pipe (SWB (Part Number 05-44119)
    • (1) Muffler (Part Number 49-91002)
    • (1) One-Piece Over-Axle/Tailpipe (Part Number 05-44123)
    • (2) Band Clamps (Part Number 05-41042)

    Features

    • Up to 29% greater exhaust flow than stock system
    • Increases horsepower and torque
    • Improves performance
    • Lowers exhaust gas temperature
    • Flow bench and dyno tested
    • Tubes mandrel-bent from 409 stainless steel
    • Welded hangers with swaged ends
    • Slotted and swedged ends
    • Premium quality band clamps
    • Backed by a 2-year limited warranty
    • Proudly made in the USA

    Product Details

    Large Bore HD™ 409 SS Cat-Back Exhaust System with Single Side Exit (49-42002) by aFe®. With Muffler Delete Pipe. Exhaust System Type: Cat-Back. Exhaust Tubing Material: 409 SS. Main Tubing Diameter: 4". Exhaust System Sound: Aggressive / Loud. Get increased exhaust flow, more horsepower and torque, improved performance and lower exhaust gas temperatures with the aFe Large Bore HD Cat-Back Exhaust System. aFe dyno tests every system for maximum gains, and constructs them from mandrel-bent stainless steel for maximum flow and long-lasting durability.

    Installation

    aFe® - Large Bore HD™ 409 SS Cat-Back Exhaust System Installation Instructions

    A performance exhaust system is one of the most common ways of improving a vehicle's operation. The theory is simple; just reduce restriction to increase exhaust flow and you gain power. But all exhaust systems are not created equal; in reality there's more to it than just selling some sewer pipe sized tubes.

    aFe tests its systems on the flow bench and the dynamometer to determine the right pipe size and muffler construction. Then they mandrel bend the pipes to ensure they maintain their shape and size throughout the entire length, to provide smooth, unrestricted airflow. Tubes that are not mandrel bent can lose up to 20% of their diameter in sharp bends. An 8" diameter by 30" length, straight, flow-through, perforated muffler is included in the system. A straight muffler delete pipe is also included if a more aggressive sound and maximum flow is desired. This system will increase exhaust flow by up to 29% and lower EGT (Exhaust Gas Temperature) by up to 100º, with a corresponding improvement in power and performance.

    But performance is only part of the equation. A quality exhaust system should be easy to install and made to last. The muffler and all pipes of the Large Bore HD system are constructed from durable 409 stainless steel. To ensure a tight seal, slotted and swedged ends are used whenever possible. When used with the supplied premium quality band clamps, the tightest, leak-free seal is the result. Every hanger is thoroughly welded on each side to ensure a strong attachment and the hangers also feature swaged bayonet ends to lock in place once installed. The factory mounting locations are used throughout and a 2-piece tailpipe facilitates adjustment.

    Every system comes with clamps, hangers and detailed instructions to guide you through the installation. The Large Bore HD Exhaust System is made in USA.

    aFe® - Large Bore HD™ 409 SS Cat-Back Exhaust System Installation InstructionsaFe® - Exhaust TypesaFe® - WarrantyaFe® - FAQaFe® - CatalogsMade In USAaFe Authorized Dealer
    Brand:
    aFe
    Part Number:
    49-42002
    UPC:
    802959494288
    Alternate MPN:
    4942002

    Reviews

    (23)
    Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
    /5
    1-10 of 23 Reviews
    5 of 5
    The Only Way to Repair a Muffler
    It looks good. Very easy to install, only took a 1/2 hour. Good price. Quality looks good. Only time will tell.
    Posted by Luci (Circleville, WV) / July 01, 20132004 Dodge Ram
    5 of 5
    Exhaust
    Really loud if you want to be loud its easy install if you know what your doing
    aFe® - Large Bore HD™ 409 SS Cat-Back Exhaust System with Single Side Exit
    Posted by Customer / April 27, 20222003 Ford F-250
    4 of 5
    It’s Okay
    Took me at most 20 minutes but I have a car lift. It had came with everything but when I got the box the exhaust hangar was poking out the box, it came with a license plate cover and 4 stickers. And yes with this exhaust you need to cut off the stock exhaust, it was super easy to install when I was finished I noticed the exhaust tips aren’t aligned that great it faces a little bit downwards. But when I had started the car it sounds loud in the interior sounds pretty good but my father says in sounds close to stock from the out side. I noticed when you rev and cruise at go to high rpm you barely hear the exhaust but when you cruise at low rpm or idles it sounds loud like a subwoofer. I had posted a video on YouTube copy and paste the name of this item and look it up on YouTube the name is car geek
    aFe® 49-36346-B - Mach Force XP™ 304 SS Axle-Back Exhaust System with Dual Rear Exit
    Posted by Customer / October 18, 20252016 BMW 2-Series
    5 of 5
    Truck sounds way better
    Stock exhaust was too quiet, this adds some nice sound. Not crazy loud but deep enough to feel like an upgrade over stock.
    Posted by Leroy (Dallas, TX) / February 08, 20252022 Ford F-450
    5 of 5
    Awesome Sound
    I chose aFe for my '19 Sierra 1500 and I really love the sound!! Deep and aggressive just what I was looking for. Noticed a slight boost in performance too.
    Posted by Customer (Little Rock, AR) / January 30, 20252019 GMC Sierra 1500
    5 of 5
    Thrilling Sound Upgrade!
    I love how aggressive my truck sounds now. Definitely worth it for the growl alone! Installation was a bit tricky solo, I'd recommend having a buddy help out.
    Posted by Lance (Austin, TX) / December 15, 20242021 Ford F-250
    5 of 5
    Easy Install , Everything Included , Sounds Great
    Easy to install, took about 1 hour, no jack needed. all parts where included that needed to be installed. It’s like a puzzle, needed to loosen the middle and rear hook support brackets that are bolted to frame for easier install insert of the exhaust hooks into the rubber supports. Keep everything loose until it’s all connected. I used a can of wd40 on the joint to adjust the tail pipe to muffler connection and get it to slide in smooth and to adjust tail pipe so it faces up or down to your liking . Make sure to tighten after install and tighten again after 50 miles or so.sound is amazing , definitely makes the v8 titan sound like a v8, a for sure noticeable upgrade from stock . Sounds extra nice cruising through parking garages. For the price it’s a good find
    Posted by Charles (Orlando, FL) / September 08, 20222019 Nissan Titan
    5 of 5
    Easy install , Everything Included , Sounds Great
    Easy to install, took about 1hour, no jack needed. all parts where included that needed to be installed. It’s like a puzzle, needed to loosen the middle and rear hook support brackets that are bolted to frame for easier install insert of the exhaust hooks into the rubber supports. Keep everything loose until it’s all connected. I used a can of wd40 on the joint to adjust the tail pipe to muffler connection and get it to slide in smooth and to adjust tail pipe so it faces up or down to your liking . Make sure to tighten after install and tighten again after 50 miles or so.sound is amazing , definitely makes the v8 titan sound like a v8, a for sure noticeable upgrade from stock . Sounds extra nice cruising through parking garages. For the price it’s a good find
    Posted by Charles (Orlando, FL) / September 08, 20222019 Nissan Titan
    1 of 5
    Waste of Money
    I bought this kit for my 2021 Ram 3500, took 3 hrs to remove and install new exhaust, suppose to be loud and aggressive. NOT. Stock exhaust was better, no change in sound or anything.
    Posted by Customer / September 13, 20212021 Ram 3500
    4 of 5
    2door Jk
    Works and sounds great, and I feel a little more hp while driving. I recommend buying an EVAP relocation kit due to the muffler being very close to it after installation.
    Posted by Customer / July 20, 20212011 Jeep Wrangler
