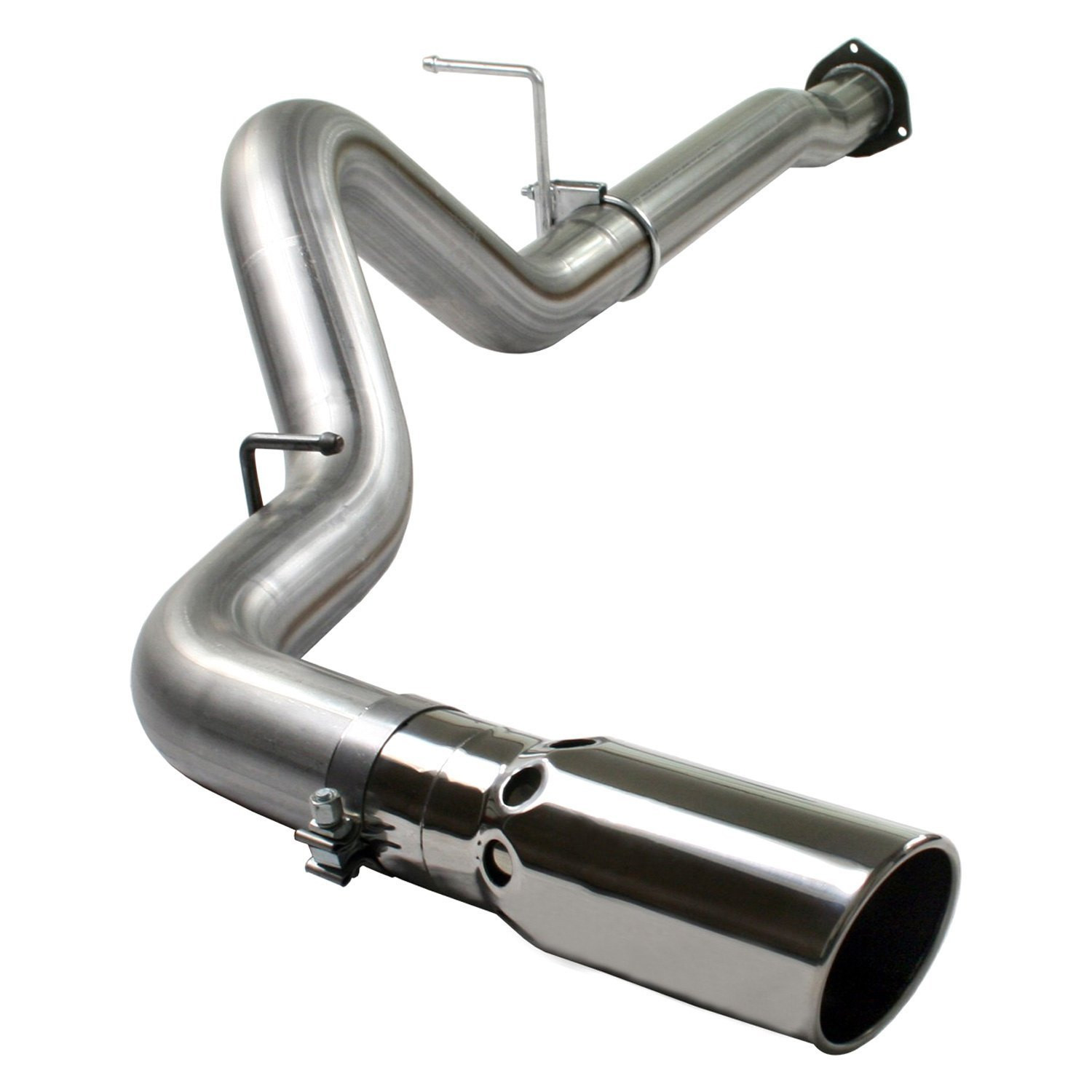

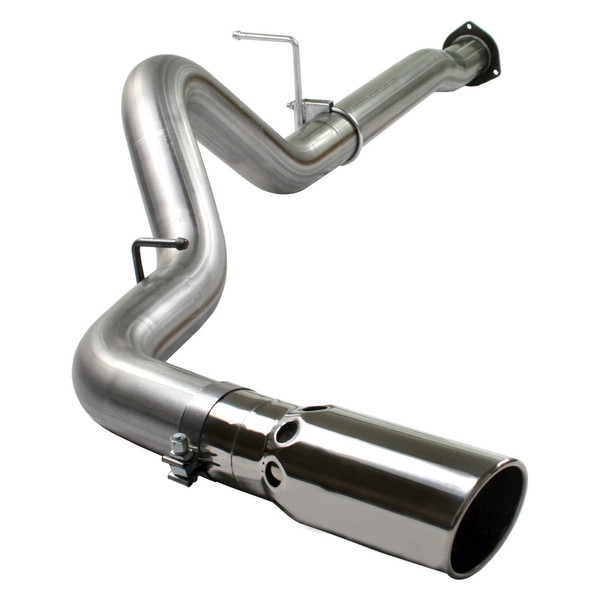

aFe® 49-44004 - Mach Force XP™ 409 SS DPF-Back Exhaust System with Single Side Exit

18 reviews|Item # mpn672795
Vehicle Specific
    Select Vehicle
    Notes:
    • Remember to check your local or state laws regarding vehicle noise restrictions and Emission Standards.
    Authorized Dealer
    $500.00
    In Stock (8) - Ships Tomorrow 06.15.26
    See similar products
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Chevy
    GMC

    Specifications

    Exhaust System Type
    DPF-Back
    Exhaust Tubing Material
    409 SS
    Exit Location
    Single Side
    Main Tubing Diameter
    4"
    Exhaust System Sound
    Aggressive / Loud
    Tip Finish
    Polished
    Tip Outlet Diameter
    6"
    Hardware Included
    ClampsHangers, Mounting Hardware
    Catalytic Converter(s) Included
    No
    Exhaust Type
    Single
    Exit Location
    Passenger side
    Hardware Included
    Yes
    Intermediate Pipe Diameter (in.)
    4.00 in.
    Muffler Included
    No
    Quantity
    Sold as a kit.
    Remanufactured
    No
    System Finish
    Natural
    System Material
    409 stainless steel
    System Style
    Particulate filter back
    Tailpipe Diameter (in.)
    4.00 in.
    Tip Color
    Polished
    Tip Cut
    Slant
    Tip Edge Style
    Rolled edge
    Tip Included
    Yes
    Tip Material
    304 stainless steel
    Tip Outlet Size (in.)
    6.00
    Tip Quantity
    1
    Tip Shape
    Round
    Additional Info
    126% Flow Increase
    +18 HP Gain
    +51 Lbs. X Ft. Torque Max Gains

    Includes

    • (1) Hanger Clamp (Part Number 05-41053)
    • (1) Mid-Pipe (Part Number 05-44146)
    • (1) Overaxle/Tail-Pipe (Part Number 05-44147)
    • (1) Polished Tip (Part Number 49-92002-P)
    • (3) Nuts (Part Number 05-40103)
    • (3) Screws (Part Number 03-50046)
    • (6) Washers (Part Number 03-50048)

    Features

    • Increases horsepower and torque
    • Improves performance
    • Lowers exhaust gas temperature
    • Flow bench and dyno tested
    • Welded hangers with swaged ends
    • Slotted and swedged ends
    • Premium quality band clamps
    • Backed by a 2-year limited warranty
    • Proudly made in the USA

    Product Details

    Mach Force XP™ 409 SS DPF-Back Exhaust System with Single Side Exit by aFe®. With Muffler Delete Pipe. Exhaust System Type: DPF-Back. Exhaust Tubing Material: 409 SS. Main Tubing Diameter: 4". Exhaust System Sound: Aggressive / Loud. Get increased exhaust flow, more horsepower and torque, improved performance and lower exhaust gas temperatures with the aFe Mach Force XP DPF-Back Exhaust System. aFe dyno tests every system for maximum gains, and constructs them from mandrel-bent stainless steel for maximum flow and long-lasting durability. This system begins at the DPF (Diesel Particulate Filter).

    Installation

    aFe® - Mach Force XP™ 409 SS DPF-Back Exhaust System Installation Instructions

    A performance exhaust system is one of the most common ways of improving a vehicle's operation. The theory is simple; just reduce restriction to increase exhaust flow and you gain power. But all exhaust systems are not created equal; in reality there's more to it than just selling some sewer pipe sized tubes.

    aFe tests its systems on the flow bench and the dynamometer to determine the right pipe size. Then they mandrel bend the pipes to ensure they maintain their shape and size throughout the entire length, to provide smooth, unrestricted airflow. Tubes that are not mandrel bent can lose up to 20% of their diameter in sharp bends. A typical aFe system will increase exhaust flow by up to 29% and lower EGT (Exhaust Gas Temperature) by up to 100º, with a corresponding improvement in power and performance.

    But performance is only part of the equation. A quality exhaust system should be easy to install and made to last. The pipes of the Mach Force XP system are constructed from durable 409 stainless steel. To ensure a tight seal, slotted and swedged ends are used whenever possible. When used with the supplied premium quality band clamps, the tightest, leak-free seal is the result. Every hanger is thoroughly welded on each side to ensure a strong attachment and the hangers also feature swaged bayonet ends to lock in place once installed.

    aFe® - Mach Force XP™ 409 SS DPF-Back Exhaust System Installation InstructionsaFe® - Exhaust TypesaFe® - WarrantyaFe® - FAQaFe® - CatalogsMade In USAaFe Authorized Dealer
    Brand:
    aFe
    Part Number:
    49-44004
    UPC:
    802959494417
    Alternate MPN:
    4944004

    Reviews

    (18)
    Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
    /5
    1-10 of 18 Reviews
    4 of 5
    It’s Okay
    Took me at most 20 minutes but I have a car lift. It had came with everything but when I got the box the exhaust hangar was poking out the box, it came with a license plate cover and 4 stickers. And yes with this exhaust you need to cut off the stock exhaust, it was super easy to install when I was finished I noticed the exhaust tips aren’t aligned that great it faces a little bit downwards. But when I had started the car it sounds loud in the interior sounds pretty good but my father says in sounds close to stock from the out side. I noticed when you rev and cruise at go to high rpm you barely hear the exhaust but when you cruise at low rpm or idles it sounds loud like a subwoofer. I had posted a video on YouTube copy and paste the name of this item and look it up on YouTube the name is car geek
    aFe® 49-36346-B - Mach Force XP™ 304 SS Axle-Back Exhaust System with Dual Rear Exit
    Posted by Customer / October 18, 20252016 BMW 2-Series
    5 of 5
    Easy Install , Everything Included , Sounds Great
    Easy to install, took about 1 hour, no jack needed. all parts where included that needed to be installed. It’s like a puzzle, needed to loosen the middle and rear hook support brackets that are bolted to frame for easier install insert of the exhaust hooks into the rubber supports. Keep everything loose until it’s all connected. I used a can of wd40 on the joint to adjust the tail pipe to muffler connection and get it to slide in smooth and to adjust tail pipe so it faces up or down to your liking . Make sure to tighten after install and tighten again after 50 miles or so.sound is amazing , definitely makes the v8 titan sound like a v8, a for sure noticeable upgrade from stock . Sounds extra nice cruising through parking garages. For the price it’s a good find
    Posted by Charles (Orlando, FL) / September 08, 20222019 Nissan Titan
    5 of 5
    Easy install , Everything Included , Sounds Great
    Easy to install, took about 1hour, no jack needed. all parts where included that needed to be installed. It’s like a puzzle, needed to loosen the middle and rear hook support brackets that are bolted to frame for easier install insert of the exhaust hooks into the rubber supports. Keep everything loose until it’s all connected. I used a can of wd40 on the joint to adjust the tail pipe to muffler connection and get it to slide in smooth and to adjust tail pipe so it faces up or down to your liking . Make sure to tighten after install and tighten again after 50 miles or so.sound is amazing , definitely makes the v8 titan sound like a v8, a for sure noticeable upgrade from stock . Sounds extra nice cruising through parking garages. For the price it’s a good find
    Posted by Charles (Orlando, FL) / September 08, 20222019 Nissan Titan
    2 of 5
    Not a Perfect Fit.
    The exhaust was not a perfect fit, they had to weld it and it does not sound aggressive at all, can barley tell a difference.
    aFe® - Mach Force XP™ 304 SS Cat-Back Exhaust System with Split Rear Exit
    Posted by Customer / March 08, 20212015 BMW 4-Series
    4 of 5
    Not a Perfect Fit
    Its not a perfect fit as advertised
    aFe® - Mach Force XP™ 304 SS Cat-Back Exhaust System with Split Rear Exit
    Posted by Customer / March 01, 20212015 BMW 4-Series
    5 of 5
    2014 Dodge Challenger R/T
    aFe Exhaust System looks and sounds great. I would recommend this system. The product fit perfectly.
    aFe® - Mach Force XP™ 409 SS Cat-Back Exhaust System with Quad Rear Exit
    Posted by Tim (Coal City, IN) / June 18, 20202014 Dodge Challenger
    5 of 5
    Product
    Great product all the way around with and anything you get from TRUCKiD, but the shipping from you to me, how long it takes to ship and I mean with anything it takes way too long.
    aFe® 49-44038-P - Mach Force XP™ 409 SS Cat-Back Exhaust System with Single Side Exit
    Posted by Vince (Rockford, MN) / November 28, 20192014 Chevy Silverado 1500
    5 of 5
    Exhaust Tip
    Sounds great. Easy install. Only issue is the black exhaust tip paint peeled off after just 2 days. I repainted with caliper paint. Other than that I’m very happy with it. Heat test the tips before shipping.
    Posted by Darrin (Bowling Green, VA) / October 13, 20192018 Nissan Titan
    3 of 5
    Not Very Happy
    Flange to converter not symmetrical part of the flange seated a good 1.5 the rest barley seated .75" on converter. That pipe was apx 1 foot too long, had to cot it. And to be honest it really doesn't sound that great, almost the same as before when the truck had a bad muffler.
    Posted by Paul (Killingworth, CT) / February 07, 20192005 Ford Ranger
    5 of 5
    aFe Mach Force XP
    Awesome exhaust! The aFe Mach Force plus my S&B cold air intake really woke my truck up! Loud when I want it to be loud and quiet when I want I want it quiet! All in all I would definitely recommend.
    aFe® 49-44038-P - Mach Force XP™ 409 SS Cat-Back Exhaust System with Single Side Exit
    Posted by Matthw (Kosciusko, MS) / January 31, 20192017 Chevy Silverado 1500
