Air Lift® 57204 - LoadLifter 5000™ Rear Air Spring Kit

1 review|Item # mpn805351994
Vehicle Specific
    Select Vehicle
    Notes:
    • Requires drilling for installation
    • Never exceed manufacturer’s recommended Gross Vehicle Weight Rating
    Authorized Dealer
    $483.99 + Free Shipping
    In Stock (44) - Ships within 24 hrs
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Chevy
    GMC

    Specifications

    Load Capacity
    5000 lbs

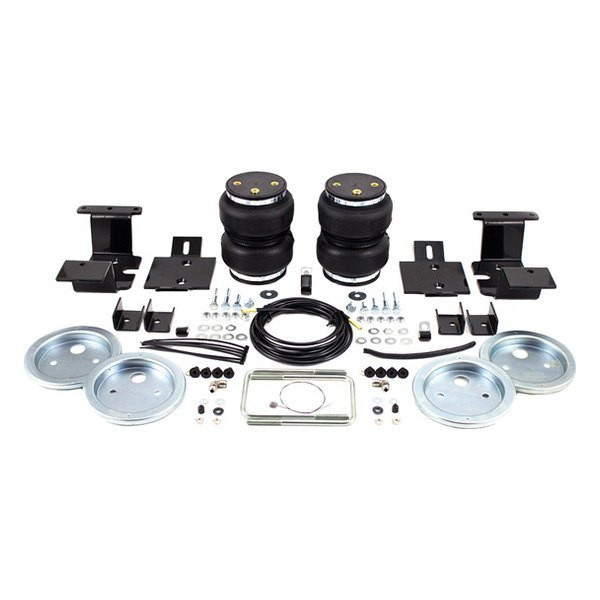

    Includes

    • (1) 3/8" Wire Bolt Leader Tool (Part Number 11968)
    • (1) 3/8"-16 X 1" Hex Head Bolt (Part Number 17107)
    • (1) Air Line (Part Number 20086)
    • (1) Frame Clamp (Large) (Part Number 10181)
    • (1) Hose Thermal Sleeve (Part Number 09484)
    • (1) LH Upper Bracket (kit# 57204) (Part Number 07155)
    • (1) LH Upper Bracket (kit# 57211) (Part Number 07039)
    • (1) RH Upper Bracket (kit# 57211) (Part Number 07040)
    • (1) RH Upper Brakcet (kit# 57204) (Part Number 07154)
    • (10) 3/8" Nylon Locknut (Part Number 18435)
    • (14) 3/8" Flat Washer (Small OD) (Part Number 18444)
    • (2) 3/8" Flat Washer (Large OD) (Part Number 18447)
    • (2) 3/8" X 1" Washer Head S/T Screw (Part Number 17129)
    • (2) 3/8"-16 X 1.5" Hex Head Bolt (Part Number 17108)
    • (2) 5/16" Flat Washer (Part Number 18405)
    • (2) 90° Swivel Elbow Fitting (Part Number 21837)
    • (2) Air Spring (Part Number 58437)
    • (2) Frame Clamp (Small) (Part Number 10778)
    • (2) Lower Bracket (Part Number 03021)
    • (2) Rubber Washer (Part Number 21234)
    • (2) Star Washer (Part Number 18411)
    • (2) U-Bolt (Part Number 11046)
    • (2) Valve Cap (Part Number 21230)
    • (4) 3/8"-16 X 2.25" Hex Head Bolt (Part Number 17420)
    • (4) 5/16" Hex Nut (Part Number 21233)
    • (4) J-Clamp (Part Number 01663)
    • (4) Roll Plate (Part Number 11951)
    • (6) Tie Strap (Part Number 10466)
    • (8) 3/8"-24 X 3/4" Flat Head Screws (Part Number 17215)

    Features

    • Fully adjustable air springs level your vehicle when towing or hauling a heavy load for a safe comfortable ride
    • Eliminate sag and bottoming out
    • Rugged durable components including air springs and all hardware
    • Easy to install with included instructions
    • Fits many 1/2 ton, 3/4 ton and 1 ton pickups and vans

    Product Details

    LoadLifter 5000™ Rear Air Spring Kit (57204) by Air Lift®. LoadLifter 5000 kits are Air Lift’s heaviest-rated air spring kits, specifically engineered for hauling or towing heavy loads. LoadLifter 5000 air springs are designed to fit popular vehicles and pickup trucks, motor homes, commercial trucks and other severe uses. LoadLifter 5000 air springs provide up to 5,000 pounds of leveling capacity for support of your heaviest loads.

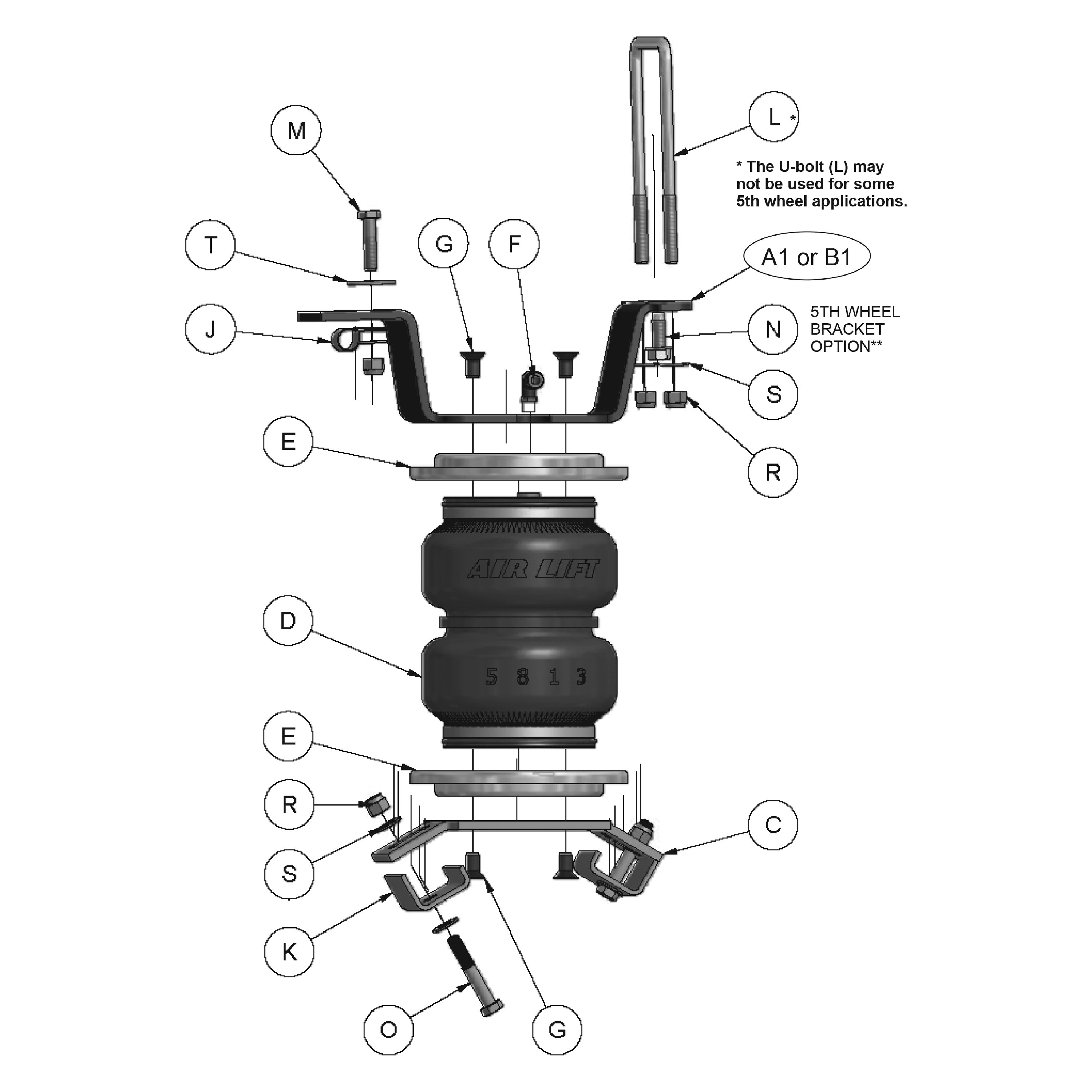

    Installation

    Brand:
    Part Number:
    57204
    UPC:
    729199572043
