All American Billet® 6772F100FS-FAAB - Front Suspension System

Specifications

Features

• 100% Bolt-On System, No Welding
• Parallel Four-Link Design
• Made in the USA

Product Details

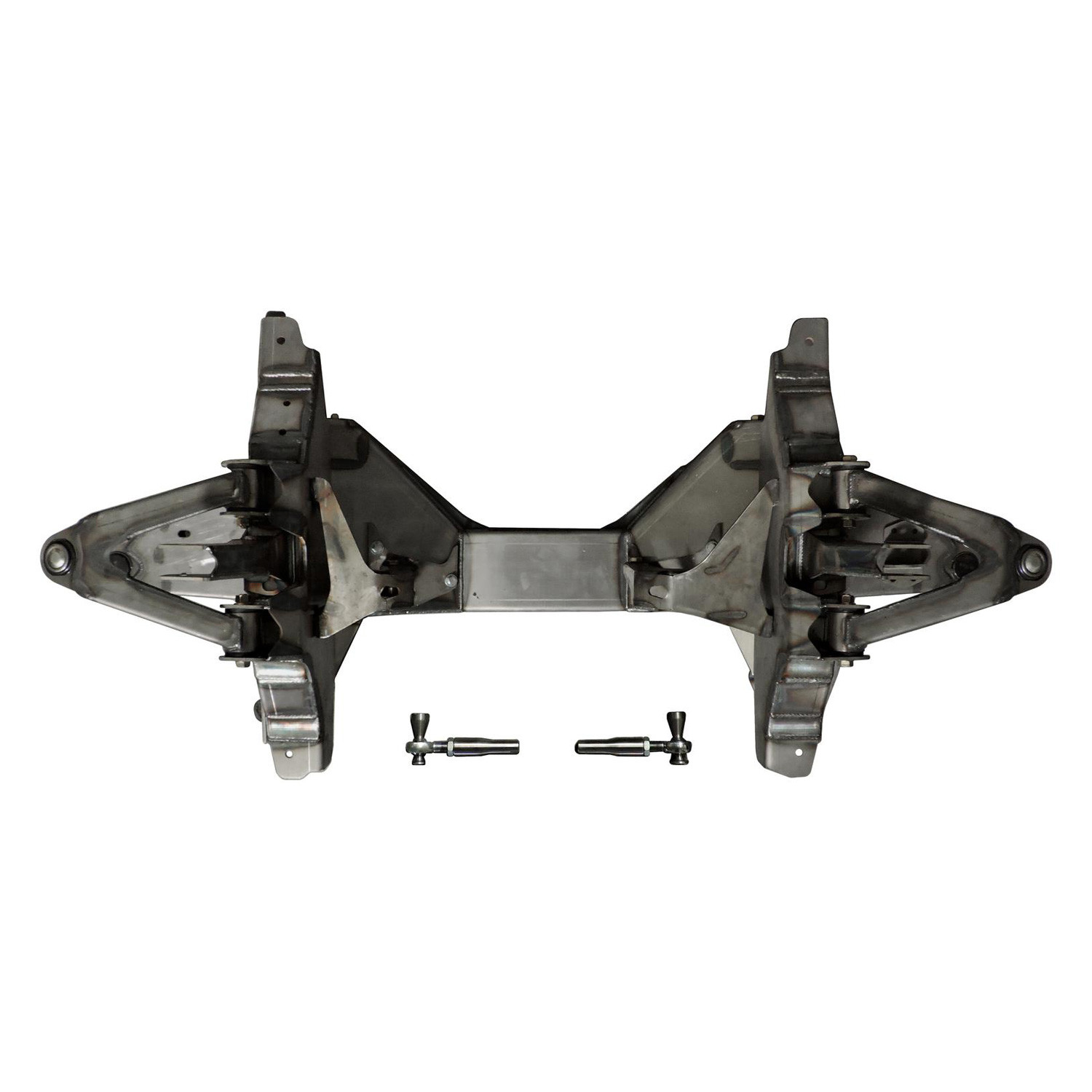

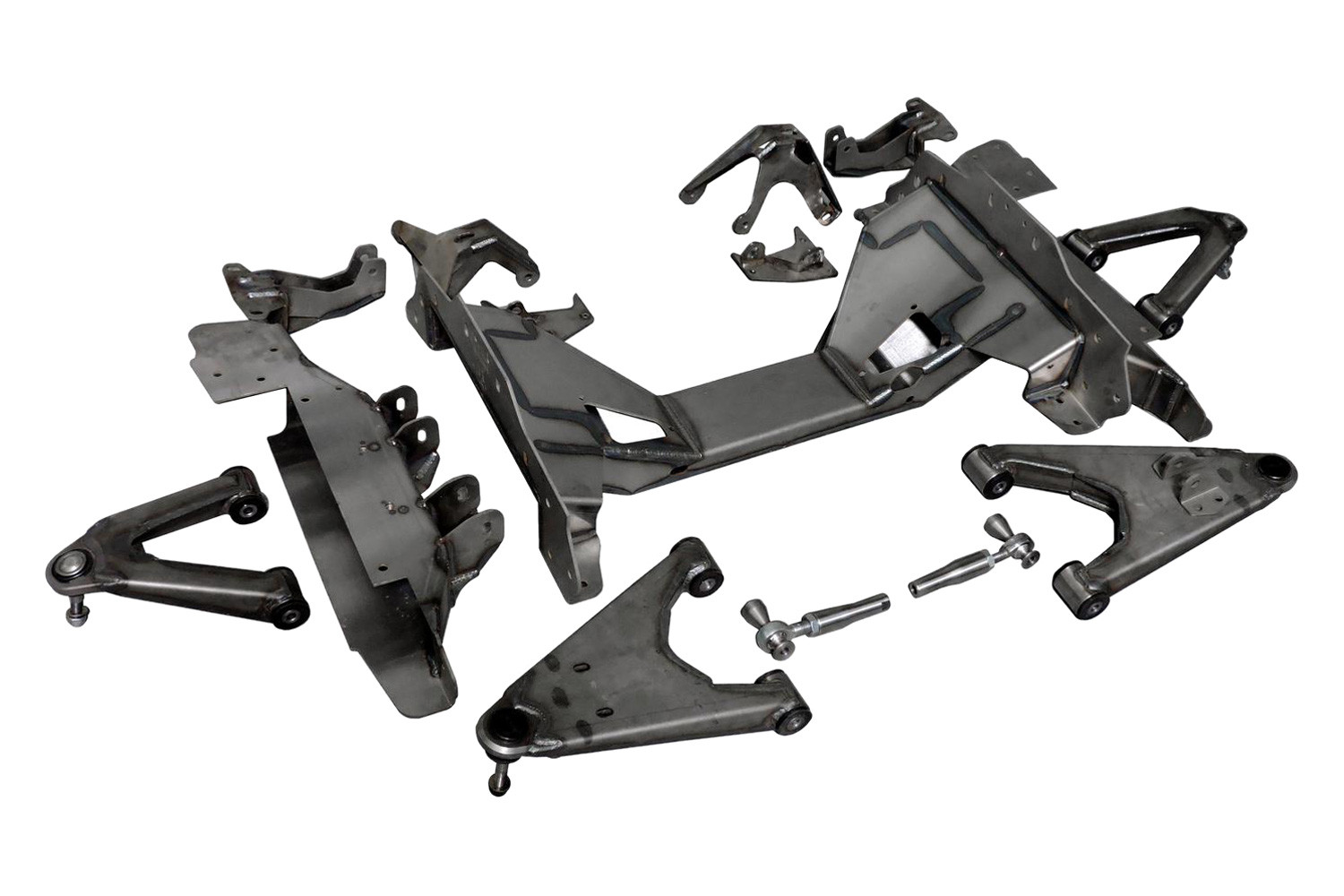

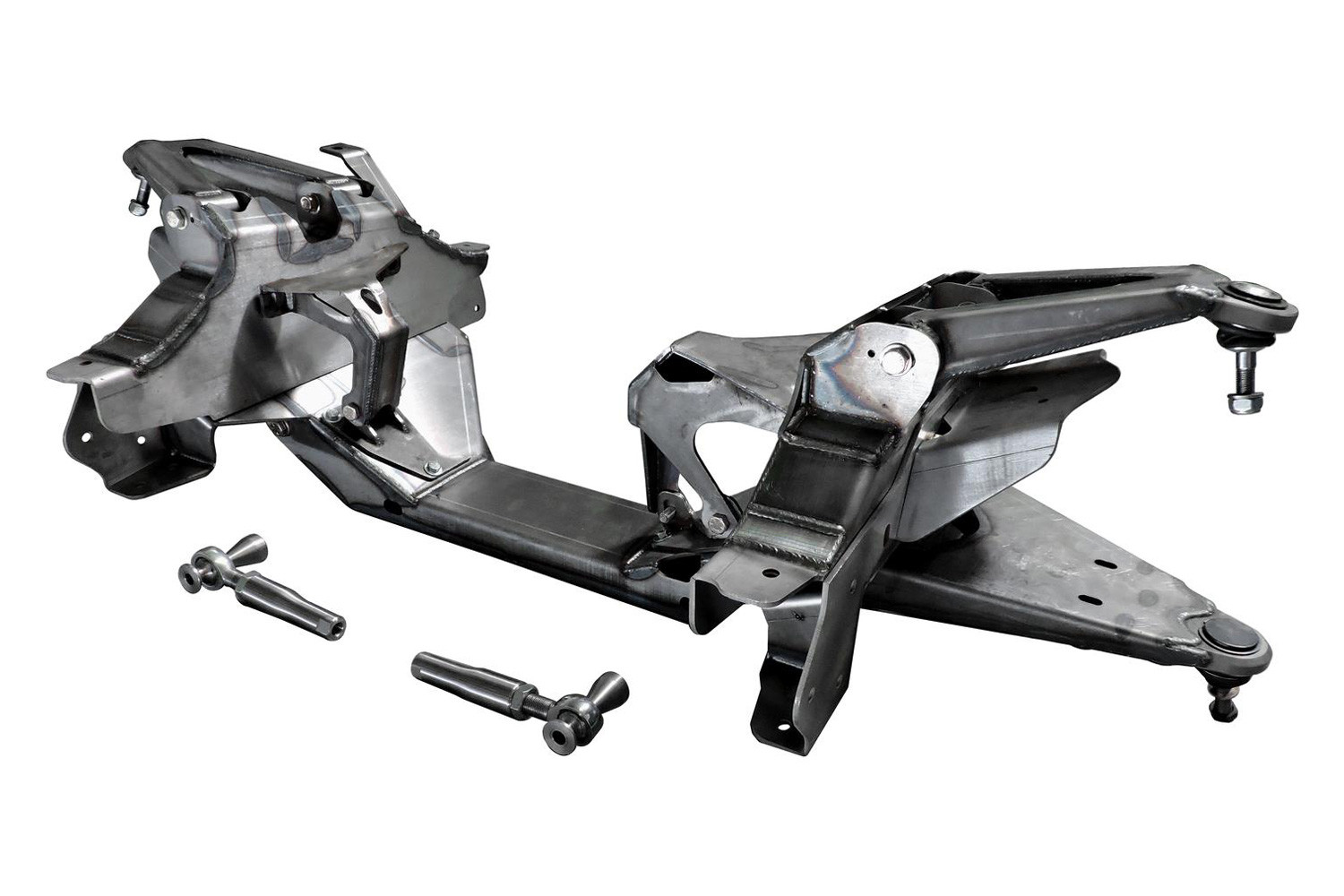

Front Suspension System (6772F100FS-FAAB) by All American Billet®. With Fabricated arms. With Airbag brackets. The 1967 - 1972 F-100 IFS kit is completely bolt-on, and eliminates the front I-beam suspension found on these trucks. This kit utilizes 2003+ Ford Crown Victoria ball joints, steering knuckles, hubs and brakes. Hub to hub width is about 62.5 inches, which is roughly 5 inches narrower than a stock Crown Victoria crossmember. A Mustang II style rack and pinion will replace the factory F-100 steering components and will allow the option to run either a manual or power rack. Both coilover and air bagged versions will yield a 6” ride height from the lowest part of the frame to the ground. The air bagged version will lay the lowest part of the F-100 frame on the ground, using a 29” tall tire.
