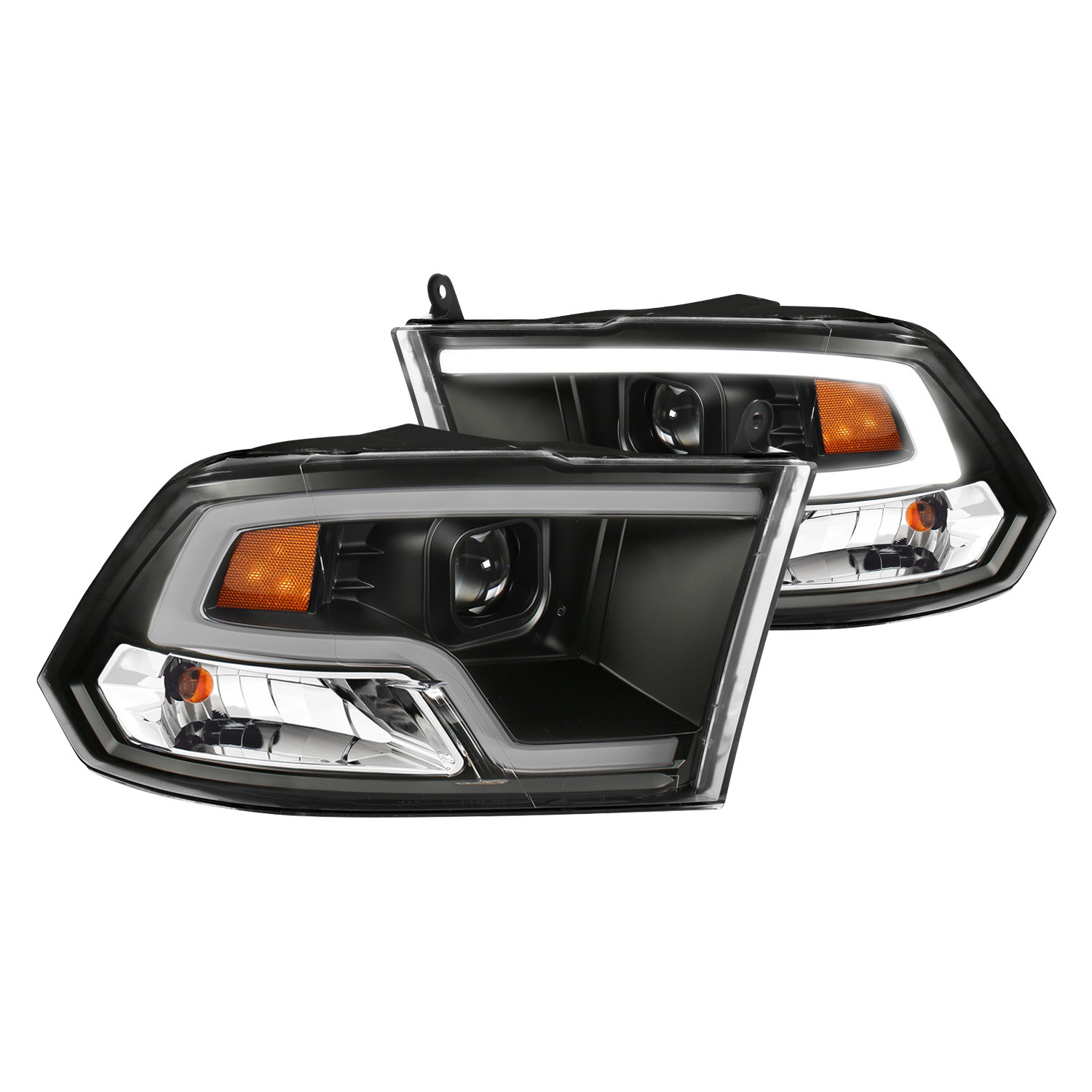

Anzo® 111404 - Plank Style Driver and Passenger Side Black LED DRL Bar Projector Headlights

51 reviews|Item # mpn4640512043
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $470.70
    $495.48Save $24.78 (5%)
    In Stock (49)
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Dodge
    Ram

    Specifications

    Brand
    Anzo®
    Part Class
    Performance
    Placement
    Driver and Passenger Side
    Light Type
    Halogen
    Bulb Info
    H7 low/high beam
    Bulb Included
    Yes (Low/High Beam)
    Housing Color
    Black
    Lens Color
    Clear
    Type
    Projector
    Light color
    White
    With Halo
    No
    With Accent Light
    Yes
    Special Feature
    Waterproof
    Halo / Accent Light Type
    LED
    Halo / Accent Light Color
    White
    Turn Signal Color
    Amber
    Voltage
    12V
    Beam type
    Low Beam, High Beam
    CAPA Certified
    No
    NSF Certified
    No
    Warranty
    1 Year
    Dimensions
    25" x 24" x 14"
    Quality
    2
    Street Legal
    Yes
    Partslink Interchange
    CH2503217, CH2502217
    Interchangeable numbers
    55277409AD, 55277410AD, CH2503217, CH2502217

    Features

    Offer superior illumination for your trouble-free driving
    Offer superior illumination for your trouble-free driving

    Sharper, more focused beam of light ensures a safe and comfortable driving experience for driver and passengers.

    Outstanding quality, great durability, and superior longevity
    Outstanding quality, great durability, and superior longevity

    Thoroughly designed and tested to guarantee performance and impact strength as well as moisture and dust/dirt resistance.

    Unique and stylish design aimed to inspire and excite
    Unique and stylish design aimed to inspire and excite

    U-Bar Style will give a gorgeous look to your vehicle, while bright LEDs will make your ride more visible to other road users.

    Designed as a direct, bolt-on replacement
    Designed as a direct, bolt-on replacement

    Thoroughly engineered and precisely built for a perfect fit and easy replacement of your original lights on the first attempt.

    Meet all quality and legal standards
    Meet all quality and legal standards

    Meet ISO 9002 and QS 9000 quality standards. Approved by the SAE. Meet DOT regulations and compliant with FMVSS 108.

    Backed by a 1-year warranty
    Backed by a 1-year warranty

    This warranty does not apply to any products that have been subjected to misuse, mishandling, misapplication, neglect, improper installation, or alterations.

    • Anzo Special Offers

    Product Details

    Plank Style Driver and Passenger Side Black LED DRL Bar Projector Headlights (111404) by Anzo®. 1 Pair. Black housing, clear lens. Bulb: H7 low/high beam (included). These powerful lights are brighter than factory and are designed using the latest computer assisted design technology. Anzo uses this CAD technology to not only ensure that you get the best functioning headlights, but that they also look great and fit perfectly.

    Installation

    Anzo® - Plank Style Driver and Passenger Side Black LED DRL Bar Projector Headlights, InstallationAnzo® - Plank Style Driver and Passenger Side Black LED DRL Bar Projector Headlights, Installation

    Illuminate your driving experience with the power of Anzo USA Headlights. These powerful lights are engineered using the state-of-the-art CAD technology that ensures impressive style and fit. Whether you’re looking to update cracked, faded and yellowing lights or just want to add style to your vehicle, Anzo USA products provide the infusion of light you need. Bursting with quality, Anzo USA lights are extensively tested to withstand even the toughest weather conditions. Their simple, plug and play installation upgrades the look of your ride in less than 30 minutes on most vehicles. Enjoy the added safety and style of lighting up your path with Anzo USA. These lights are available for most vehicles for a clear, high-efficiency lighting. Plus, they’re DOT and FMVSS No. 108 compliant. Anzo USA adds custom design and style to your ride all backed by a 1-year warranty.

    Brand:
    Part Number:
    111404
    UPC:
    846959051041

    Reviews

    (51)
    Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
    /5
    1-10 of 51 Reviews
    4 of 5
    Good Fit on my 2019 Ram 1500 Classic
    I'm going to start with the Pros and Cons that I found. Pros: Great styling Good fit Cons: No instructions Not very heavy duty Required wire connectors not included Not actual DRL Light beam is not very evenly dispersed. TRUCKiD does not offer the 2019 Ram 1500 Classic as a vehicle option, so I purchased these lights under the 2018 Ram 1500 option. Initially, the lights fit but were not perfectly flush with the edge of the hood. I was able to fix that by installing some plastic spacer washers between the front mounting screw and frame. Fits perfectly now. The halo light has two of it's own loose wires that must be connected to the parking light wires. I found this out by clicking the installation instructions under this light on the TRUCKiD website. However, the instructions are general and not vehicle specific. They tell me to connect the wires with the wire connectors, but Anzo does not furnish the connectors. I had to buy them separately. While installing the lights, the plastic "arm" that must be latched from under the wheel well broke when I pulled the white latching tab to secure it. I was able to fix that using a bolt and washer. I replaced the included halogen bulb with a LED lamp. The beam pattern is usable at night but a little erratic. I'm not sure if its the lamp or the projector's fault. Either way, the headlights look much better than the factory OEM halogen lights.
    Anzo® 111404 - Black LED DRL Bar Projector Headlights
    Posted by Dion (Ponte Vedra, FL) / February 05, 20212018 Ram 1500
    4 of 5
    Great but Not True DRL
    Looks really great and super modern, but they are not true DRL so don't be fooled. Also, I do not think that the the halogen bulbs are replaceable as I wanted to swap them with LED. It has some weird connection that I don't even want to mess with. If anyone finds anything out, let me know!
    Anzo® 111404 - Black LED DRL Bar Projector Headlights
    Posted by Customer / June 24, 20202018 Ram 1500
    2 of 5
    3 Year Review
    I have had them for just over 3 years and I'm back on TRUCKiD looking for a new set because I'm tired of all the issues. The first issue was one of the lamps collected a ton of moisture after a lot of rain/humidy. I live in a ralatively dry climate so heavy rain isn't normal and I didn't notice the issue until it was already outside of warranty. I ended up drilling a small weep hole in the bottom of the lense to allow it to drain which seems to have fixed it. No buildup since. Later, the bottom of one of the LED strips died (pictured). Hard to say if it was related to the moisture buildup or not but whatever. Again, outside warranty and i wasn't going to buy another one just for the LED issue. If it was just those two issues I would just let them ride, but the one that has me back here is how many low beam bulbs I go through. I have another truck with factory lamps and similar mileage and over the last 3 years running the same bulbs I have only replaced the low brands once. I replace at least one low beam every 6-9 months in these and they aren't exactly easy to get to which makes the problem even worse. I can only speculate that the way they are held is causing excessive vibration and causing them to fail prematurely. This is primarily a highway truck that sees very little offroad use. As much as I love how they look, I just can't justify the cost of replacement bulbs with every oil change any more.
    Posted by Alex (Springville, UT) / October 27, 20242013 GMC Sierra 1500
    5 of 5
    Amazing
    These headlights shipped the day I bought them and came within 48 hours. Fitment is tight because it follows the exact dimensions of the stock headlight housing. Getting the DRL to work was easy, you just have to go to your local auto parts store and get some scotch locks (cheap). There is a video provided by Anzo and how to spice the wires and install them as well. The only thing that wasn't working correctly was the signal bulb, which couldn't or could be Anzo's fault, but I'm not going to complain about it. It was an easy fix if you kept your stock bulbs near.
    Anzo® - Black U-Bar™ Projector Headlights with LED DRL
    Posted by Jonah (Eastvale, CA) / October 03, 20222011 Chevy Silverado 1500
    1 of 5
    Keep Your Original Lights
    These lights are totally useless for highway driving. First of all, the low beam shines less than a fog light; you're lucky if you can see 50' in front of the vehicle. The high beam is not much better, producing brighter light, but with a huge dark spot in the middle of the beam. It's like all you notice is a circle of light, very hard to focus your attention on the road. All in all, the original factory halogen lamps produce much more usable light. On the plus side, they are very easy to install & look good. If your intention is only to make your truck look good, these will probably work for you, but for actual night time use, not so much.
    Anzo® - Chrome LED U-Bar™ Projector Headlights
    Posted by Bill (Petersburgh, NY) / August 10, 20222010 Ford F-150
    5 of 5
    Amazing
    Awesome. Everything went well, shipping was quick.
    Anzo® - Black U-Bar™ Projector Headlights with LED DRL
    Posted by Ali (Castroville, CA) / June 24, 20222013 Honda Accord
    5 of 5
    Just As It Show
    I really love these lights makes my truck look new
    Posted by Marco (Garland, TX) / February 04, 20222008 Ford F-150
    5 of 5
    So Far So Good.
    I installed them about a month ago and so far everything is good. Easy install, you can find tons of videos on YouTube on how to install them. YouTube certified. I'll come back if I have any issues and update this review.
    Posted by Jon (League City, TX) / January 03, 20222014 Toyota 4Runner
    4 of 5
    Decent
    Out of all the lights I bought these are the best none of the lights haven't gone out and I had them for over a years now, the only problem now is that it looks like they're peeling of
    Anzo® - Black U-Bar™ Projector Headlights with LED DRL
    Posted by Customer / October 29, 20212010 Chevy Silverado 1500
    5 of 5
    Anzo U-Bar Headlights
    Look awesome and super easy to install, just a plug and play connection!!
    Posted by Franco (Plymouth Meeting, PA) / September 21, 20212009 Chevy Silverado 1500
