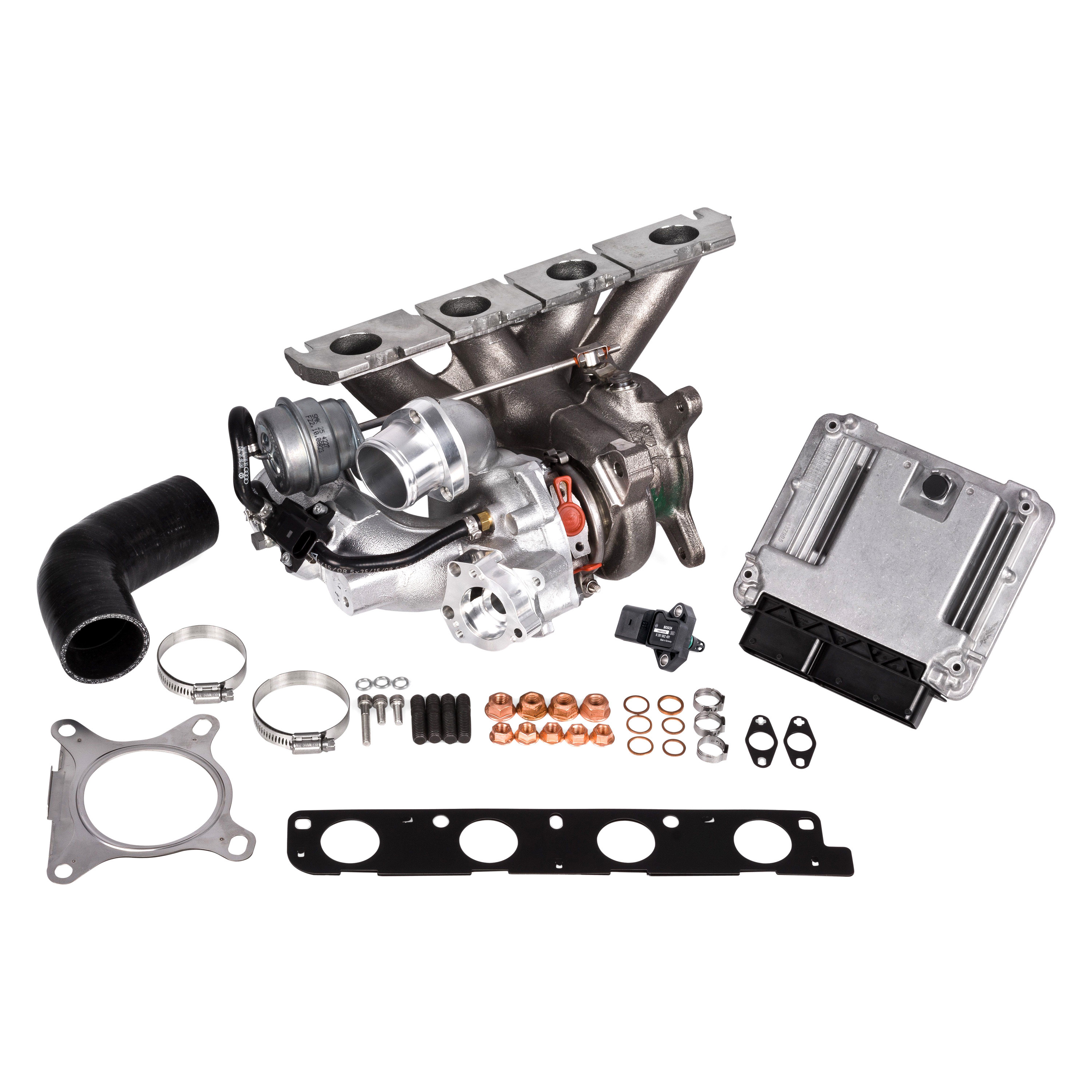

APR® T2100016 - K04 Turbocharger Kit with Software

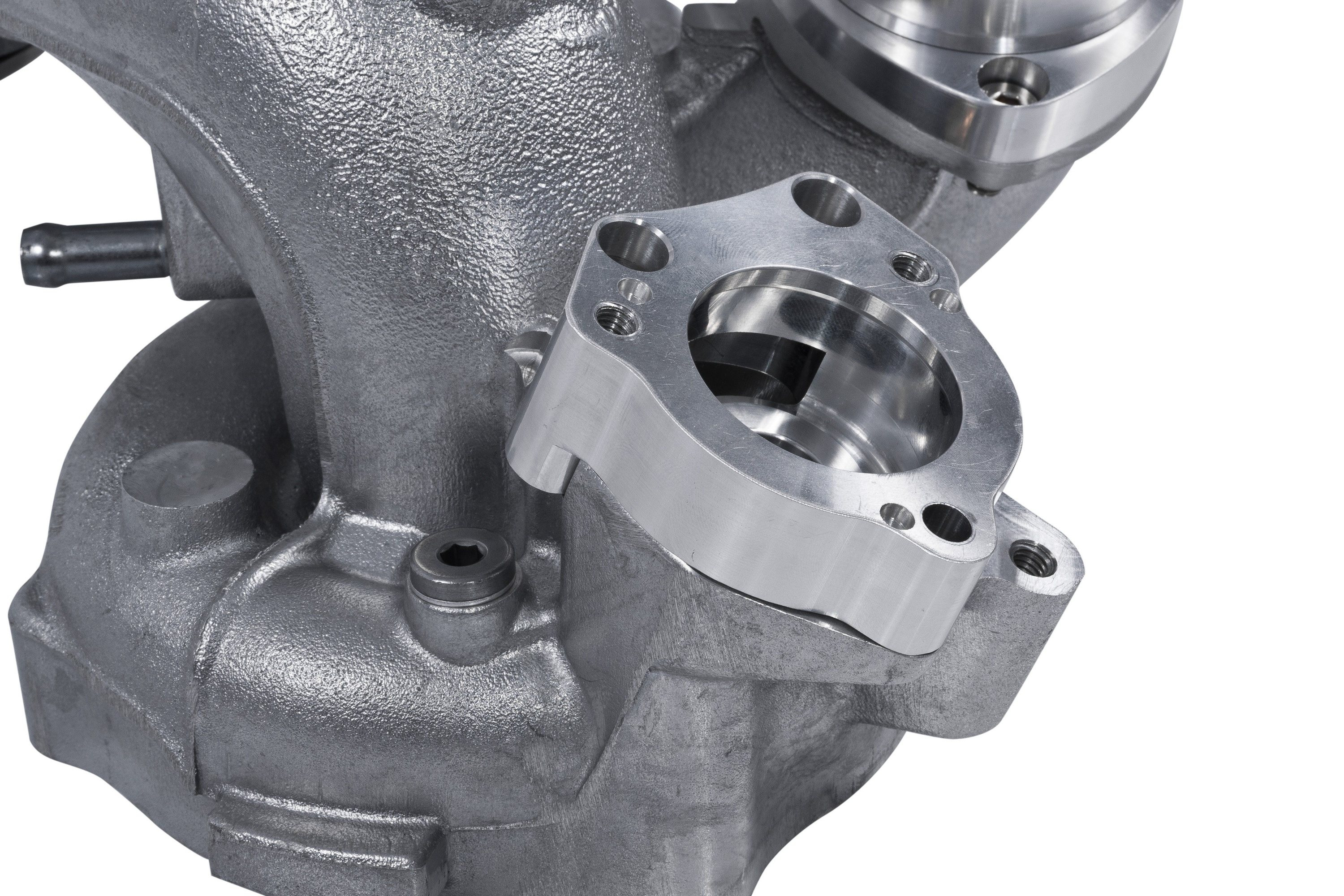

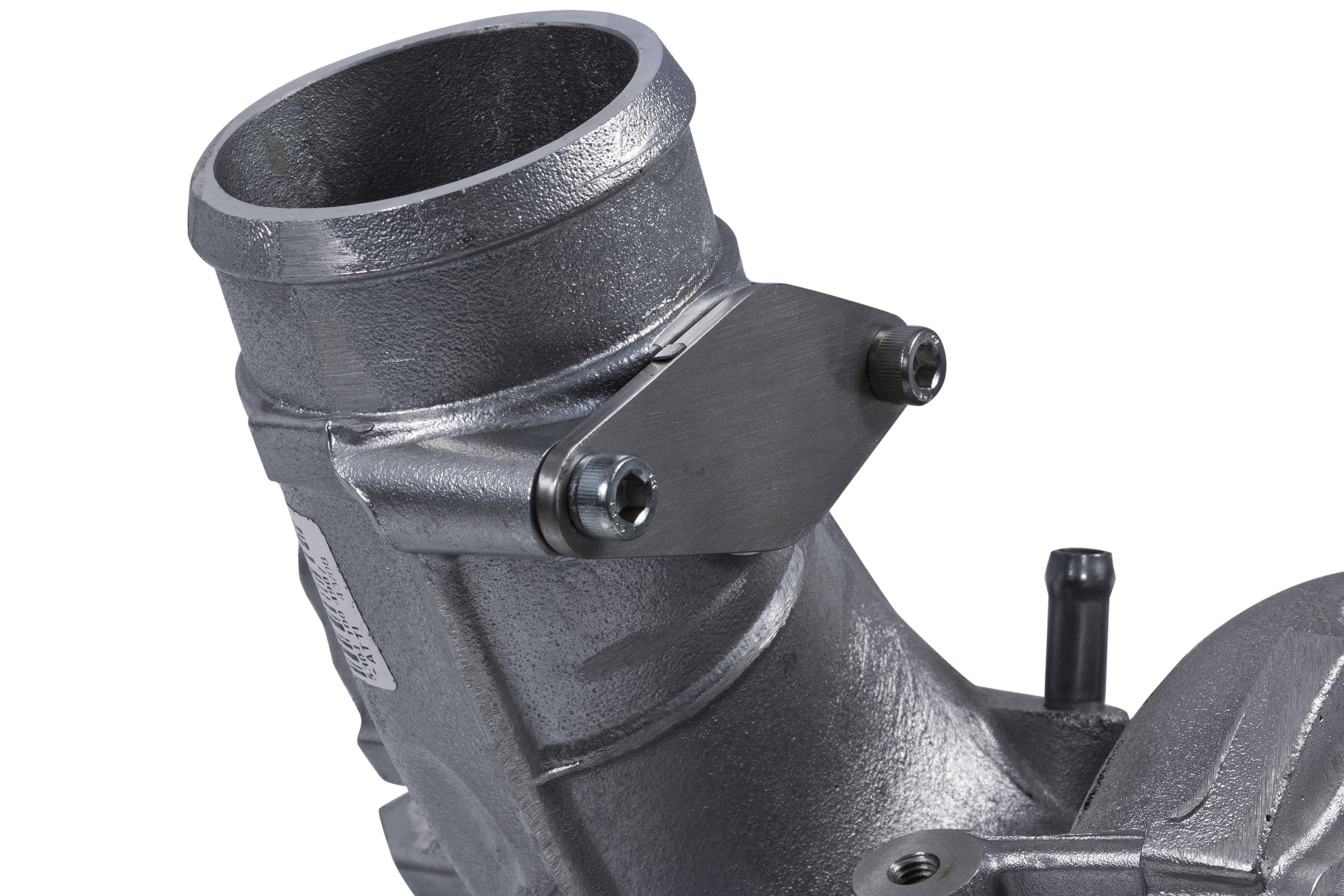

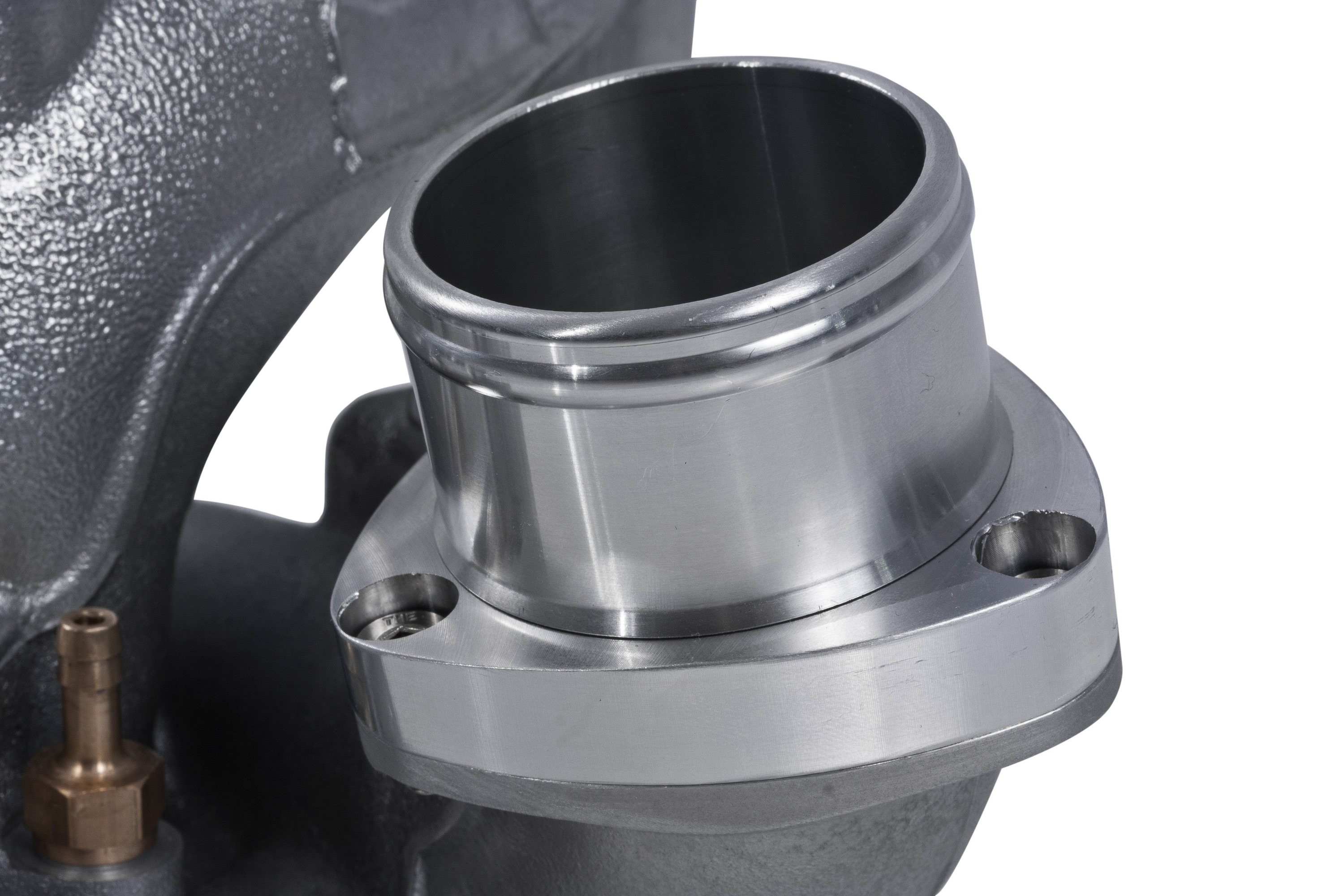

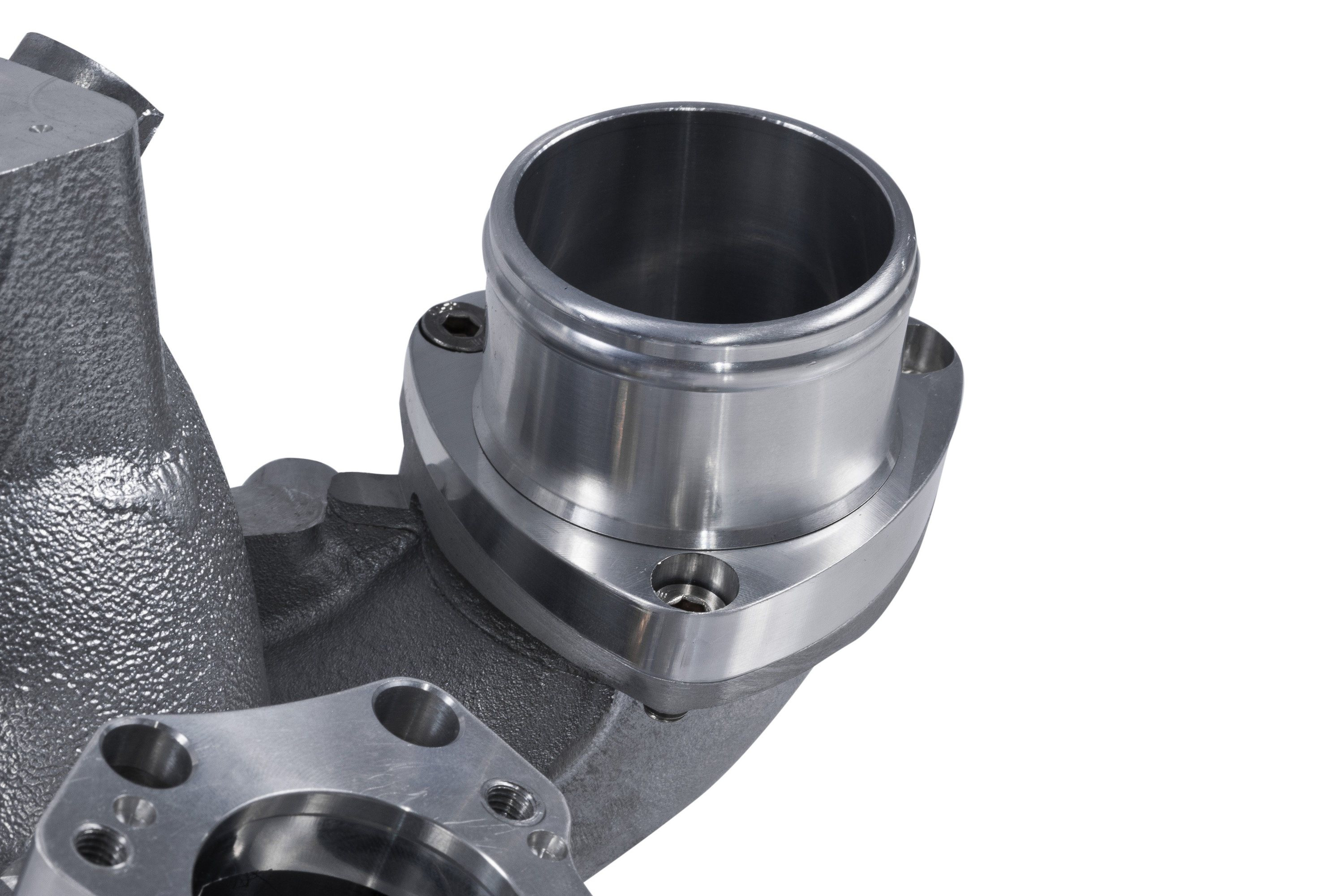

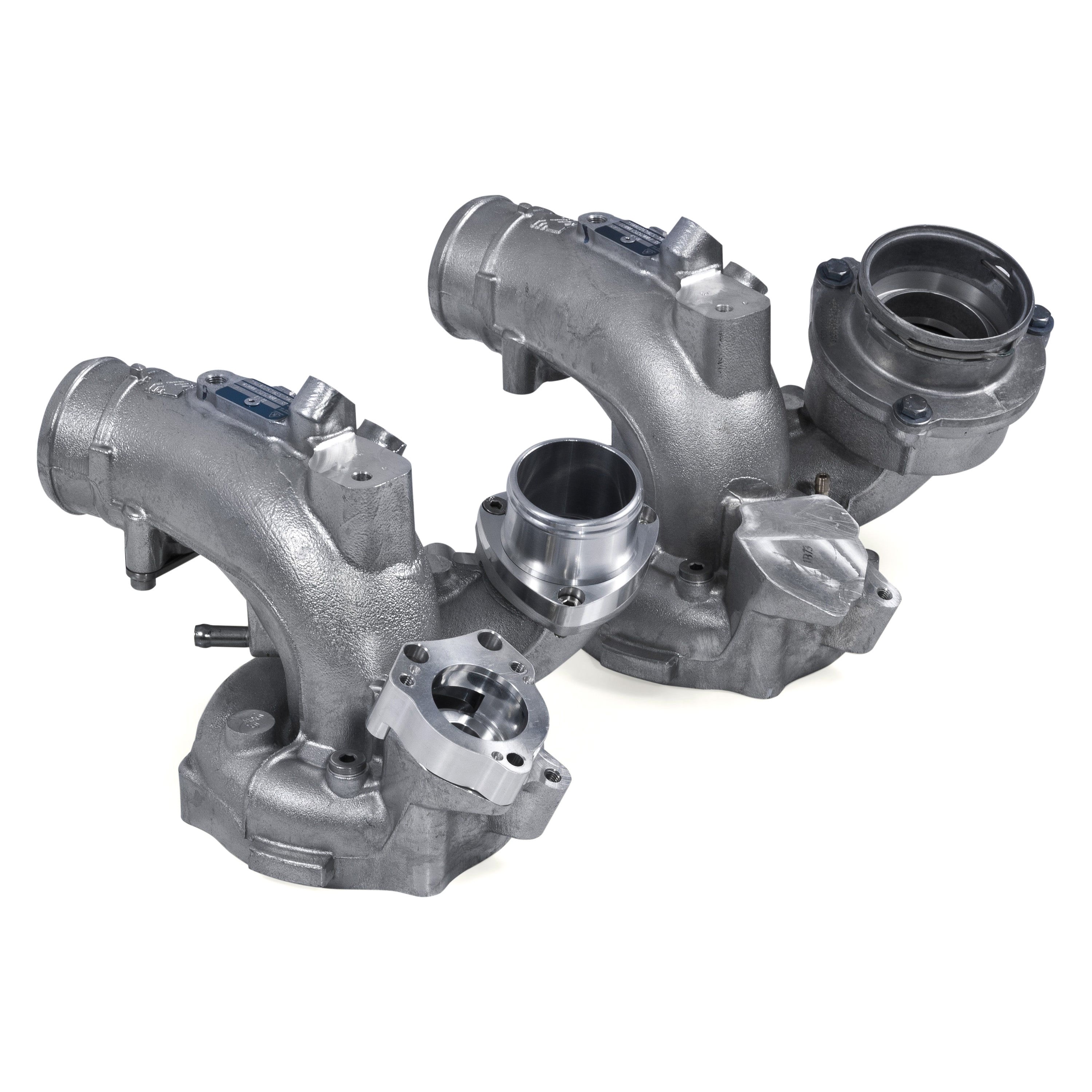

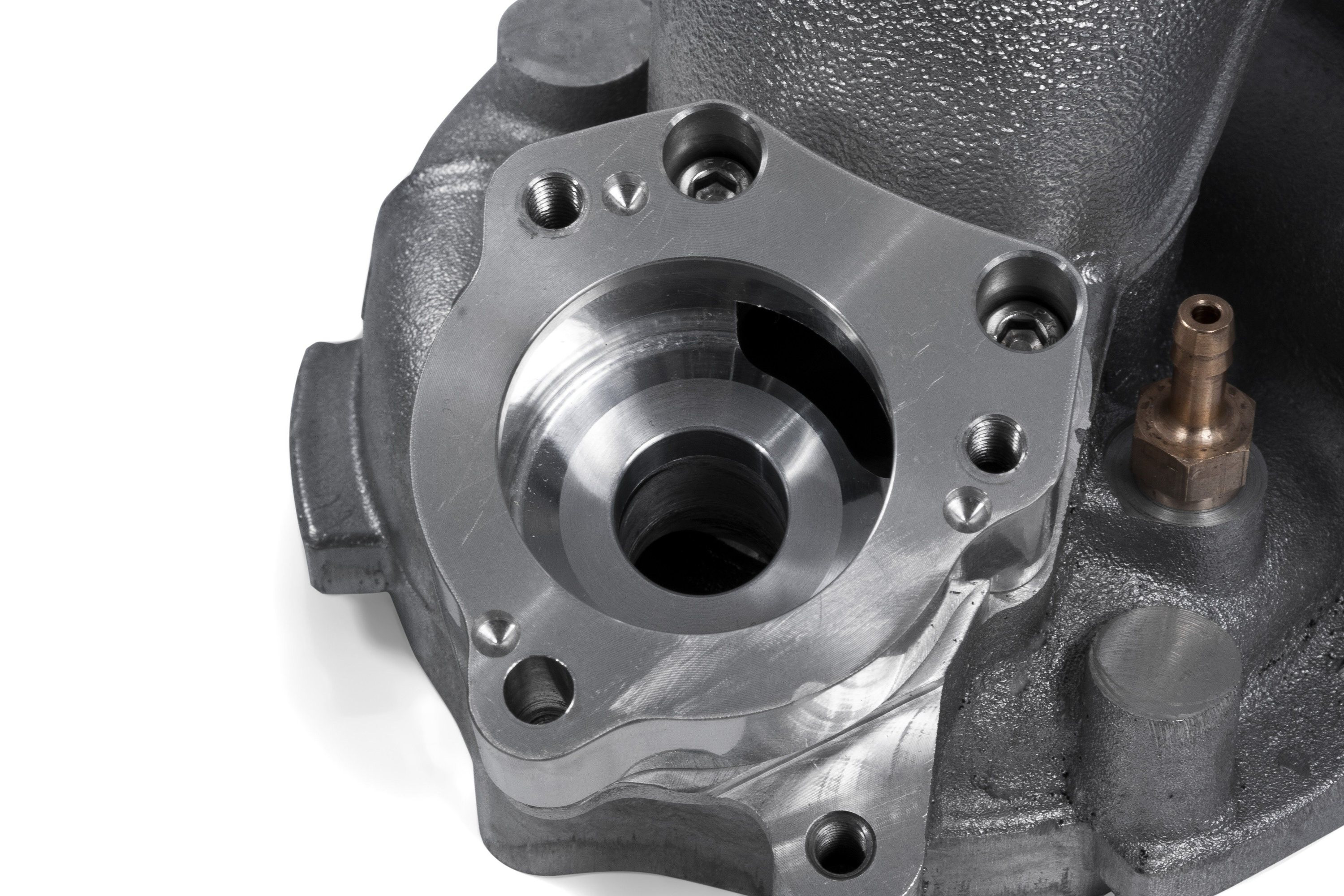

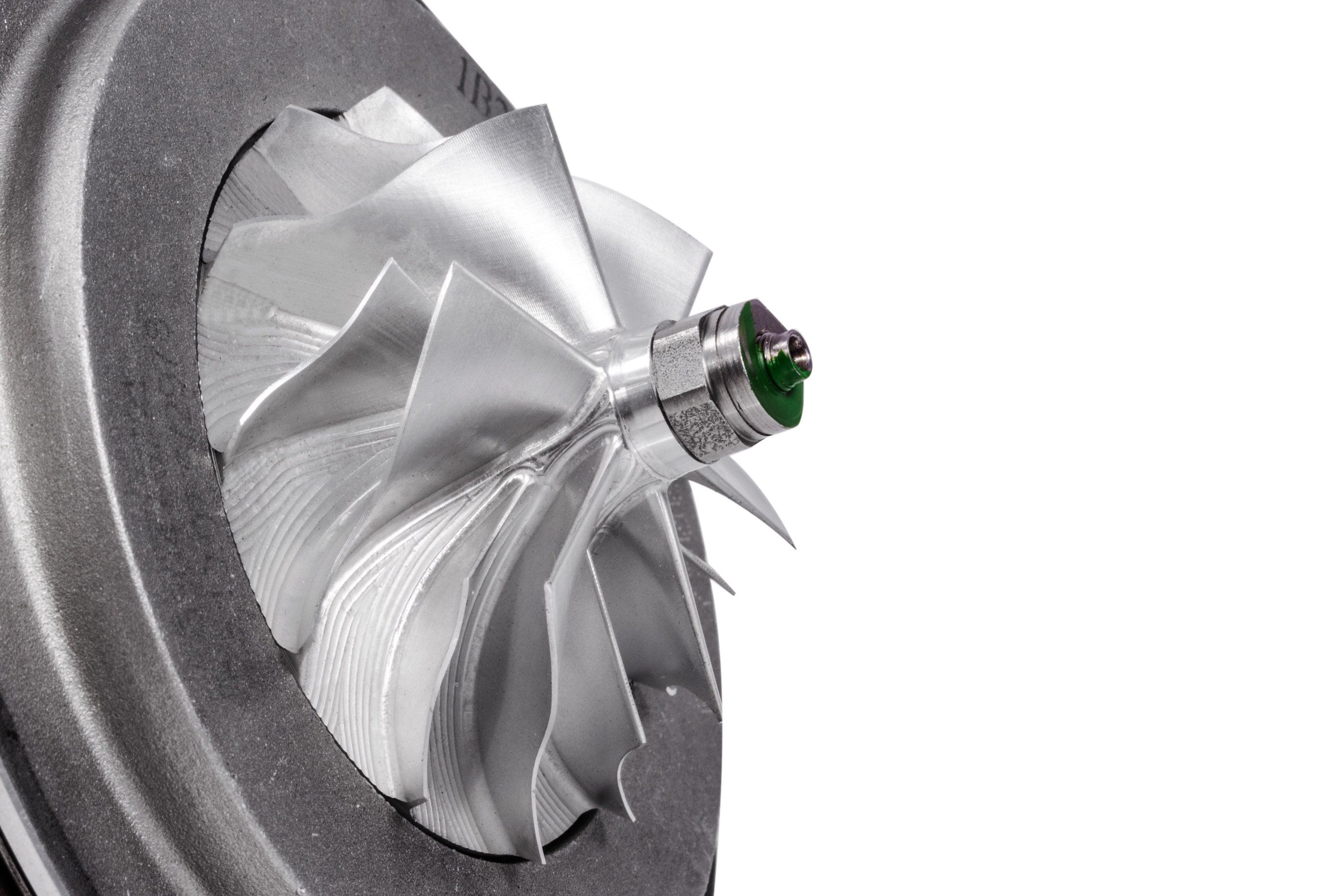

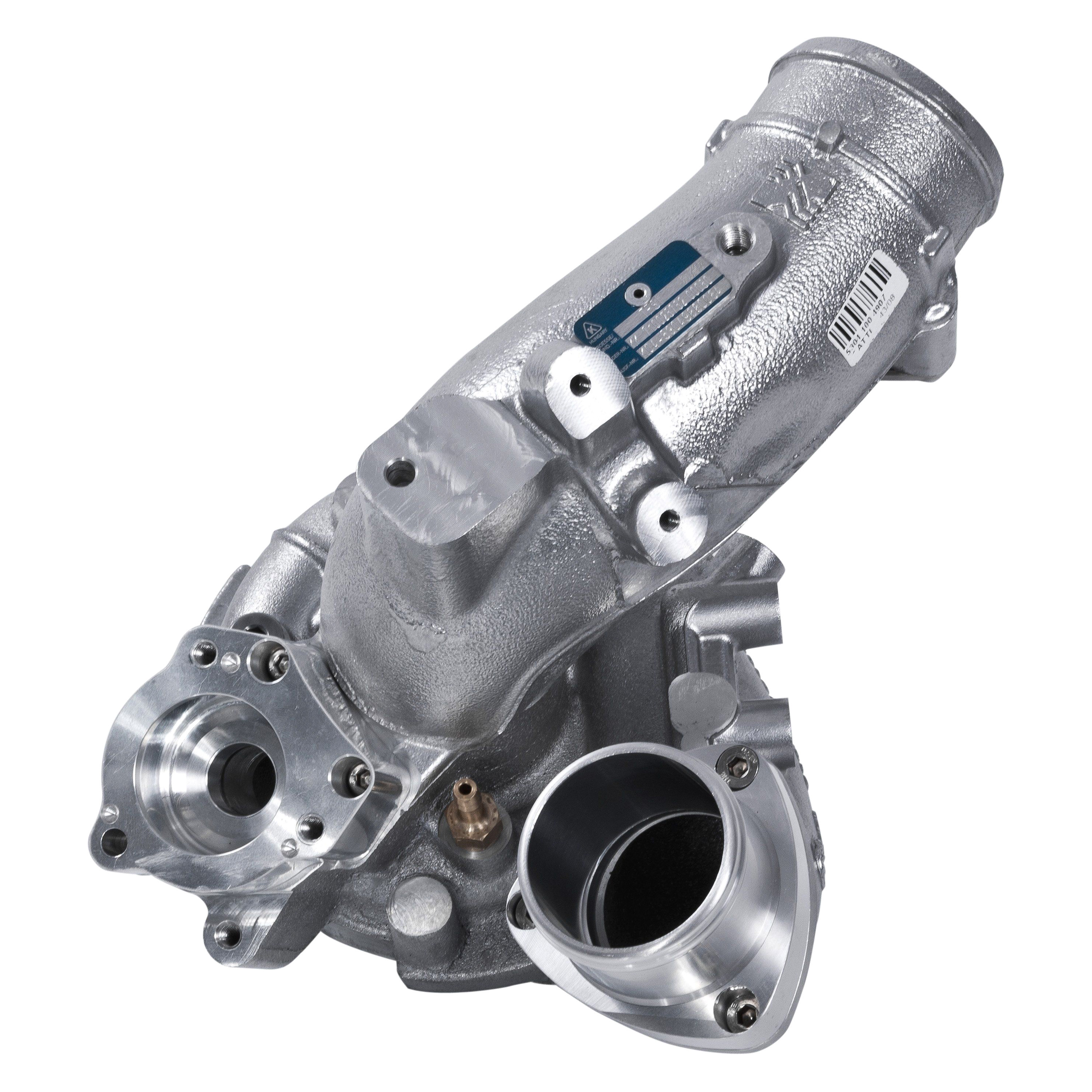

At the heart of the K04 Turbocharger System is an APR proprietary customized version of the factory Borg Warner turbocharger. The turbocharger features a CNC-machined, billet compressor wheel and stainless steel exhaust turbofold. Each turbocharger unit is machined, assembled and clocked in house at APR with the necessary brackets to ensure proper wastegate fitment and orientation. Each wastegate is then calibrated for precise operation and control to ensure seamless integration with the expertly recalibrated OEM engine management system.

The factory engine management system is responsible for proper operation of the engine during constantly changing environmental and load conditions. With built in compensational data for environmental variables and varying load conditions, the factory ECU is far more complex and intelligent than units found in other vehicle makes and marques. With the significant amount of changes included in the APR K04 Turbocharger System, APR’s Engineers spent months calibrating the engine management system, including hundreds of hours of in-house chassis dyno development. Drivability, gear changes, cruising and part throttle operation were tuned to operate smoothly as if intended by the OEM through proper torque management. Further development was performed putting the vehicle through performance evaluation and durability testing at the drag strip and road course. APR’s Electrical Engineers built new coding functions, strategies and routines into the ECU to control conditions normally unseen at factory power levels. Thanks to APR’s incredible proprietary calibration suite, data logging software and full access to the coding structure of the ECU, appropriate and intelligent changes are made to ensure flawless drivability and excellent performance without compromise.

MAP To provide closed-loop boost control at absolute pressure levels above 2.5 bar, APR’s K04 Turbocharger System features an OEM Bosch 3 bar MAP sensor. Altering the ECU to understand the engine is equipped with a 3 bar MAP sensor is a trivial task. The sensor and proper calibration settings come standard on many factory VAG vehicles, but even these vehicles only provide proper closed loop boost control up to 2.5 bar absolute. APR’s electrical engineers went many steps beyond the norm and recoded the factory ECU to deliver closed-loop boost control up to 3-bar absolute. This ability, combined with proper torque management, results in safe, reliable, and predictable performance at higher power levels without the need for clumsy and archaic external boost controlling devices.

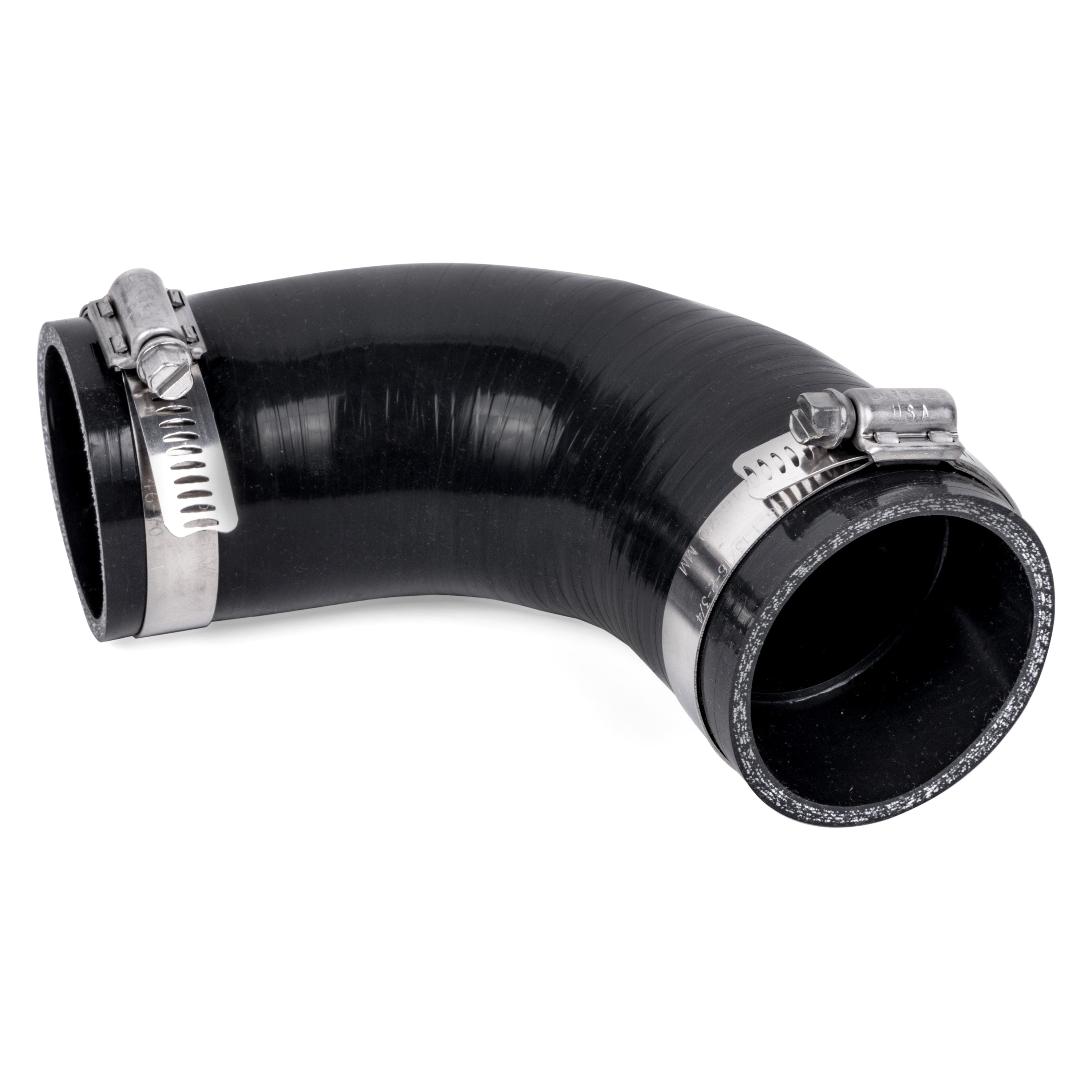

A wire-reinforced, multi-ply silicone hose provide an unrestricted path for airflow exiting the turbocharger. The hose is engineered to properly connect the turbo’s outlet to the factory charge piping system.

APR’s Easy-Flow Silicone Hose design features stepped mounting surfaces for smooth transitions from one pipe to another. Traditional designs simply sit on top of each other, often resulting in a disruptive airflow path. By using the stepped design, hoses fit properly without airflow restrictions, resulting in the most ideal path for moving air through the turbocharger and into the engine.
