Vehicle Fitment
Jeep
Specifications
| Location / Position | |
|---|---|
| Bumper Type | |
| Width | |
| Winch Ready | |
| Winch Mount Included | |
| Guard Included | |
| D-Ring Mounts | |
| Hitch Mount Ability | |
| Lights Compatible | |
| Light Mounts | |
| Material | |
| Finish | |
| Color | |
| Product Line | |
| Adaptive Cruise Control Sensor Compatible | |
| Camera Ready | |
| Pre-Collision Sensor Compatible | |
| Installation Kit Required | |
| Weight | |
| Dimensions | |
| Warranty | |
| Quantity | |
| Remanufactured | |
| Part Type |
Features

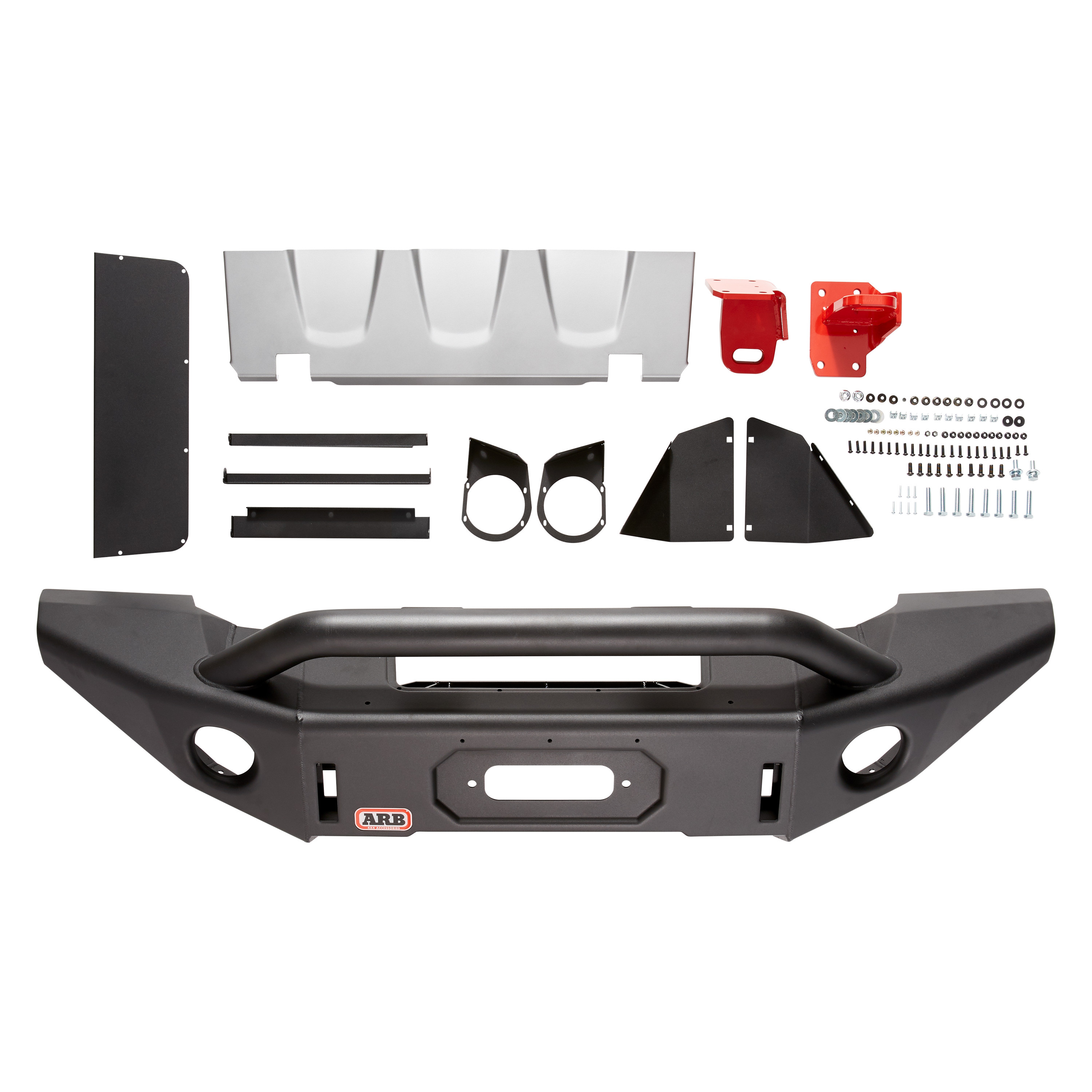

- Vehicle specific design to complement the Jeep
- Durable steel construction for maximum protection
- Single-piece press formed centre pan
- Bash plate under panel included for added protection finished in vintage silver
- Twin high lift jack points in the bar perfect for use with ARB Jack or a mechanical jack
- Two aerial or driving light brackets located on the top of the centre tube
- Will accommodate Warn, Bushranger and Smittybilt low mount model electric winches up to 10,000lbs
- Provision to accommodate ARB Intensity LED’s and a range of Bushranger and IPF lights
- Provision for OE Fog Lights. Refer fog light section below for additional parts required Brackets provided to accept either OE halogen or OE LED fog lights
- Dual chassis-mounted recovery points, powder-coated red for maximum visibility
- Bumper adds approximately 34mm to the overall length of the vehicle
- Approximate weight of the bumper, chassis mounts and fitting kit is 143lbs
- Approximately 42lbs is removed from the vehicle for fitment of the bar
- Zinc rich primer for additional corrosion resistance, followed by a textured Integrit black powder coat finish
- Chassis mounts manufactured with 5mm sheet steel
- Separate winch cradle manufactured from a combination of 4mm and 5mm sheet steel
- 76.1mm forward-facing top tube
- Wings and pan manufactured from 3mm sheet steel including press forms and multi folds for added structural integrity
- Wings designed to suit the flares of Rubicon models will also suit Sport and Sahara models with Rubicon or aftermarket front flares fitted
- Uprights manufactured from laser-cut 4mm sheet steel
- Fog light brackets provided to accept either OE halogen fog lights or OE LED fog lights
Product Details

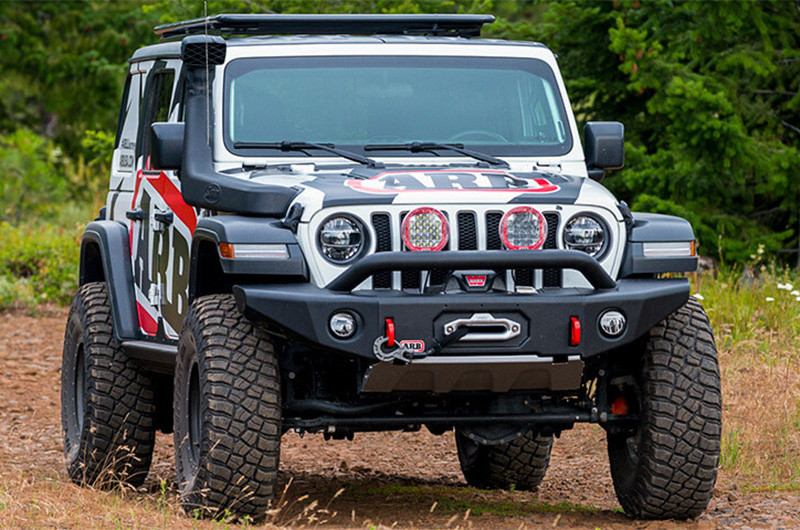

Bondi Deluxe Full Width Black Powder Coated Front Winch HD Bumper with Hoop (3450460) by ARB®. Inspired by the popular classic ARB Wrangler bumper styling, ARB has designed a completely new look bumper to suit the Jeep. Ruggedness is ensured by the new single piece, press formed centre pan perfectly complemented by a bash plate underpanel. Further protecting the vulnerable engine components is a low slung, forward facing 76.1mm top tube. The new Bondi Deluxe Winch bar is recovery ready with two highly visible red chassis mounted, 8T rated recovery points and centrally located high lift jacking points.
The harsh conditions of the Australian Outback are extremely demanding, and standard brush guards and grille guards simply aren't strong enough to survive. For this reason, ARB pioneered the bull bar, designed specifically for maximum strength and reliability, to last in these tough conditions. And after years spent modifying and refining this design, the ARB bull bar is the most highly regarded 4x4 frontal protection system in the world.
Unlike most brush guards and grille guards, ARB bull bars incorporate a fully engineered mounting system which completely replaces the standard bumper. During the design process, careful consideration of numerous factors ensures it will properly serve its purpose.
ARB manufactures winch compatible bull bars and Sahara bars for most 4WDs - they provide the quality protection you expect, without compromising design and aesthetics.
With an air bag equipped 4x4 it is essential that the vehicle's crush rate and air bag triggering is not altered when a bull bar is installed. To ensure compatibility, ARB assesses each vehicle's frontal crush characteristics and replicates the crush rate into the design of each air bag compatible bull bar and its mounting system. This method enables engineers to achieve maximum possible vehicle and passenger protection without affecting the crash pulse. ARB has invested heavily in vehicle crash barrier tests to validate the performance and compliance of its air bag compatible bull bars, and as a consequence, their bars offer a far greater level of protection than most standard brush guards and grille guards.
Please note that a few of the bumpers for older model vehicles are not air-bag compatible, refer to the Vehicle Application Guide for confirmation.
Brand:
Part Number:
3450460
