Vehicle Fitment
Jeep
Specifications
| Location / Position | |
|---|---|
| Bumper Type | |
| Width | |
| Winch Ready | |
| Winch Mount Included | |
| Guard Included | |
| D-Ring Mounts | |
| Hitch Mount Ability | |
| Lights Compatible | |
| Light Mounts | |
| Material | |
| Finish | |
| Color | |
| Product Line | |
| Adaptive Cruise Control Sensor Compatible | |
| Camera Ready | |
| Pre-Collision Sensor Compatible | |
| Installation Kit Required | |
| Weight | |
| Dimensions | |
| Warranty | |
| Quantity | |
| Remanufactured | |
| Part Type |
Features
- Vehicle specific design to complement the Wrangler JL
- Durable steel construction for maximum protection
- Single-piece press formed centre pan
- Bash plate under panel included for added protection, finished in vintage silver
- Twin high lift jack points in the bar perfect for use with ARB Jack or a Hi-Lift jack
- Two aerial or driving light brackets located on the top of the centre tube
- Provision to accommodate ARB Intensity LED’s and a range of Bushranger and IPF lights
- Two integrated chassis-mounted rated recovery points, powder-coated red for maximum visibility
- Bumper adds approximately 34mm to the overall length of the vehicle
- For all the recovery activities this vehicle will undertake, there is a 12,000 lbs winch cradle integrated
- Approximate weight of the bar, chassis mounts and fitting kit is 50kg
- Approximately 19kg is removed from the vehicle for fitment of the bar
- Zinc rich primer for additional corrosion resistance, followed by a textured Integrit black powder coat finish
- Chassis mounts manufactured with 5mm sheet steel
- Separate winch cradle manufactured from combination of 4mm and 5mm sheet steel
- 76.1mm main tube
- Pan manufactured from 3mm sheet steel including press forms and multi folds for added structural integrity
- Uprights manufactured from laser-cut 4mm sheet steel
Product Details

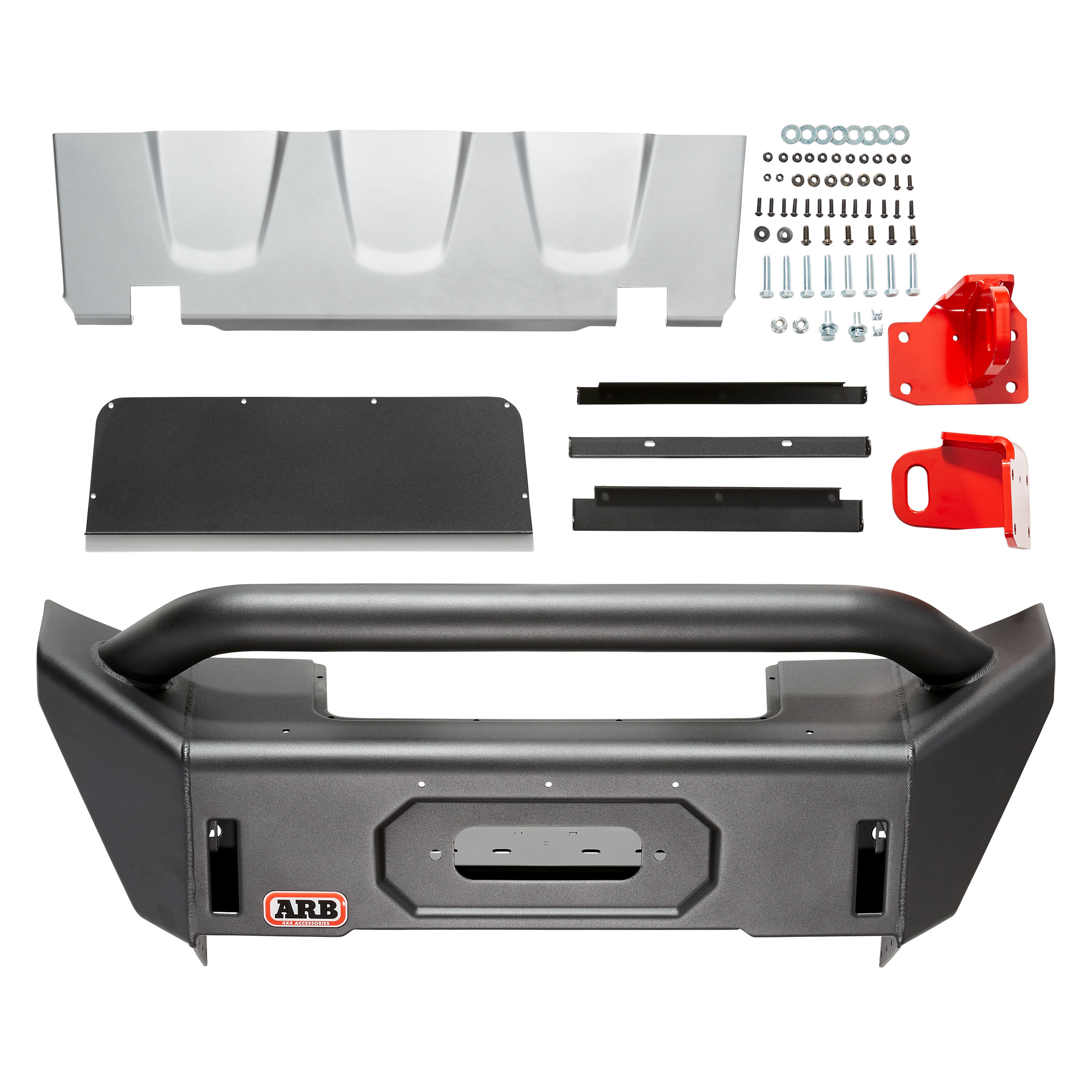

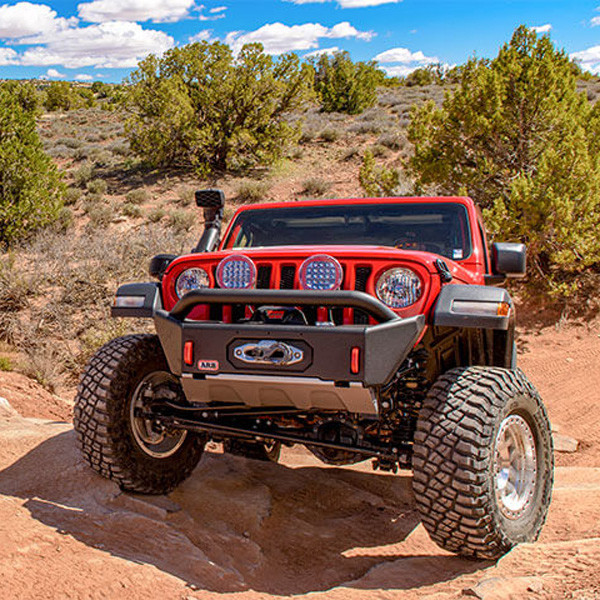

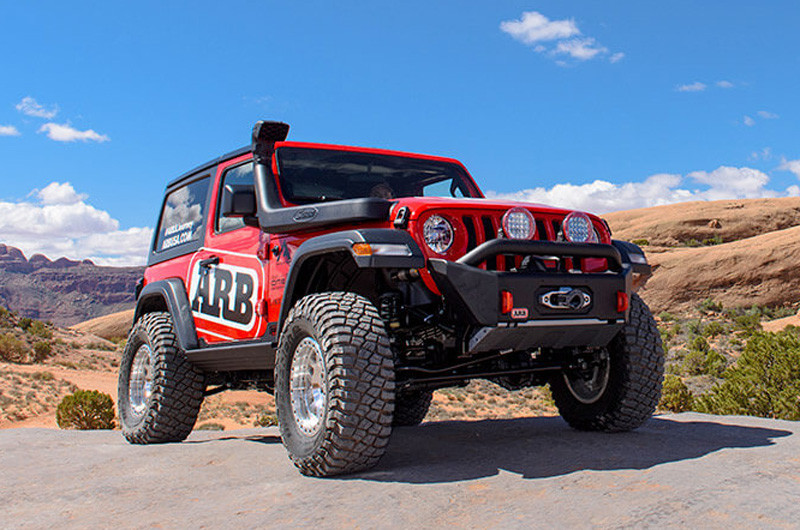

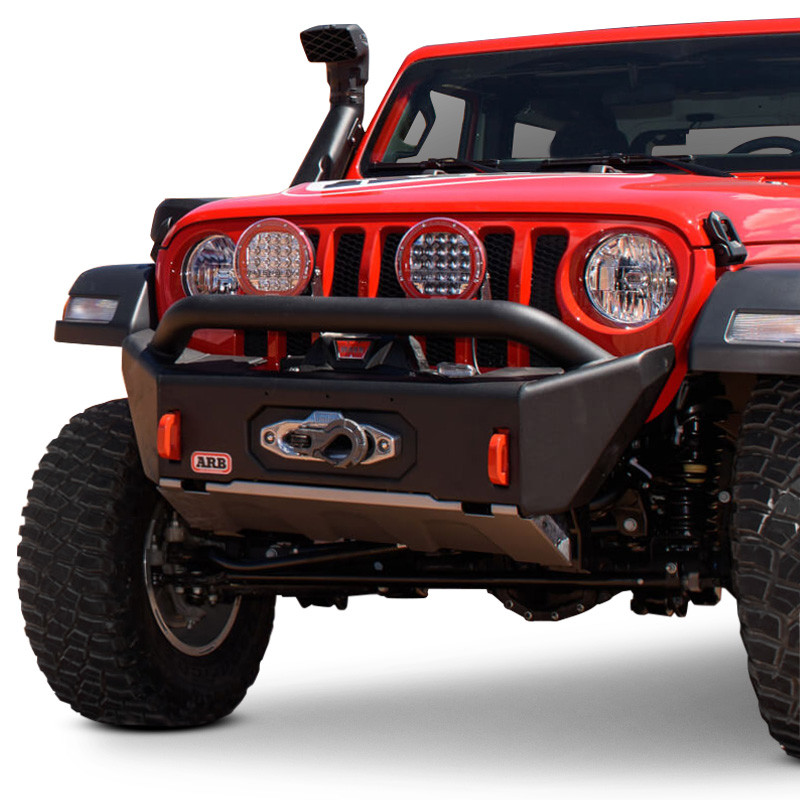

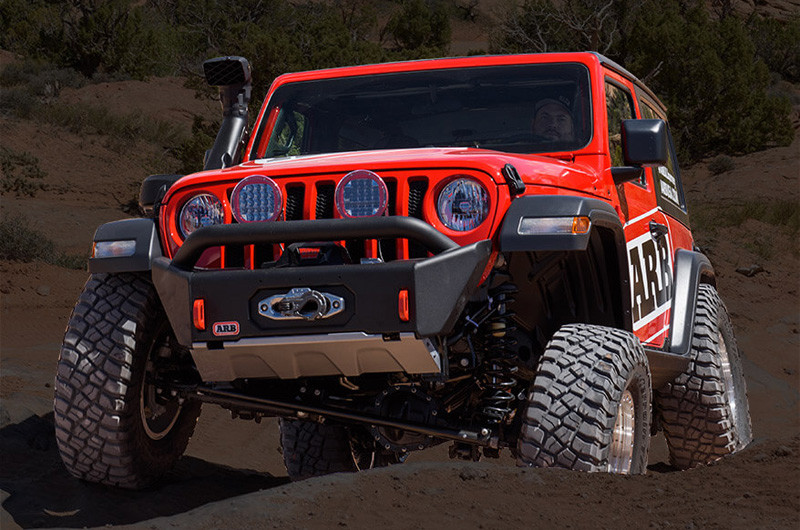

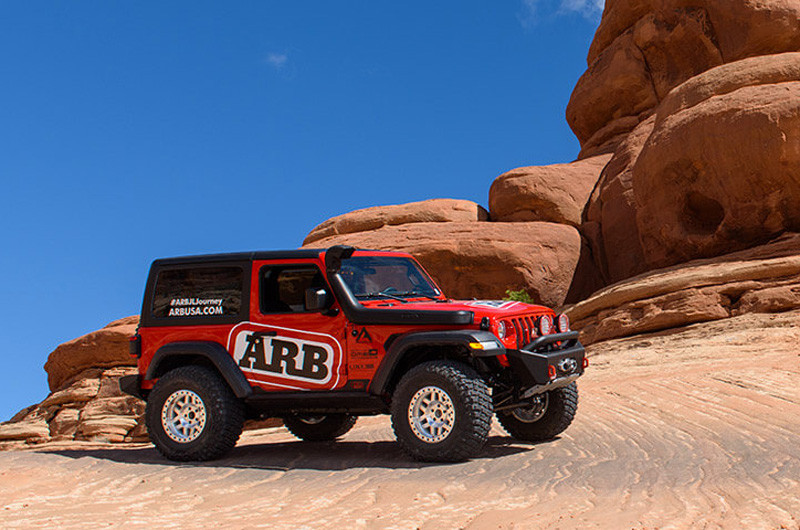

Bondi Stubby Black Powder Coated Front Winch HD Bumper with Hoop (3450470) by ARB®. With the release of the new Jeep, the engineers at ARB were excited to have the opportunity to design a whole new bumper to suit. The new Bondi Stubby bumper utilizes a single-piece press formed centre pan, pulse welded uprights and upswept outer wings providing the best protection possible while still allowing maximum clearance for aftermarket wheels and tires. Significant protection and aesthetic appeal have been at the forefront of the design of this bumper, with an integrated bash plate along the base and a low slung forward-facing 3-inch tube hoop perched along the top to protect the most vulnerable vehicle components.
Installation
The harsh conditions of the Australian Outback are extremely demanding, and standard brush guards and grille guards simply aren't strong enough to survive. For this reason, ARB pioneered the bull bar, designed specifically for maximum strength and reliability, to last in these tough conditions. And after years spent modifying and refining this design, the ARB bull bar is the most highly regarded 4x4 frontal protection system in the world.
Unlike most brush guards and grille guards, ARB bull bars incorporate a fully engineered mounting system which completely replaces the standard bumper. During the design process, careful consideration of numerous factors ensures it will properly serve its purpose.
ARB manufactures winch compatible bull bars and Sahara bars for most 4WDs - they provide the quality protection you expect, without compromising design and aesthetics.
With an air bag equipped 4x4 it is essential that the vehicle's crush rate and air bag triggering is not altered when a bull bar is installed. To ensure compatibility, ARB assesses each vehicle's frontal crush characteristics and replicates the crush rate into the design of each air bag compatible bull bar and its mounting system. This method enables engineers to achieve maximum possible vehicle and passenger protection without affecting the crash pulse. ARB has invested heavily in vehicle crash barrier tests to validate the performance and compliance of its air bag compatible bull bars, and as a consequence, their bars offer a far greater level of protection than most standard brush guards and grille guards.
Please note that a few of the bumpers for older model vehicles are not air-bag compatible, refer to the Vehicle Application Guide for confirmation.
ARB® - Bondi Stubby Front HD Black Powder Coated Bumper Installation InstructionsARB® - WarrantyARB Authorized DealerCatalogGalleryFAQ
Brand:
Part Number:
3450470
