Name: ARB® 0750006 - Differential Cover
Brand: ARB
SKU: mpn4872035075
Price: 209.95 USD
Availability: OutOfStock
Rating: 4 (2 reviews)

Vehicle Fitment

Chevy

Dodge

Ford

GMC

Jeep

Specifications

Finish	Red

Features

Computer optimized cross brace design increases the structural rigidity of the whole axle
Additional housing strength helps keep the ring & pinion gears meshing on the flat faces of the teeth, greatly increasing ring & pinion life and overall maximum load strength
Top quality, high power neodymium magnets are used in both the drain plug and the dipstick to collect metallic wear particles as the vehicle moves
Magnet location in the end of the dipstick allows the oil to be checked for tell-tale signs of internal damage
Prolonged carrier bearing life due to extra support to the bearing alignment
Approach/departure angle optimized by angled exterior surfaces
Unique dipstick/filler cap design allows differential oil level to be adjusted for customized high driveline angles

Product Details

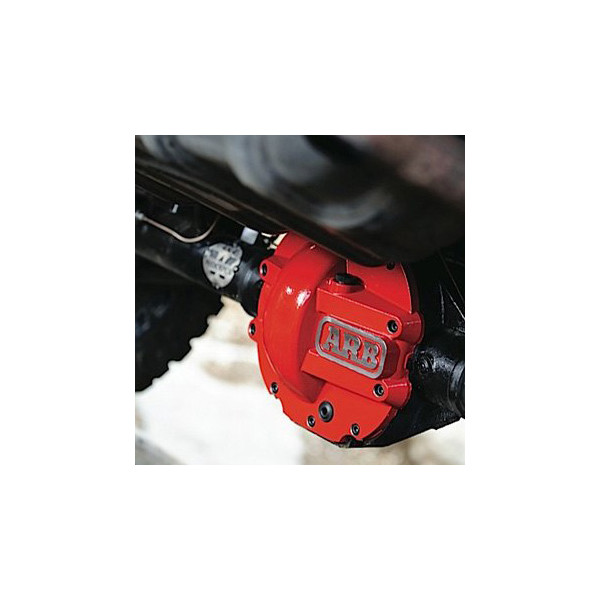

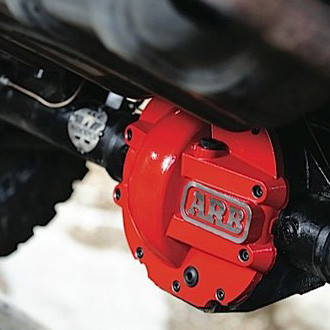

Differential Cover (0750006) by ARB®. When off road, it is inevitable that obstacles and off-road hazards will be encountered that could potentially inflict expensive damage to your differential. To prevent this, ARB manufactures the Differential Cover. Using high tensile nodular iron, it has been engineered to protect the differential and ring and pinion set from any off road hazards.

Fabricated from high tensile solid nodular iron that is tougher and harder than solid carbon steel, the new ARB Differential Cover is the ideal piece of equipment to protect your Air Locker and ring and pinion set-up from the obstacle impacts of competition rock crawling and challenging off road trails.

An incorporated, computer-optimized cross brace design adds over 900 foot-pounds of torsional rigidity to the entire axle assembly. The resulting increased flex strength in the housing encourages improved meshing of the ring and pinion gears and greater carrier bearing support for longer component life and overall load strength.

The low profile shape of the housing maximizes the running gear clearance around the unit and provides optimal approach and departure angles.

A unique combination dipstick and filler cap design allows for the differential oil levels to be adjusted for customized high driveline angles, and allows the user to check the oil for possible water contaminations without having to drain the unit. Made from high quality rare earth magnets, both the dipstick and the drain plug are designed to collect any metal wear particles floating in the fluid.

ARB® - Applications ARB® - Catalogs ARB® - Warranty ARB Authorized Dealer Gallery FAQ About us

Brand:

ARB

Part Number:

0750006

Warranty

ARB warrants ARB products against defects in workmanship and materials for the warranty period. If defective workmanship or materials become apparent in the warranty period, ARB will replace or repair the defective ARB product. Products that are used in competition void warranty. Product purchased “used” or “open box” are not covered under warranty.

ARB warranty does not cover:

Normal wear and tear
Fitting of the ARB product other than in accordance with the product information and all relevant vehicle safety and compliance laws, including incorrect fitting
Using the ARB product other than for the purpose for which it was originally designed or other than in accordance with the product information and all relevant vehicle safety and compliance laws, including unusual, improper or negligent use or misuse, or overloading
Misuse or neglect of the ARB product, including improper repair or maintenance, or failing to repair and maintain
Alteration, abuse, acts of nature, terrorism, vandalism, collision, road hazards, or adverse conditions
Formal or informal competitive events, such as racing, rallying, hill climbing, speed trials, or similar activities
Using the ARB product in underground mining or other highly corrosive environments

The warranty period commences on and from the purchase date and ends as follows:

Air Locker – 5 years / unlimited miles
ARB Branded product – 3 years / unlimited miles
Bushes, bearings, shackles, pins, U-bolts, batteries, globes, gas struts – 1 year or 25,000 miles (whichever occurs first)
Roof Rack Fitting Kit – 2 years

For all ARB products used for commercial applications including (without limitation) taxis, hire vehicles, and use in the mining industry, ARB warrants to you that the ARB product is free from defects in workmanship and materials for the commercial use warranty period:

Air Locker & ARB Branded product – 3 years or 60,000 miles (whichever occurs first)
Bushes, shackles, pins, U-bolts, batteries, globes, gas struts – 1 year or 25,000 miles (whichever occurs first)
Roof Rack Fitting Kit – 2 years

Reviews

(2)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-2 of 2 Reviews

Sort by

4 of 5

ARB Diff 8.8 ford

The cover is super solid and looks great. From Factory it came with multiple paint chips which didn't bother me. It can be a bit of a pain to install (getting it finger tight due to the weight of the cover).

ARB® 0750006 - Rear Differential Cover

Posted by Anton (Olympia, WA) / April 15, 20241991 Ford Ranger

4 of 5

Tough Won't Have To Worry About It Again

Recommend two people and lighting up the rear end.

ARB® 0750006B - Rear Differential Cover

Posted by Joe (Pacifica, CA) / July 15, 20162002 Ford Ranger
