ARB® 3421570K - Summit Full Width Black Powder Coated Front Winch HD Bumper with Grille Guard

22 reviews|Item # mpn4736221055
Vehicle Specific
    Select Vehicle
    Notes:

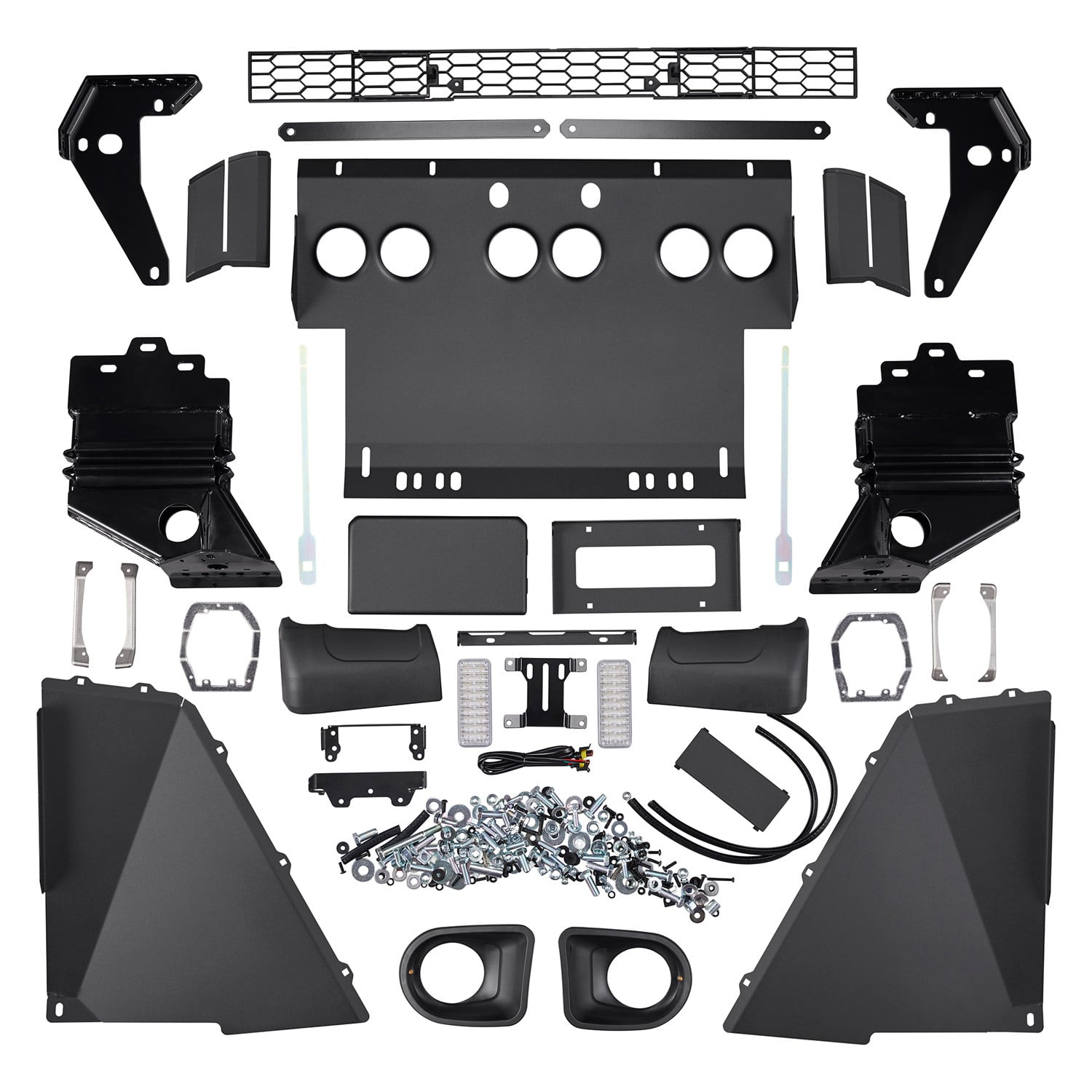

    • Includes 3501030 Winch Installation kit. Winch sold separately
    • Optional hawse Fairlead spacer kit part no 3500600 required when Fitting a hawse Fairlead
    • Optional roller Fairlead cover 3500850 available
    • Warn part no 89965 required when Fitting warn Zeon and Zeon platinum winch
    • Warn part 94288 may be required when Fitting warn Zeon platinum winch
    • Warn part 106011 wire extension required when fitting warn VR EVO
    • Fitting Kit Required (pn#6177525)
    Authorized Dealer
    $1,568.76
    In Stock (26) - Ships Tomorrow 06.15.26
    See similar products
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Toyota

    Specifications

    Location / Position
    Front
    Bumper Type
    Heavy Duty
    Width
    Full Width
    Winch Ready
    Up to 10,000 lb
    Winch Mount Included
    Yes
    Guard Included
    Grille Guard
    D-Ring Mounts
    Yes
    Hitch Mount Ability
    No
    Lights Compatible
    Factory Fog Lights
    Light Mounts
    Yes
    Material
    Heavy Duty Steel
    Finish
    Black Powder Coated
    Color
    Black
    Product Line
    Summit
    Adaptive Cruise Control Sensor Compatible
    No
    Camera Ready
    No
    Pre-Collision Sensor Compatible
    No
    Installation Kit Required
    Yes
    Weight
    192 lb
    Warranty
    Limited Warranty
    Quantity
    Sold as a kit
    Remanufactured
    No
    Part Type
    Front Bumper

    Features

    • Registered design of styling and design components
    • Durable steel construction for maximum protection
    • Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
    • 30mm radius on wings and center section
    • Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts
    • Split-pan design for maximum strength and airflow
    • Three-piece grill design for split pan
    • Extensive protection panels on center and each side
    • Pressed form top pan and aluminum (powder coated black) winch cover panel
    • Twin jack points located beneath each buffer for optimum strength
    • Durable, two-piece buffers
    • Includes ARB LED Indicator and Clearance light
    • Two aerial brackets located on the top of the center tube
    • Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 10,000lb
    • Provision to accommodate ARB Intensity and Solis LED’s and a range of Bushranger and IPF lights
    • Provision for OE fog lights
    • Provision for optional ARB Fog light covers part no. 3500680
    • Bar adds approximately seven inches to the overall length of the vehicle
    • Approximate weight of the bar, chassis mounts, and fitting kit is 192lbs
    • Metaprep primer for additional corrosion resistance
    • Finished in IntegritTM textured black powder coat

    Product Details

    Summit Full Width Black Powder Coated Front Winch HD Bumper with Grille Guard (3421570K) by ARB®. Compatible with OE Fog lights and toyota Safety Sense. Toyota’s current generation 4Runner features a number of updates including the addition of Adaptive Cruise Control as part of the Toyota Safety Sense system. A new ARB Summit Bar has been developed to allow relocation of the Adaptive Cruise Control system within the split pan of the Summit bumper and also now accommodates the original equipment (OE) fog lights in an ARB developed fog light surround. Importantly for both the Adaptive Cruise Control and the OE fog lights, full OE adjustment is retained. The ARB Summit bar features press form cover straps, fog light surround to accommodate OE fog lights, three-piece split pan grill with access door for winch clutch operation and a recessed winch control box mount for a sleek, integrated appearance. The dynamic nature of the 4Runner chassis requires clearance for the ARB bar and the fenders and grill of the 4Runner. To achieve this, necessary clearance the wings of the bar have been designed and developed to both follow the OE bumper and to sit beneath the bumper on the outer edges.

    Chassis mounts have been utilized to ensure that the Summit bar is securely mounted to the chassis and the crush rate characteristics of the air bag system are retained. The bar mounts have had extensive Finite Element Analysis (FEA) testing and destructive crush testing to ensure that they do not deviate from the manufacturers chassis impact performance standards. Similar to previous ARB Deluxe Bars, the Tacoma Summit bar is finished in a satin black powder coat finish, which is paint-ready for those who would like to color match the Summit bar to the vehicle paint code color. A zinc rich primer is used for additional corrosion resistance.

    ARB® - Summit Series FeaturesARB® - WarrantyARB Authorized DealerCatalogFAQGallery
    Brand:
    ARB
    Part Number:
    3421570K

    Reviews

    (22)
    Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
    /5
    1-10 of 22 Reviews
    5 of 5
    Good Bumper
    Makes the truck look way more aggressive. I noticed my MPG drop a little but that's expected with any steel bumper, I mean real heavy duty steel bumper like this one. ARB makes solid gear.
    Posted by Jonathan (Milford, DE) / February 13, 20252018 Toyota Tundra
    5 of 5
    Best Upgrade for Overlanding
    I take my Tundra deep into the desert on overlanding trips so I needed a bumper that could handle rock impacts, animal strikes and a winch setup. Mounted a 9,000lb winch in this bumper without any issues. Only thing, it took two of us and an engine hoist to mount it, definitely not a solo job.
    Posted by Peter (Phoenix, AZ) / February 05, 20252018 Toyota Tundra
    5 of 5
    Great fit and finish
    The grille guard is tough and looks amazing. The camera relocation kit works great and keeps everything aligned with the truck's sensors. Took me about half a day to install (with a buddy).
    Posted by Oliver (Lexington, KY) / December 13, 20242023 Toyota Tacoma
    5 of 5
    Awesome upgrade
    It fits great and looks even better. Powder coat is holding up nice. No complaints so far. Install was a pain because it's 270 lbs.
    Posted by Oscar (Chicago, IL) / December 11, 20242020 Chevy Colorado
    5 of 5
    Bumper saved my trip
    We were off-roading out near Pyramid Lake and I misjudged a rocky climb and hit the front end. If I had no bumper I'd be looking at thousands in repairs. This bumper just shrugged it off. Install took me and my brother a whole day but it fits perfectly. The fog lights it came with are also way better than I expected.
    Posted by Carlos (Reno, NV) / December 02, 20242019 Toyota Tundra
    4 of 5
    Hd Bumper Toyota 4 Runner
    Looked great, complete kit, very well designed.
    ARB® 3421560K - Summit Full Width Black Front Winch HD Bumper Kit with Grille Guard
    Posted by Anderson Weber Toyota (Dubuque, IA) / December 22, 20172017 Toyota 4Runner
    5 of 5
    Great
    I added this bumper after my old one got dinged up by a rockslide. Living in Montana, I needed something tough. This model fit the bill perfectly. It feels rock solid and looks great, can't imagine my Tacoma without it now.
    Posted by Justin (Billings, MT) / December 22, 20242011 Toyota Tacoma
    5 of 5
    Rugged and Looks Awesome
    If you go off-roading, you need this. Put it on my 2001 Tacoma and it's handled rocks, brush, and even a small fender-bender with zero issues. The grille guard is solid. Works well with my winch, too.
    Posted by Felix (Durango, CO) / December 04, 20242001 Toyota Tacoma
    5 of 5
    Excellent Bumper!!
    Everything I would expect from ARB. It feels great to have all of those critical parts in the front (radiators,etc) protected. TRUCKiD is a first class customer service outfit.
    ARB® 3462020 - Deluxe Full Width Black Front Winch HD Bumper with Grille Guard
    Posted by Ryan (Windsor, CO) / July 13, 20192003 Chevy Silverado 2500
    5 of 5
    Front Bumper Is Well Worth the Wait.
    Now I dont look like a bad driver, just like to off road. There are some dents on my off roader and the bumper makes them fit in well.
    ARB® 3414050 - Commercial Full Width Black Front Winch HD Bumper with Grille Guard
    Posted by Christopher (Crestline, CA) / June 24, 20191994 Toyota 4Runner
