Audiopipe® - Full Range Class D Transistor Amplifier

Name: Audiopipe® - Full Range Class D Transistor Amplifier
Brand: Audiopipe
SKU: mpn5294693379
Price: 161.99 USD
Availability: InStock

0 reviews|Item # mpn5294693379

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$161.99

In Stock (2) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

This part is universal

Features

FULL RANGE CLASS D TRANSISTOR AMPLIFIER: Our Full Range Amplifier utilizes advanced pulse-width modulation (PWM) techniques to efficiently deliver power to your speakers, resulting in clearer, louder sound

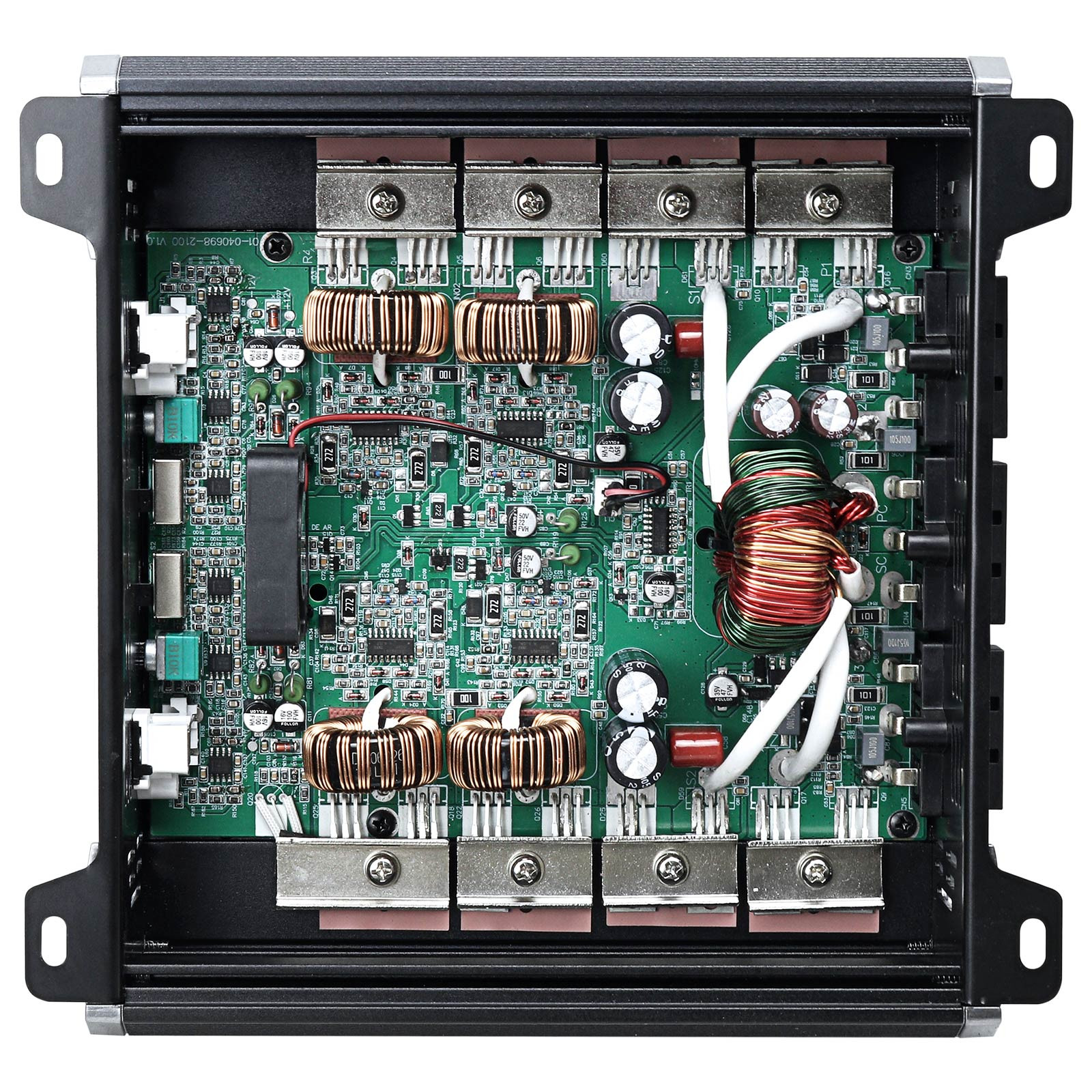

DESIGNED WITH ADVANCED TRANSISTOR CIRCUITRY: Our Full Range Class D Amplifier incorporates a specially designed circuitry that combines dual internal amplifiers in BTL mode to deliver high output power encased in a small footprint heatsink without sacrificing sound quality or performance
MAXIMUM POWER OUTPUT: As a result of its ability to deliver more power to the load than a single-ended amplifier, this amplifier ensures efficient power output and superior performance up to 1000 Watts
UNMATCHED PERFORMANCE: Our amplifiers are the premier choice for high-power amplification with a track record of proven performance, ensuring an exceptional car audio experience
FREQUENCY RESPONSE -1dB: 20Hz-20KHz
CONTINUOUS POWER OUTPUT @ 1% 1KHz: 14.4VSTEREO @ 4 Ohm: 4 x 140 WATTS (46A)STEREO @ 2 Ohm: 4 x 230 WATTS (84A)MONO @ 4 Ohm: 2 x 460 WATTS (86A)
SIGNAL TO NOISE RATIO: ≥85dB
INPUT SENSITIVITY: 0.2 - 12V
OVERLOAD PROTECTION: : This amplifier is equipped with overload protection, ensuring a safe and reliable audio experience
OVERHEAT PROTECTION: This amplifier features an advanced heatsink, designed to provide superior overheat protection
UNDER-VOLTAGE PROTECTION: 9V

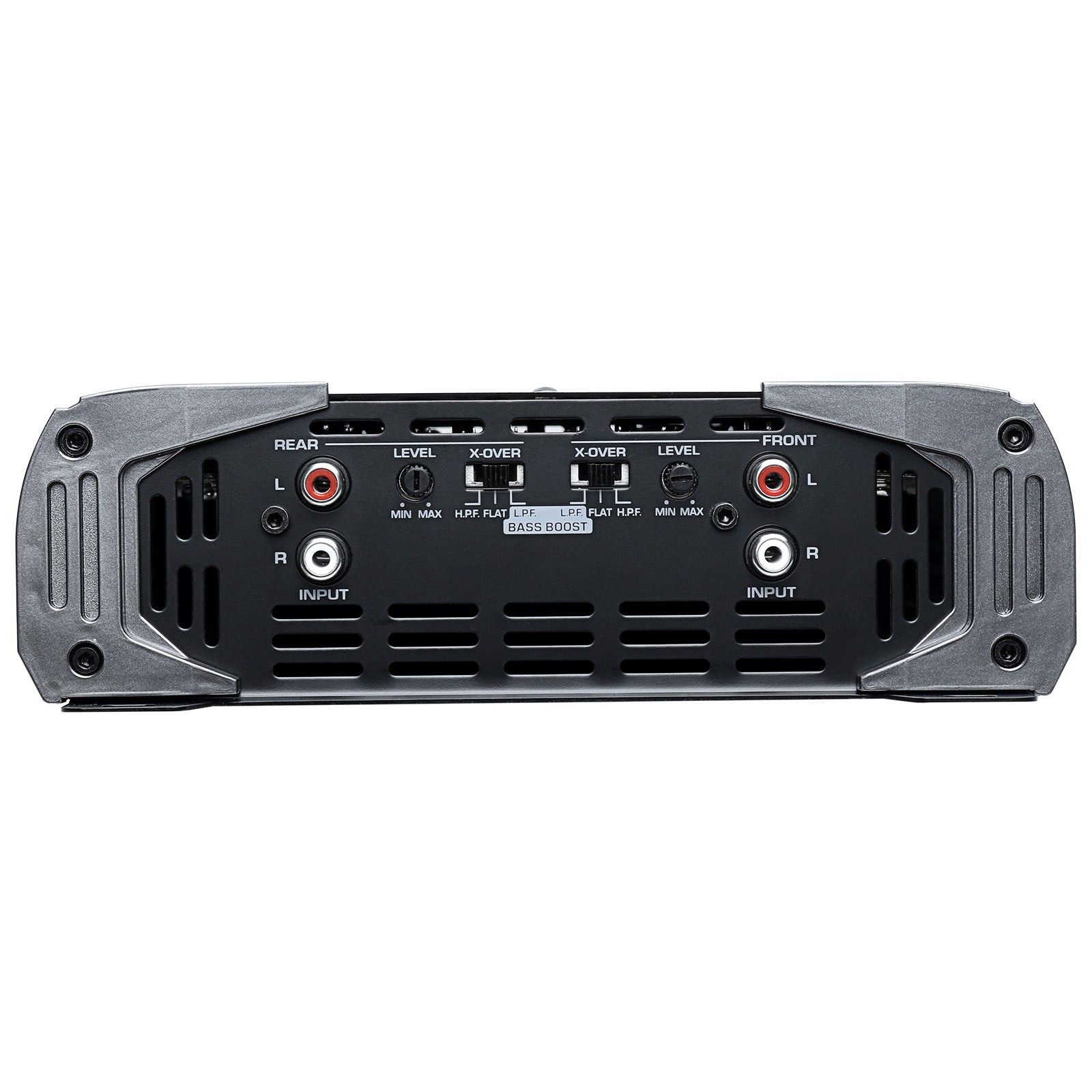

HIGH PASS: 90Hz 12dB/Octave
LOW PASS: 90Hz 12dB/Octave
BASS BOOST: 0-12 dB @ 55Hz

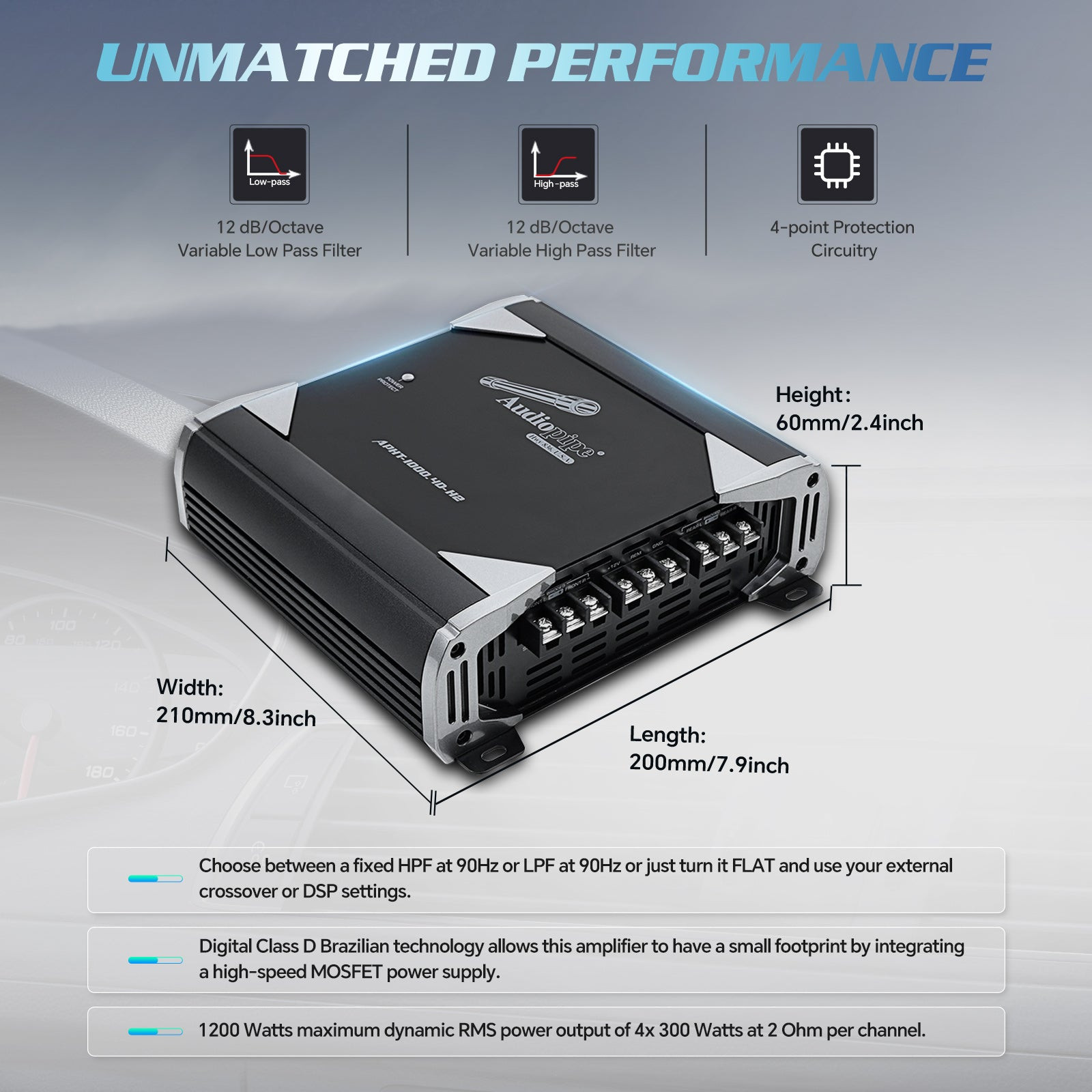

DIMENSIONS (L x W x H): 8.3" x 7.9" x 2.4"( 210 x 200 x 60 mm )

Product Details

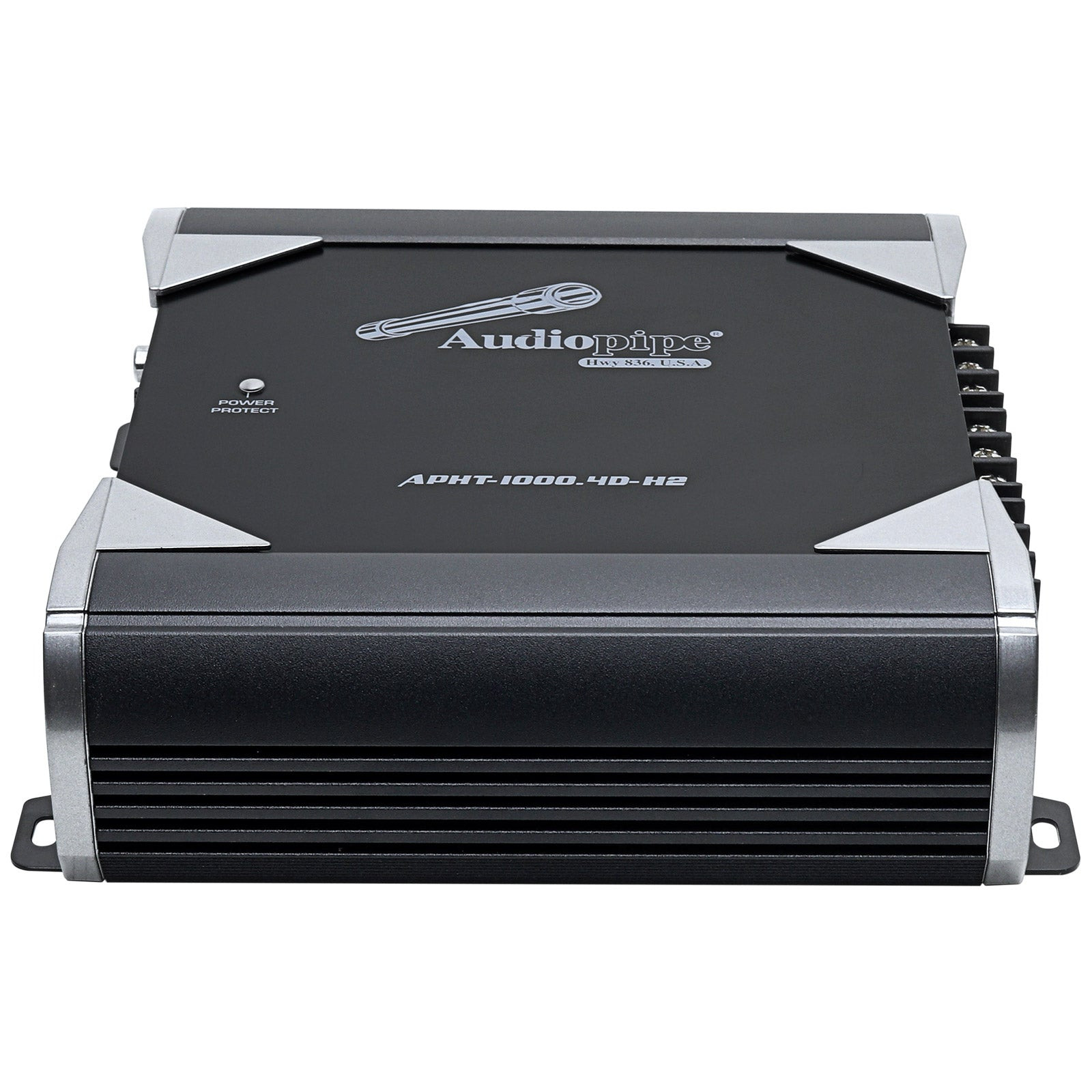

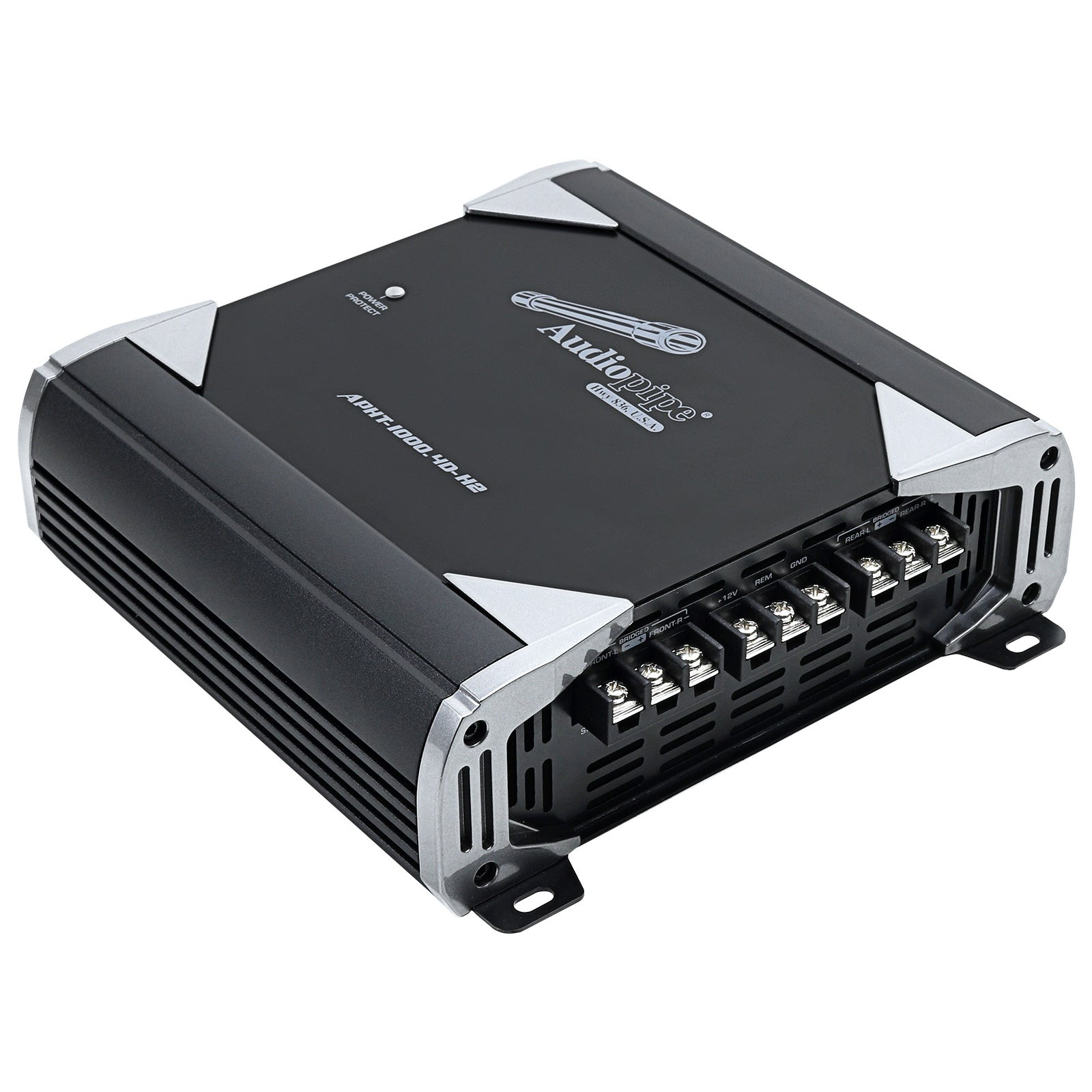

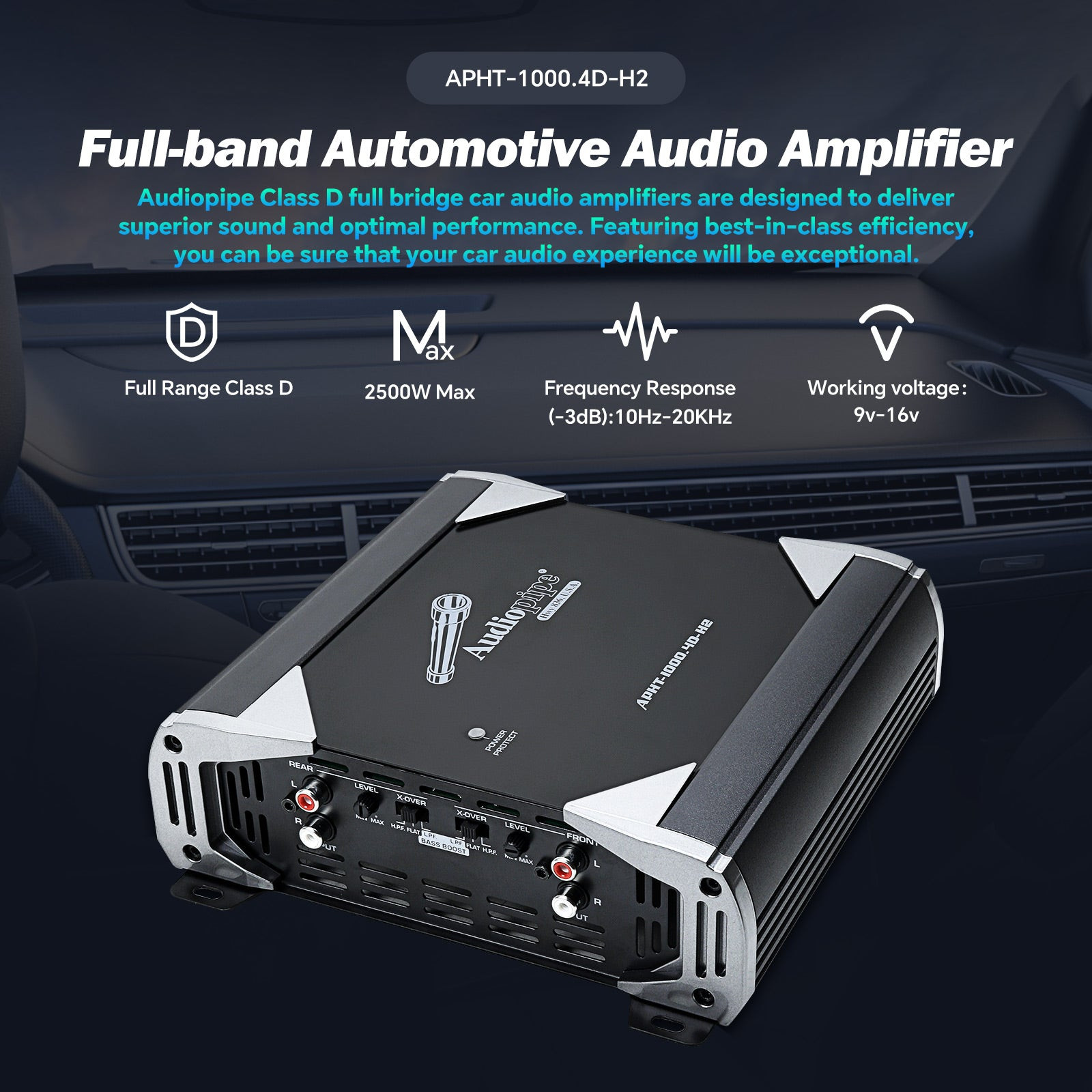

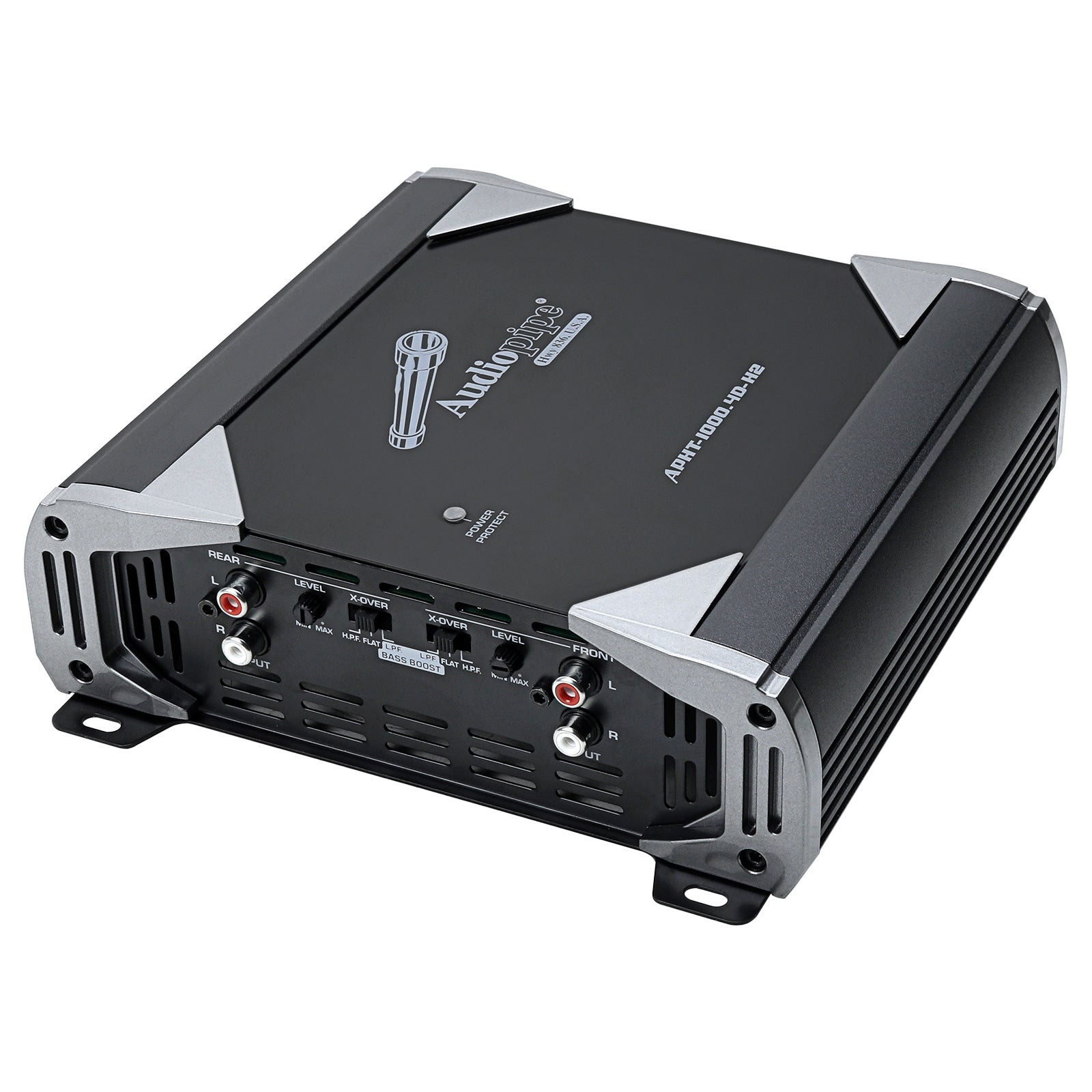

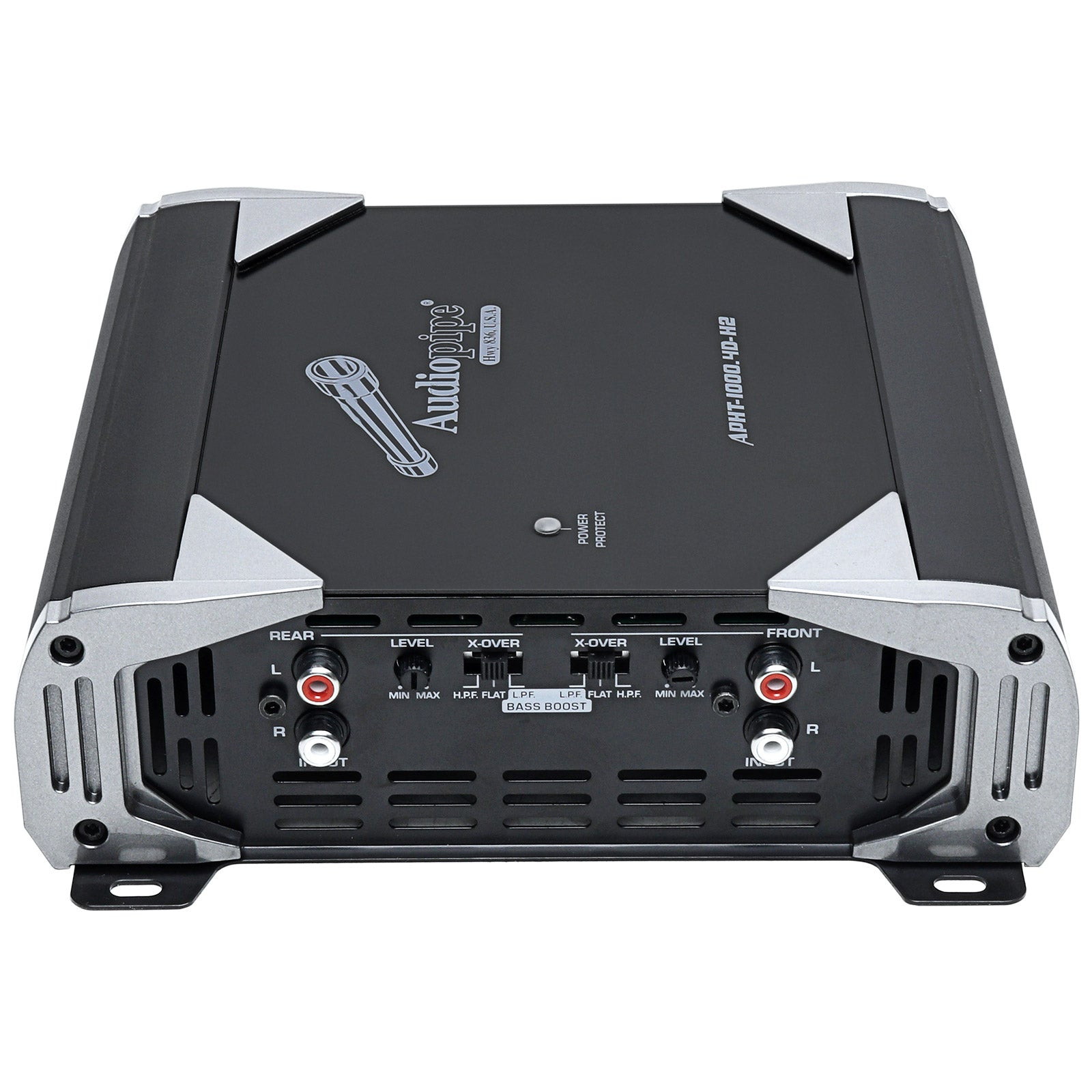

Universal Full Range Class D Transistor Amplifier by Audiopipe®. Experience unmatched audio quality with our APHT-1000.4D-H2 Full Range Class D Transistor Amplifier. With 1000 Watts of power and advanced BTL technology, it delivers clear and powerful sound for even the most demanding car audio systems. A four-point protection system and clip indicator ensure safety and distortion-free sound. Elevate your audio game today!

Audiopipe® - 2021 Product Catalog Audiopipe Authorized Dealer

Brand:

Audiopipe

Part Number:

APHT-1000.4D-H2

UPC:

784644420041

Alternate MPN:

APHT10004DH2

Warranty

When purchased from an authorized Audiopipe Dealer, this product is warranted against all defects in material and workmanship for a period of one year from the original date of purchase. The conditions of this warranty and the extent of Audiopipe's responsibility under this warranty are as follows:

Proof of the date of purchase will be required for warranty service of this product.
This warranty will become void if service is performed by anyone other than an approved Audiopipe Warranty Service Center.
This warranty does not apply to any product which has been subject to misuse, neglect, involved in an accident or has had the serial number altered, defaced, and/or repaired or has been connected, installed, adjusted and/or repaired other than in accordance with the instructions furnished by Audiopipe Inc.
This warranty does not cover static or electrical interference, tape head cleaning or space adjustments or the labor costs associated with the reinstallation of the unit for repair.
The sole responsibility of Audiopipe Inc. under this warranty shall be limited to the repair or replacement at the sole discretion of Audiopipe Inc.
If it becomes necessary to send the product or any defective part to Audiopipe Inc. or an Authorized Warranty Service Center, the product must be shipped in its original carton or an equivalent carton. Audiopipe Inc. will not assume responsibility for any loss or damage incurred in shipping.
All implied warranties except to the extent prohibited by applicable law shall have no greater duration than the warranty period set forth above. Under no circumstances shall Audiopipe Inc. be liable for any loss or damage, direct or consequential, or exclusions or limitations of the incidental or consequential damages arising out of the use or inability to use the product because some states do not allow limitation on how long an implied warranty lasts. The above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.
