Baer® 4401006B - Pro Plus Drilled and Slotted Front Brake System

3 reviews|Item # mpn5180453055
Vehicle Specific
    Select Vehicle
    Notes:
    • Bolts directly to stock spindles.
    Authorized Dealer
    $2,556.95
    In Stock (20) - Ships in 24 to 48 hrs
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Jeep

    Specifications

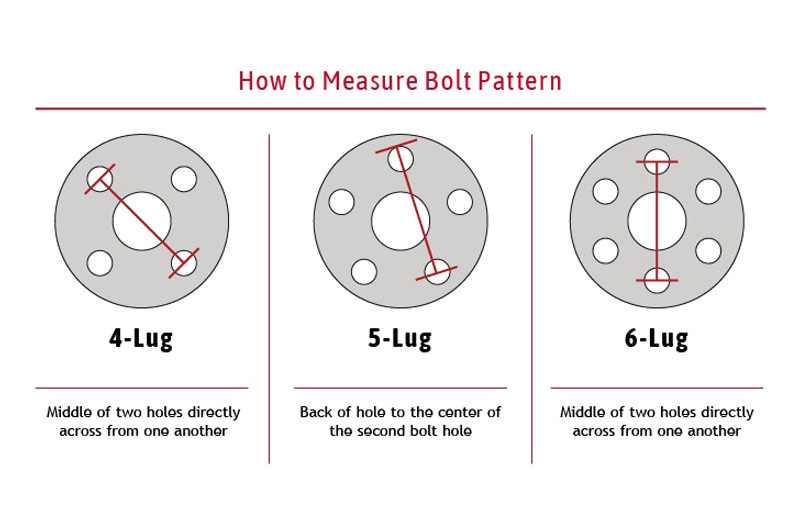

    Bolt Pattern
    5 x 5.0"

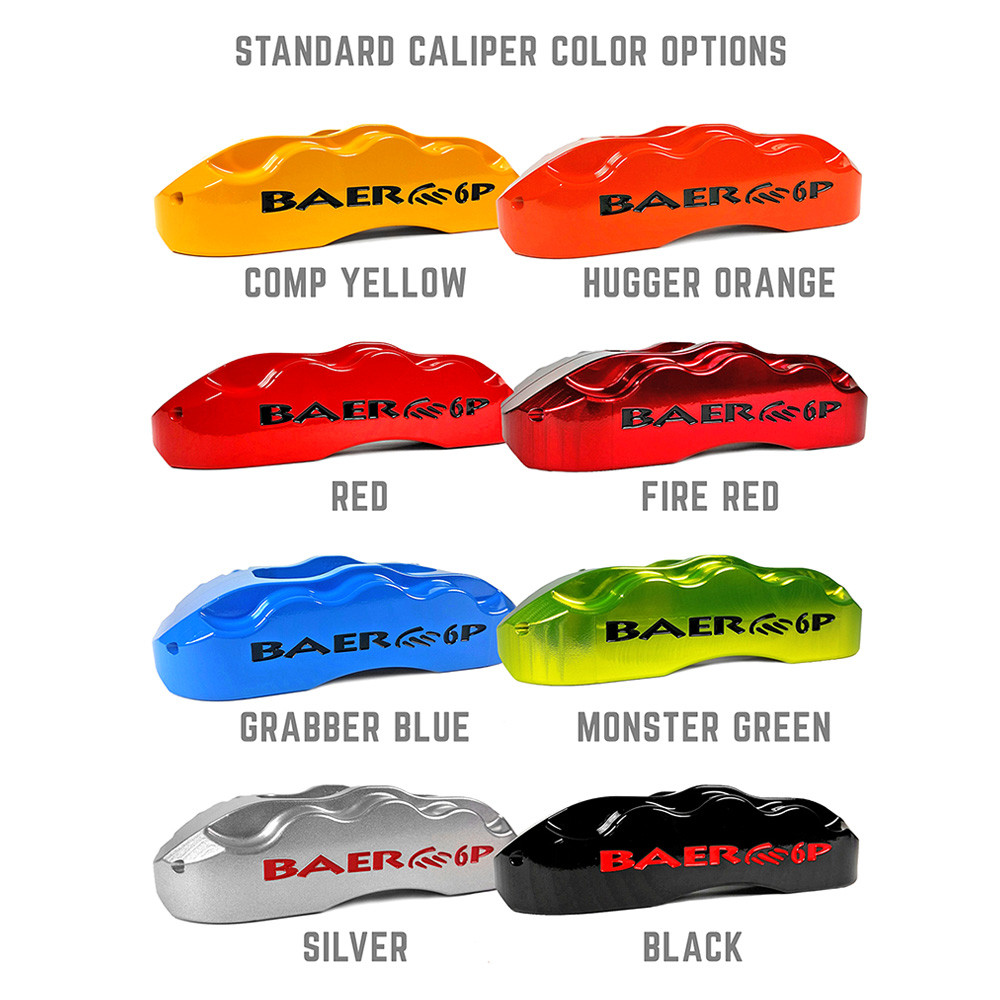

    Caliper Color
    Black
    Caliper Construction
    Fixed
    Caliper Series
    6P
    Caliper Type
    6-Piston
    Minimum Wheel Diameter Required
    457.2mm (18")
    Driving Style
    Performance / Racing, Track Only, Hauling & Towing
    Outside Diameter
    356mm (14")
    Rotor Construction
    2-Piece
    Rotor Material
    Cast Iron
    Rotor Style
    Drilled & Slotted
    Rotor Type
    Vented
    Rotor Finish
    Zinc Plated
    Series
    Pro+
    Front Rotor Outside Diameter (mm)
    355.60mm
    Front Rotor Outside Diameter (in.)
    14.00 in.
    Front Rotor Thickness (in.)
    1.15 in.
    Brake Rotor Bolt Pattern (in.)
    5 x 5.00 in.
    Brake Rotor Bolt Pattern (mm)
    5 x 127.00mm
    Friction Material Name
    Ceramic
    Front Caliper Color
    Black
    Front Caliper Material
    Aluminum
    Front Caliper Piston Quantity
    Six
    Front Rotor Construction
    Vented
    Front Rotor Style
    Cross-drilled/Slotted surface
    Minimum Recommended Wheel Diameter (in.)
    18 in.
    Quantity
    Sold as a kit.
    Position
    Front
    Front Spindles Included
    No
    Master Cylinder Included
    No
    Front Rotor Included
    Yes
    Rear Rotor Included
    No
    Remanufactured
    No
    Front Caliper Included
    Yes
    Rear Caliper Included
    No
    Parking Brake Provision
    No
    Brake Booster Included
    No
    Brake Hoses Included
    No
    Brake Pads Included
    Yes

    Features

    • Front calipers are a 1-piece design forged from a solid block of aluminum
    • Front calipers feature the only street application with a 6-piston design for better braking performance
    • Calipers come pre-loaded with ceramic brake pads that offer superior heat disbursement, longer life, quieter operation, and lower dust levels
    • Calipers are radially mounted to maintain greater stiffness under load - ensuring pads stay in alignment with the rotor and make a more even, superior level of contact
    • Calipers feature stainless steel pistons, caliper attachment brackets, and vibration dampening springs to ensure freedom from corrosion deterioration
    • Pistons within each caliper are staggered in size to minimize pad taper and uneven pad wear
    • 2-piece rotor design with a 6061 T-6 billet aluminum hat bolted to the rotor friction ring with high grade NAS (Aircraft) hardware
    • Brake pads feature racing grade backing plates that more effectively prevent heat buildup that causes brake fluid boiling as well as damage to caliper seals and dust boots
    • 2-piece rotors are slotted and drilled for better venting of heat, water, brake dust, and gasses
    • 2-piece rotors feature an aluminum center section for weight savings
    • Rotors are dipped in zinc to resist corrosion on non-contact areas
    • 90 days Warranty against Manufacturer's defects
    • Proudly manufactured in the United States

    Product Details

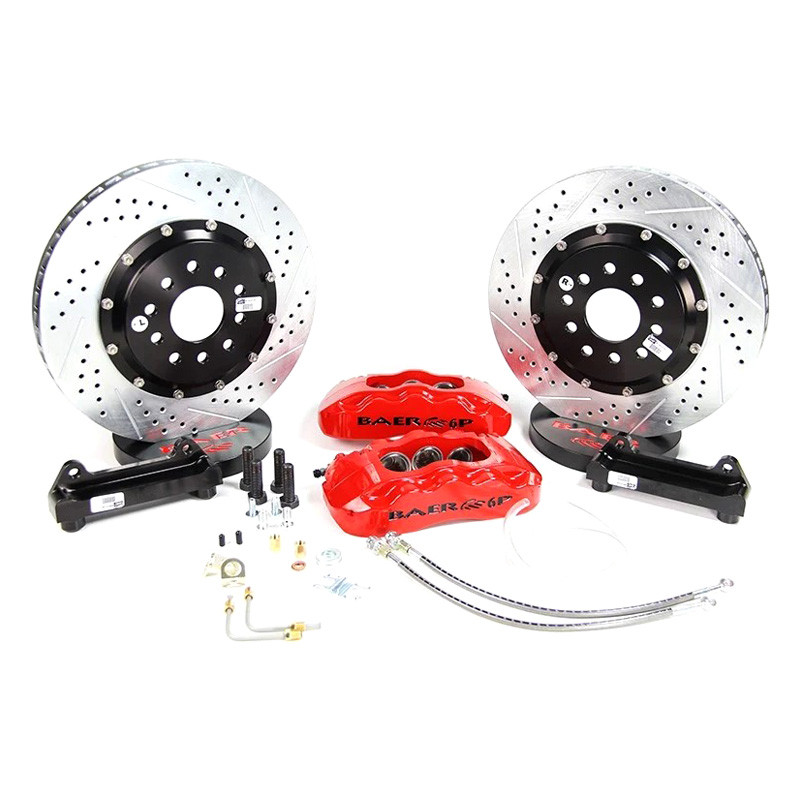

    Pro Plus Drilled and Slotted Front Brake System (4401006B) by Baer®. Quantity: 1 Pair. The Pro Plus series contains all the features and benefits of the Extreme Plus kits for vehicles with less clearance room for brake components. The kit includes 6-piston front monoblock calipers finished in a protective ceramic powder coat that is extremely resistant to grime, brake dust, and chips. Also included are ceramic brake pads, lightweight two-piece rotors, stainless steel caliper hardware, and ceramic brake pads. All Pro Plus brake components are designed to provide optimum levels of progressive braking during aggressive street and track driving.

    Installation

    Benefits:

    • Drilled holes and Slots create an escape route for debris, dust, gases, and water
    • Slots clean and de-glaze pad surface for optimum pad coefficient of friction
    • Drilled rotors improve the appearance of your wheels and provide reduced rotor weight
    • 2-Piece rotors offer great weight savings and provide rapid heat dissipation compared to 1-piece rotors
    • Vented type of rotors offer much faster heat dissipation
    • Multi-piston calipers provide clamping force on both sides of the rotor at the same time and uniformly transfer braking force to the brake pads
    • Caliper pistons are hollow to save weight
    • Aluminum caliper body allows for exceptional light weight (up to 40% of weight savings) and ensures superior corrosion resistance
    • Fixed calipers create friction from the brake pads on both sides of the rotor at minimum time interval

    Baer brakes offers a solution to the woes of underperforming factory brake parts with the Pro Plus Front Brake System. Designed as the ultimate street/track performance upgrade for vehicles that can fit 13-inch or 14-inch rotors, this kit starts with front calipers built with six pistons - a design virtually unmatched in the industry. It also includes 2-piece rotors that are cross-drilled and grooved for superior disbursement of heat, brake friction gases, dust, and water - with center sections crafted from aluminum for weight reduction where it counts.

    While the Extreme Plus front calipers are more powerful than products from most competitors, company engineers design and test them until they achieve the perfect balance of performance and control. This means using superior materials and designs thoroughly in all areas of construction, not saving pennies where the eye will not notice. For example, calipers are radially mounted to maintain greater stiffness under load - ensuring pads stay in alignment with the rotor and make a more even, superior level of contact. Calipers also feature stainless steel pistons, caliper attachment brackets, and vibration dampening springs to ensure freedom from corrosion deterioration. Pistons within each caliper are staggered in size to minimize pad taper and uneven pad wear, so you'll get more usable brake life out of pads. Caliper housings feature a durable red powder coat finish that is extremely heat resistant, and the ceramic brake pads also feature racing-grade backing plates that more effectively prevent heat buildup.

    Baer matches the level of racing-grade calipers and rotors with ceramic brake pads that come pre-loaded inside each caliper. Used in championship racing where 200 mile-per-hour speeds quickly generate blistering heat, ceramic brake pads offer the natural ability to stay cool under the most severe conditions. When ceramic brake pads are combined with perforated rotors, heat buildup is reduced so extensively that brake fade rarely occurs due to fluid reaching boiling temperature. Ceramic brake pads are far quieter due to their higher resonant frequency undetectable by human ears, so squealing is not an issue. And finally, ceramic compounds last longer and produce finer, less obtrusive dust that does not stick to most wheel surfaces. You don't need a high-performance vehicle to enjoy the benefits these brake kits offer, and you might find your new car dealer charging a similar price for OE brakes while giving you less.
