Name: Baja Designs® 457513 - Grille Mounted OnX6+™ 40" 346W Driving/Combo Beam LED Light Bar Kit
Brand: Baja Designs
SKU: mpn5259225979
Price: 1568.95 USD
Availability: InStock
Rating: 5 (2 reviews)

Vehicle Fitment

Ford

Specifications

Size	40"
Watts (per kit)	346W
LEDs/bulbs quantity	24-LED
Beam pattern	driving/combo beam
LED rows	single row
Bulb type	LED
Series	OnX6+™
Location	grille
Housing color	black
Light Color	white
Material	aircraft grade aluminum with mil-spec hard anodize
Shape	straight
Voltage	9-36V
Amperage	26.8A (High); 22.4A (Low)
Lumens	38,900lm (High); 32,440lm (Low)
Color temperature	5000K
Dimension	40" L x 2.69" H x 4.29" D
LED life expectancy	49,930 hours
Additional Info	Exceeds MIL-STD810G (Mil-Spec Testing)
	Built-in overvoltage protection
	IP69K (waterproof up to 9ft and pressure washable)
	IK10 compliant (Mechanical Impact Testing)

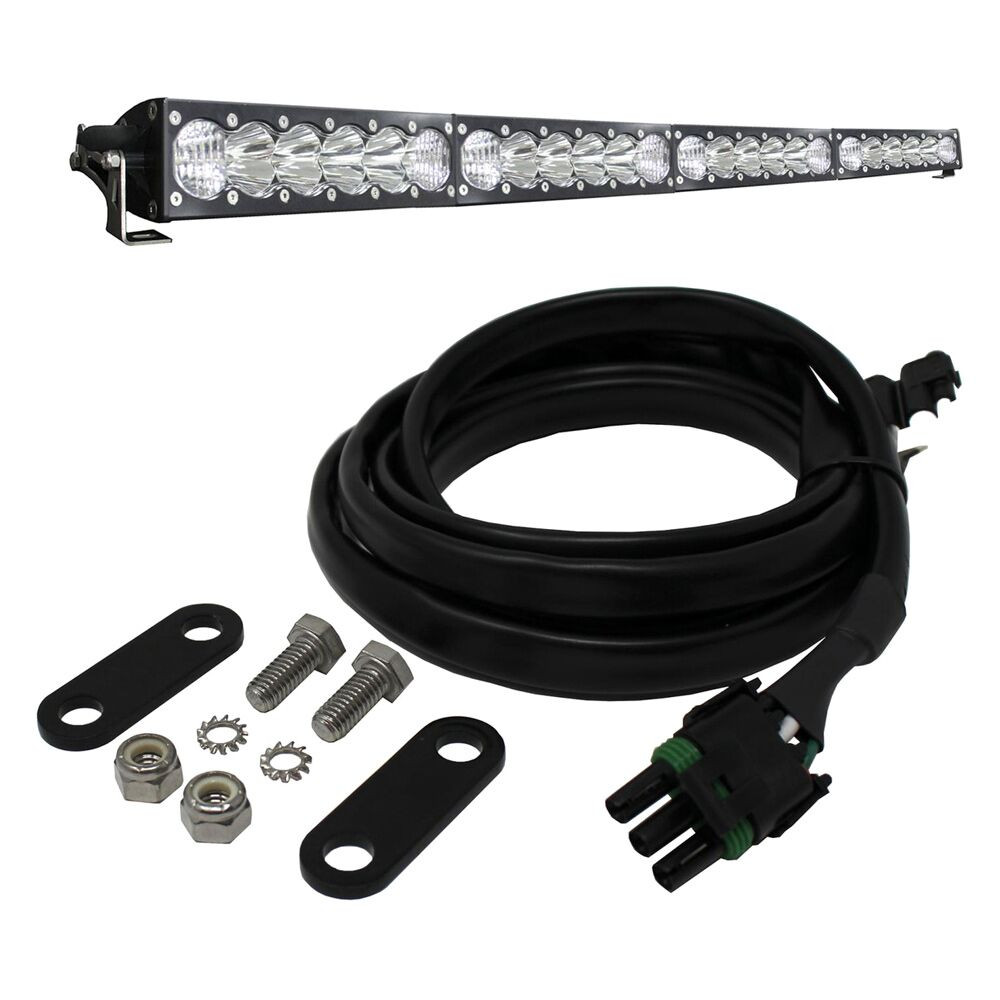

Includes

OnX6™ Light bar kit
Upfitter wiring harness
OEM bracket set

Features

Limited lifetime warranty – complete purchase protection
uService – replaceable lenses and optics
ClearView – all the light, right where you need it
MoistureBlock – waterproof, rain proof, submersible
CopperDrive – only LED driven at 100%
5000K Daylight – less driver fatigue, natural color

Product Details

Grille Mounted OnX6+™ 40" 346W Driving/Combo Beam LED Light Bar Kit (457513) by Baja Designs®. 24-LED. Black housing, white light. 9-36V. 26.8A (High); 22.4A (Low). Lumens: 38,900lm (High); 32,440lm (Low). 5000K. With hard coated polycarbonate lens. Hide it till’ you light it. Now you can easily mount the same light used by top race teams and keep it hidden cleanly behind the grille of your vehicle. At an impressive 38,900 lumens, the 40" OnX6 provides enough light for Baja Designs Team Enlightened racers. The OnX6 LED Light Bar is the only light bar on the market that has the distance of an 8-inch HID with the smooth spread of an LED.

Installation

Baja Designs® - Grille OnX6+™ 40" 346W Driving/Combo Beam LED Light Bar Kit, Installation Instructions

Baja Designs LED light bars, LED lights, and HID lights have been at the forefront of off-road lighting for over 20 years. Their line of high performance LED light bars and LED lights offer the highest quality CREE LEDs currently available combined with the finest optics and heavy duty durability. Their engineering, racing, driving and riding experience translate into the brightest and most efficient lights available.

Baja Designs® - Grille OnX6+™ 40" 346W Driving/Combo Beam LED Light Bar Kit, Installation Instructions Baja Designs® - Grille OnX6+™ 40" 346W Driving/Combo Beam LED Light Bar Kit, Guide Baja Designs® - Grille OnX6+™ 40" 346W Driving/Combo Beam LED Light Bar Kit, Information Baja Designs® - Catalog Baja Designs® - FAQ Made In USA Baja Designs Authorized Dealer Technology Warranty About us

Brand:

Baja Designs

Part Number:

457513

UPC:

853774007849

Warranty

Limited Lifetime Warranty

Warranties on Baja Designs products vary by product and/or by industry, as listed below.

Warranties cover defects in design and manufacturing only. Warranties do not cover installation errors, wear and tear, acts of God, misuse, abuse, neglect, accidents, collisions, defects due to custom specifications provided by you, or any product modifications, configurations or combinations not performed by Baja Designs or on its behalf. Also note the exceptions below for third-party products. Warranty periods start on the shipment date. At its option and as the exclusive remedy, Baja Designs will repair or replace the defective product. If an identical product is no longer available, Baja Designs may replace it with a similar product of comparable value.

COMMERCIAL USE:

Light Bars and Auxiliary Lights used for Commercial Use: this covers the following industries: Agriculture, Industrial, Mining, and Public Safety. Warranty Period: 5 years or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.

RECREATIONAL USE:

Light Bars and Auxiliary Lights used for Recreational Automotive/Off Road: this covers lights bars and auxiliary lights. Warranty Period: limited lifetime warranty or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.

Third-party products (this covers brackets, wiring harnesses, dual sport kits, enduro kits, motorcycle accessories such as taillights, turn signals, brake switches, handlebar switches batteries, etc.) Pass-through warranty: Baja Designs resells, and is not the manufacturer of, certain third-party products including those listed above. Baja Designs makes no express or implied warranties on third-party products and the warranty coverages above do not apply to these products. Baja Designs will, however, pass through all warranties offered by the manufacturer, who has sole responsibility for processing warranty claims and returns.

Exceptions: NiCad DSK batteries carry a 90-day warranty, and dual sport kit switches carry a 1-year warranty. Li-Ion or Li-Po Batteries carry a 2-year warranty.
