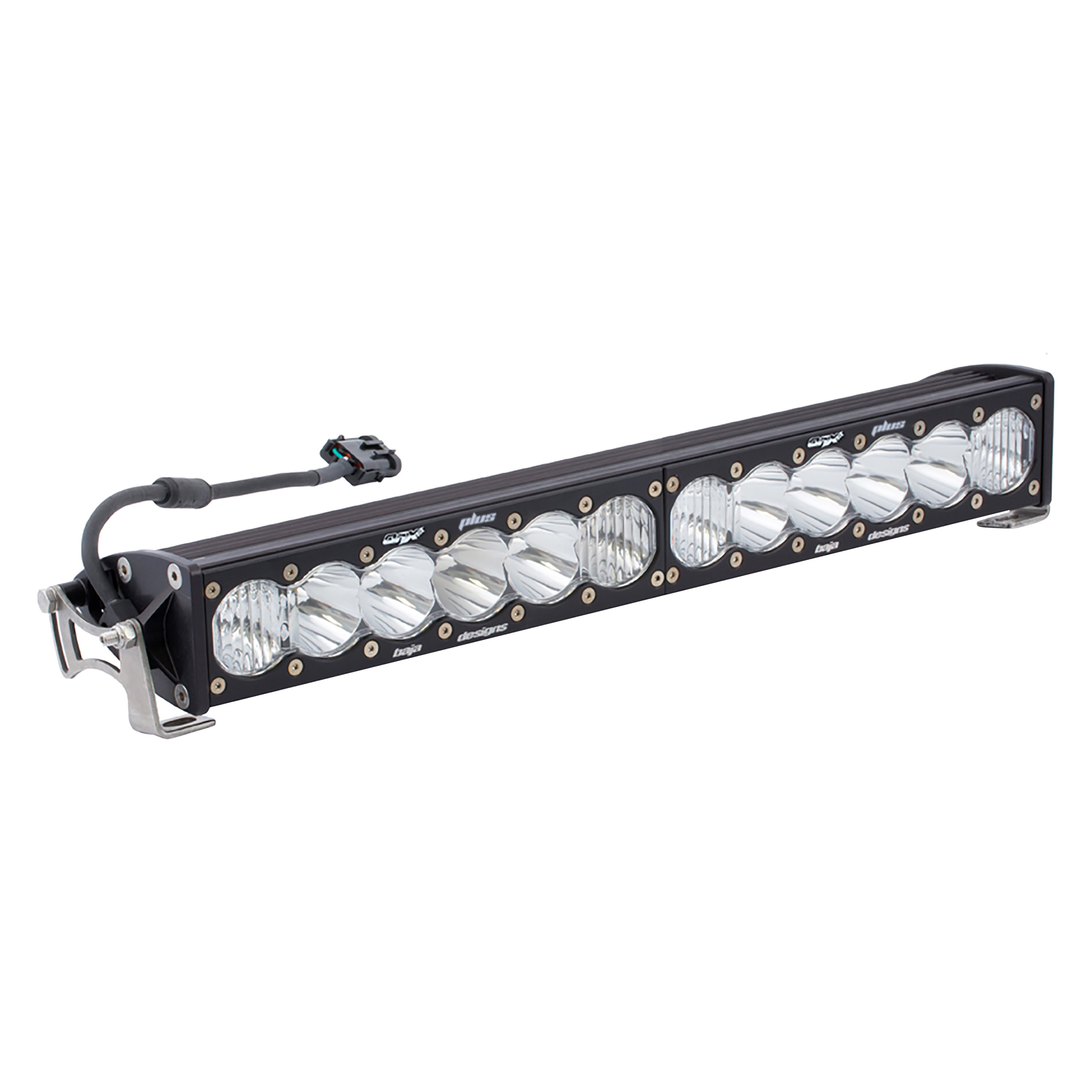

Name: Baja Designs® 452003 - OnX6+™ 20" 216W Driving/Combo Beam LED Light Bar
Brand: Baja Designs
SKU: mpn5259226344
Price: 793.95 USD
Availability: InStock
Rating: 5 (2 reviews)

Vehicle Fitment

This part is universal

Specifications

Size	20"
Watts (per kit)	216W
LEDs/bulbs quantity	12-LED
Beam pattern	driving/combo beam
LED rows	single row
Bulb type	LED
Series	OnX6+™
Housing color	black
Light Color	white
Material	aircraft grade aluminum with mil-spec hard anodize
Shape	straight
Voltage	9-36V
Amperage	16.6A (High); 12A(Low)
Lumens	24,920lm (High); 18,460lm (Low)
Color temperature	5000K
Dimension	20" L x 2.69" H x 4.29" D
LED life expectancy	49,930 hours
Additional Info	Exceeds MIL-STD810G (Mil-Spec Testing)
	Built-in overvoltage protection
	IP69K (waterproof up to 9ft and pressure washable)
	IK10 compliant (Mechanical Impact Testing)

Includes

(1) OnX6™ light bar
Mounting brackets

Features

Limited lifetime warranty – complete purchase protection
uService – replaceable lenses and optics
ClearView – all the light, right where you need it
MoistureBlock – waterproof, rain proof, submersible
CopperDrive – only LED driven at 100%
5000K Daylight – less driver fatigue, natural color

Product Details

Universal OnX6+™ 20" 216W Driving/Combo Beam LED Light Bar (452003) by Baja Designs®. 1 Piece, 12-LED. Black housing, white light. 9-36V. 16.6A (High); 12A(Low). Lumens: 24,920lm (High); 18,460lm (Low). 5000K. With hard coated polycarbonate lens. With lumens starting at 12, 450, the brightest just got up to 69 percent brighter than our previous generation. The OnX6 plus LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by Baja Designs Team Enlightened racers, to give you the guaranteed furthest-projecting LED Light Bar on the planet. Baja Designs use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. These light bars are completely weatherproof and have special battery management technology to save power.

If you’re looking for a high-quality lighting solution to increase your visibility when rushing through harsh off-road terrains, then there is no better choice than this premium OnX6 LED light bar. It comes equipped with industry’s best Cree LEDs to produce bright and consistent light that will truly annihilate the night, giving you a clear view of what’s ahead no matter how fast you drive and how dark the road. Designed for off-road applications, the OnX6 LED light bar has an aircraft-grade aluminum housing and hard-coated polycarbonate lens to guarantee maximum strength and durability. It is highly resistant to impact and will withstand whatever the road may throw at it.

This light bar features a high speed spot beam pattern, a longer and narrower 6-degree beam focus for illumination further down the trail or road. The spot pattern is designed to be used in conjunction with additional wide driving and/or driving/combo beam lights.

Baja Designs® - OnX6+™ 20" 216W Driving/Combo Beam LED Light Bar, Guide Baja Designs® - OnX6+™ 20" 216W Driving/Combo Beam LED Light Bar, Information Baja Designs® - Catalog Baja Designs® - FAQ Made In USA Baja Designs Authorized Dealer Technology Warranty About us

Brand:

Baja Designs

Part Number:

452003

UPC:

852156007057

Warranty

Limited Lifetime Warranty

Warranties on Baja Designs products vary by product and/or by industry, as listed below.

Warranties cover defects in design and manufacturing only. Warranties do not cover installation errors, wear and tear, acts of God, misuse, abuse, neglect, accidents, collisions, defects due to custom specifications provided by you, or any product modifications, configurations or combinations not performed by Baja Designs or on its behalf. Also note the exceptions below for third-party products. Warranty periods start on the shipment date. At its option and as the exclusive remedy, Baja Designs will repair or replace the defective product. If an identical product is no longer available, Baja Designs may replace it with a similar product of comparable value.

COMMERCIAL USE:

Light Bars and Auxiliary Lights used for Commercial Use: this covers the following industries: Agriculture, Industrial, Mining, and Public Safety. Warranty Period: 5 years or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.

RECREATIONAL USE:

Light Bars and Auxiliary Lights used for Recreational Automotive/Off Road: this covers lights bars and auxiliary lights. Warranty Period: limited lifetime warranty or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.

Third-party products (this covers brackets, wiring harnesses, dual sport kits, enduro kits, motorcycle accessories such as taillights, turn signals, brake switches, handlebar switches batteries, etc.) Pass-through warranty: Baja Designs resells, and is not the manufacturer of, certain third-party products including those listed above. Baja Designs makes no express or implied warranties on third-party products and the warranty coverages above do not apply to these products. Baja Designs will, however, pass through all warranties offered by the manufacturer, who has sole responsibility for processing warranty claims and returns.

Exceptions: NiCad DSK batteries carry a 90-day warranty, and dual sport kit switches carry a 1-year warranty. Li-Ion or Li-Po Batteries carry a 2-year warranty.
