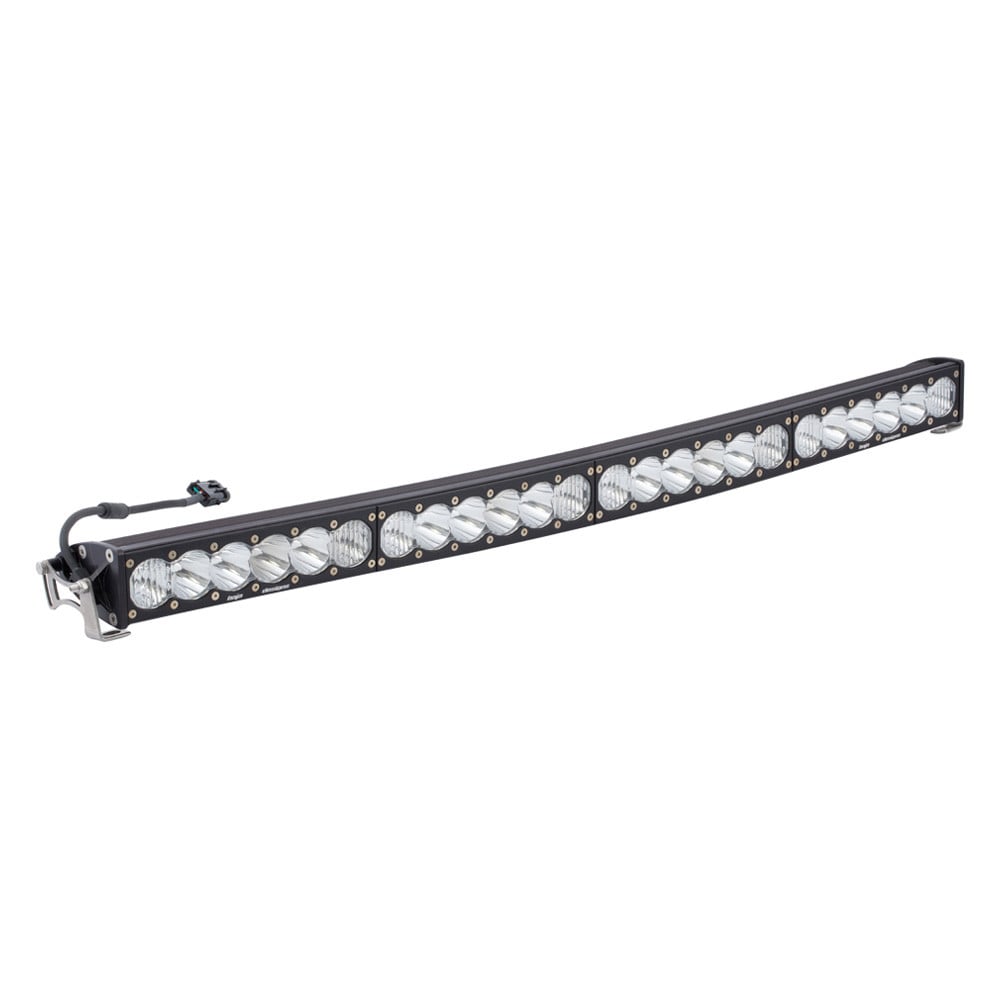

Name: Baja Designs® 524003 - OnX6 Arc™ 40" 340W Curved Driving/Combo Beam LED Light Bar
Brand: Baja Designs
SKU: mpn5259226007
Price: 1750.95 USD
Availability: InStock
Rating: 5 (2 reviews)

Vehicle Fitment

This part is universal

Specifications

Size	40"
Watts (per kit)	340W
LEDs/bulbs quantity	24-LED
Beam pattern	driving/combo beam
LED rows	single row
Bulb type	LED
Series	OnX6 Arc™
Housing color	black
Light Color	white
Material	aircraft grade aluminum with mil-spec hard anodize
Shape	curved
Voltage	9-36V
Amperage	26.8A (High); 22.4A (Low)
Lumens	39,220lm (High); 32,760lm (Low)
Color temperature	5000K
Dimension	40" L x 2.69" H x 4.29" D
LED life expectancy	49,930 hours
Additional Info	Exceeds MIL-STD810G (Mil-Spec Testing)
	Built-in overvoltage protection
	IP69K (waterproof up to 9ft and pressure washable)
	IK10 compliant (Mechanical Impact Testing)

Includes

(1) OnX6™ Arc light bar
Mounting brackets
Hi-Low Dongle

Features

Limited lifetime warranty – complete purchase protection
uService – replaceable lenses and optics
ClearView – all the light, right where you need it
MoistureBlock – waterproof, rain proof, submersible
CopperDrive – only LED driven at 100%
5000K Daylight – less driver fatigue, natural color

Product Details

Universal OnX6 Arc™ 40" 340W Curved Driving/Combo Beam LED Light Bar (524003) by Baja Designs®. 1 Piece, 24-LED. Black housing, white light. 9-36V. 26.8A (High); 22.4A (Low). Lumens: 39,220lm (High); 32,760lm (Low). 5000K. With hard coated polycarbonate lens. The OnX6 Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX series is brighter, bolder, and better so you have the visibility for after-dark adventures. Baja Designs use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.

If you’re in need of a high-quality lighting solution to increase your visibility during nighttime driving, then this premium OnX Arc Series LED light bar is right up your alley. It uses industry’s best Cree LEDs to produce bright and consistent light that will truly annihilate the night, allowing you to easily navigate through obstacles often encountered off the beaten path. Perfect for off-road use, the OnX Arc Series LED light bar has an aircraft-grade aluminum housing and hard-coated polycarbonate front lens to ensure it is durable enough to withstand whatever Mother Nature may throw at it.

This light bar features a driving/combo beam pattern to ensure maximum trail coverage. The driving/combo pattern is equipped with both wide driving (42-degree) and spot (6-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

Baja Designs® - OnX6 Arc™ 40" 340W Curved Driving/Combo Beam LED Light Bar, Guide Baja Designs® - OnX6 Arc™ 40" 340W Curved Driving/Combo Beam LED Light Bar, Information Baja Designs® - Catalog Baja Designs® - FAQ Made In USA Baja Designs Authorized Dealer Technology Warranty About us

Brand:

Baja Designs

Part Number:

524003

UPC:

852156007101

Warranty

Limited Lifetime Warranty

Warranties on Baja Designs products vary by product and/or by industry, as listed below.

Warranties cover defects in design and manufacturing only. Warranties do not cover installation errors, wear and tear, acts of God, misuse, abuse, neglect, accidents, collisions, defects due to custom specifications provided by you, or any product modifications, configurations or combinations not performed by Baja Designs or on its behalf. Also note the exceptions below for third-party products. Warranty periods start on the shipment date. At its option and as the exclusive remedy, Baja Designs will repair or replace the defective product. If an identical product is no longer available, Baja Designs may replace it with a similar product of comparable value.

COMMERCIAL USE:

Light Bars and Auxiliary Lights used for Commercial Use: this covers the following industries: Agriculture, Industrial, Mining, and Public Safety. Warranty Period: 5 years or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.

RECREATIONAL USE:

Light Bars and Auxiliary Lights used for Recreational Automotive/Off Road: this covers lights bars and auxiliary lights. Warranty Period: limited lifetime warranty or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.

Third-party products (this covers brackets, wiring harnesses, dual sport kits, enduro kits, motorcycle accessories such as taillights, turn signals, brake switches, handlebar switches batteries, etc.) Pass-through warranty: Baja Designs resells, and is not the manufacturer of, certain third-party products including those listed above. Baja Designs makes no express or implied warranties on third-party products and the warranty coverages above do not apply to these products. Baja Designs will, however, pass through all warranties offered by the manufacturer, who has sole responsibility for processing warranty claims and returns.

Exceptions: NiCad DSK batteries carry a 90-day warranty, and dual sport kit switches carry a 1-year warranty. Li-Ion or Li-Po Batteries carry a 2-year warranty.
