Baja Designs® 447764UP - Reverse Mounted S2 Sport™ 2x12W Rectangular Wide Cornering Beam LED Light Kit, with Upfitter

8 reviews|Item # mpn5259225782
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $427.95
    In Stock (5) - Ships within 24 hrs
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Ford

    Specifications

    Watts (per kit)
    2x12W
    LEDs/bulbs quantity
    2-LED
    Beam pattern
    wide cornering beam
    Bulb type
    LED
    Series
    S2 Sport™
    Location
    reverse
    Housing color
    black
    Light Color
    white
    Material
    powder coated cast aluminum
    Shape
    rectangular
    Voltage
    9-36V
    Amperage
    0.9A
    Lumens
    1,130lm
    Color temperature
    5000K
    Dimension
    2.93" L x 1.76" H x 1.68" D
    Type
    With Upfitter

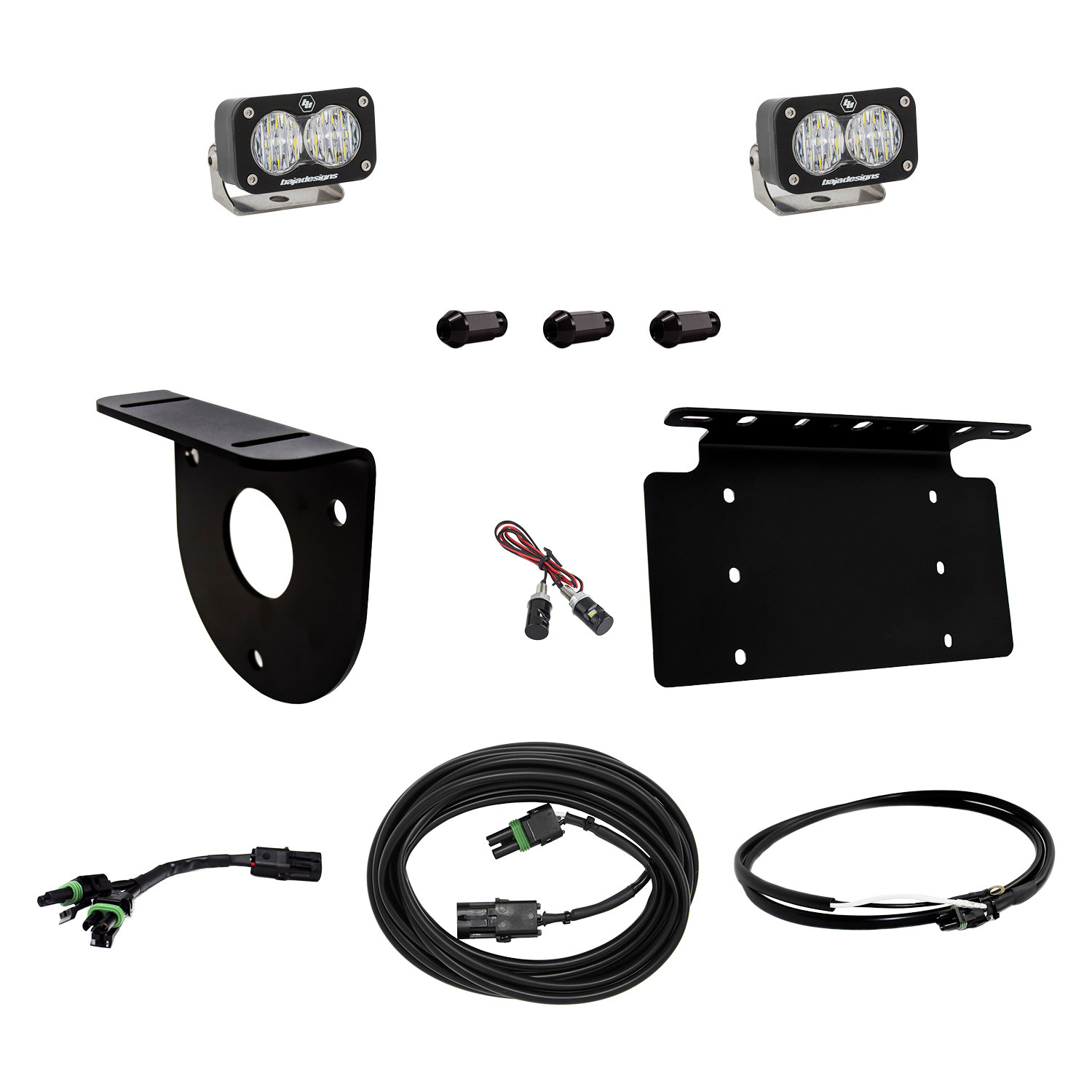

    Includes

    • (2) S2 Sport Wide Cornering LED Lights
    • (1) Reverse light bracket
    • (1) Upfitter harness
    • (1) 10ft extensions
    • (1) 2-pin splitter
    • Hardware

    Features

    • Limited lifetime warranty – complete purchase protection
    • uService – replaceable lenses and optics
    • ClearView – all the light, right where you need it
    • MoistureBlock – waterproof, rain proof, submersible
    • CopperDrive – only LED driven at 100%
    • 5000K Daylight – less driver fatigue, natural color

    Product Details

    Reverse Mounted S2 Sport™ 2x12W Rectangular Wide Cornering Beam LED Light Kit, with Upfitter (447764UP) by Baja Designs®. 1 Pair, 2-LED. Black housing, white light. 9-36V. 0.9A. Lumens: 1,130lm. 5000K. With hard coated polycarbonate lens. The S2 Sport features the same quality, fit, and finish that is synonymous with the Baja Designs name, at an attractive price point. The S2 Sport in wide cornering is an awesome solution for producing a wide spread of light with some distance behind your vehicle. The Wide pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. Whether you’re backing down a trail, or backing into a camp spot these lights illuminate the task at hand

    Installation

    Part Number:
    447764UP
    UPC:
    810031744053
