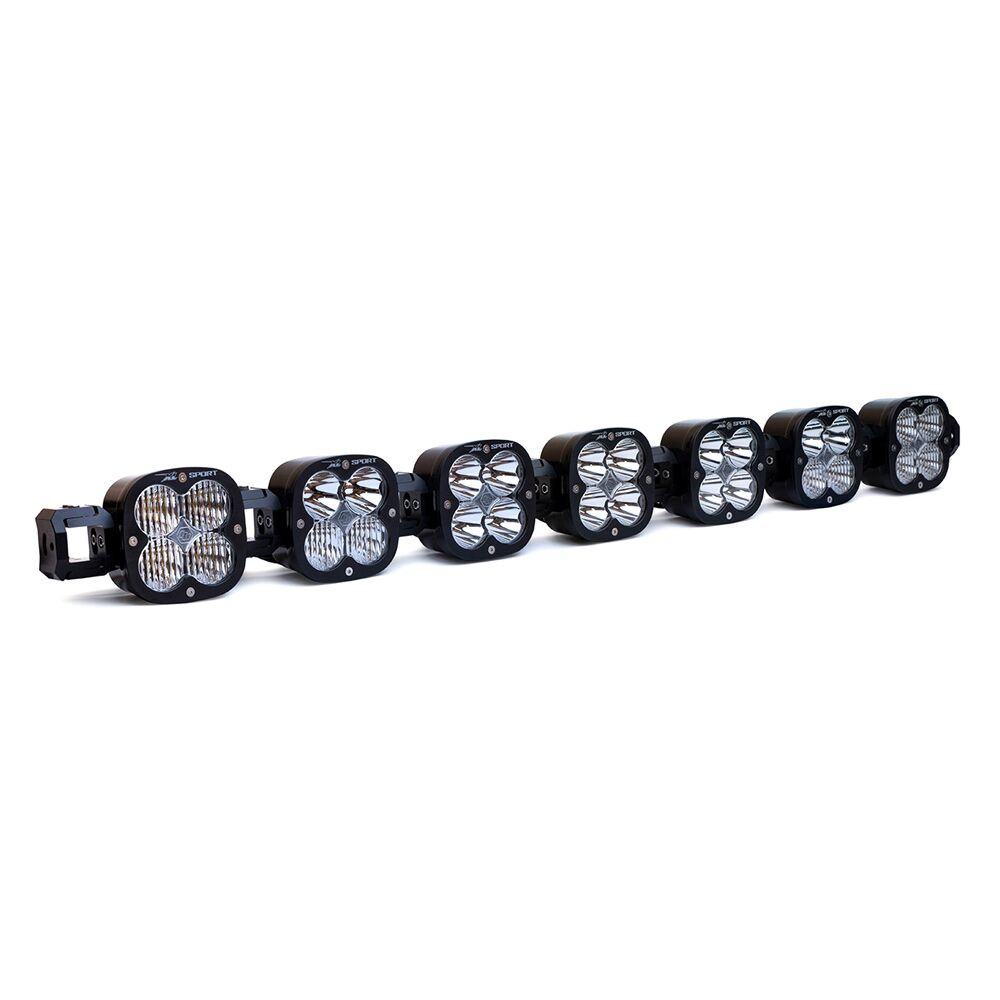

Baja Designs® 740005 - XL Linkable™ 45.34" 182W Dual Row Multi-Pattern Beam LED Light Bar

Name: Baja Designs® 740005 - XL Linkable™ 45.34" 182W Dual Row Multi-Pattern Beam LED Light Bar
Brand: Baja Designs
SKU: mpn5259225914
Price: 1874.95 USD
Availability: InStock
Rating: 5 (2 reviews)

2 reviews|Item # mpn5259225914

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$1,874.95

In Stock (110) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

Size	45.34"
Watts (per kit)	182W
LEDs/bulbs quantity	28-LED
Beam pattern	multi-pattern beam
LED rows	dual row
Bulb type	LED
Series	XL Linkable™
Housing color	black
Light Color	white
Material	hard anodized and powder coated cast aluminum
Shape	straight
Voltage	9-36V
Amperage	14A
Lumens	22,050lm
Color temperature	5000K

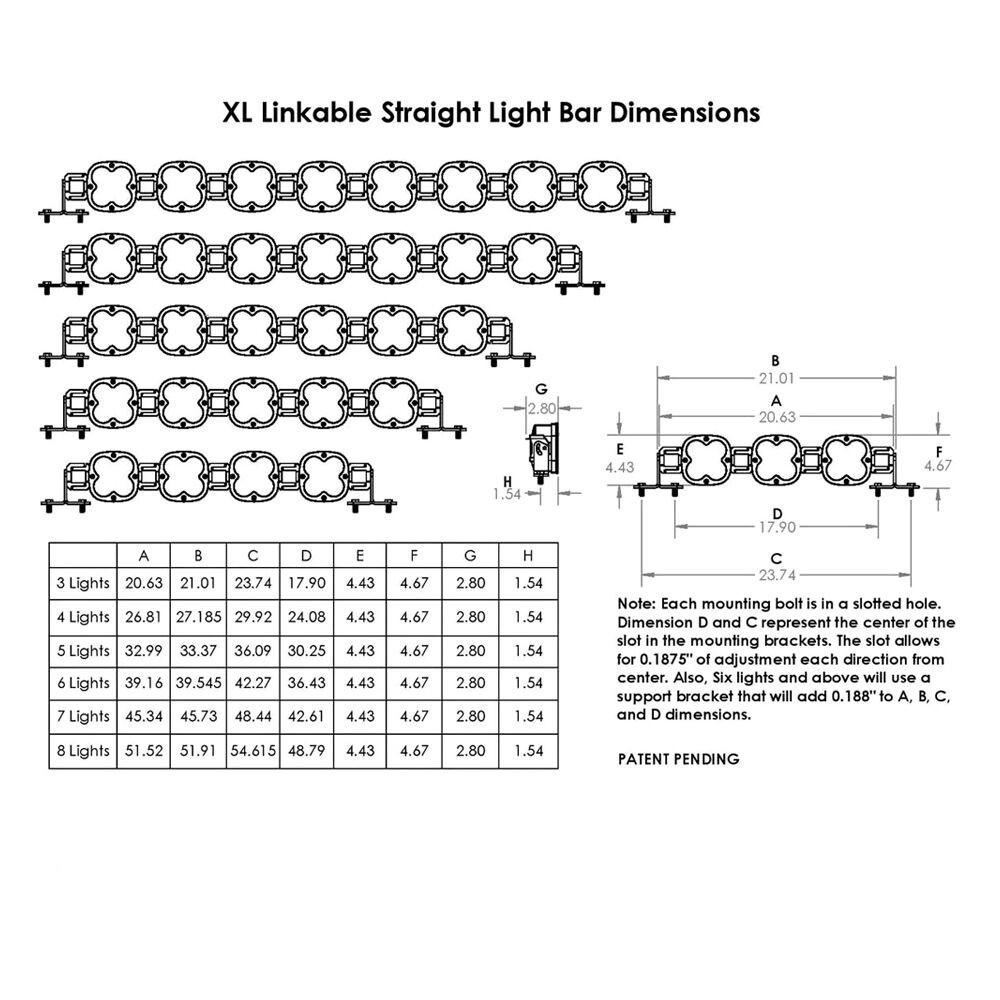

Dimension	45.34" L x 4.43" H x 2.8" D

Includes

(3) XL Sport spot LED lights
(2) XL Sport driving/combo LED lights
(2) XL Sport wide cornering LED lights
(7) XL Sport rock guards
Pre-load Kit

Features

uService® – replaceable lenses and optics
ClearView® – all the light, right where you need it
MoistureBlock™ – waterproof, rain proof, submersible
CopperDrive® – only LED driven at 100%
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-in overvoltage protection
IP69K (waterproof up to 9ft & pressure washable)
K10 Compliant (mechanical impact testing)
Limited lifetime warranty

Product Details

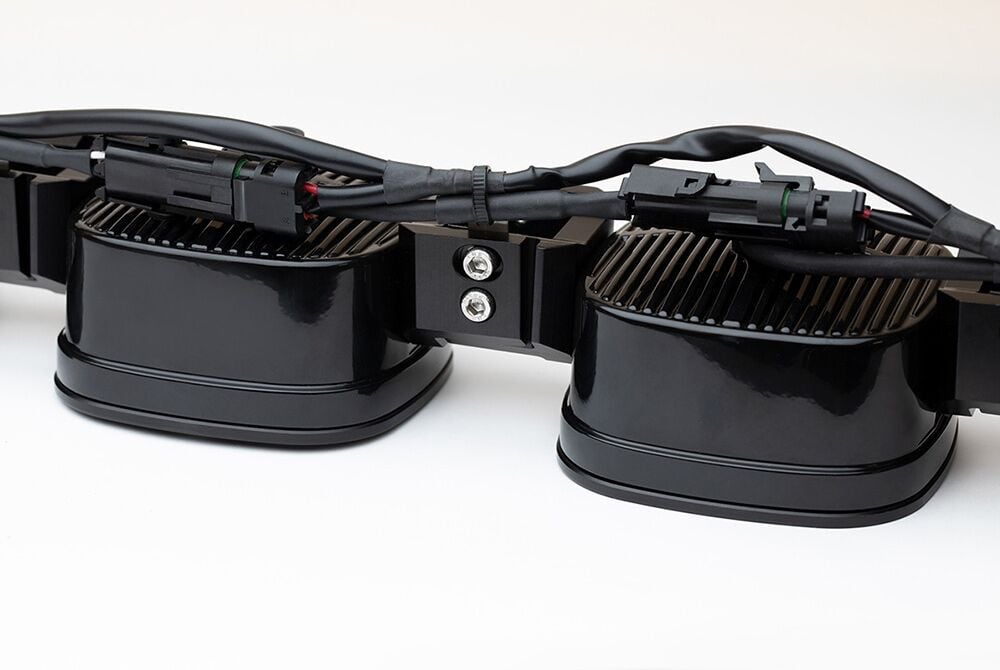

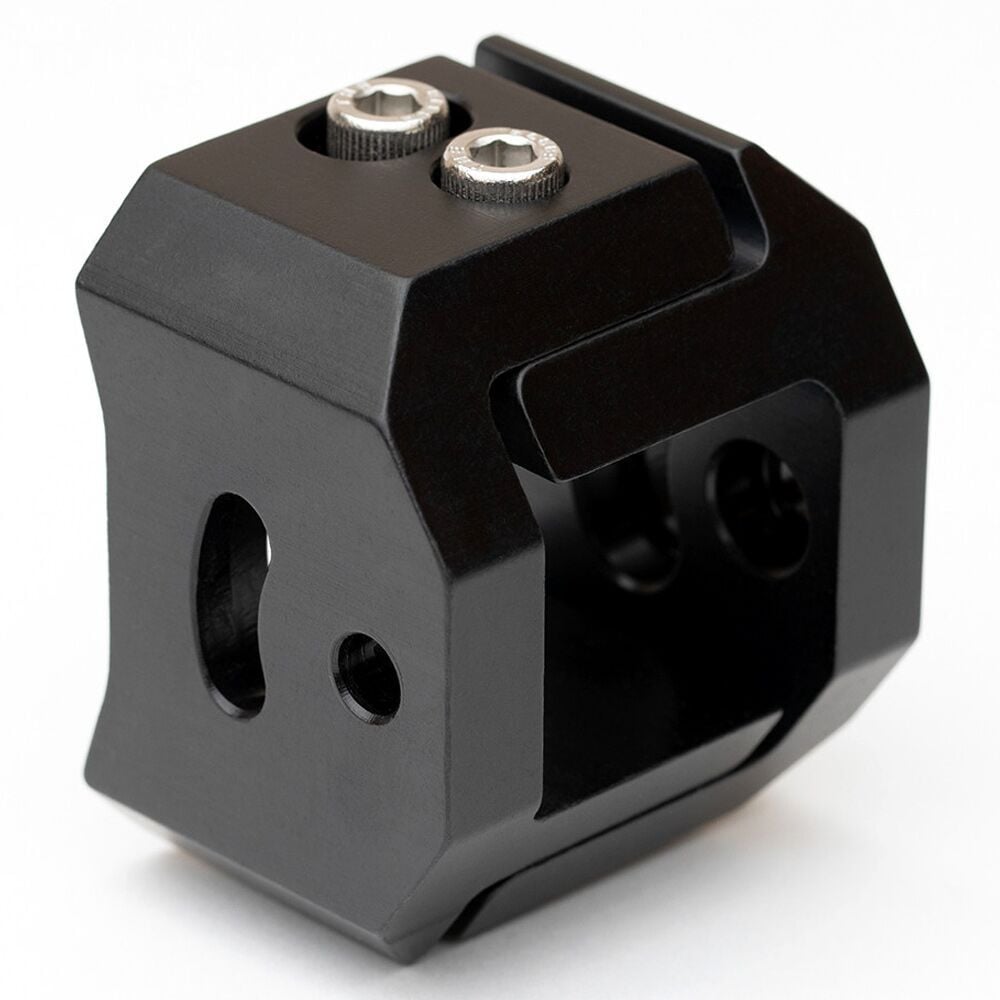

Universal XL Linkable™ 45.34" 182W Dual Row Multi-Pattern Beam LED Light Bar (740005) by Baja Designs®. 1 Piece, 28-LED. Black housing, white light. 9-36V. 14A. Lumens: 22,050lm. 5000K. Hard Anodized and Powder Coated Cast Aluminum. Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle. The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road. If you’re looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!

Installation

Baja Designs® - XL Linkable™ 45.34" 182W Dual Row Multi-Pattern Beam LED Light Bar, Installation Instructions

Baja Designs® - XL Linkable™ 45.34" 182W Dual Row Multi-Pattern Beam LED Light Bar, Installation Instructions Baja Designs® - XL Linkable™ 45.34" 182W Dual Row Multi-Pattern Beam LED Light Bar, Installation Instructions Baja Designs® - XL Linkable™ 45.34" 182W Dual Row Multi-Pattern Beam LED Light Bar, Guide Baja Designs® - Catalog Baja Designs® - FAQ Made In USA Baja Designs Authorized Dealer Technology Warranty About us

Brand:

Baja Designs

Part Number:

740005

UPC:

810031741250

Warranty

Limited Lifetime Warranty

Warranties on Baja Designs products vary by product and/or by industry, as listed below.

Warranties cover defects in design and manufacturing only. Warranties do not cover installation errors, wear and tear, acts of God, misuse, abuse, neglect, accidents, collisions, defects due to custom specifications provided by you, or any product modifications, configurations or combinations not performed by Baja Designs or on its behalf. Also note the exceptions below for third-party products. Warranty periods start on the shipment date. At its option and as the exclusive remedy, Baja Designs will repair or replace the defective product. If an identical product is no longer available, Baja Designs may replace it with a similar product of comparable value.

COMMERCIAL USE:

Light Bars and Auxiliary Lights used for Commercial Use: this covers the following industries: Agriculture, Industrial, Mining, and Public Safety. Warranty Period: 5 years or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.

RECREATIONAL USE:

Light Bars and Auxiliary Lights used for Recreational Automotive/Off Road: this covers lights bars and auxiliary lights. Warranty Period: limited lifetime warranty or 49,930 hours of operation, whichever comes first. You must be the original owner with proof of purchase upon claim or proof of product registration.

Third-party products (this covers brackets, wiring harnesses, dual sport kits, enduro kits, motorcycle accessories such as taillights, turn signals, brake switches, handlebar switches batteries, etc.) Pass-through warranty: Baja Designs resells, and is not the manufacturer of, certain third-party products including those listed above. Baja Designs makes no express or implied warranties on third-party products and the warranty coverages above do not apply to these products. Baja Designs will, however, pass through all warranties offered by the manufacturer, who has sole responsibility for processing warranty claims and returns.

Exceptions: NiCad DSK batteries carry a 90-day warranty, and dual sport kit switches carry a 1-year warranty. Li-Ion or Li-Po Batteries carry a 2-year warranty.
