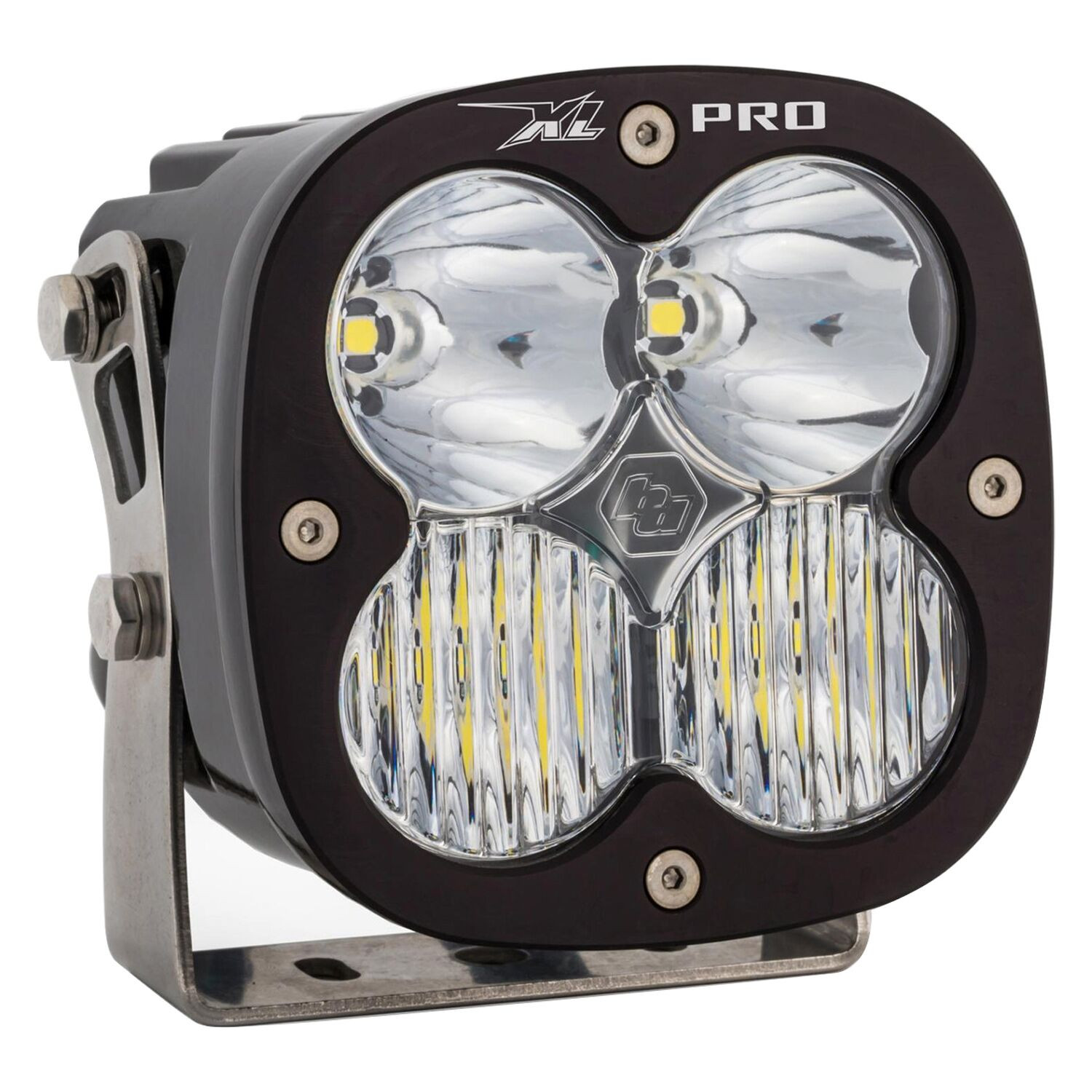

Baja Designs® 500003 - XL Pro™ 4.43" 40W Square Driving/Combo Beam LED Light

8 reviews|Item # mpn5259225518
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$339.95
In Stock (2)
See similar products
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

Size
4.43"
Watts (per kit)
40W
LEDs/bulbs quantity
4-LED
Beam pattern
driving/combo beam
Bulb type
LED
Series
XL Pro™
Housing color
black
Light Color
white
Material
hard anodized and powder coated cast aluminum
Shape
square
Voltage
9-36V
Amperage
2.9A
Lumens
4,900lm
Color temperature
5000K
Dimension

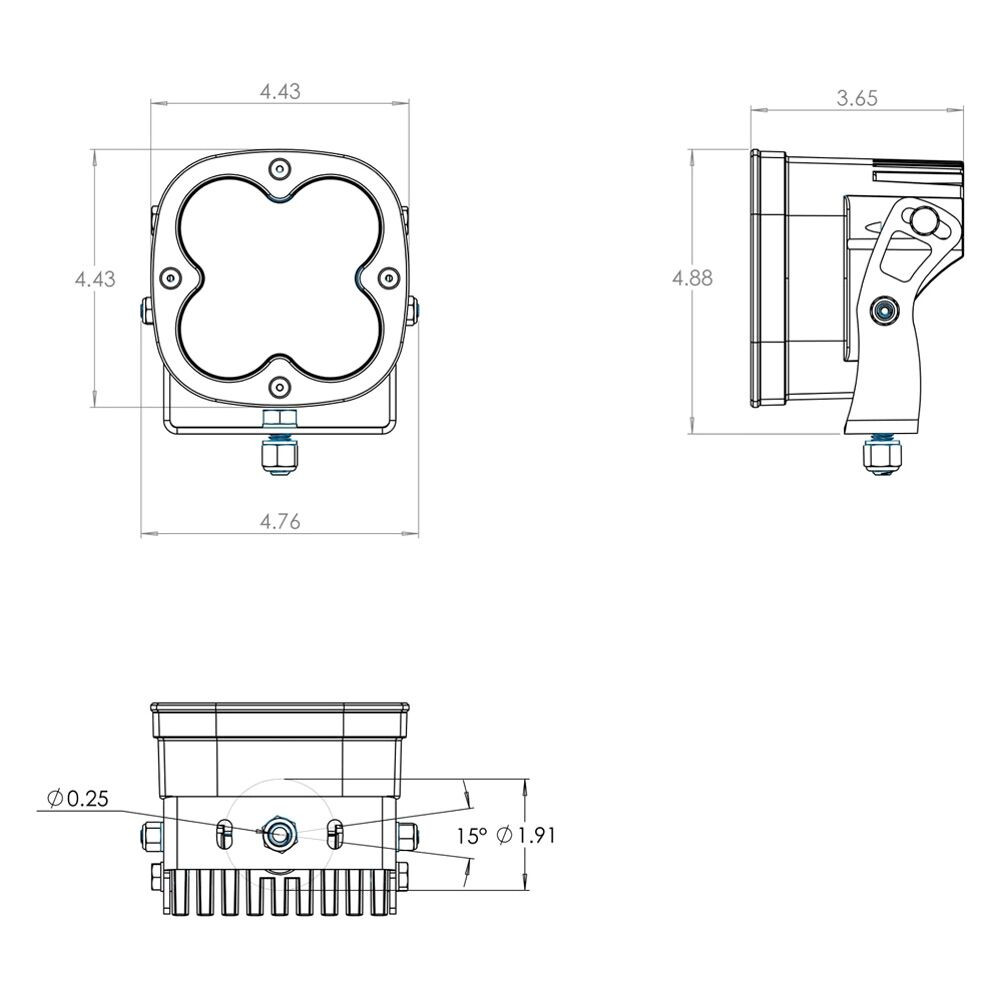

4.43" L x 4.43" H x 3.65" D
LED life expectancy
49,930 hours
Front lens
hard-coated polycarbonate
Hardware and bracket material
stainless steel
Additional Info
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-in overvoltage protection
IP69K (waterproof up to 9ft and pressure washable)
IK10 compliant (Mechanical Impact Testing)

Includes

  • (1) XL Pro™ light
  • Mounting bracket

Features

  • Limited lifetime warranty – complete purchase protection
  • uService – replaceable lenses and optics
  • ClearView – all the light, right where you need it
  • MoistureBlock – waterproof, rain proof, submersible
  • CopperDrive – only LED driven at 100%
  • 5000K Daylight – less driver fatigue, natural color

Product Details

Universal XL Pro™ 4.43" 40W Square Driving/Combo Beam LED Light (500003) by Baja Designs®. 1 Piece, 4-LED. Black housing, white light. 9-36V. 2.9A. Lumens: 4,900lm. 5000K. With hard coated polycarbonate lens. With a 4,600 lumen count and power draw of 40W, the XL Pro is the only single-housing LED auxiliary light on the market that has the distance of an 8" HID with the smooth spread of an LED. The XL Pro LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern, and offers a 20 percent dimming feature. The XL Pro now features a variety of Cree LEDs to provide a 20 percent more reach, with the same power consumption!

If you need a vast amount of light, but are looking for something other than a light bar, then these top-of-the-line Baja Designs XL Pro LED lights are the way to go. Each XL Pro light is equipped with four high-grade Cree LEDs that produce 4,900 Lumens of bright light to enhance your visibility during your nighttime off-road adventurers. Extremely efficient, these LEDs not only emit brighter and more intense light than their incandescent counterparts, but also consume very little power and are proven to last for about 50,000 hours. What’s more, XL Pro LED lights feature High Speed Spot reflectors to provide long distance illumination and give you a clear view of what’s ahead, no matter how fast you drive. Designed to withstand the toughest off-road conditions, they have a hard-coated polycarbonate lens and tough cast aluminum housing.

This light features a driving/combo beam pattern to ensure maximum trail coverage. The driving/combo pattern is equipped with both wide driving (44-degree) and spot (6-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

Baja Designs® - XL Pro™ 4.43" 40W Square Driving/Combo Beam LED Light, GuideBaja Designs® - XL Pro™ 4.43" 40W Square Driving/Combo Beam LED Light, InformationBaja Designs® - CatalogBaja Designs® - FAQMade In USABaja Designs Authorized DealerTechnologyWarrantyAbout us
Brand:
Baja Designs
Part Number:
500003
UPC:
819314022413

Reviews

(8)
Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
/5
1-8 of 8 Reviews
5 of 5
Baja Designs Squadron Sport
Decided to bite the bullet and invest in an aftermarket light to replace the laughable stock 06 TE510 headlight and I'm kicking myself I didn't do this a long time ago. After trying many other "plug n play" LED globes for my stock silly ba20d globe housing and still not happy with any light they put out I went for the bd squadron sport. At only drawing 20 watts compared to the stock 35w halogen the difference was shocking like night and day and the 2200 lumens it put out was amazing for city riding and also good enough for seeing a good braking distance of 80km/hr off road in the dirt. I purchased the light through motorcycleid.com as it was half price compared to pricing here in Australia and with shipping faster to my door then the other side of my own country well I was just even happier all-round. The installation took around a half hour maximum and was truly easy as take that out and off, plug this into that, clip this here and wire that and its done. If anyone looking for a very good quality product, good cs backup and an outstanding after market head light, look into Baja designs range.
Posted by Scott (Yangebup, WA) / August 16, 2019
5 of 5
These Bad Boys Are Awesome!
Bright as f*ck!
Posted by William (Washington City, UT) / February 15, 2019
5 of 5
Amazing Illumination
For 3 1/2" lights, the output is astounding! I highly recommend these. They illuminate better and clearer than the HID high beams on my truck. They also come with a wiring harness and separate quick connects that you can wire yourself, which made installation a breeze.
Posted by Matthew (Mechanicsville, VA) / February 06, 2019
5 of 5
Squadron Sport
Great product, good quality, easy installation.
Baja Designs® 44-7115 - Fog Light Location Mounted Squadron-R Sport™ 3" 2x20W Round Wide Cornering Beam Amber LED Light Kit
Posted by Jaime (Fontana, CA) / September 14, 20182012 Toyota Tacoma
5 of 5
State-of-the-Art Lights
My friend had installed such lights and recommended to me. I became excited and bought it on TRUCKiD. When set up it looks stylish with combo lights pattern. A great plus is lenses are not silicone, not glued, but hard-coated. For a change has additional amber lights covering. Longevity is greater than any of the current lights. Can be a perfect addition to my Jeep Wrangler as well as to any off-road vehicle, I guess.
Posted by Alfred (Port Hueneme, CA) / June 27, 20182016 Jeep Wrangler
5 of 5
What I Was Looking for!
As they are waterproof and they really are, tried washing already, I’m not afraid of condensation. Baja also provides lifetime warranty, will see. The lights came in timely, looked nice even in the box. For the time being and work flawlessly. Provides maximum illumination. I’m a grateful customer!
Baja Designs® 33-0001 - LP9™ Racer Edition 8" 105W/21W Round High Speed Spot Beam Amber/White LED Light
Posted by Allison (Joelton, TN) / April 24, 20182015 Dodge Ram
5 of 5
Worth The Money
I'm a firm believer in you get what you pay for when it comes to aftermarket lights. These are the brightest lights I've ever put on a vehicle. The amount of light they put out is amazing for how small they are. I won't buy any other brand from now on. They are a little high on price but well worth it.
Baja Designs® 49-7813 - Squadron Pro™ 3" 2x40W Square Driving/Combo Beam Amber LED Lights
Posted by Chris (Baton Rouge, LA) / December 19, 2017
5 of 5
F'ing Awesome Lights!!!
After some debate on whether to drop the dough on these Baja designs lights I decided to pull the trigger and boy am I glad I did! These lights are incredible! The build quality is too notch and the light pattern they throw out is perfect. If you are hesitating on picking these up, just do yourself a favor and but em!
Baja Designs® 58-7813 - Squadron-R Sport™ 3" 2x20W Round Driving/Combo Beam Amber LED Lights
Posted by Brian (Reno, NV) / May 24, 2017
