Beat-Sonic® ENX-T312 - Encore X DSP Power Amplifier

0 reviews|Item # mpn5210504215
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $499.00
    In Stock - Ships in 24 to 48 hrs
    See similar products

    Vehicle Fitment

    Toyota

    Specifications

    Output power
    4 x 45 Watts @ 4Ω (14.4V)
    Nominal speaker impedance
    4Ω
    Amplifier class
    Class AB
    Inputs.
    4 x high level speaker input
    Outputs
    4 x speaker output
    Frequency response
    20Hz-22kHz (+0/-1dB)
    S/N ratio
    105dB
    Total Harmonic Distortion (THD)
    0.01%
    DSP resolution
    24bit
    Sampling rate
    48kHz
    Crossover
    Bypass, Bandpass, Lowpass, Highpass
    Crossover type (slope)
    Butterworth (6, 12, 18, 24, 36, 48dB/Oct)
    Phase control
    0/180 deg
    Equalizer frequency range
    20Hz-22kHz (max. 31 bands)
    Equalizer mode
    Parametric & Graphic
    Equalizer band
    1ch/2ch: 31 band
    3ch/4ch
    15 band
    5ch/6ch
    9 band
    Equalizer adjustment range
    -15dB ~ +15dB
    Q factor
    0.3 ~ 50.0
    Time alignment - distance
    0 ~ 204cm
    Time alignment - time
    0 ~ 6ms
    Time alignment increments
    0.021ms / 6.8mm
    Storable presents
    6
    Remote output
    DC 12V (max. 100mA)
    Power
    DC 12V
    Operating voltage
    10 ~ 15V
    Max. current draw
    15A
    Quiescent current
    350mA
    Fuse
    15A (φ5.2×30mm)
    Dimensions (main unit)
    700mm x 103mm x 45mm
    Weight (main unit)
    625gm
    System requirements (PC only)
    Windows 7 or later
    Additional Info
    6 x RCA (2.2V p-p)
    Bessel (6, 12, 18, 24, 36, 48dB/Oct)
    Linkwitz Riley (12, 24, 36, 48dB/Oct)
    0 ~ 136cm (sub-woofer / center speaker)
    0 ~ 4ms (sub-woofer / center speaker)
    USB Type-A

    Features

    • Compact amplifier seamlessly installs to the factory stereo system
    • Tuned specifically with our signature sound to the 2020+ Toyota 4Runner without JBL cabin
    • Significantly improve sound quality with a more clarity and powerful sound output between low, mid and high ranges

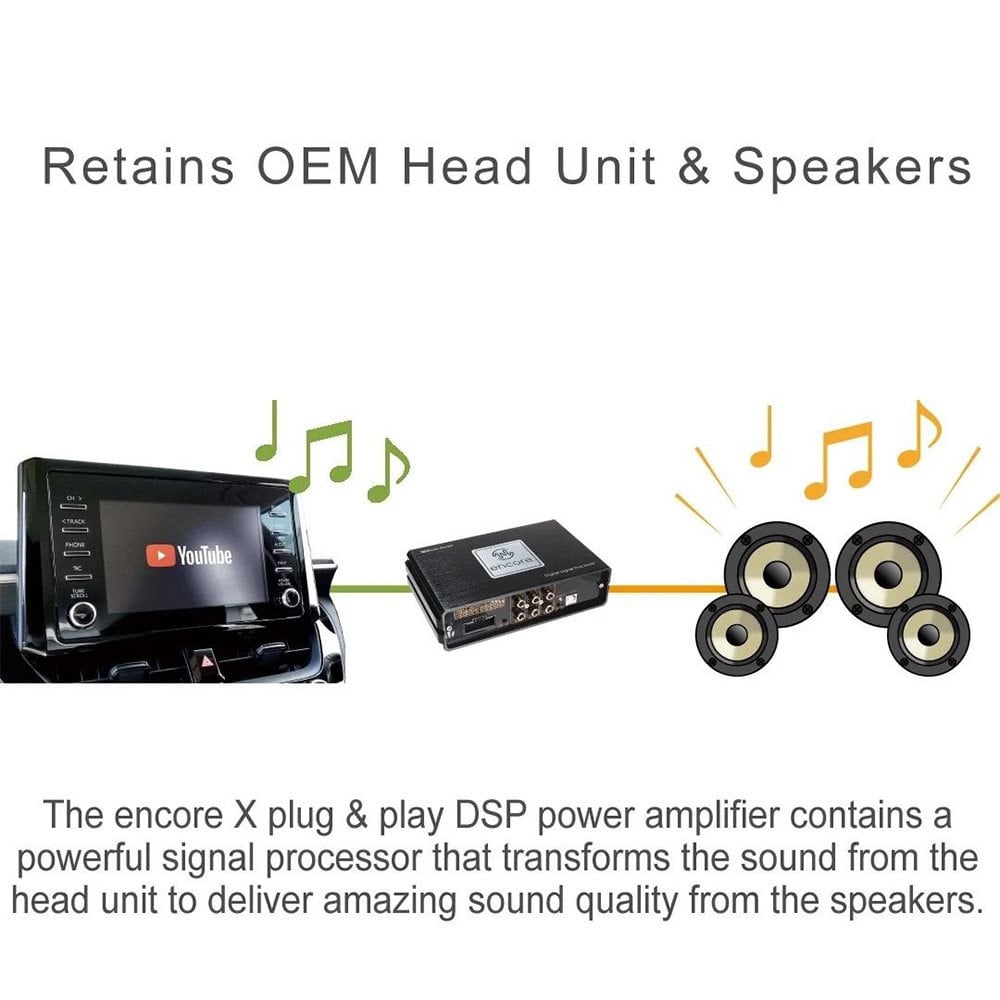

    • Experience high resolution sound while keeping factory speakers and headunit
    • Uses carefully selected acoustic components including high quality electrolytic and low impedance capacitors, extra copper thickness of 70μ to improve all frequencies from low to high
    • Compact size allows for flexibility with installation location
    • High-quality FET operational amplifier is used for input sections. Details of the music including artist's voice and breath tone will be expressed at a high resolution level.

    Product Details

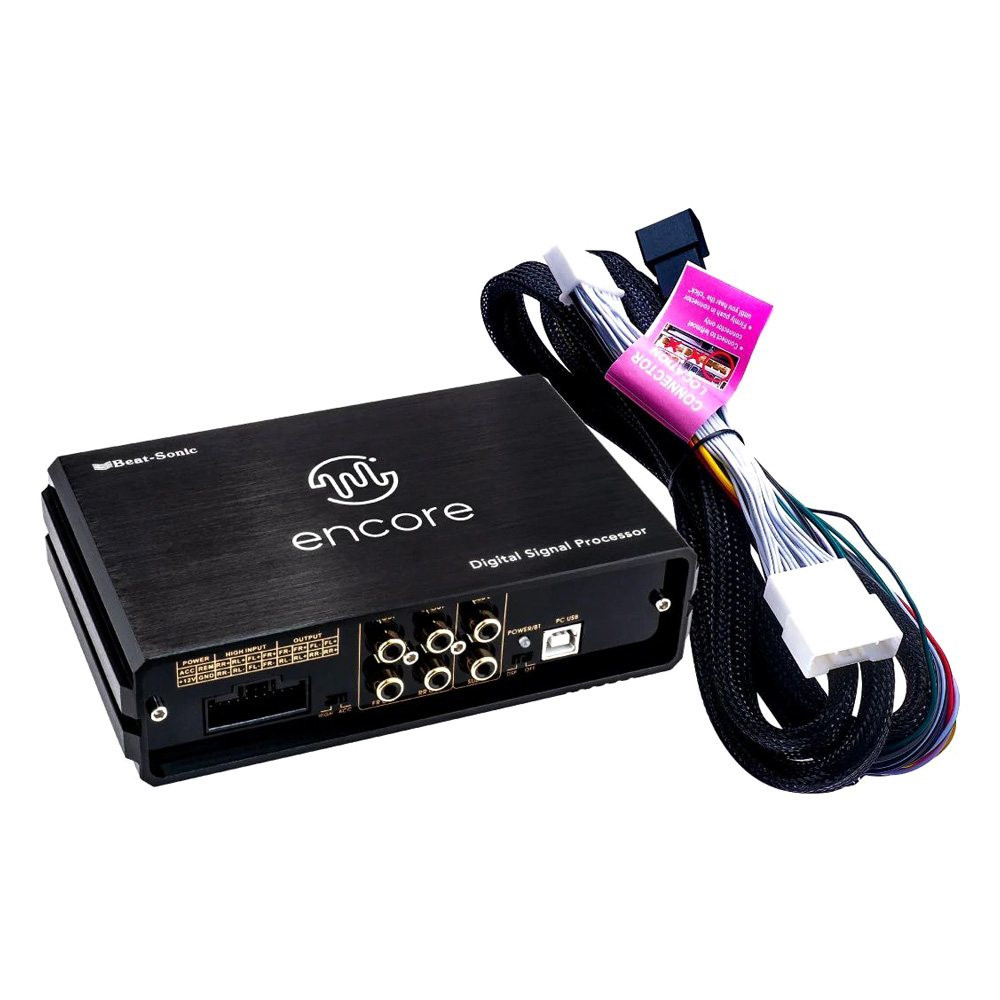

    Encore X DSP Power Amplifier by Beat-Sonic®. Beat-Sonic ENX-T312 DSP POWER AMP is the plug and play solution to significantly improve and enhance your factory system. The kit is easy to install with no special tools required and no modifications to the factory harness.

    Beat-Sonic Authorized Dealer
    Brand:
    Beat-Sonic
    Part Number:
    ENX-T312
    Alternate MPN:
    ENXT312
