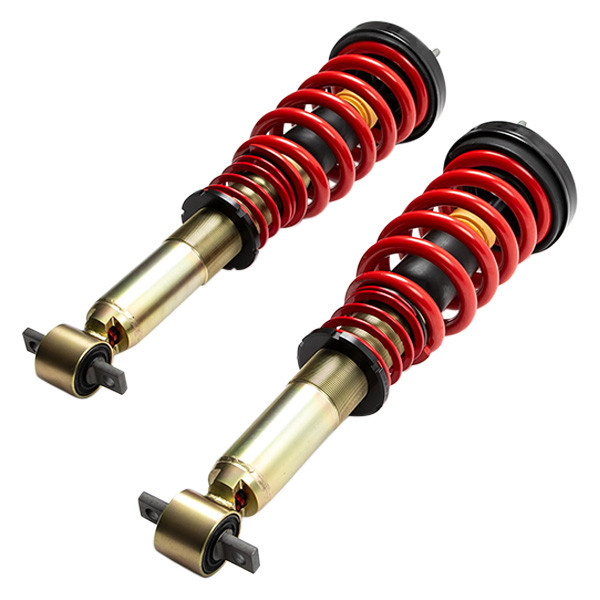

Name: Belltech® 16002 - 1"-3" Plus™ Front Coilovers
Brand: Belltech
SKU: mpn4946811023
Price: 1225.00 USD
Availability: InStock
Rating: 5 (2 reviews)

Vehicle Fitment

Chevy

GMC

Specifications

Front Drop Height	1.0"-3.0"
Adjustable Mounting Bracket Included	No
Adjustable Valving	Yes
Coilover Kit Position	Front
Coilover Springs Included	Yes
Crossmember Included	No
Gas Charged	Yes
Hardware Included	No
Internal Design	Twin-tube
Quantity	Sold as a kit.
Shocks Included	Yes
Spring Finish	Red
Suspension Height Adjustment	1.0-3.0 in. lowered
Welding Required	No
Shock Absorber Internal Design	Twin-Tube
Shock Absorber Type	Hydraulic
Shock Absorber Adjustment Type	Double Adjustment
Shock Absorber Rebound Adjustment	18 Clicks
Shock Absorber Compression Adjustment	12 Clicks
Shock Absorber Levels of Damping	192 Levels
Shock Absorber Reservoir	Without External Reservoir
Shock Absorber Lower Mount Type	T-bar
Shock Absorber Upper Mount Type	Stud
Shock Absorber Material	Galvanized Body
Manufactured	Belltech

Includes

(2) Front Coilovers

Features

Lowering range: -1” to -3”
Large 60mm gold zinc galvanized strut housings
22mm hardened chrome piston rods
Aluminum lower spring seats
Progressive rate polymer open cell foam bumpstops
Plastic dust shields
OEM quality damper components for extra durability and long life
OEM style top mounts
Sport tuned spring rates

Product Details

Plus™ Front Coilovers with 1"-3" Front Body Drop by Belltech®. Quantity: 2 per Pack. Need the ultimate in handling and ride height tuning? Belltech Coilover systems by KW are the answer, providing complete height adjustable replacement shocks and springs in an application specific complete coilover unit. Using damper and valve technology designed and manufactured by Belltech German sister company KW suspensions, Belltech now offers a complete solution for the front end of your strut equipped Sport Truck or SUV. Increase grip, reduce body roll, all while retaining the daily driven comfort you require. Each kit consists of two threaded body performance dampers with the option of independent compression and rebound damping force adjustability. Belltech coilovers come preassembled with matched performance coil springs, bump stops, dust boots and finishing off with oem style top mounts. The premium option in a complete “ready to install” out of the box solution!

Belltech® - Warranty Belltech® - Information Made In USA Belltech Authorized Dealer FAQ Gallery About us

Brand:

Belltech

Part Number:

16002

UPC:

722439992564

Warranty

Belltech Hard Parts - Limited Lifetime “No Questions Asked Warranty”
(Includes Shackles, Spindles, Springs, Flip Kits, Lift Kits, Lowering Kits, Leveling Kits and Blocks)

Belltech (KW automotive North America, Inc., further referred to as “Belltech”) warrants to the original purchaser (further referred to as “Purchaser”) of Belltech suspension products (spindles, springs, shackle and hanger kits, flip kits and blocks) purchased from an Authorized Dealer in North America that these products will be free of manufacturing, design and material defects so long as the original purchaser owns the products and the products are installed on the vehicle on which such products were originally purchased for. Within the stated warranty period, Belltech shall be obligated to repair or replace a defective product at its sole discretion.

Shocks & Struts – 2-Year/Unlimited Mileage Warranty

Belltech Street Performance and Nitro Drop 2 shocks and struts are warranted against defects in materials and workmanship for a period of 2 years (unlimited mileage) as long as the vehicle has been operated under normal conditions. Within the stated warranty period, Belltech shall be obligated to repair or replace a defective product at its sole discretion

Bushings, bump stops, heim and ball joints are considered subject to wear and are excluded from this warranty. Bushings, bump stops and ball joints are warranted for a period of 90 days from the time of purchase.

Belltech or the Belltech Distributor, under any circumstances, shall not be liable for loss of time or revenues, inconvenience, loss of use of the vehicle, damage to the vehicle or components of the vehicle, any other type of consequential damages, or other incidental or indirect damages. resulting from the use, misuse or inability to use the Belltech Products or from defects of the Belltech Products. The limitation of liability does not apply to any injuries to persons, in the event of gross or willful negligence or if a material contractual obligation was violated by Belltech. In the event of improper use of Belltech Products, including installation on vehicles not recommended by Belltech, off-road use or any racing, all warranty claims are null and void.

This warranty does not apply to any products that have not been properly installed and does not cover products showing any of the following (except where prohibited by law):

Cosmetic damage such as scratches, dents or corrosion
Normal wear and tear (including bearings, valve shims and bushings)
Damage cause by improper use, accident, flooding, water, flame or other external or environmental causes
Damage caused by improper installation
Damage caused by alteration of the Belltech Products without expressed written consent by Belltech
Damage caused by improper servicing at Belltech recommended service intervals
Damage caused by servicing by any party other than an authorized Belltech Servicer
Improper use under normal driving conditions

This warranty is personal to the Purchaser and may not be assigned or transferred in any way, even if the vehicle for which the products were originally purchased is sold. Any suit for breach of this warranty must be made within six-months after breach. Belltech reserves the right to change, modify, or cancel this warranty without prior notice.
