Name: Belltech® 6514 - 4" Rear Shackle and Hanger Lowering Kit
Brand: Belltech
SKU: mpn1416843
Price: 322.00 USD
Availability: InStock
Rating: 4.6 (36 reviews)

Vehicle Fitment

Chevy

GMC

Specifications

Rear Drop Height	4.0"

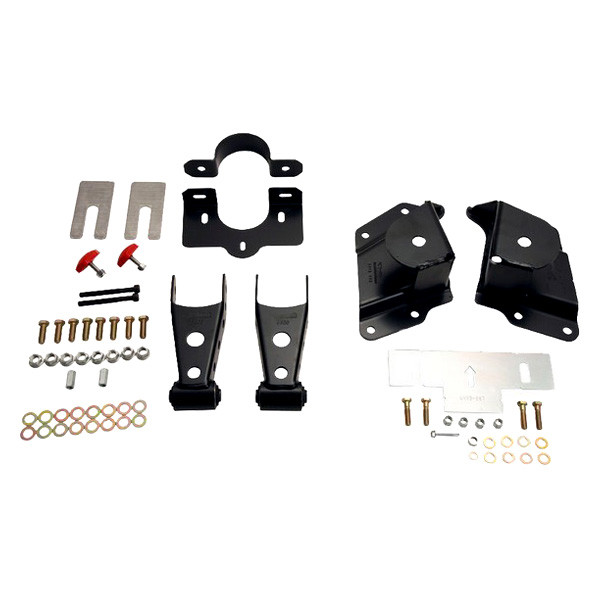

Includes

(2) Rear 2" Lowering Leaf Spring Shackles (Part Number 6400)
(1) HH Screw 1/4” x 1 1/2” (Part Number 110060)
(1) Flat Washer 1/4” (Part Number 110100)
(4) Nylon Insert Lock Nuts 3/8” –16 (Part Number 110255)
(8) Flat Washers 3/8” (Part Number 110625)
(4) HHCS 3/8” –16 x 1 1/2” (Part Number 112098)
(1) Spacer Tube.625” x.120” x.25” (Part Number 112432)
(8) Stover Lock Nuts 7/16” –20 (Part Number 110303)
(8) HHCS 7/16” –20 x 1 1/4” (Part Number 110650)
(16) Flat Washers 7/16” (Part Number 110645)
(2) Shackle Assy W/Bushings (Part Number 6400-100)
(1) Hanger LH (Part Number 6512-010)
(1) Hanger RH (Part Number 6512-020)
(2) Bump Stops (Part Number 4915-001)
(2) Pinion Shims 1° (Part Number 4973-001)
(1) Template C.C.B. Install (Part Number 4995-887)
(1) Center C.B. Hoop Bracket (Part Number 4995-001)
(1) Center C.B. Vertical Bracket (Part Number 4995-003)
Installation Instructions

Features

Designed to lower your vehicle for added style and utility
Offers a perfect balance between looks and handling
Will make your four-wheeler a real head-turner
Delivers superior performance, control, and ride comfort
Made from tough, impact-resistant materials for quality and durability
Engineered to withstand the most demanding driving conditions
Provides quick and easy installation to your vehicle

Product Details

Rear Shackle and Hanger Lowering Kit with 4" Rear Body Drop (6514) by Belltech®. Quantity: Sold as a Kit. Belltech lowering kits give your vehicle an aggressive look while retaining factory ride quality. Kits include Drop Ball Joint, Drop Spindle, Rear Aluminum Lowering Blocks, and Rear Shackles. Kits for more than 2” of drop include replacement coil springs, leaf springs, hangers, rear shackles, and a Flip Kit is available to relocate your leaf spring mounting point from above the axle to below it. Front and rear Pro Lowering Kits include removable spacer pieces to adjust the amount of vehicle drop.

Installation

Belltech® - Rear Shackle and Hanger Lowering Kit Installation Instructions

Rear Lowering Leaf Spring Shackles Installation Instructions

Because Belltech believes products that do not last are not worth building, they take every effort to ensure all components will maintain their integrity over a long period of time. Reinforced, heavy-grade steel provides the strength and rigidity needed to stand up to heavy loads and large tires, and durable powder coat finish ensures steel surfaces remain protected from corrosion thanks to its high resistance to peeling, chipping, or scratching in extreme conditions. U-bolts are stainless steel, and washers are zinc plated. Once installed, the reduced ride height lowers your vehicle's center of gravity which, in turn, reduces body roll and any tendencies to lean over.

Belltech® - Rear Shackle and Hanger Lowering Kit Installation Instructions Rear Lowering Leaf Spring Shackles Installation Instructions Belltech® - About Belltech® - Information Made In USA Belltech Authorized Dealer FAQ Gallery About us

Brand:

Belltech

Part Number:

6514

UPC:

722439065145

Warranty

Belltech Hard Parts - Limited Lifetime “No Questions Asked Warranty”
(Includes Shackles, Spindles, Springs, Flip Kits, Lift Kits, Lowering Kits, Leveling Kits and Blocks)

Belltech (KW automotive North America, Inc., further referred to as “Belltech”) warrants to the original purchaser (further referred to as “Purchaser”) of Belltech suspension products (spindles, springs, shackle and hanger kits, flip kits and blocks) purchased from an Authorized Dealer in North America that these products will be free of manufacturing, design and material defects so long as the original purchaser owns the products and the products are installed on the vehicle on which such products were originally purchased for. Within the stated warranty period, Belltech shall be obligated to repair or replace a defective product at its sole discretion.

Shocks & Struts – 2-Year/Unlimited Mileage Warranty

Belltech Street Performance and Nitro Drop 2 shocks and struts are warranted against defects in materials and workmanship for a period of 2 years (unlimited mileage) as long as the vehicle has been operated under normal conditions. Within the stated warranty period, Belltech shall be obligated to repair or replace a defective product at its sole discretion

Bushings, bump stops, heim and ball joints are considered subject to wear and are excluded from this warranty. Bushings, bump stops and ball joints are warranted for a period of 90 days from the time of purchase.

Belltech or the Belltech Distributor, under any circumstances, shall not be liable for loss of time or revenues, inconvenience, loss of use of the vehicle, damage to the vehicle or components of the vehicle, any other type of consequential damages, or other incidental or indirect damages. resulting from the use, misuse or inability to use the Belltech Products or from defects of the Belltech Products. The limitation of liability does not apply to any injuries to persons, in the event of gross or willful negligence or if a material contractual obligation was violated by Belltech. In the event of improper use of Belltech Products, including installation on vehicles not recommended by Belltech, off-road use or any racing, all warranty claims are null and void.

This warranty does not apply to any products that have not been properly installed and does not cover products showing any of the following (except where prohibited by law):

Cosmetic damage such as scratches, dents or corrosion
Normal wear and tear (including bearings, valve shims and bushings)
Damage cause by improper use, accident, flooding, water, flame or other external or environmental causes
Damage caused by improper installation
Damage caused by alteration of the Belltech Products without expressed written consent by Belltech
Damage caused by improper servicing at Belltech recommended service intervals
Damage caused by servicing by any party other than an authorized Belltech Servicer
Improper use under normal driving conditions

This warranty is personal to the Purchaser and may not be assigned or transferred in any way, even if the vehicle for which the products were originally purchased is sold. Any suit for breach of this warranty must be made within six-months after breach. Belltech reserves the right to change, modify, or cancel this warranty without prior notice.

Reviews

(36)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-10 of 36 Reviews

Sort by

5 of 5

2013 Silverado Four-Door Short Bed

Shopped around they certainly have the best price available, high-quality and will be sure to use your services again, the only problem was the removal of the top factory bolt, really happy with your product, truck rides nice and looks awesome.

Posted by Matthew A (Coolidge, AZ) / May 06, 20152013 Chevy Silverado

5 of 5

Lowering Shackles

It looks awesome on the truck. The price was perfect. It was easy to install. It didn't take much time at all to do. It was here exactly when it was suppose to be. The help I had was excellent. Very friendly and helpful. Thank you.

Posted by Mickey (Casa Grande, AZ) / January 01, 20152007 Chevy Silverado

4 of 5

Dustin

Good product.

Posted by Dustin (Kevil, KY) / January 04, 20142013 Chevy Silverado

5 of 5

Worth the time and money

Lowered my '95 chevy ck pickup with this kit and now it handles and looks better. The package came quicker than I expected. Everything was packaged fine, no missing parts

Belltech® 690SP - 2" x 4" Front and Rear Lowering Kit

Posted by Noe (Denver, CO) / December 22, 20241995 Chevy CK Pickup

5 of 5

Flip Kit

Pain to install without lift but it isnt impossible super good quality and good welds. Fun little project

Belltech® - 2" x 4" Front and Rear Lowering Kit

Posted by Luis Mario (Newberry, SC) / March 05, 20222005 Nissan Titan

5 of 5

Beautiful.

I only wanted to lower the truck just enough to make the tires fill the wheel well. Though I had to do some cutting to make room for the new brackets on the rear, it was fairly simple to perform the job. It only took me about a day to complete in a fully equipped shop. After installation, I was very pleased with the results. The ride is even a bit better due to the new shocks that came in the package since my old ones were worn out. But do take into consideration any big dips or bumps in the road will cause you to feel the bump stops on the rear axle. But that is only due to less space between the axle and bump stops now. I have been driving this vehicle for about 3 months since installation and I am still very happy with the product.

Belltech® 653SP - 2" x 3" Front and Rear Lowering Kit

Posted by Joseph (Bastrop, LA) / July 03, 20212004 Chevy Silverado 1500

5 of 5

F&R lowering Kit

The kit is easy to install. The hard part is taking out all of the old parts. Lowers to perfect height just need some front end adjusting and picture perfect. Glad to have bought your product. I am very happy.

Belltech® 444SP - 2" x 3" Front and Rear Lowering Kit

Posted by Customer / July 14, 20201985 Toyota Pick Up

5 of 5

Great Kit!

Everything you need was there to do a great job of lowering this Colorado to a level that a senior don't have to climb up and into his truck. THANKS Belltech!

Belltech® 999SP - 0"-3" x 4" Front and Rear Lowering Kit

Posted by Customer / July 08, 20202020 Chevy Colorado

3 of 5

Great Kit

Comes with everything you need the only issue I ran into is the street performance shock absorbers for the front do not have a removable dust cover and will not fit without customization.

Belltech® - 2" x 3" Front and Rear Lowering Kit

Posted by Tyler (Bluff City, TN) / March 15, 20201994 Toyota Pick Up

4 of 5

Belltech 1001SP

Just installed my Belltech 1001SP 3"F-5.5"R lowering kit and it looks even all around. The ride on the truck is decent at best. The 5.5" rear flip kit looks nice but the belltech shocks are way too soft and the rear bottoms out a lot. Also got a lot of vibrations in the 20-30 mph after the install which is a common problem with this kit from what I've seen in the forums. The front strut was easy to remove and assemble and the ride feels pretty smooth. With that being said it's a good kit just need to firm up the shocks in the rear.

Posted by Lilinoe (Aiea, HI) / September 13, 20182015 Ford F-150
