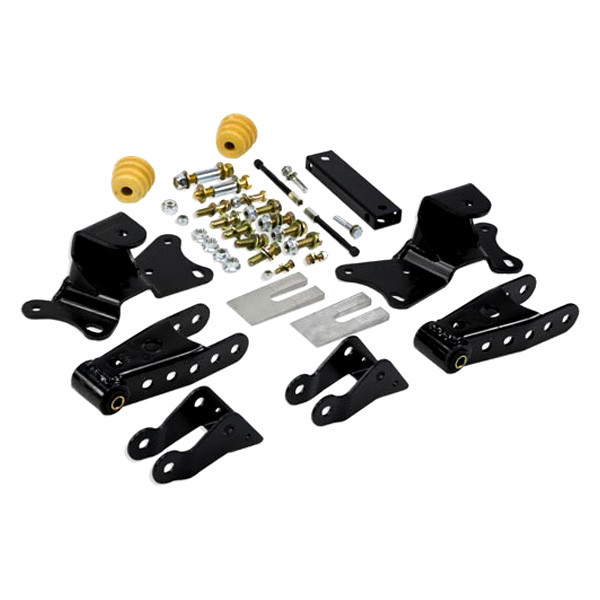

Name: Belltech® 6905 - 4" Rear Shackle and Hanger Lowering Kit
Brand: Belltech
SKU: mpn1412353
Price: 382.00 USD
Availability: InStock
Rating: 4.6 (36 reviews)

Vehicle Fitment

Chevy

GMC

Specifications

Rear Drop Height	4.0"

Includes

(2) Rear 2" Lowering Leaf Spring Shackles (Part Number 6400)
(10)1/2"-20 x 1-1/4” NF Grade 8 C/S ZP (Part Number 110408)
(10) 1/2"-20 NF Grade 8 L/N ZP (Part Number 110402)
(20) 1/2" A325 F/W ZP (Part Number 110660)
(2) Spring Center Bolts 3/8”-24 x 5” (Part Number 110252)
(2) Coupling Nuts 3/8”-24 x 1-1/8” (Part Number 110257)
(2) 9/16”-12 x 3-1/2” Grade 5 C/S ZP (Part Number 110456)
(2) 9/16”-12 Nylon L/N ZP (Part Number 110454)
(4) 9/16” A325 F/W ZP (Part Number 110670)
(2) Sleeves (gold).75” x 1.625” (Part Number 7000-880)
(2) 5/16”-18 x 1” Grade 5 CS (Part Number 110201)
(2) 5/16”-18 Nylon LN ZP (Part Number 110203)
(4) 5/16” A325 FW ZP (Part Number 110204)
(2) 7/16”x 20 Nylon LN ZP (Part Number 110305)
(2) 7/16” x 20 x 3” NC Grade 8 CS ZP (Part Number 110312)
(4) 7/16” A325 FW (Part Number 110645)
(2) 10-1.5 mm x 55 mm F/W ZP (Part Number 403785)
(2) 3/8” A325 F/W ZP (Part Number 110625)
(2) Shackles (Part Number 6400-100)
(1) Front Hanger, LH (Part Number 6900-030)
(1) Front Hanger, RH (Part Number 6900-040)
(2) Urethane Bump Stops (Part Number 4918-001)
(2) Shock Ext. (Part Number 6550-050)
(2) 4° Pinion Shims (Part Number 4977-001)
(1) Transmission Spacer 1” (Part Number 6500-010)
(1) Carrier Bearing Spacer (Part Number 6925-010)
(1) Parking Brake Cable Bracket (Part Number 6950-003)
Installation Instructions

Features

Designed to lower your vehicle for added style and utility
Offers a perfect balance between looks and handling
Will make your four-wheeler a real head-turner
Delivers superior performance, control, and ride comfort
Made from tough, impact-resistant materials for quality and durability
Engineered to withstand the most demanding driving conditions
Provides quick and easy installation to your vehicle

Product Details

Rear Shackle and Hanger Lowering Kit with 4" Rear Body Drop (6905) by Belltech®. Quantity: Sold as a Kit. Belltech lowering kits give your vehicle an aggressive look while retaining factory ride quality. Kits include Drop Ball Joint, Drop Spindle, Rear Aluminum Lowering Blocks, and Rear Shackles. Kits for more than 2” of drop include replacement coil springs, leaf springs, hangers, rear shackles, and a Flip Kit is available to relocate your leaf spring mounting point from above the axle to below it. Front and rear Pro Lowering Kits include removable spacer pieces to adjust the amount of vehicle drop.

Installation

Belltech® - Rear Shackle and Hanger Lowering Kit Installation Instructions

Rear Lowering Leaf Spring Shackles Installation Instructions

Because Belltech believes products that do not last are not worth building, they take every effort to ensure all components will maintain their integrity over a long period of time. Reinforced, heavy-grade steel provides the strength and rigidity needed to stand up to heavy loads and large tires, and durable powder coat finish ensures steel surfaces remain protected from corrosion thanks to its high resistance to peeling, chipping, or scratching in extreme conditions. U-bolts are stainless steel, and washers are zinc plated. Once installed, the reduced ride height lowers your vehicle's center of gravity which, in turn, reduces body roll and any tendencies to lean over.

Belltech® - Rear Shackle and Hanger Lowering Kit Installation Instructions Rear Lowering Leaf Spring Shackles Installation Instructions Belltech® - About Belltech® - Information Made In USA Belltech Authorized Dealer FAQ Gallery About us

Brand:

Belltech

Part Number:

6905

UPC:

722439069051

Warranty

Belltech Hard Parts - Limited Lifetime “No Questions Asked Warranty”
(Includes Shackles, Spindles, Springs, Flip Kits, Lift Kits, Lowering Kits, Leveling Kits and Blocks)

Belltech (KW automotive North America, Inc., further referred to as “Belltech”) warrants to the original purchaser (further referred to as “Purchaser”) of Belltech suspension products (spindles, springs, shackle and hanger kits, flip kits and blocks) purchased from an Authorized Dealer in North America that these products will be free of manufacturing, design and material defects so long as the original purchaser owns the products and the products are installed on the vehicle on which such products were originally purchased for. Within the stated warranty period, Belltech shall be obligated to repair or replace a defective product at its sole discretion.

Shocks & Struts – 2-Year/Unlimited Mileage Warranty

Belltech Street Performance and Nitro Drop 2 shocks and struts are warranted against defects in materials and workmanship for a period of 2 years (unlimited mileage) as long as the vehicle has been operated under normal conditions. Within the stated warranty period, Belltech shall be obligated to repair or replace a defective product at its sole discretion

Bushings, bump stops, heim and ball joints are considered subject to wear and are excluded from this warranty. Bushings, bump stops and ball joints are warranted for a period of 90 days from the time of purchase.

Belltech or the Belltech Distributor, under any circumstances, shall not be liable for loss of time or revenues, inconvenience, loss of use of the vehicle, damage to the vehicle or components of the vehicle, any other type of consequential damages, or other incidental or indirect damages. resulting from the use, misuse or inability to use the Belltech Products or from defects of the Belltech Products. The limitation of liability does not apply to any injuries to persons, in the event of gross or willful negligence or if a material contractual obligation was violated by Belltech. In the event of improper use of Belltech Products, including installation on vehicles not recommended by Belltech, off-road use or any racing, all warranty claims are null and void.

This warranty does not apply to any products that have not been properly installed and does not cover products showing any of the following (except where prohibited by law):

Cosmetic damage such as scratches, dents or corrosion
Normal wear and tear (including bearings, valve shims and bushings)
Damage cause by improper use, accident, flooding, water, flame or other external or environmental causes
Damage caused by improper installation
Damage caused by alteration of the Belltech Products without expressed written consent by Belltech
Damage caused by improper servicing at Belltech recommended service intervals
Damage caused by servicing by any party other than an authorized Belltech Servicer
Improper use under normal driving conditions

This warranty is personal to the Purchaser and may not be assigned or transferred in any way, even if the vehicle for which the products were originally purchased is sold. Any suit for breach of this warranty must be made within six-months after breach. Belltech reserves the right to change, modify, or cancel this warranty without prior notice.
