Bilstein® VS-33-186504 - B8 5125 Series Front Shock Absorber Set

107 reviews|Item # mpn5177612538
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $228.00
    In Stock (13) - Ships Tomorrow 06.15.26

    Vehicle Fitment

    Ford

    Specifications

    Finish
    Zinc Plated
    Diameter
    1.81" (46 mm)
    Compressed Length
    11.82" (300.3 mm)
    Extended Length
    18.46" (468.9 mm)
    Lower Mounting
    Eye 0.625" (15.9 mm)
    Upper Mounting
    Stem
    Reservoir
    No
    Boot
    Yes
    Boot Color
    Black
    Body Diameter
    1.81" (46 mm)
    Compression/Rebound
    2400/3665 at 0.52m/s
    Adjustable Valving
    No
    Boot Included
    Yes
    Bushing Color
    Black
    Bushing Material
    Rubber
    Gas Charged
    Yes
    Internal Design
    Monotube
    Remanufactured
    No
    Ride Height
    Custom

    Features

    • Monotube gas pressure construction
    • Self-Adjusting Deflecting Disc Valving
    • High-Flow Piston Reduces Harshness
    • Independent Rebound & Compression Tuning
    • Larger Working Piston Area for Exact Damping
    • Superior Control for Large Diameter Tires
    • Available by travel lengths for custom applications

    Product Details

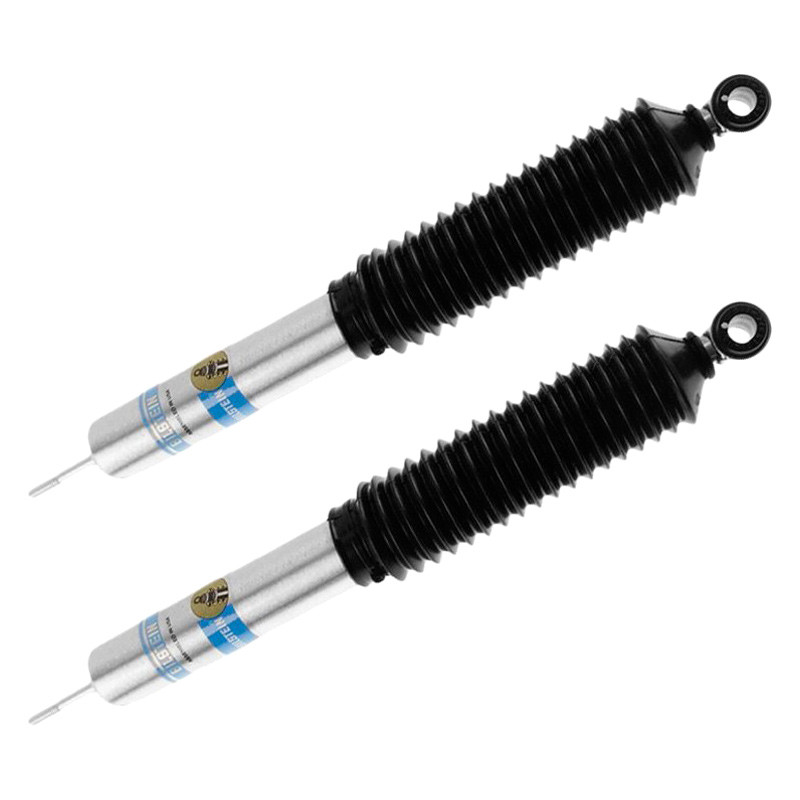

    B8 5125 Series Front Shock Absorber Set (VS-33-186504) by Bilstein®. Quantity: 2 per Pack. The 5125 Series offers BILSTEIN technology for custom lifted applications. 5125 Series shocks feature BILSTEIN's superior single tube high gas pressure design for the upmost in consistent fade-free performance and long life.

    Road-Tested by Bilstein. To achieve that celebrated BILSTEIN driving experience, BILSTEIN engineers rely on not only technology that is truly at the cutting edge, but also something that has withstood the test of time: how it feels to the driver. As a result, all of Bilstein high-performance absorbers, as well as Bilstein sport suspensions and threaded ride height adjustable kits, undergo a rigorous testing programme. On the Nürburgring and in Bilstein own test centre at the Papenburg test track, Bilstein drivers test how balanced the driving characteristics of various vehicles are in a variety of different driving situations. Only when they have passed this programme of tests with distinction are they allowed to bear the BILSTEIN name. This way, Bilstein can guarantee that celebrated BILSTEIN driving experience.

    Gas Pressure Technology. Over time, the mono-tube gas pressure technology developed by BILSTEIN has established itself as a standard in automotive construction. This technology involves keeping the oil in the absorber under pressure, which prevents it from foaming when temperatures and loads are increasing. As a result, full damping power is retained even when the system is placed under extreme stress, a feature that can be observed in the self-lowering piston.

    Mono-tube Upside-Down Technology. The original and best: The original mono-tube gas pressure shock absorbers bore the BILSTEIN name, and we’re still responsible for producing the best there is. BILSTEIN’s mono-tube technology is the number-one choice in motorsports and series-production sports cars: no other type gives engineers the same freedom to choose the perfect installation location or position (e.g. Upside-Down technology).

    Brand:
    Part Number:
    VS-33-186504
    Alternate MPN:
    VS33186504
