Vehicle Fitment

Chevy

GMC

Specifications

Additional Fluid Capacity	3 qts
Capacity	15 qt
Drain Plug Included	No
Drain Plug Kit	No
Emission Code	5
Filter Extension Included	Yes
Filter Included	Yes
Gasket Included	Yes
Gasket Or Seal Included	Yes
Grade Type	Performance
Instructions Included	Yes
Material	Cast Aluminum
Mounting Hardware Included	Yes
Oil Pan Gaskets Included	Yes
Style	Deep
Temperature Sensor Bung	No
Transmission	TH350
Transmission Filter Included	Yes
Transmission Type	Automatic

Features

Drain Port with Magnetic Drain Plug for Easy Servicing
Include Filter, Filter extension & Pan Gasket
Some Include Fluid Pickup Extension
Additional 3-quarts Fluid Capacity
Includes Temperature Sensor Port
Over 65 Years of B&M Quality
Improved Cooling Properties

Product Details

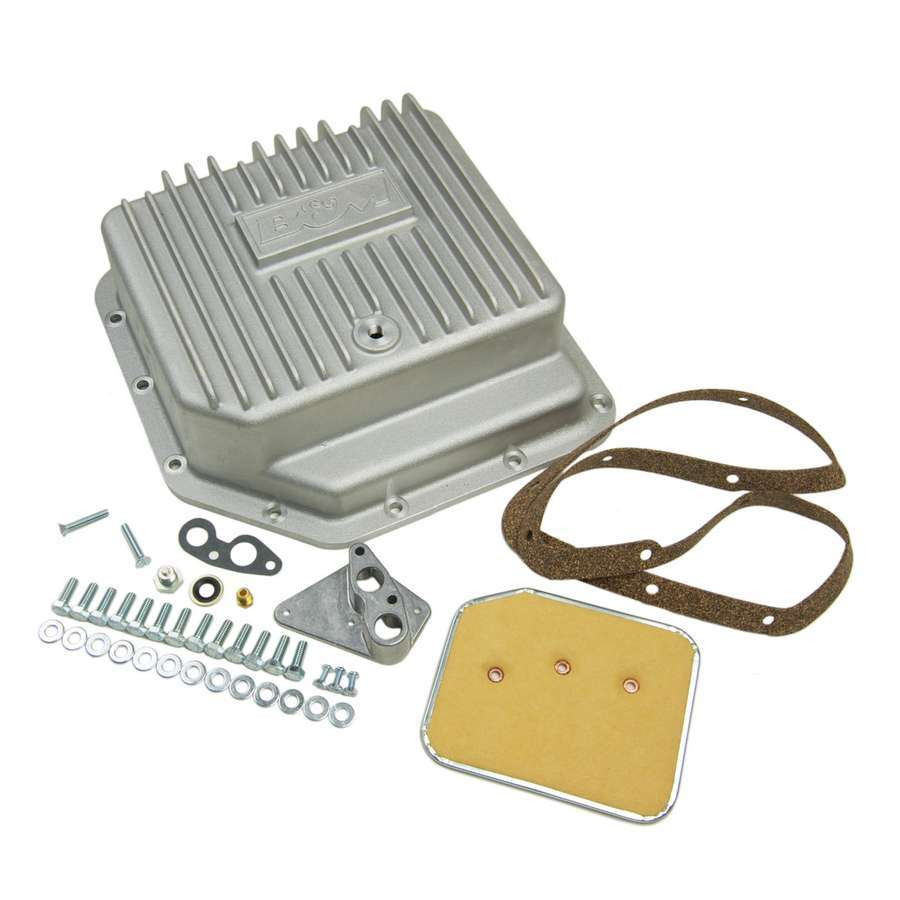

Hi-Tek™ Deep Transmission Oil Pan (30280) by B&M®. Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3-quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a filter, filter extension, pan gasket and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation.When it comes to servicing your B&M shifter, you need only exceptional parts to keep it operating properly. This unit is designed to be a direct-fit replacement for your broken or damaged part, and it features the same great durability the drivers like about B&M.

B&M has always been the choice for performance and dependability. Racers themselves, B&M’s founders identified the needs of local racers and street performance enthusiasts around the world, and developed products to fill as many needs as possible. All B&M products are extremely robust and will endure the test of time to give you the most for your money. Whether you have a damaged, broken, or lost part, we’ve got a comprehensive collection of replacements to restore the effective operation of your B&M shifter. All parts are designed to ensure a precise fit and they’re fairly easy to install. Besides, they are waiting for you at a price that everyone can afford!

Made In USA B&M Authorized Dealer Catalog Warranty About us

Brand:

B&M

Part Number:

30280

UPC:

019695302801

Warranty

Lifetime Limited Warranty applies to all B&M shifters, differential covers and cast aluminum pans.

One-Year Limited Warranty applies to B&M coolers, shifter related accessories (knobs, handles, etc.), torque converters, flexplates, dipsticks, stamped steel pans and other transmission related accessories (except racing products).

90-Day Limited Warranty applies to B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids).

B&M Racing & Performance (“B&M”) extends the following limited warranty to the original purchaser of its shifters, pans, coolers, transmissions, components and accessories (hereafter “products”).

B&M warrants the products mentioned above against defects in materials and workmanship for the period set forth below, when they are owned by the original purchaser and remain installed on the vehicle on which they were originally installed. This warranty is void if the product was not installed properly on the vehicle, was installed on a vehicle for which it was not designed, or was removed from the vehicle on which it was originally installed and reinstalled on another vehicle. This warranty shall not apply to normal wear (bushings, springs, etc.), cosmetic issues such as coatings and material discoloration, or any product that was installed on a racing vehicle (excluding shifters), installed contrary to B&M instructions, or altered, misused, repaired, damaged from an accident, collision, undercarriage road impact or debris, or willful or negligent act.

The warranty set forth herein for all B&M shifters, differential covers and cast aluminum pans extends for a period of the life of the original vehicle the product was installed on. The warranty set forth herein for B&M coolers, shifter related accessories (knobs, handles, etc.), torque converters, flexplates, dipsticks, stamped steel pans and other transmission related accessories (except racing products) extends for a period of one year from the date of original purchase and the original vehicle it was installed on. The warranty set forth herein for B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids) extends for a period of 90 days from the date of original purchase and the original vehicle it was installed on.

B&M’s liability is expressly limited to the replacement of the product or refund of the purchase price as described herein. B&M shall have no liability for the cost of installation or removal of the defective product, the cost of labor or any additional parts required to complete the installation of the replacement product. In no event shall B&M be liable for any direct, indirect, special, incidental and/or consequential losses or damages, including but not limited to interruption of business or loss of business or loss of profit or damage to related components resulting from the use of or inability to use the product, or any breach of warranty or any defect in the product, even if B&M shall have been advised of the possibility of such potential losses or damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights which may vary from state to state.

The warranties set forth herein are exclusive and unless otherwise required by applicable law, no other warranties are made by B&M or are authorized to be made with respect to the product.

Reviews

(3)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-3 of 3 Reviews

Sort by

4 of 5

Good Quality Pan

It's a good quality pan with nice deep heat sinks , I cannot give it a "5" because the factory drilled and tapped hole for your Temp. gauge will only work with an electronic sensor. The hole is too small for a mechanical gauge which is what I am running ( AutoMeter mechanical Temperature gauge ). Fortunately the pan has a substantial boss around the hole allowing me to drill and tap a larger access hole that my mechanical sensor can pass through . I'm also running an AutoMeter psi gauge but that is teed in between my twin Hayden coolers and the factory trans pressure regulator. So the two extra quarts of fluid the B&M pan provides plus the one extra quart from my twin Hayden coolers , when pushing my 600 HP SRT 392 hard I barely hit 200 degrees and that's with a 2800-3000 rpm stall converter . Normal driving around town the tranny stays at about 170 degrees and this is in 90 degree Florida heat . So I am very happy with my pan/cooler setup.

B&M® 10300 - Transmission Oil Pan

Posted by Christopher (Weirsdale, FL) / September 25, 20202012 Dodge Challenger

5 of 5

AR Pan

Looks great. Excellent service, quick and friendly!

B&M® 70289 - Transmission Oil Pan

Posted by Robert (Bayard, NM) / September 26, 20181985 Chevy Camaro

4 of 5

Great to Have This!

The only place I have found a locking trans dipstick for my Chrysler 300. A little overpriced but great to easily check fluid level for the first time ever! Don't understand the manufacturing decision to not include a dipstick with the car. Very snug pushing in and locking for the first time but better to have a tight fit!

B&M® 22300 - Locking Transmission Dipstick

Posted by Nelson (Dearborn Hieghts, AL) / September 01, 20182008 Chrysler 300
