Vehicle Fitment

Cadillac

Chevy

GMC

Specifications

Brand	B&M®
Finish	Black Anodized
Material	A356.0-T6 Aluminum
Additional Fluid Capacity (qts)	Yes
Additonal Fluid Capacity (qts)	No
Bolt Count	12
Bolt Quantity	12
Bolt/Studs Included	Yes
California Proposition 65 Chemical Name	Chromium (hexavalent compounds)
California Proposition 65 Required	Yes
Call Out Size (in)	3.55
Carrier Main Cap Support	Yes

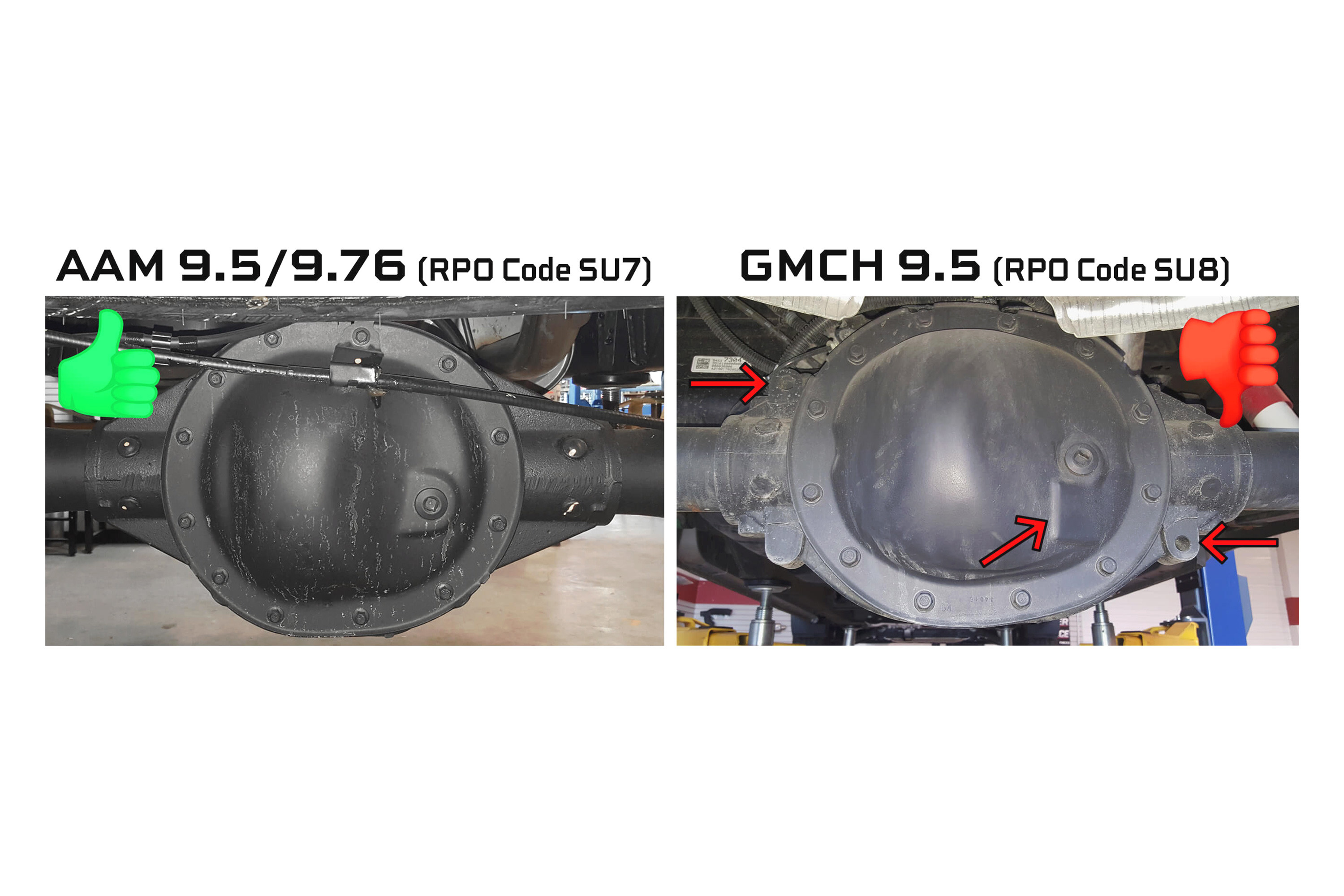

Differential Cover Bolt Pattern	AAM 9.5/9.76

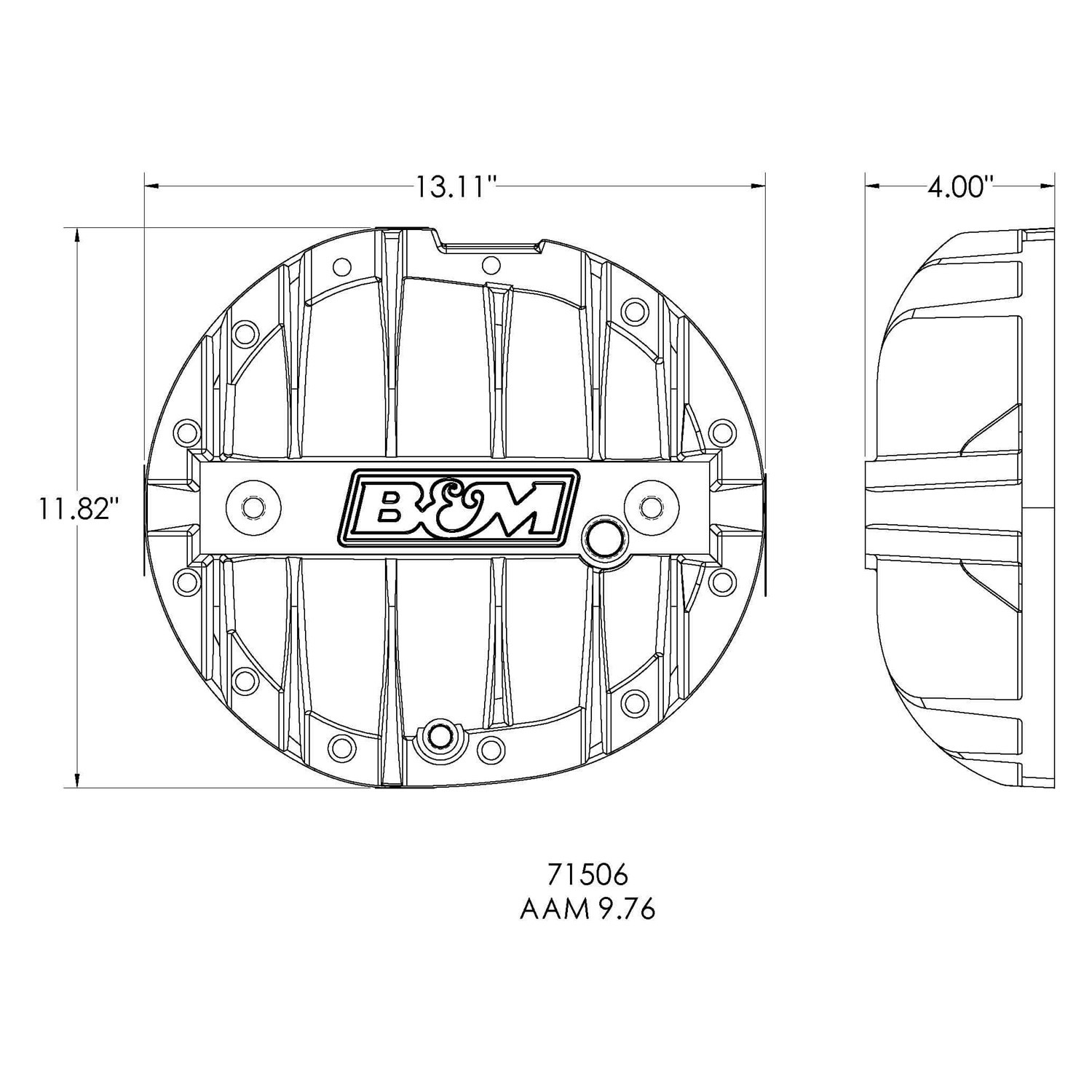

Differential Thickness (in)	4
Drain Plug Included	Yes
Emission Code	5
Filler Plug Included	Yes
Gasket Included	No
Gasket Or Seal Included	No
Gaskets Included	No
Grade Type	Performance
Mounting Bolt Hole Quantity	12
Mounting Bolts Included	Yes
Studs Included	Yes

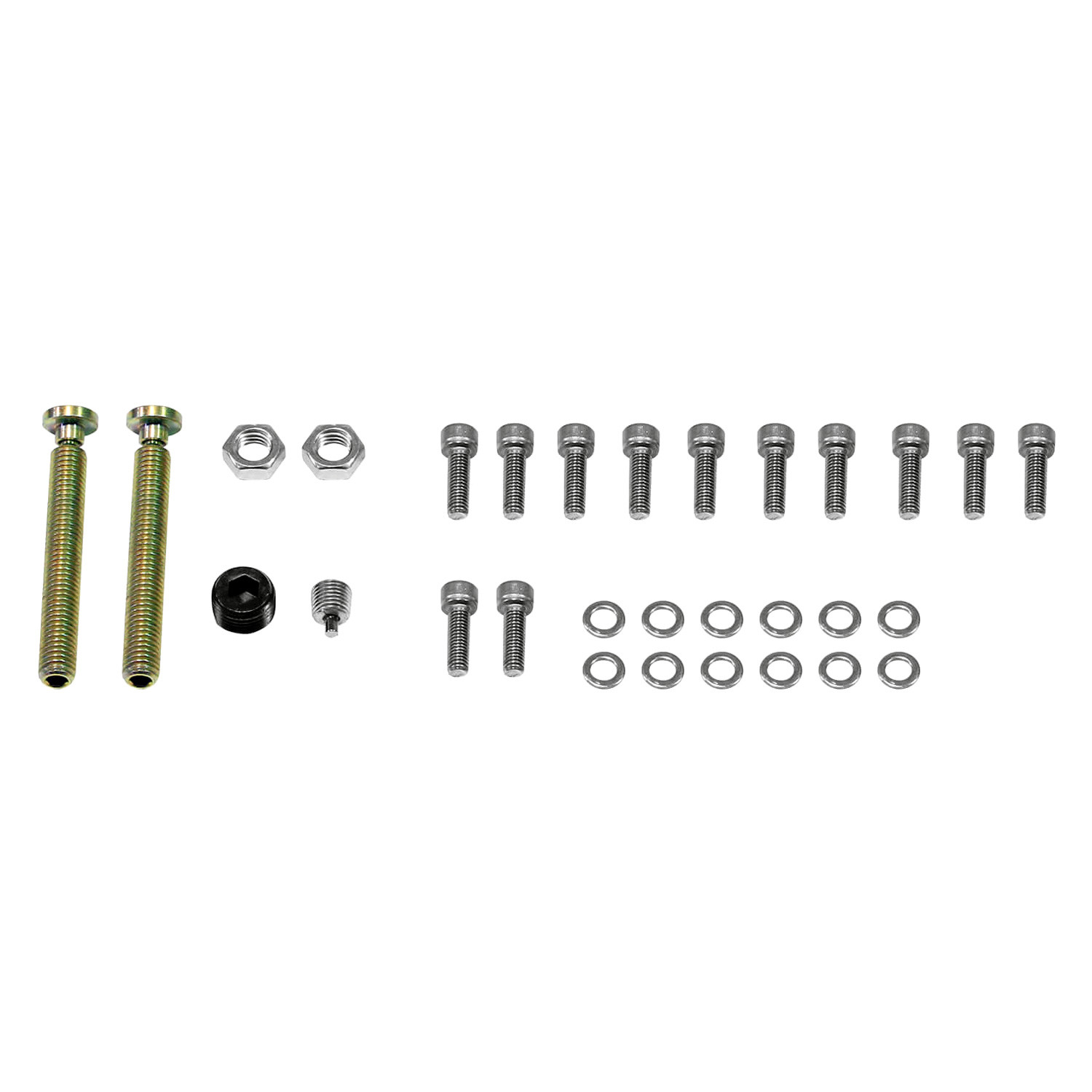

Includes

Cover
Fill Plug
Drain Plug
Bolts
Washers
Load Bolts
Nuts
Instruction

Features

Load Bolts for Additional Support for Bearing Caps
Magnetic Drain Plug for Easy Servicing
A356.0-T6 Aluminum Construction
MIL-Spec Black Anodized Finish
Lifetime Limited Warranty
Additional Fluid Capacity
Machined B&M Logo

Product Details

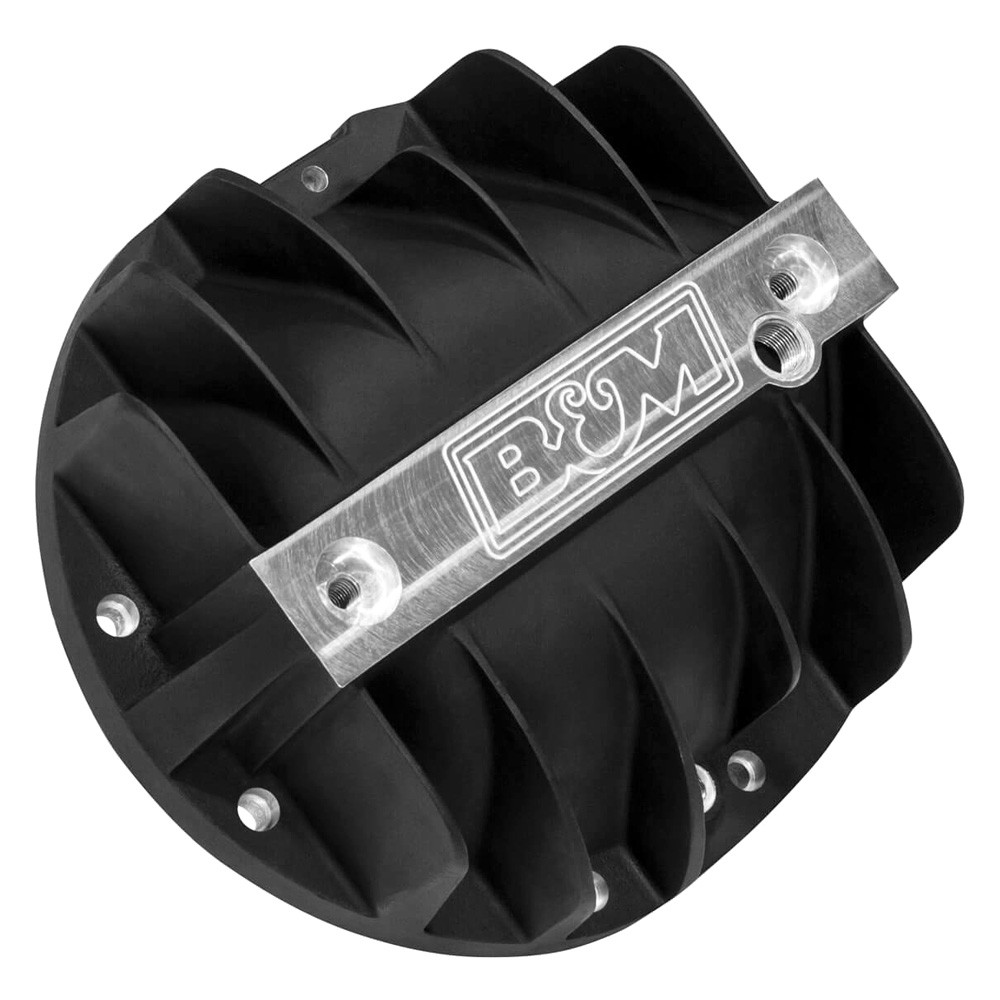

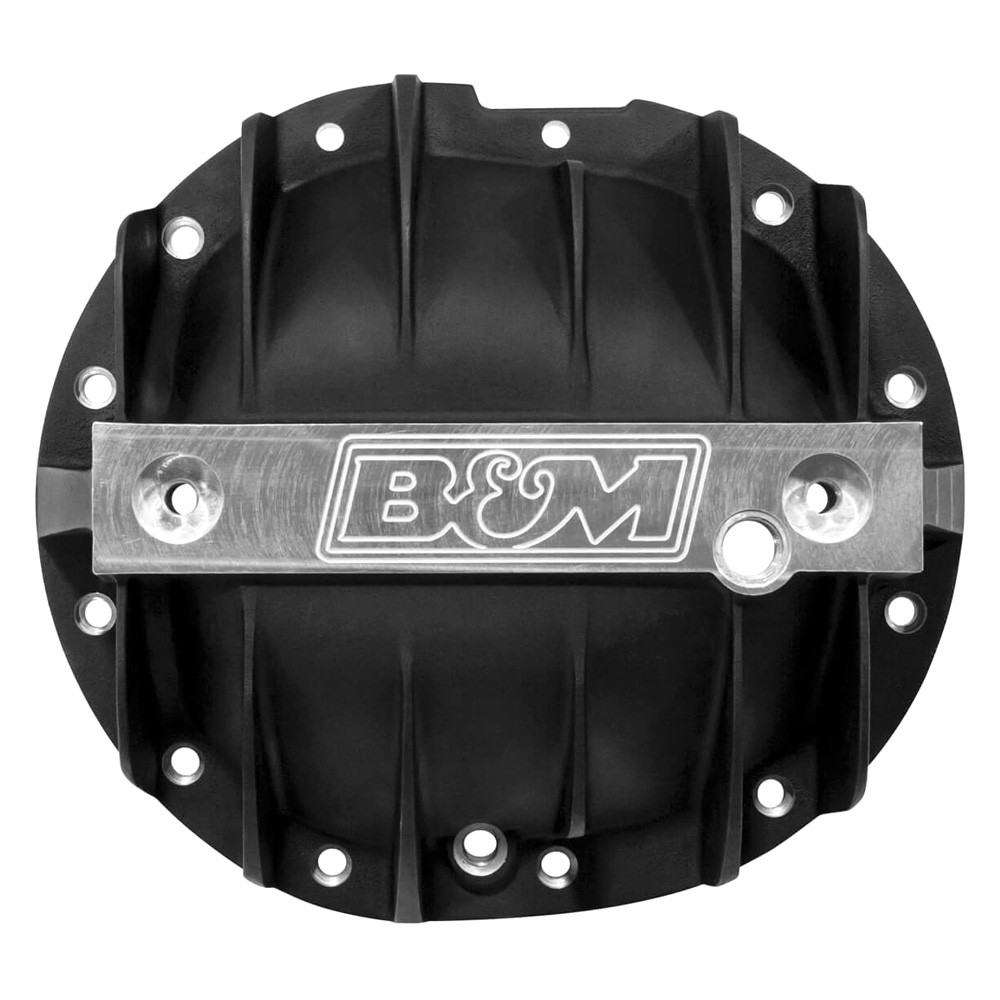

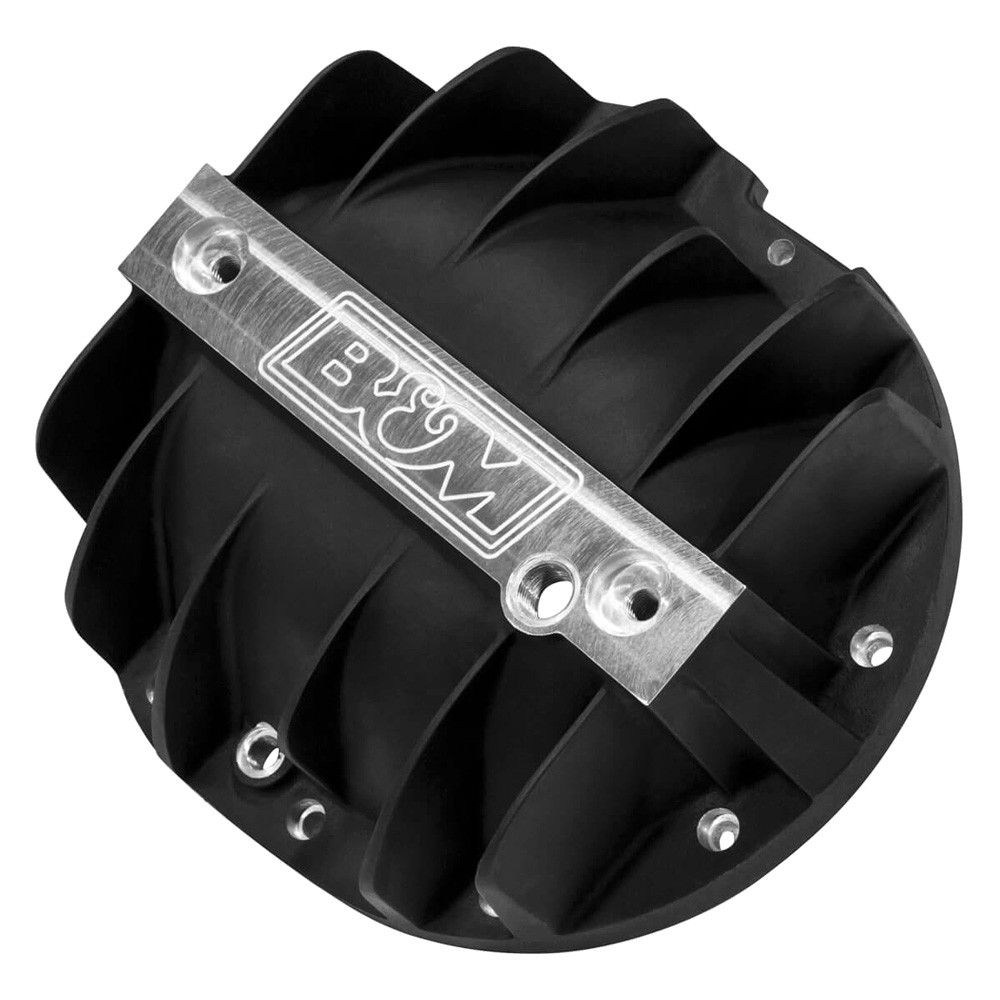

Rear Differential Cover by B&M®. Finish: Black Anodized. Material: A356.0-T6 Aluminum. B&M Cast Aluminum Differential Covers are designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions.

B&M has always been the choice for performance and dependability. Racers themselves, B&M’s founders identified the needs of local racers and street performance enthusiasts around the world, and developed products to fill as many needs as possible. All B&M products are extremely robust and will endure the test of time to give you the most for your money. Whether you have a damaged, broken, or lost part, B&M got a comprehensive collection of replacements to restore the effective operation of your B&M shifter. All parts are designed to ensure a precise fit and they’re fairly easy to install. Besides, they are waiting for you at a price that everyone can afford!

Made In USA B&M Authorized Dealer Catalog Warranty About us

Brand:

B&M

Part Number:

71506

UPC:

019695952655

Warranty

Lifetime Limited Warranty applies to all B&M shifters, differential covers and cast aluminum pans.

One-Year Limited Warranty applies to B&M coolers, shifter related accessories (knobs, handles, etc.), torque converters, flexplates, dipsticks, stamped steel pans and other transmission related accessories (except racing products).

90-Day Limited Warranty applies to B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids).

B&M Racing & Performance (“B&M”) extends the following limited warranty to the original purchaser of its shifters, pans, coolers, transmissions, components and accessories (hereafter “products”).

B&M warrants the products mentioned above against defects in materials and workmanship for the period set forth below, when they are owned by the original purchaser and remain installed on the vehicle on which they were originally installed. This warranty is void if the product was not installed properly on the vehicle, was installed on a vehicle for which it was not designed, or was removed from the vehicle on which it was originally installed and reinstalled on another vehicle. This warranty shall not apply to normal wear (bushings, springs, etc.), cosmetic issues such as coatings and material discoloration, or any product that was installed on a racing vehicle (excluding shifters), installed contrary to B&M instructions, or altered, misused, repaired, damaged from an accident, collision, undercarriage road impact or debris, or willful or negligent act.

The warranty set forth herein for all B&M shifters, differential covers and cast aluminum pans extends for a period of the life of the original vehicle the product was installed on. The warranty set forth herein for B&M coolers, shifter related accessories (knobs, handles, etc.), torque converters, flexplates, dipsticks, stamped steel pans and other transmission related accessories (except racing products) extends for a period of one year from the date of original purchase and the original vehicle it was installed on. The warranty set forth herein for B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids) extends for a period of 90 days from the date of original purchase and the original vehicle it was installed on.

B&M’s liability is expressly limited to the replacement of the product or refund of the purchase price as described herein. B&M shall have no liability for the cost of installation or removal of the defective product, the cost of labor or any additional parts required to complete the installation of the replacement product. In no event shall B&M be liable for any direct, indirect, special, incidental and/or consequential losses or damages, including but not limited to interruption of business or loss of business or loss of profit or damage to related components resulting from the use of or inability to use the product, or any breach of warranty or any defect in the product, even if B&M shall have been advised of the possibility of such potential losses or damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights which may vary from state to state.

The warranties set forth herein are exclusive and unless otherwise required by applicable law, no other warranties are made by B&M or are authorized to be made with respect to the product.
