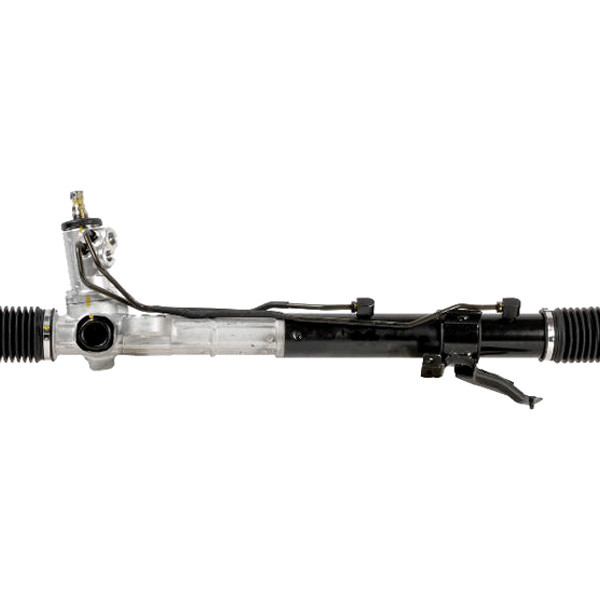

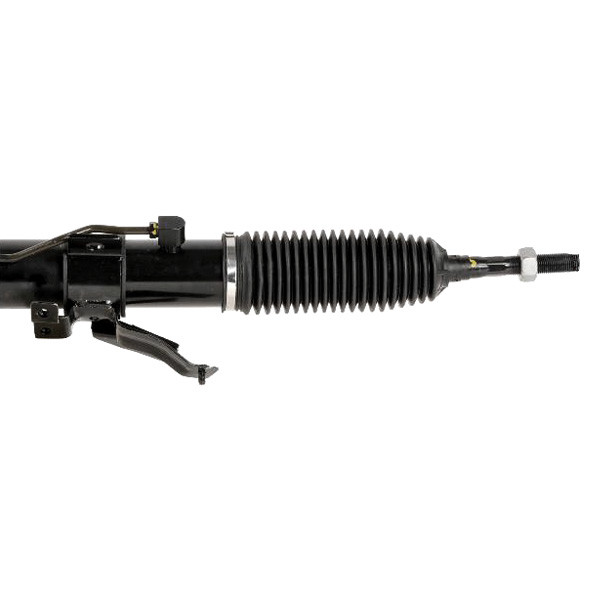

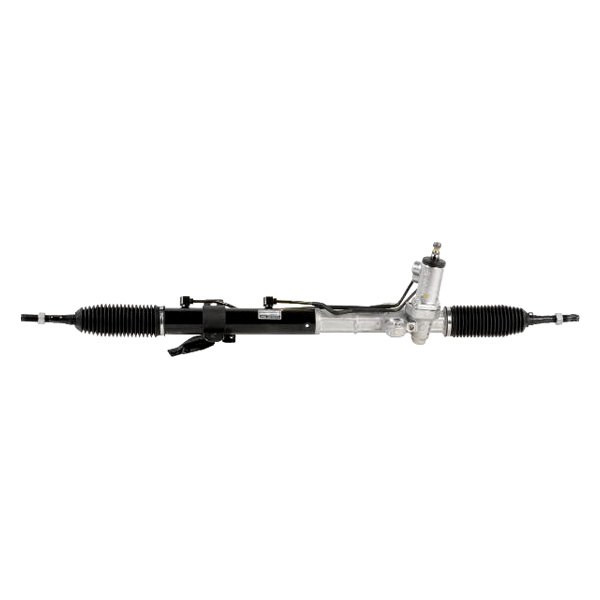

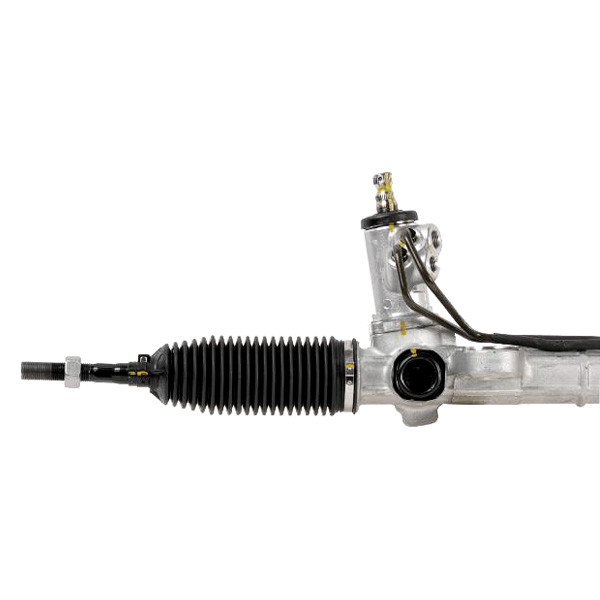

Cardone New® 97-2425 - New Hydraulic Power Steering Rack and Pinion Assembly

29 reviews|Item # mpn2228748469
Vehicle Specific
    Select Vehicle
    Notes:
    • Inline filter available
    • For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system
    Replaces Original (OE) Part #:577002B000
    Authorized Dealer
    $340.81 + Free Shipping
    In Stock (1)
    See similar products
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Hyundai

    Specifications

    Casting Material
    Aluminum
    Steering Rack Finish
    Black
    Type
    Complete Unit
    Import or Domestic
    Import
    Rack Length (in)
    28.503"
    Total Turns Lock to Lock
    3.12
    Thread Length (in)
    2.165"
    Number of Mounting Holes
    4
    Distance Between Mounting Holes (in)
    3.78"
    Input Shaft Diameter (in)
    0.654"
    Input Shaft Length (in)
    1.504"
    Hose Port Type
    O-Ring/O-Ring
    Pressure Port Thread Size
    M14 x 1.5
    Return Port Thread Size
    M16 x 1.5

    Includes

    • Rack and Pinion
    • Inner Tie Rod Ends
    • Tag
    • Insert
    • Instruction Sheet

    Features

    • 100% computerized testing at load to ensure reliable performance
    • All rotating and actuating components are properly hardened, ground and polished to ensure longevity of the components and their respective seals
    • CARDONE Engineered Technology ensures that all rack & pinion/gearbox units meet or exceed O.E. form, fit and function
    • Computerized spool valve balancing ensures exceptional feel and returnability
    • Environmentally-friendly coating provides a clean appearance and prevents rust
    • Supplied with O.E. grade seals, O-rings and boots to provide optimal sealing performance and longevity
    • Rack & Pinion sleeves are installed using an exclusive bonding process to ensure sleeves never come loose.

    Product Details

    New Hydraulic Power Steering Rack and Pinion Assembly (97-2425) (97-2425) by Cardone New®. Quantity: 1 per Pack. Cardone New Engineered Technology ensures that all Cardone New Rack and Pinion units meet or exceed O.E.M. performance. CSE Technology is based on over 40 years of reverse-engineering expertise, where original design weaknesses are identified and improved, resulting in premium-quality, brand-new parts you can rely on. All units adhere to strict S.A.E. specifications and are 100% tested to ensure reliable, long-lasting performance.

    Installation

    Cardone® - Installation Instruction

    Though a pretty simple mechanism, the rack and pinion system can seriously affect the steering performance of your vehicle. There is often the only way to fix the problem – to install a new rack and pinion. That's when Cardone comes in. Cardone New Rack and Pinion Assemblies are built better from the start. They ensure dependable performance over time and use. Based on several decades of making top-rated remanufactured parts, Cardone has seen where and why OE parts fail, that is why it is often a preferred choice of most professional mechanics and do-it-yourselfers. Its unique, reverse-engineering expertise is the foundation of Cardone New Engineered (CSE) Technology which identifies and corrects original design flaws, delivering premium-quality and exceptional reliability with every brand-new part. Cardone puts all its parts under rigid quality control to ensure uncompromising performance over the life of the rack and pinion assembly. Each new assembly is supplied with OE grade seals, O-rings and boots to provide optimal sealing performance and longevity.

    Cardone® - Installation InstructionCardone Authorized DealerFAQCatalogAdditional Information
    Brand:
    Cardone
    Part Number:
    97-2425
    UPC:
    884548196223
    Alternate MPN:
    972425
    OE Numbers:
    577002B000
