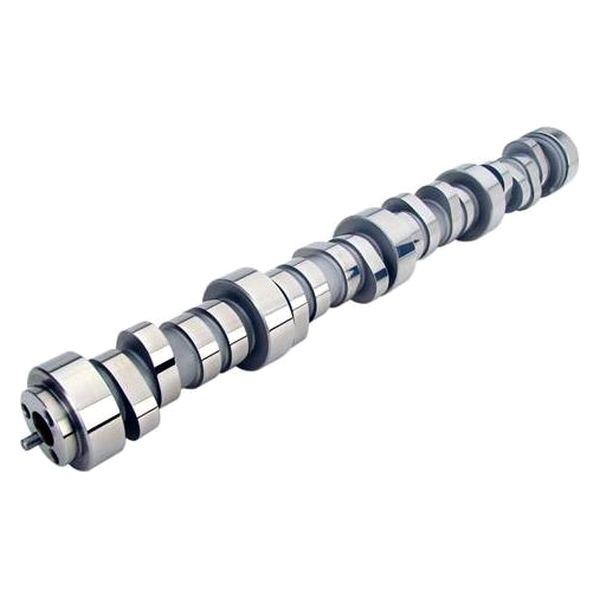

COMP Cams® - Xtreme Fuel Injection™ Hydraulic Roller Tappet Camshaft

COMP Cams® 54-444-11 - Xtreme Fuel Injection™ Hydraulic Roller Tappet Camshaft

0 reviews|Item # mpn4655031858

Vehicle SpecificCannot Confirm Fitment

We need more information

Confirm Fitment

Notes:

Valve Springs Required: Yes
This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME

Authorized Dealer

$404.95

In Stock (103)

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Chevy

Specifications

Low-End RPM	2000
Top-End RPM	7000
Intake Duration at 0.050 In Lift	224°
Exhaust Duration at 0.050 In Lift	230°
Intake Valve Lift	0.581"
Exhaust Valve Lift	0.588"
Advertised Intake Duration	273°
Advertised Exhaust Duration	279°
Lobe Separation	114°
Intake Centerline	112°
Grind Number	XER273HR
Attachment	3-Bolt
Material	Billet Steel
Valve Timing	0.006
Lobe Lift Intake	0.342"
Lobe Lift Exhaust	0.348"
Intake Open BTDC	25°
Exhaust Open BBDC	76°
Intake Close ABDC	69°
Exhaust Close ATDC	24°

Features

Developed to provide steady performance and reliability
Made using up-to-date equipment and new technologies
Advanced design is thought-out and well put together
Guaranteed to loyally serve you for the long haul

Product Details

Xtreme Fuel Injection™ Hydraulic Roller Tappet Camshaft (54-444-11) by COMP Cams®. This high-grade product was designed with craftsmanship and key attention to detail and manufactured using leading-edge innovations by experienced and knowledgeable engineering staff. It ensures trustworthy quality and superior dependability. Backed by technology and trust, this COMP Cams product is expected to deliver reliable operation and provide seamless service year after year.

Installation

COMP Cams® - Xtreme Fuel Injection™ Hydraulic Roller Tappet Camshaft Installation Instruction

Made by the leader in technological development, COMP Cams, this first-rate product ensures to operate at its full efficiency. It was developed using the most sophisticated manufacturing processes and test equipment for the ultimate in efficiency. Refined by COMP Cams to the last detail, this product is the one you can fully count on. Crafted from reliable materials to rigorous standards, the product ensures high durability and enduring value. It will faithfully serve for many miles to come, providing great resistance to impacts and abuse.

COMP Cams® - Xtreme Fuel Injection™ Hydraulic Roller Tappet Camshaft Installation Instruction COMP Cams® - Benefits COMP Cams® - Comparison COMP Cams® - Catalogs Made In USA COMP Cams Authorized Dealer FAQ Technology About us

Brand:

COMP Cams

Part Number:

54-444-11

UPC:

036584068464

Alternate MPN:

5444411

Warranty

LIMITED WARRANTY

COMP Cams® warrants that all of the products are free from defects in material and workmanship, and against excessive wear for a period of twelve months from date of purchase. This limited warranty shall apply for a period of one year from the date of purchase and shall cover only the original purchaser. This warranty is valid on camshafts only where new lifters and proper valve springs are used, such as those found in COMP Cams® Kits.

There is absolutely no warranty on the following:

A) Any part used in racing applications
B) Any product that has been physically altered or improperly installed/maintained
C) Any product used in an improper application, abused, or not used in conjunction with the proper parts

There are no implied warranties of merchantability or fitness for a particular purpose. There are no warranties which extend beyond the description on the face hereof. COMP Cams®, Inc. will not be responsible for incidental and consequential damages, property damage, or personal injury/damage to the extent permitted by law.

There is no implied warranties of merchantability or fitness for a particular purpose. There are no warranties which extend beyond the description on the face hereof.

Some states do not allow a limitation on how long an implied warranty lasts or do not allow the exclusion or limitation of consequential damages, so those limitations and exclusions may not apply to all customers.

This limited warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
