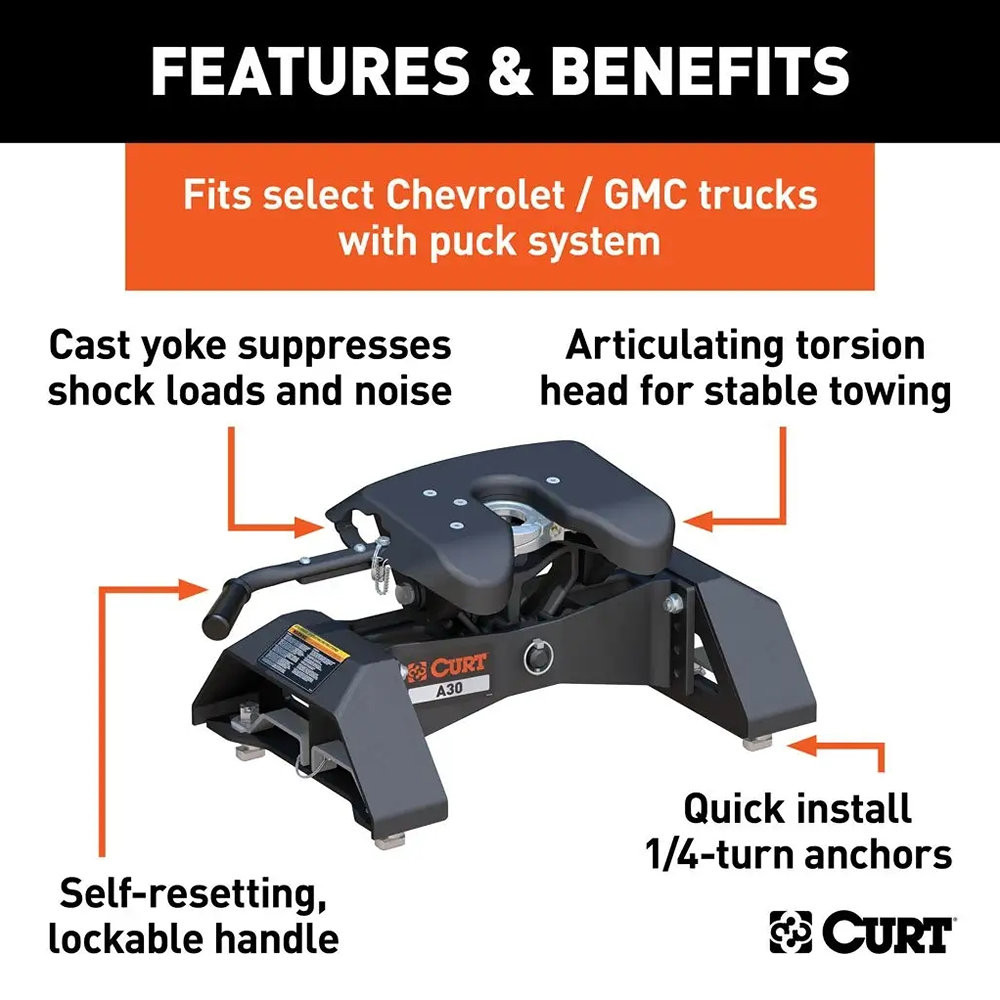

Features
- Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
- Fully articulating torsion head for controlled coupling and stable towing
- Lockable handle self-resets to the ready-to-couple position after uncoupling
- Constructed with a cast steel main body for a more precise build
- High-strength, interlocking jaws fully wrap the kingpin to minimize noise
- Extra wide head opening for easier coupling
- Fast, one-pin head removal makes moving easy with smaller, lighter pieces
- Three-position coupling indicator clearly shows coupling status
- Quarter-turn anchoring system provides quick installation and removal
- Compatible with kingpin extension boxes, including common pivoting pin boxes
- Offers three height adjustment positions to adapt to each unique truck bed
- Includes a polyethylene lube plate to eliminate messy grease deposits
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish
Product Details

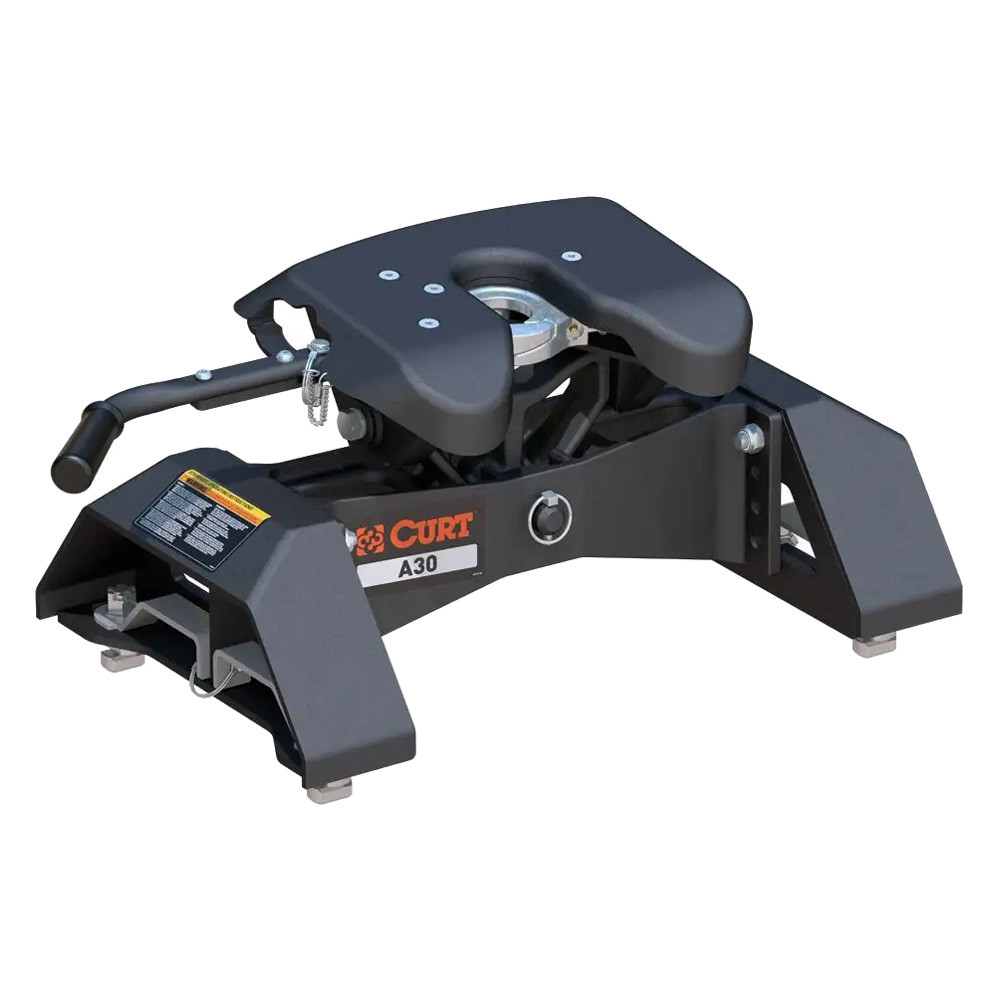

Chevy Silverado 2500 8' Bed 2020, A30 Series 5th Wheel Hitch Head with OEM Legs by CURT®. 30000 lb Towing Capacity. The CURT A30 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of CURT A-series, an easier mounting system and the power of a 30K 5th wheel hitch. Like A16 and A20 hitches, this 30K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed.
Installation
This A30 5th wheel hitch also comes with a set of CURT OEM puck system 5th wheel legs designed to be mounted on a Chevrolet or GMC truck with the truck bed puck system. The legs mount directly into the four-point mounting system, allowing the CURT A30 hitch to be installed quickly and easily. The most unique feature of these legs is their quarter-turn anchoring system. The variable-position anchors allow the 5th wheel hitch head to easily drop into the puck system, and with a quarter-turn, the hitch can be installed or removed as needed. The anchors can also be adjusted to eliminate any chucking noises.
Once installed, the A30 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling.
To protect the A30 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a carbide black powder coat finish and a limited lifetime warranty. also test the A30 for safety in accordance with SAE J2638 standards to ensure reliability for the road ahead.
5th wheel hitches are by far the most trouble-free, easiest to hook up, and sweetest-towing rig on the road. Because the hitch is centered over the rear axle instead of four to six feet behind the axle, crosswinds and pavement irregularities that affect the trailer don’t affect the pickup nearly as much. Much like receiver hitches, 5th wheel hitches use an industry-standard rail system so they can be moved to a different truck, or removed temporarily to use the bed for normal hauling.
