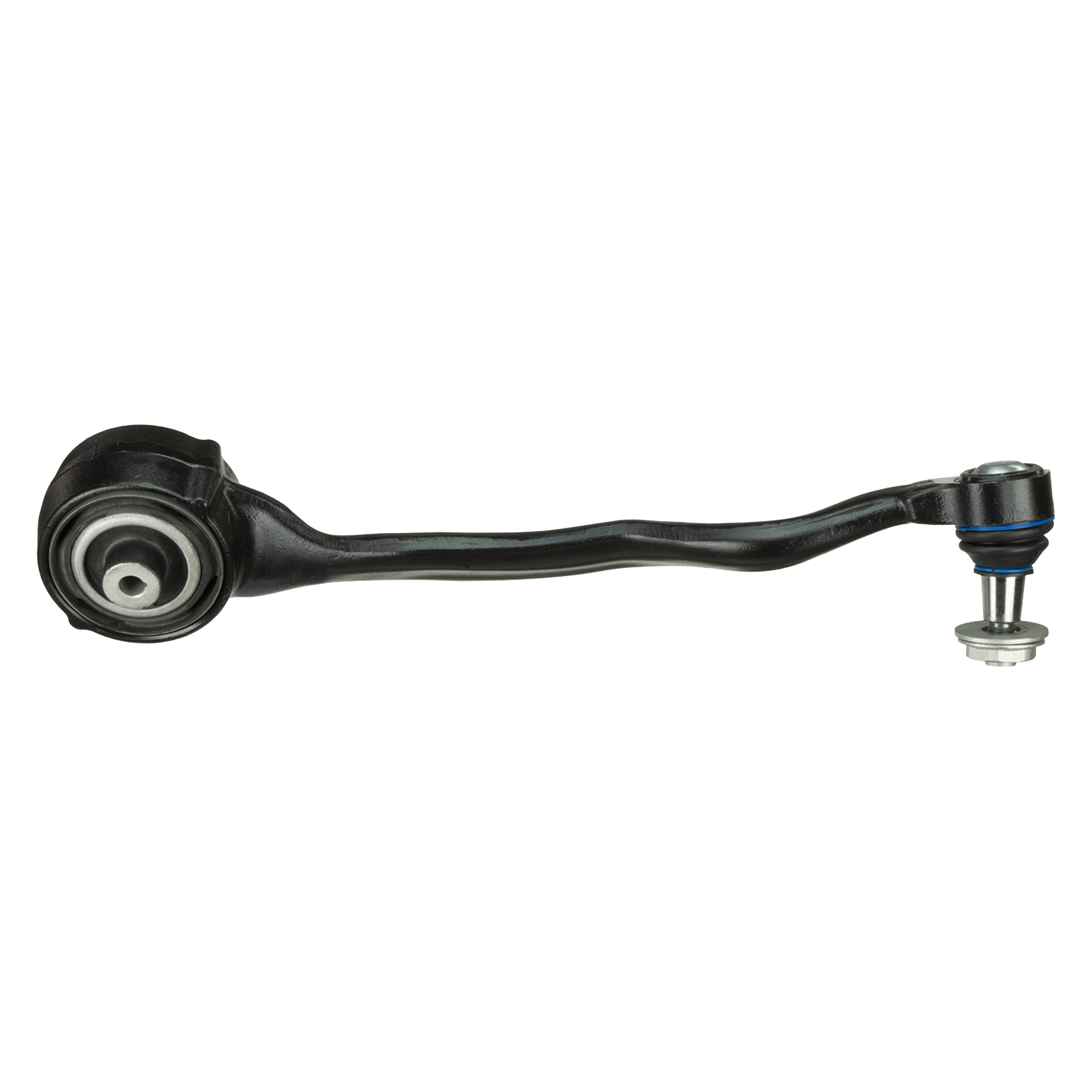

Delphi® TC3039 - Front Passenger Side Lower Forward Control Arm and Ball Joint Assembly

3 reviews|Item # mpn5190132320
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $170.88
    In Stock (9) - Ships within 24 hrs

    Vehicle Fitment

    Land Rover

    Specifications

    Adjustable
    No
    Attachments Included
    Yes
    Ball Joint Included
    Yes
    Ball Joint Mounting Type
    Machined
    Ball Joint Stud Length
    0.900 in
    Ball Joint Stud Length
    23.10 mm
    Ball Joint Stud Type
    Threaded
    Ball Joint Thread Diameter
    0.620 in
    Ball Joint Thread Diameter
    16.00 mm
    Bearing Material
    Polyoxymethilen (POM)
    Boot Color
    Black
    Boot Material
    Chloroprene Rubber (CR)
    Bore Diameter
    100.00 mm
    Bore Diameter
    3.930 in
    Bushing Color
    Black
    Bushing Inside Diameter
    0.550 in
    Bushing Inside Diameter
    14.20 mm
    Bushing Length
    3.850 in
    Bushing Length
    98.00 mm
    Bushing Material
    Rubber
    Bushings Included
    Yes
    Castle Nut Included
    No
    Cone Outside Diameter
    27.75 mm
    Control Arm Color
    Black
    Control Arm Material
    Steel
    Control Arm Maximum Length
    22.750 in
    Control Arm Maximum Length
    578.00 mm
    Control Arm Maximum Width
    121.00 mm
    Control Arm Maximum Width
    4.760 in
    Control Arm Type
    Casting/Forged
    Cotter Pin Included
    No
    Dust Boot Included
    Yes
    Dust Boot Material
    Chloroprene Rubber (CR)
    End 1 Thread Diameter
    0.620 in
    End 1 Thread Diameter
    16.00 mm
    End 1 Thread Pitch
    0.059 in
    End 1 Thread Pitch
    1.50 mm
    Finish
    Painted
    Grade Type
    Standard
    Greasable
    No
    Grease Fitting Included
    No
    Length
    189.00 mm
    Length
    7.440 in
    Length Center Bore To Center Bore
    1.880 in
    Length Center Bore To Center Bore
    47.80 mm
    Locking Nut Included
    Yes
    Mounting Hardware Included
    Yes
    Mounting Hole Diameter
    0.550 in
    Mounting Hole Diameter
    14.20 mm
    Mounting Hole Quantity
    1
    Pre Greased
    Yes
    Reinforced
    No
    Steering Type
    Power
    Thread Diameter
    0.620 in
    Thread Diameter
    16.00 mm
    Thread Direction
    Clockwise (Right)
    Thread Pitch
    0.059 in
    Thread Pitch
    1.50 mm

    Features

    • Designed to deliver trouble-free, consistent performance
    • Right for your vehicle and lifestyle
    • Made from high-quality materials for ultimate durability
    • Manufactured to meet or exceed strict quality requirement

    Product Details

    Front Passenger Side Lower Forward Control Arm and Ball Joint Assembly (TC3039) by Delphi®. Does your luxury car ride like an old buckboard wagon? Is your pickup still bouncing long after the bump? If so your suspension is in need of repair, but before you waste your time and gas running out to the auto parts chain store, check out their great selection of replacement suspension parts.

    When you need to make clutch/transmission repairs you can battle the traffic and stand in line at the auto parts chain store, only to be told that what you need is out of stock and has to be ordered. And if they have the parts can you be assured of the quality? Do you recognize the name on the box? And how do you know if you're getting the best price?

    You won't have those concerns with their replacement clutch and transmission parts. They carry only top name products from well-known OE and aftermarket suppliers. In fact, many of their manufacturers are suppliers to the vehicle manufacturers, so the parts you get from us may be the same as the ones that came on your car or truck. They carry everything from clutch kits, master cylinders, slave cylinders and release bearings for manual transmission vehicles to filters, gaskets, solenoids and mounts for automatic transmission vehicles. And unlike many other on-line vendors, they don't just have the big items and let you scramble for the details. They carry everything needed to complete the job, including transmission fluid.

    Brand:
    Part Number:
    TC3039
    UPC:
    689604403198
