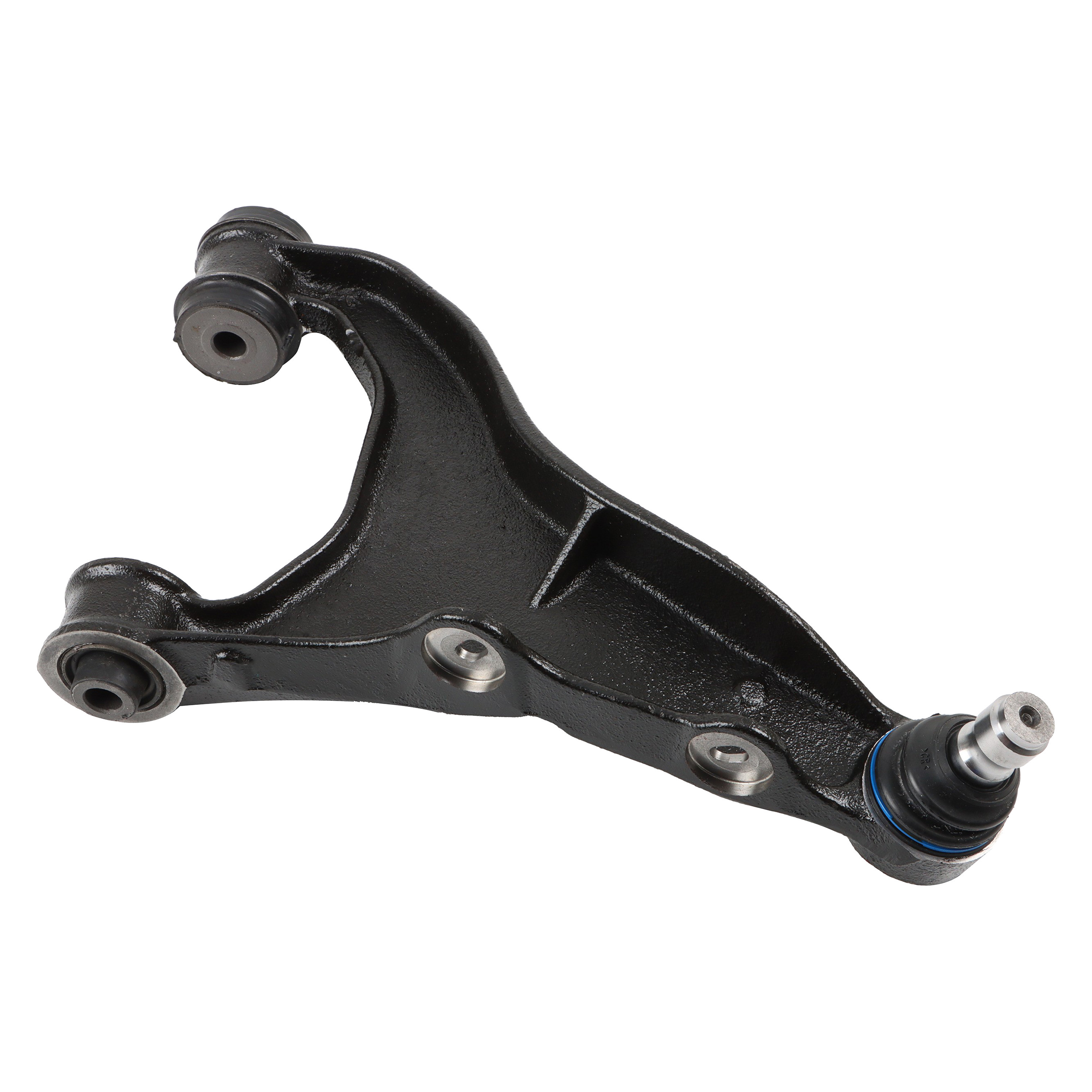

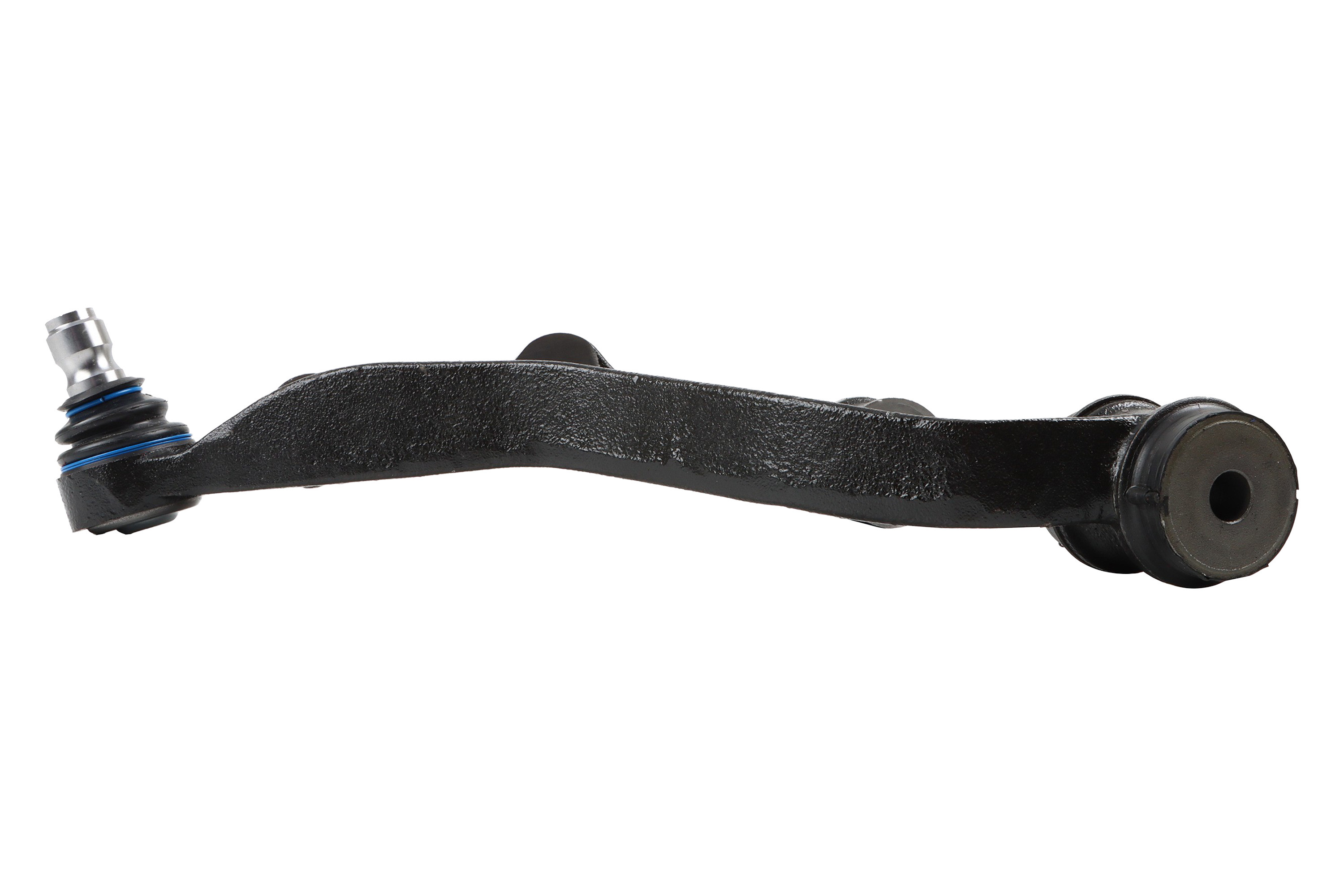

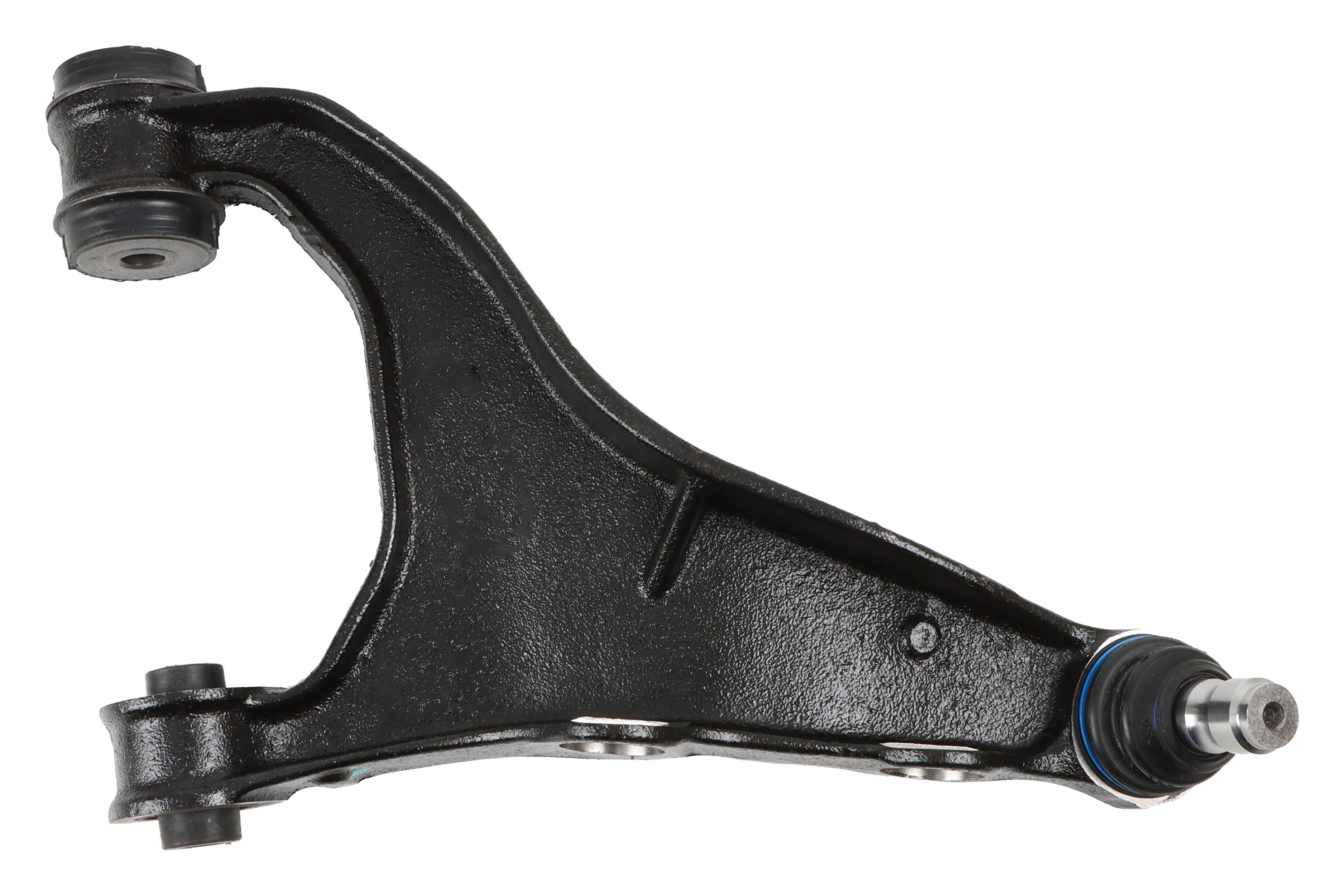

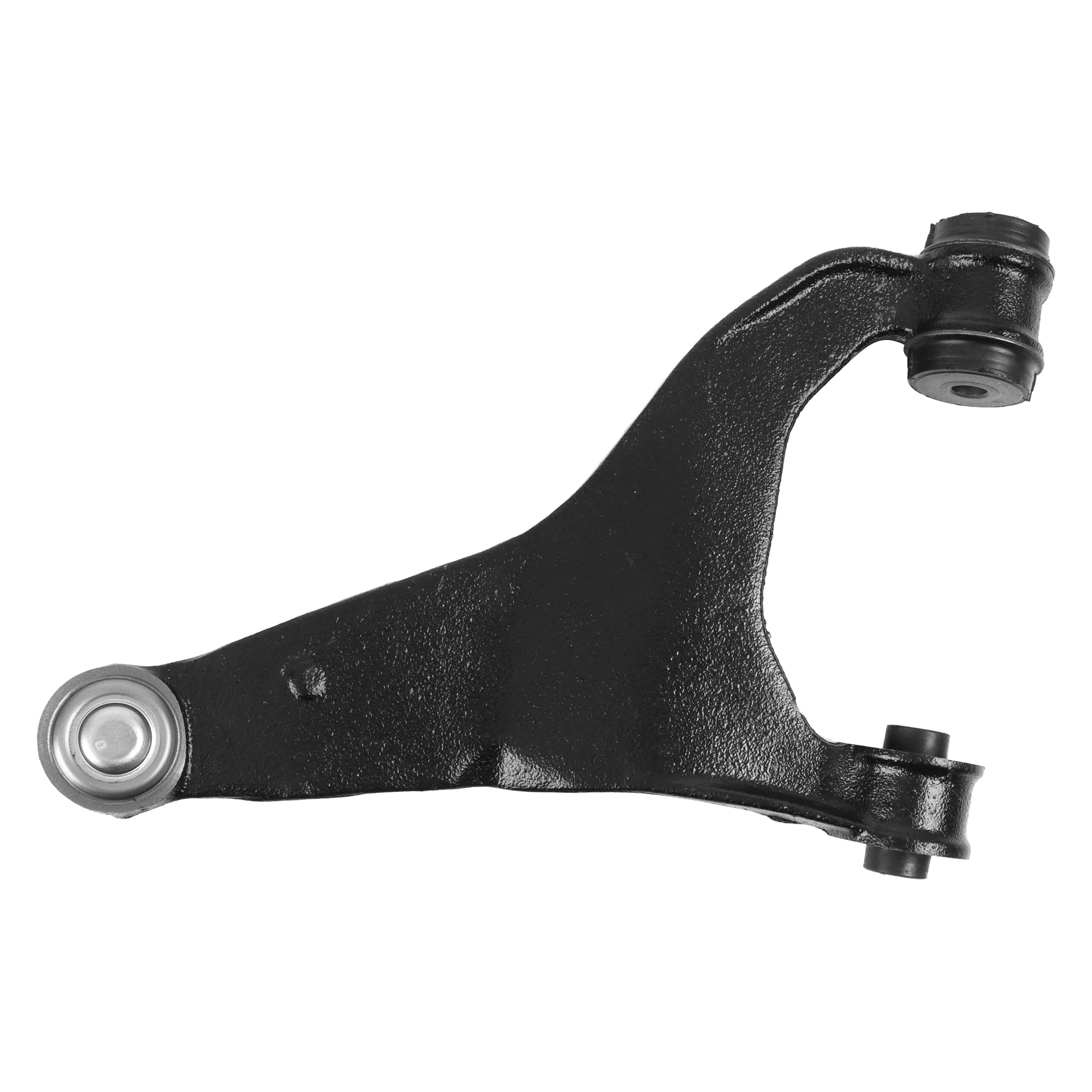

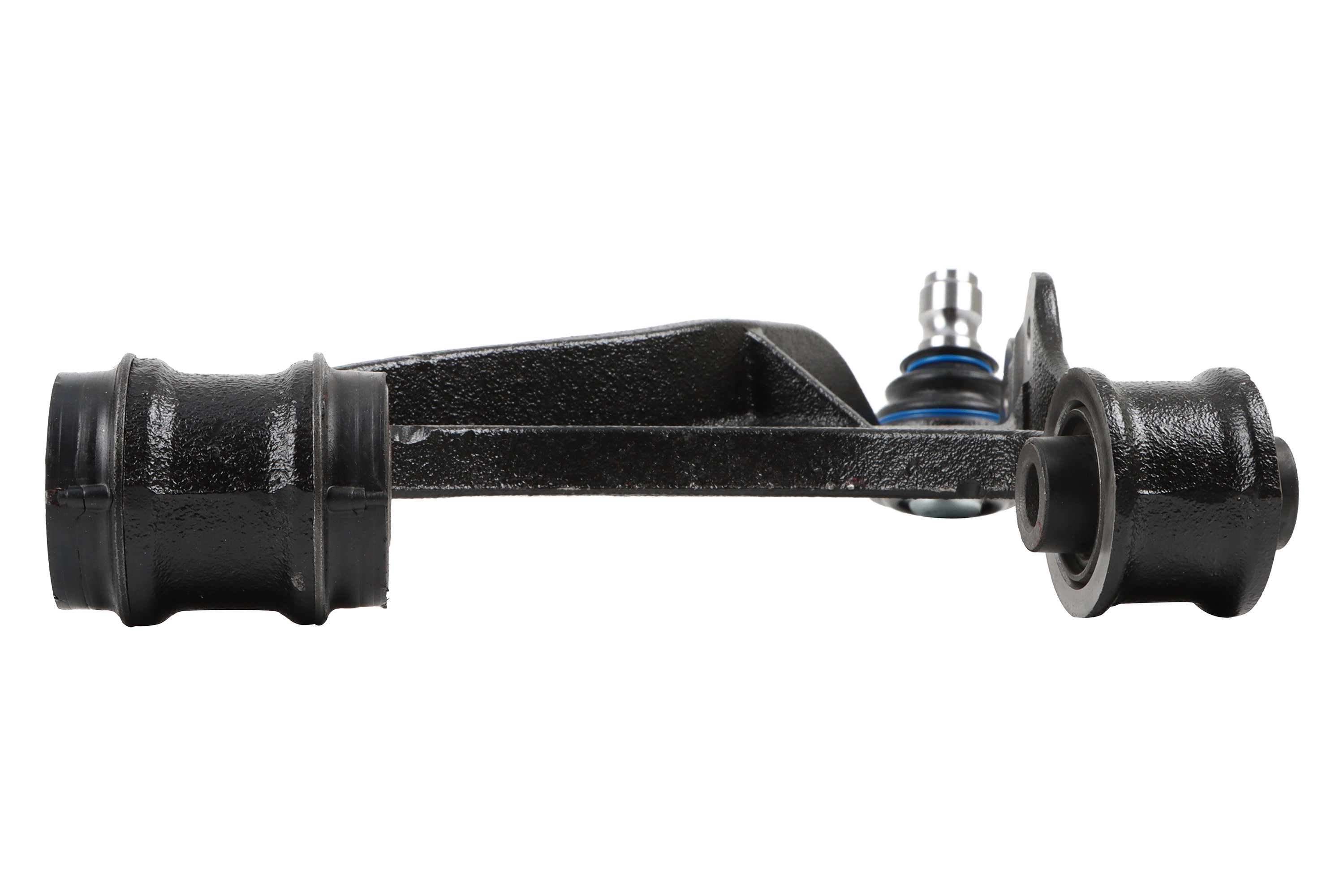

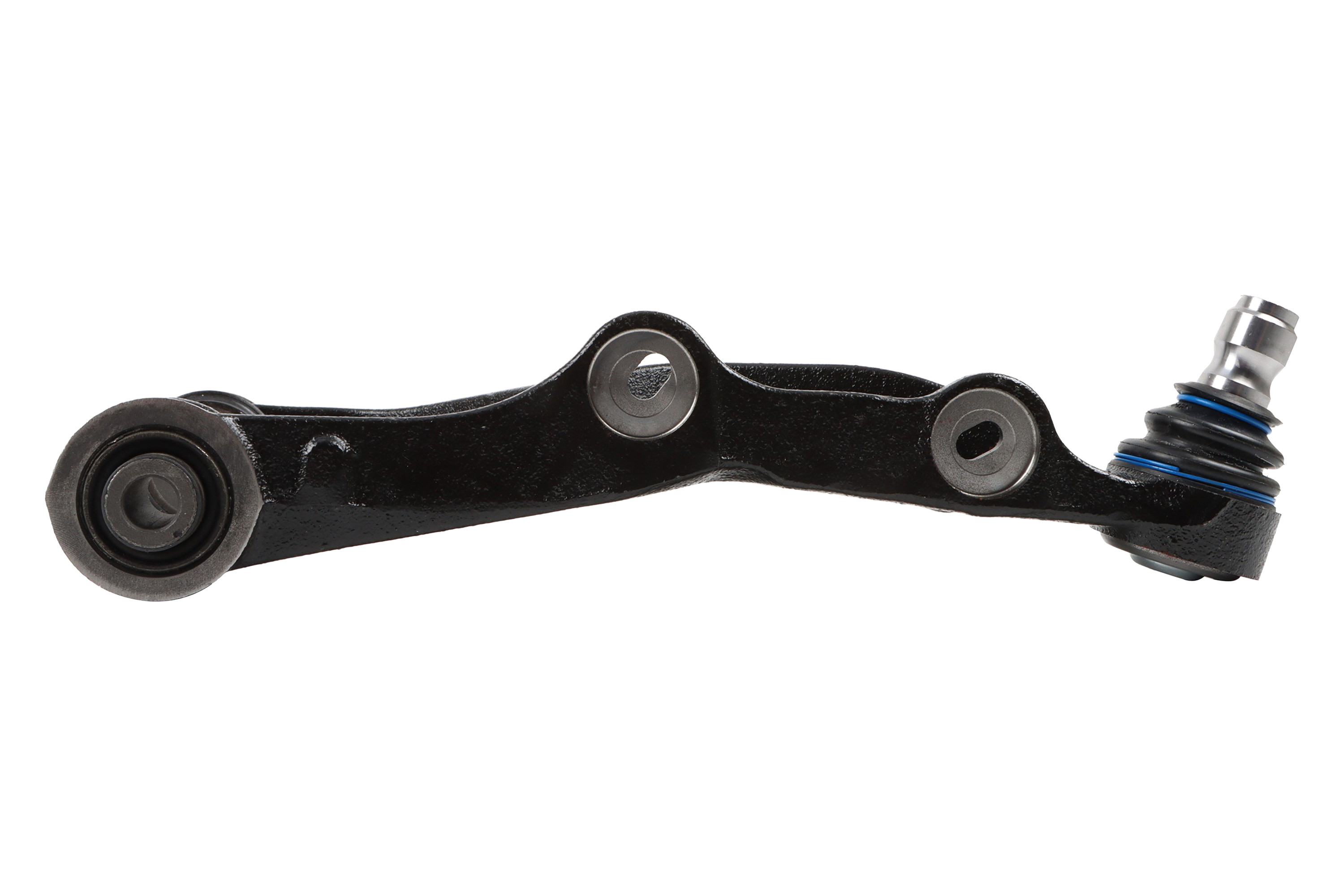

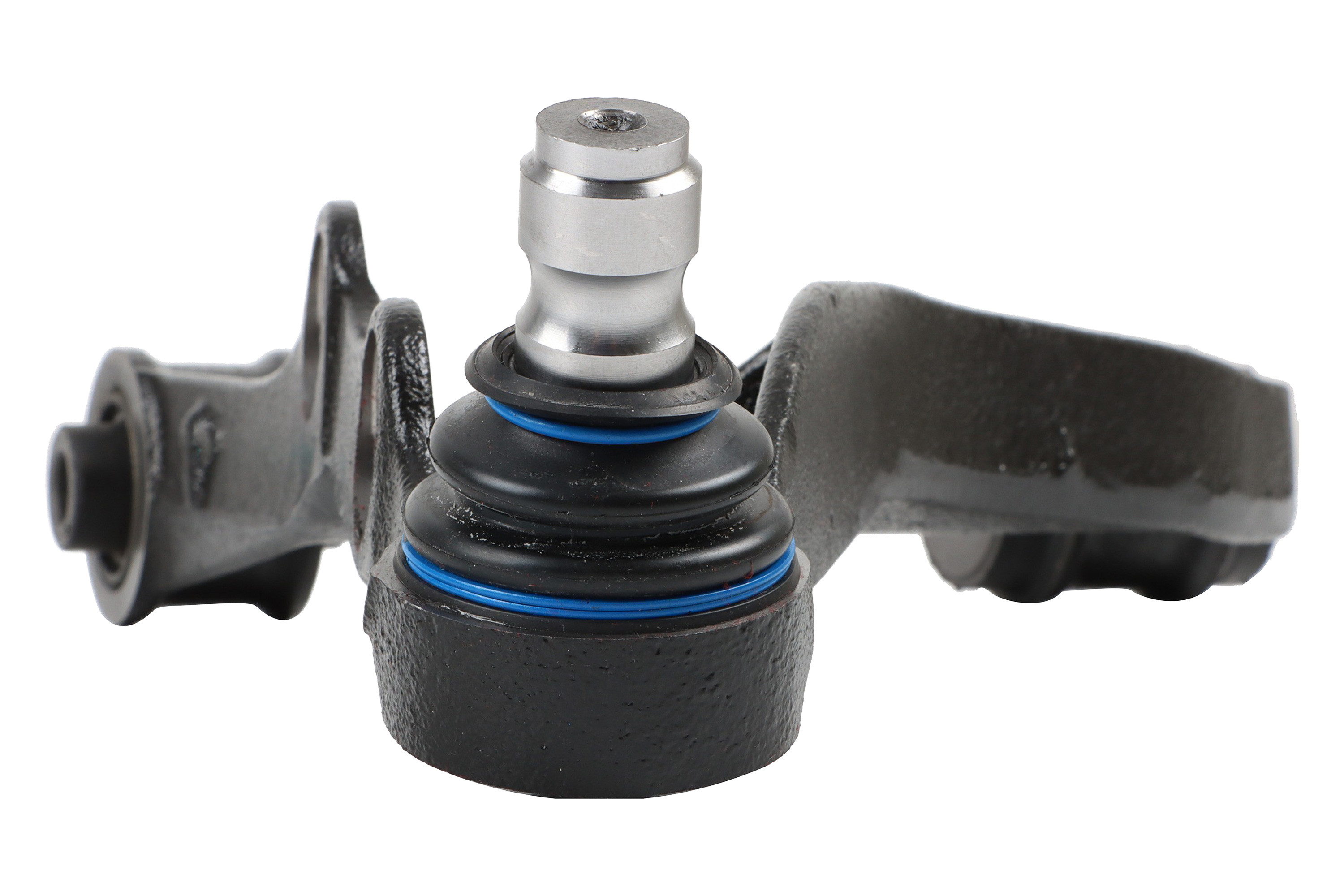

Delphi® TC4526 - Rear Passenger Side Upper Control Arm and Ball Joint Assembly

3 reviews|Item # mpn5190131368
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $60.48
    In Stock (59) - Ships Tomorrow 06.15.26

    Vehicle Fitment

    Subaru

    Specifications

    Adjustable
    No
    Attachments Included
    No
    Ball Joint Included
    Yes
    Ball Joint Mounting Type
    Machined
    Ball Joint Stud Length
    0.710 in
    Ball Joint Stud Length
    18.00 mm
    Ball Joint Stud Type
    Grooved
    Bearing Material
    Polyoxymethilen (POM)
    Boot Color
    Black
    Boot Material
    Chloroprene Rubber (CR)
    Bore Diameter
    1.330 in
    Bore Diameter
    34.00 mm
    Bushing Color
    Black
    Bushing Inside Diameter
    0.480 in
    Bushing Inside Diameter
    12.50 mm
    Bushing Inside Diameter
    12.20 mm
    Bushing Inside Diameter
    0.490 in
    Bushing Length
    1.960 in
    Bushing Length
    60.00 mm
    Bushing Length
    50.00 mm
    Bushing Length
    2.360 in
    Bushing Material
    Rubber
    Bushings Included
    Yes
    Castle Nut Included
    No
    Cone Outside Diameter
    20.00 mm
    Control Arm Color
    Black
    Control Arm Material
    Steel
    Control Arm Maximum Length
    12.000 in
    Control Arm Maximum Length
    305.00 mm
    Control Arm Maximum Width
    10.030 in
    Control Arm Maximum Width
    255.00 mm
    Control Arm Type
    Casting/Forged
    Cotter Pin Included
    No
    Dust Boot Included
    Yes
    Dust Boot Material
    Chloroprene Rubber (CR)
    Finish
    Painted
    Grade Type
    Standard
    Greasable
    No
    Grease Fitting Included
    No
    Length
    153.00 mm
    Length
    6.020 in
    Locking Nut Included
    No
    Mounting Hardware Included
    No
    Mounting Hole Diameter
    0.480 in
    Mounting Hole Diameter
    0.490 in
    Mounting Hole Diameter
    12.50 mm
    Mounting Hole Diameter
    12.20 mm
    Mounting Hole Quantity
    2
    Pre Greased
    Yes
    Reinforced
    No
    Steering Type
    Power

    Features

    • Designed to deliver trouble-free, consistent performance
    • Right for your vehicle and lifestyle
    • Made from high-quality materials for ultimate durability
    • Manufactured to meet or exceed strict quality requirement

    Product Details

    Rear Passenger Side Upper Control Arm and Ball Joint Assembly (TC4526) by Delphi®. Does your luxury car ride like an old buckboard wagon? Is your pickup still bouncing long after the bump? If so your suspension is in need of repair, but before you waste your time and gas running out to the auto parts chain store, check out their great selection of replacement suspension parts.

    When you need to make clutch/transmission repairs you can battle the traffic and stand in line at the auto parts chain store, only to be told that what you need is out of stock and has to be ordered. And if they have the parts can you be assured of the quality? Do you recognize the name on the box? And how do you know if you're getting the best price?

    You won't have those concerns with their replacement clutch and transmission parts. They carry only top name products from well-known OE and aftermarket suppliers. In fact, many of their manufacturers are suppliers to the vehicle manufacturers, so the parts you get from us may be the same as the ones that came on your car or truck. They carry everything from clutch kits, master cylinders, slave cylinders and release bearings for manual transmission vehicles to filters, gaskets, solenoids and mounts for automatic transmission vehicles. And unlike many other on-line vendors, they don't just have the big items and let you scramble for the details. They carry everything needed to complete the job, including transmission fluid.
