Features
- Diaphragm in master cylinder cap provides completely enclosed system
- Raised fill plate prevents intrusion of contaminants when removing cap
- Tie loops on cap allow for tethering, creating a tamper-proof seal
- Bellow boot on pushrod for more resistance to moisture and contaminants
- Color-coded decal on emergency lever allows quick glance if brakes are on or off
- Acetyl Copolymer linings eliminated issue with rollers
- Line pressure controlled by spring loaded pushrod
- Integrated shock dampening design
- Emergency cable is attached with a new clevis for easy replacement in the field
- Designed to safely and efficiently haul your loads
Product Details

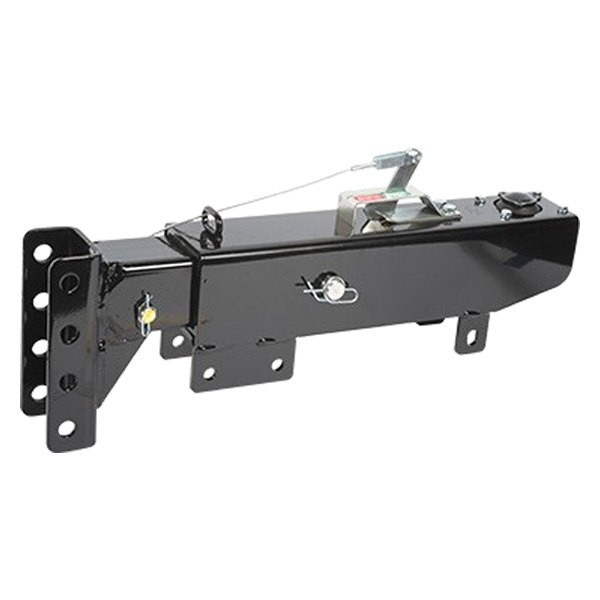

Universal DA91 Hydraulic Brake Actuator by Demco®. With 8" 4 Bolt Adjustable Down Channel and 3 Hole Standard Outercase. For Drum Brakes. Capacity: 8000 lb With industry leading features Demco Actuators are built heavy duty in the USA for the safest braking and extended trouble-free life. DA20 available in either weld-on or bolt-on mounts. Drum brake actuator for marine and light utility applications. 2" x 4-1/2" grade 5 bolts are required in mounting of straight actuators. 800 lb maximum tongue load or 10% of G.V.W.R. of coupler, vehicle, ball or trailer. 50? A-frame mounted actuator may be welded on. Plated actuator may be used in a marine application. DA91 and DA9150 actuators utilize Acetal Copolymer linings. Rollers are eliminated. G.V.W.R. Limited to coupler rating. Emergency lever support and guide ring (on DA91 and DA95 series).
