Derale Performance® - Series 8000 Plate and Fin Transmission Cooler Kit Derale Performance® - Series 8000 Plate and Fin Transmission Cooler Kit Derale Performance® - Series 8000 Plate and Fin Transmission Cooler Kit Derale Performance® - Series 8000 Plate and Fin Transmission Cooler Kit

Derale Performance® 13501 - Series 8000 Plate and Fin Transmission Cooler Kit

Name: Derale Performance® 13501 - Series 8000 Plate and Fin Transmission Cooler Kit
Brand: Derale Performance
SKU: mpn4497268881
Price: 88.31 USD
Availability: InStock

0 reviews|Item # mpn4497268881

Vehicle Specific

Authorized Dealer

$88.31

In Stock (4) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Alfa Romeo

Chevy

Fiat

Honda

Jeep

Kia

Mazda

Mercury

Nissan

Subaru

Toyota

Volkswagen

Specifications

Cooler style	Plate & Fin
Construction	Aluminum
Inlet size	11/32" barb
BTU	11500
GVW	15500

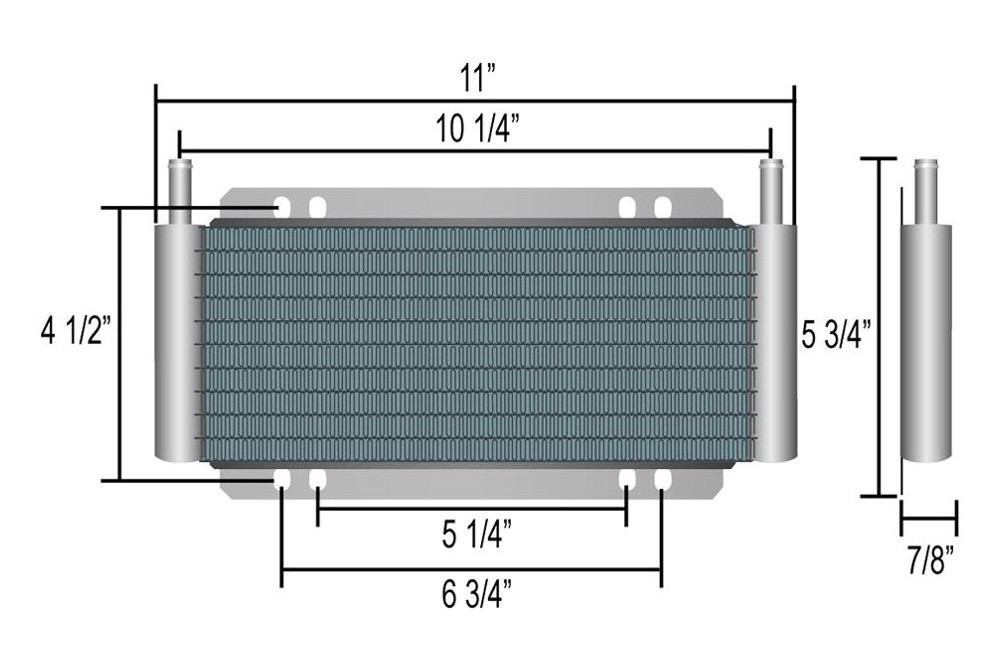

Width	11"
Height	5-3/4"
Depth	7/8"
Inlet dim	10-1/4"
Mounting	6-3/4" x 4-1/2"
Hose size	11/32"
Hose length	4'

Features

Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
Improves transmission performance
Sturdy furnace-brazed aluminum construction
All Derale coolers are rated at 250psi working pressure and 300psi burst strength
9 row cooler design
3/4" embossed turbulators maximize cooling & minimize pressure drop

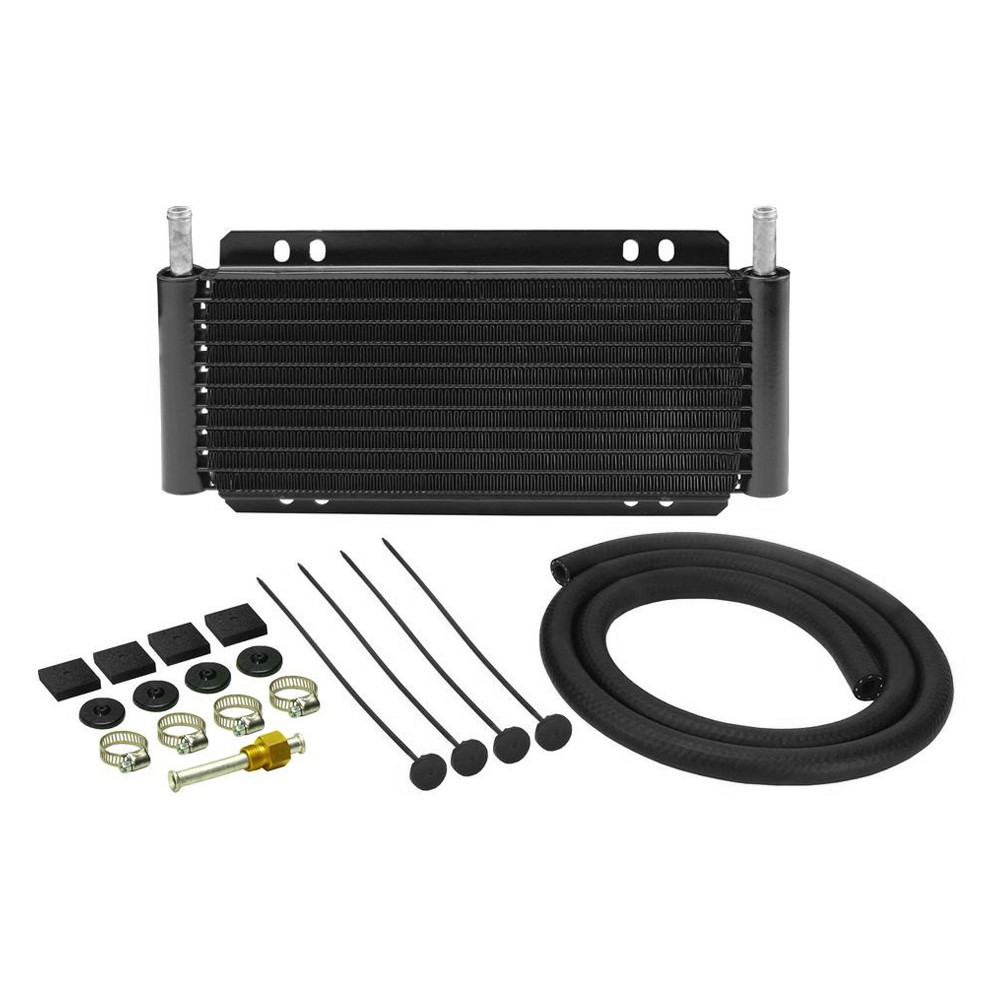

Complete hardware kit included

Product Details

Series 8000 Plate and Fin Transmission Cooler Kit by Derale Performance®. Depth: 7/8". Cooler Design: 9 Row. Inlet Size: 11/32" barb. Inlet Diameter: 10 1/4". Mounting: 6 3/4" x 4 1/2". Height: 5 3/4". Construction: Aluminum. A step up from Tube and Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance.

Installation

Derale Performance® - Series 8000 Plate and Fin Transmission Cooler Kit Installation Instructions!

Derale Performance® - Series 8000 Plate and Fin Transmission Cooler Kit Installation Instructions!Made In USA Derale Performance Authorized Dealer Catalog About us

Brand:

Derale Performance

Part Number:

13501

UPC:

083277135019

Warranty

Derale Performance warrants its products to be free from defects in materials or workmanship for a period of 12 months. The warranty period begins on the date the product is delivered.

The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.

During the warranty period, Derale Performance will repair or replace, at no charge, a product that is defective in materials or workmanship. Derale Performance reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
