Derale Performance® 13502 - Series 8000 Plate and Fin Transmission Cooler Kit

Specifications

Features

• Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
• Improves transmission performance
• Sturdy furnace-brazed aluminum construction
• All Derale coolers are rated at 250psi working pressure and 300psi burst strength
• 13 row cooler design
• 3/4" embossed turbulators maximize cooling & minimize pressure drop

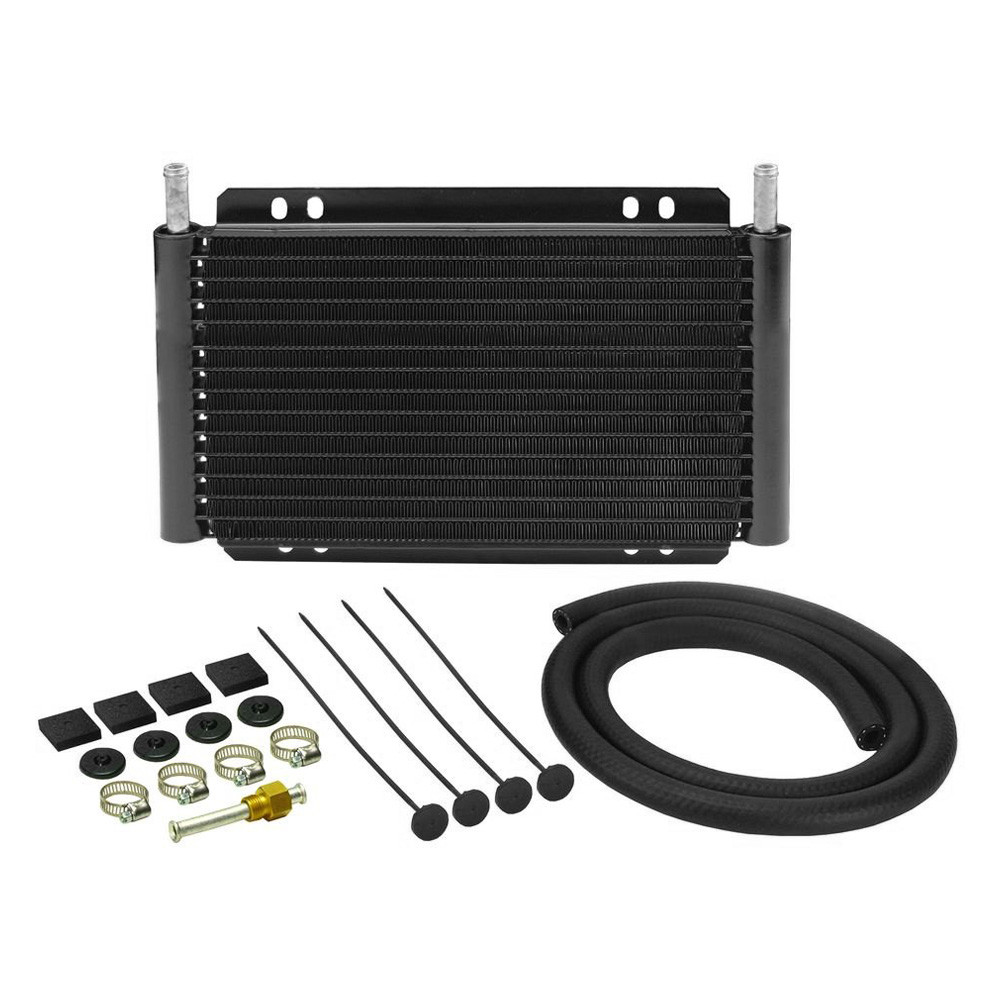

• Complete hardware kit included

Product Details

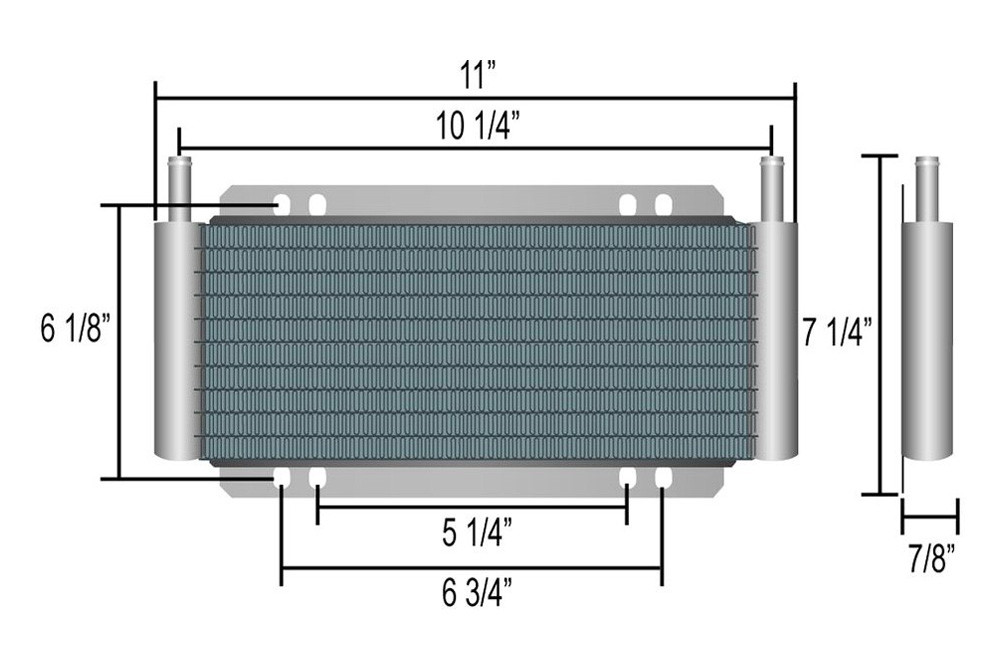

Series 8000 Plate and Fin Transmission Cooler Kit by Derale Performance®. Depth: 7/8". Cooler Design: 13 Row. Inlet Size: 11/32" barb. Inlet Diameter: 10 1/4". Mounting: 6 3/4" x 6 1/8". Height: 7 1/4". Construction: Aluminum. A step up from Tube and Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance.

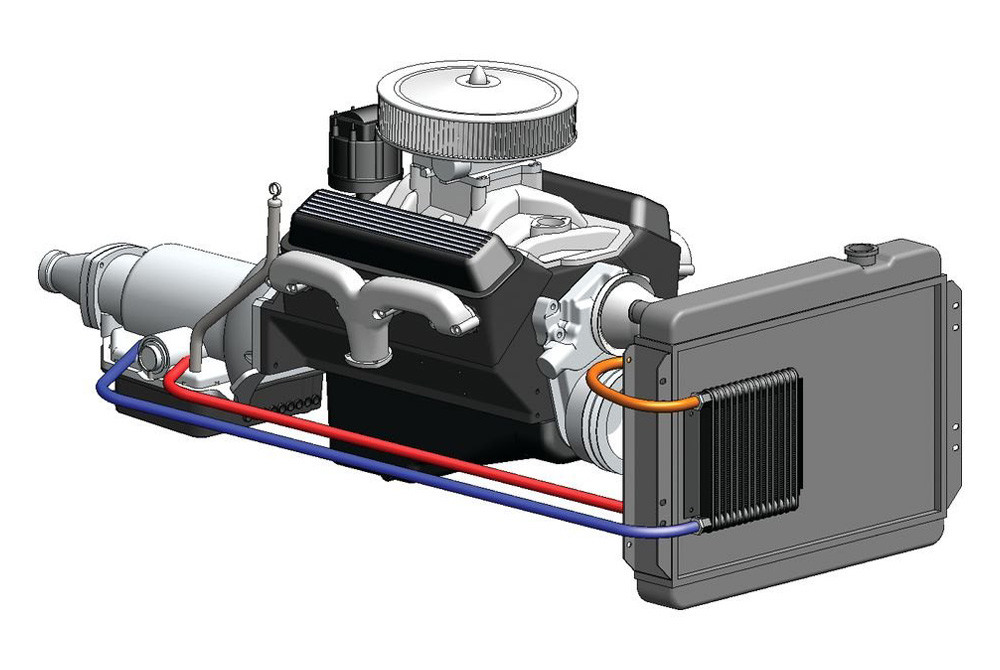

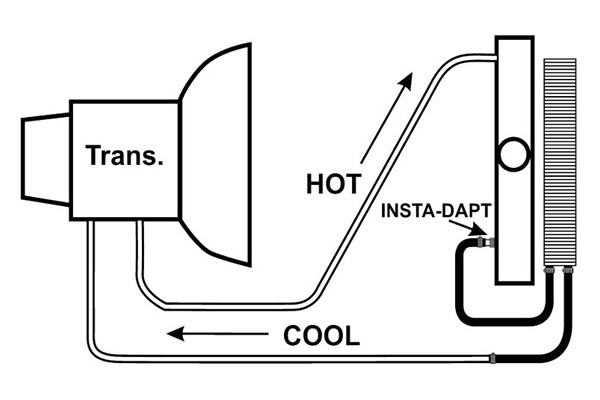

Installation
