Detroit Iron® DPRF-95-69TWD - Wiring Diagrams

Specifications

Features

• Developed to preserve valuable data about antique and classic rides
• Made with the utmost care for your specific year, make and model
• Designed to provide the exact copy of the original manual

Product Details

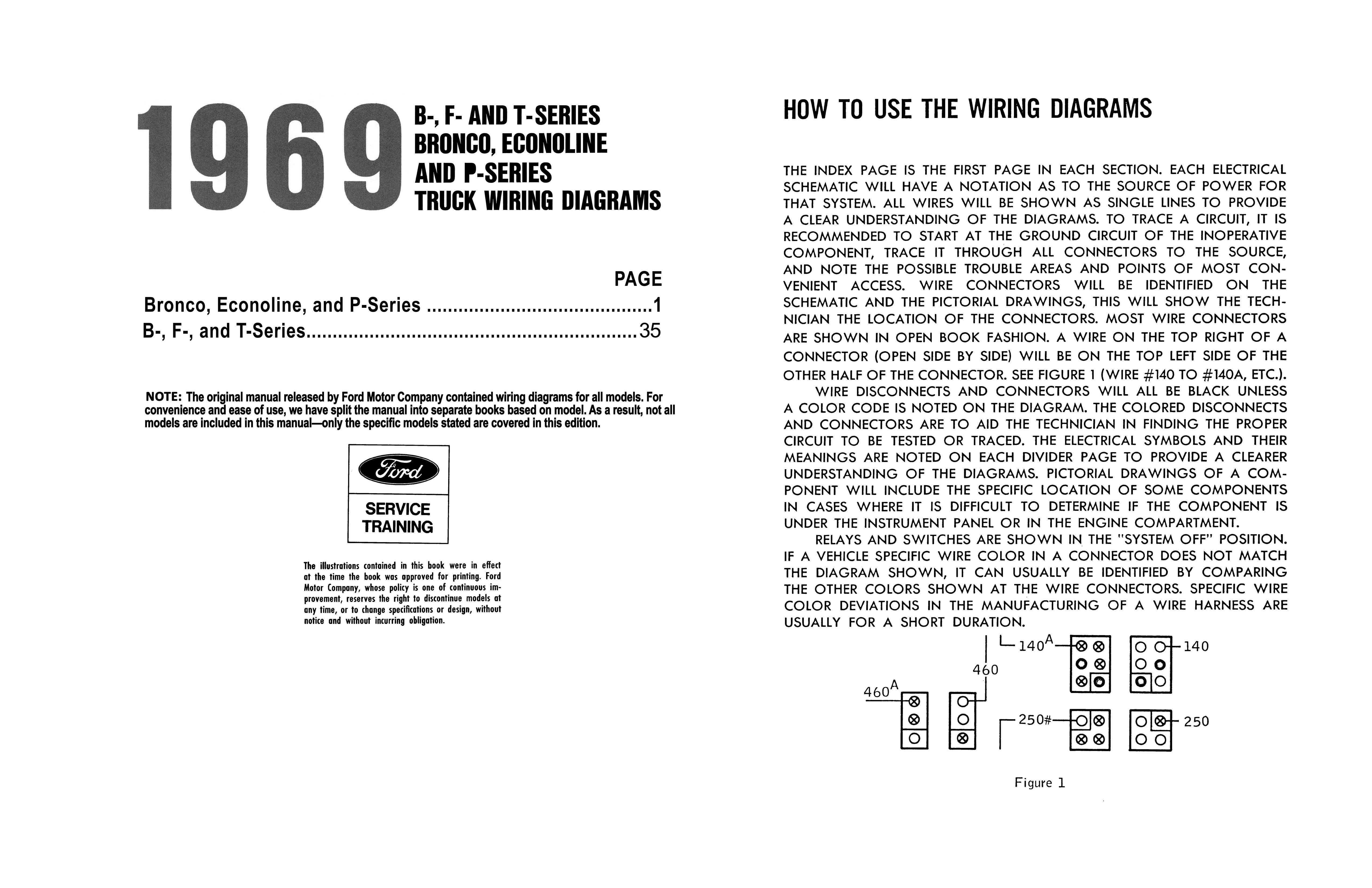

Wiring Diagrams by Detroit Iron®. This 1969 Ford F-Series Truck, Bronco, Econoline, P-, B-,& T-Series Wiring Diagrams is a high-quality, licensed PRINT reproduction of the service manual authored by Ford Motor Company and published by Detroit Iron. This OEM factory manual is 17 x 11 inches, COMB bound, shrink-wrapped and contains 158 pages of comprehensive electrical and vacuum circuit diagrams and diagnosis instructions. Service / repair manuals were originally written by the automotive manufacturer to be used by their dealership mechanics. The following 1969 Ford models are covered: F-100, F-250, F-350, F-500, Bronco, P-100, P-350, P-400, P-500, E-100 Econoline, E-200 Econoline, E-300 Econoline, F-600, F-700, F-750, F-800, F-850, F-950, F-1000, F-6000, F-7000, F-8000, B-500, B-600, B-700, B-750, B-6000, B-7000, T-800, T-850, T-950, T-8000. This factory-written Detroit Iron shop manual is perfect for the restorer or anyone working on one of these vehicles.
