Diode Dynamics® DD7312 - Fog Light Location Mounted Stage Pro Series 3" 4x36W Square Fog/Combo Beam LED Light Kit

Name: Diode Dynamics® DD7312 - Fog Light Location Mounted Stage Pro Series 3" 4x36W Square Fog/Combo Beam LED Light Kit
Brand: Diode Dynamics
SKU: mpn4952588486
Price: 919.95 USD
Availability: InStock

0 reviews|Item # mpn4952588486

Vehicle Specific

Authorized Dealer

$919.95

In Stock (2) - Ships Tomorrow 06.15.26

See similar products

Vehicle Fitment

Ford

Specifications

Size	3"
Watts (per kit)	4x36W
Beam pattern	fog/combo beam
Bulb type	LED
Series	Stage Pro Series
Location	fog light location
Color/finish	black
Light Color	white
Shape	square
Voltage	9-16V
Amperage	2.7A
Raw lumens	5796; Measured lumens: 3000
Color temperature	6000K
Lux @10M	351
Candelas	35100 CD

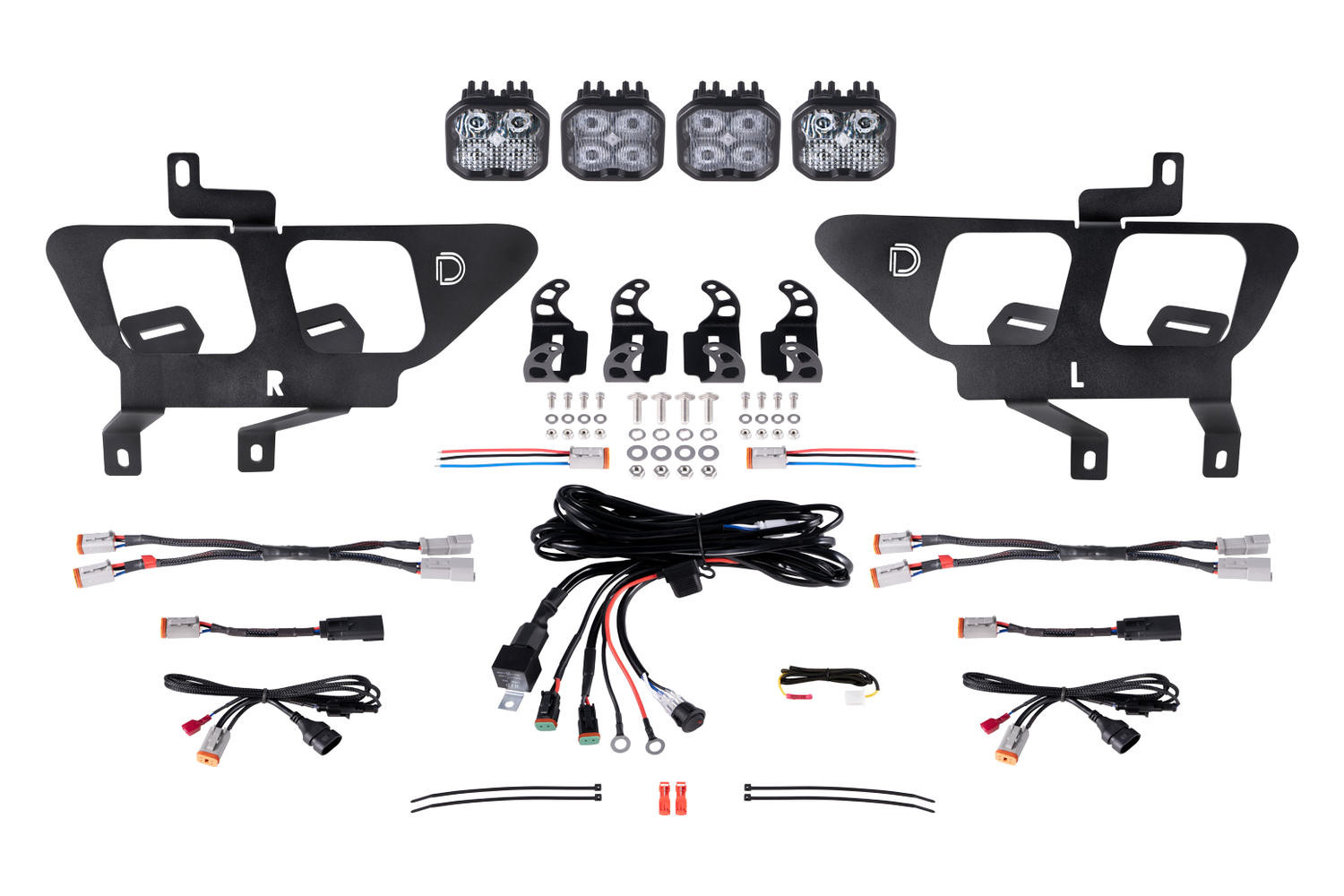

Includes

(2) Stage Pro Series fog beam white LED lights
(2) Stage Pro Series combo beam white LED lights
(2) Fog pocket brackets
(1) Dual-output fog harness
(1) Heavy duty dual output 4-pin harness
(1) Molex DT adapter wire
(1) 9006 Backlight tap wire kit
(4) Zip ties
Mounting hardware and guide

Features

Bolt-on fitment

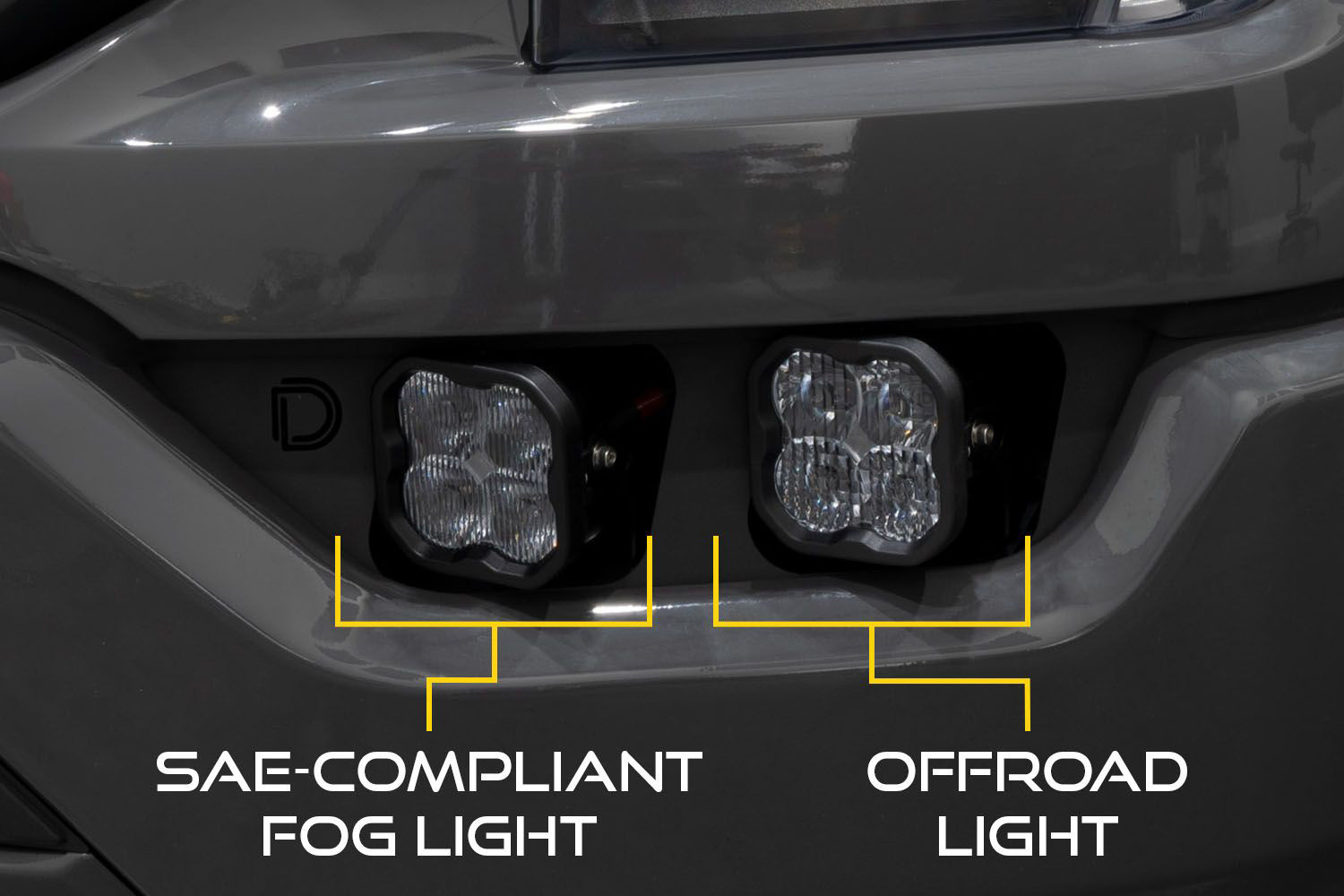

Adds SAE-compliant fog lights, and powerful offroad lighting
Harnesses included for independent control of road-legal and offroad lighting
Backlight feature provides amber accent light
Highly durable powdercoated stainless steel bracket
Engineered and assembled in USA

Product Details

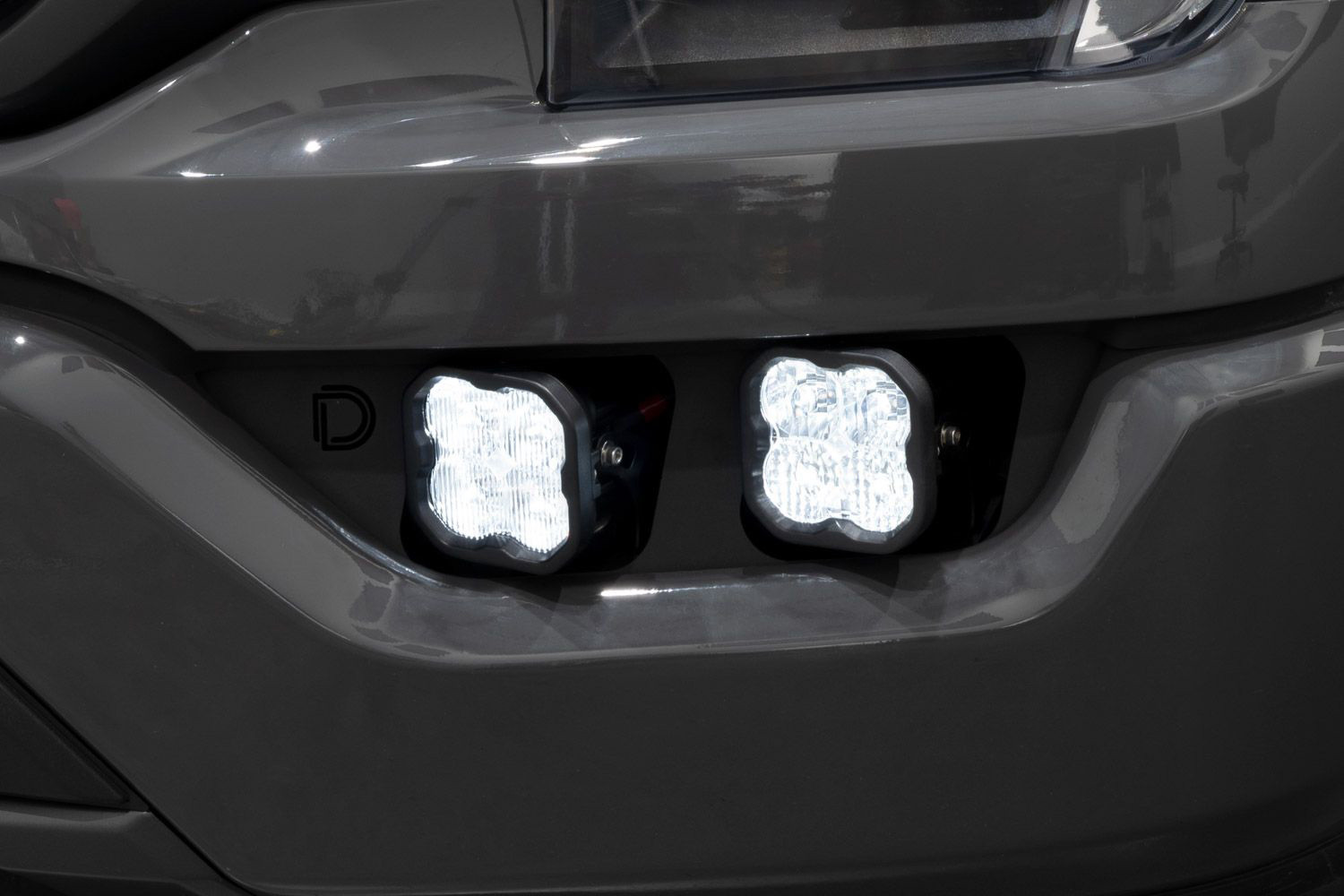

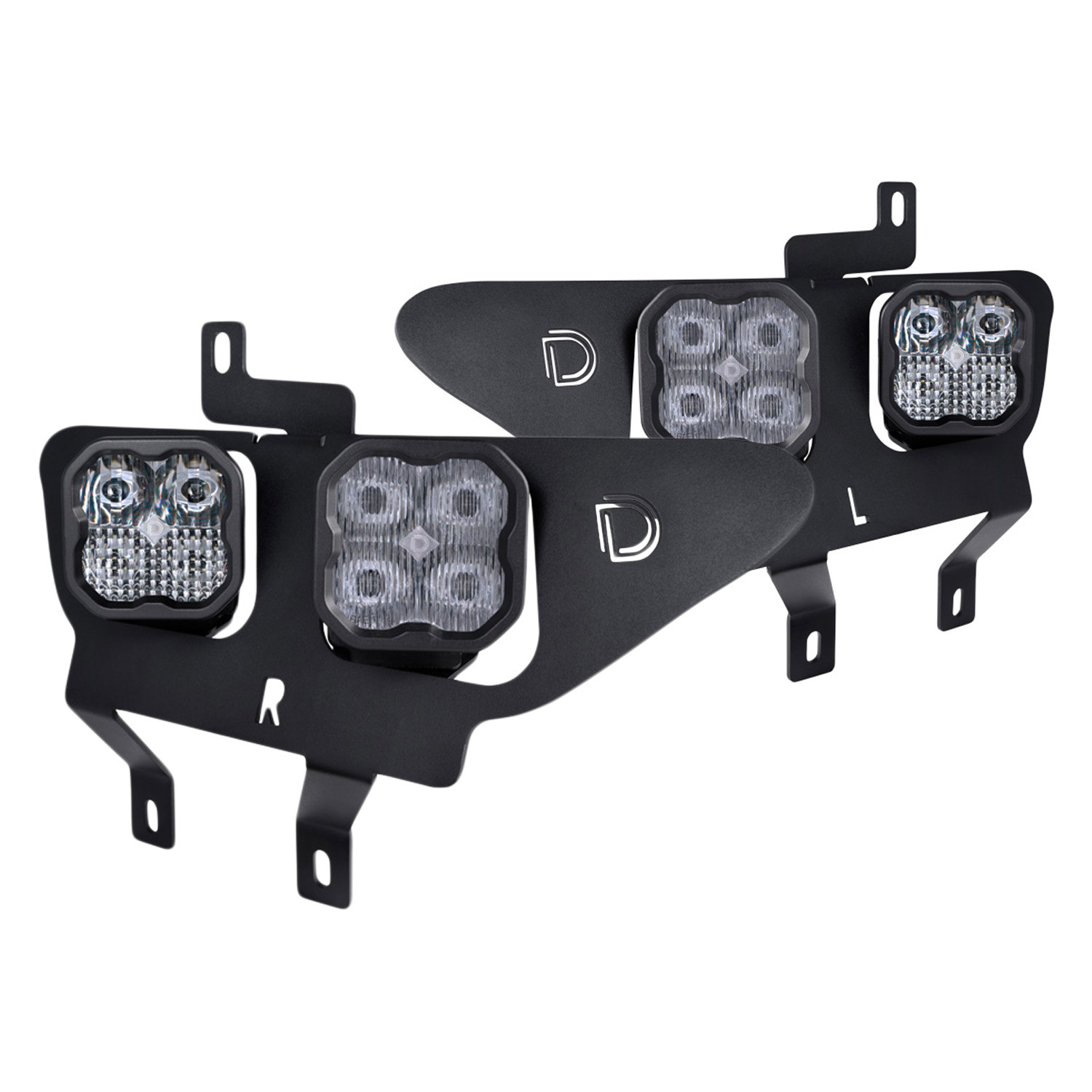

Fog Light Location Mounted Stage Pro Series 3" 4x36W Square Fog/Combo Beam LED Light Kit (DD7312) by Diode Dynamics®. 4 Pieces. White light. 9-16V. 2.7A. Raw lumens: 5796; Measured lumens: 3000. 6000K. If you are looking to add some serious functionality to your vehicle, look no further! The Stage Series Fog Pocket Kit for your vehicle from Diode Dynamics adds both road-legal fog lights and powerful offroad lighting. The CAD-designed brackets allow you to mount four SS3 LED Pods in place of your factory fog light housing. With the included harness, you'll be able to switch between road-legal fog lights and offroad lights with ease.

Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD7312

UPC:

195995128560

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
