Diode Dynamics® DD7656 - Roll Bar Stage Series 3 Pro 3" 2x36W Square Combo Beam LED Light Kit

Name: Diode Dynamics® DD7656 - Roll Bar Stage Series 3 Pro 3" 2x36W Square Combo Beam LED Light Kit
Brand: Diode Dynamics
SKU: mpn5201334667
Price: 459.95 USD
Availability: InStock

0 reviews|Item # mpn5201334667

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$459.95

In Stock (1) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

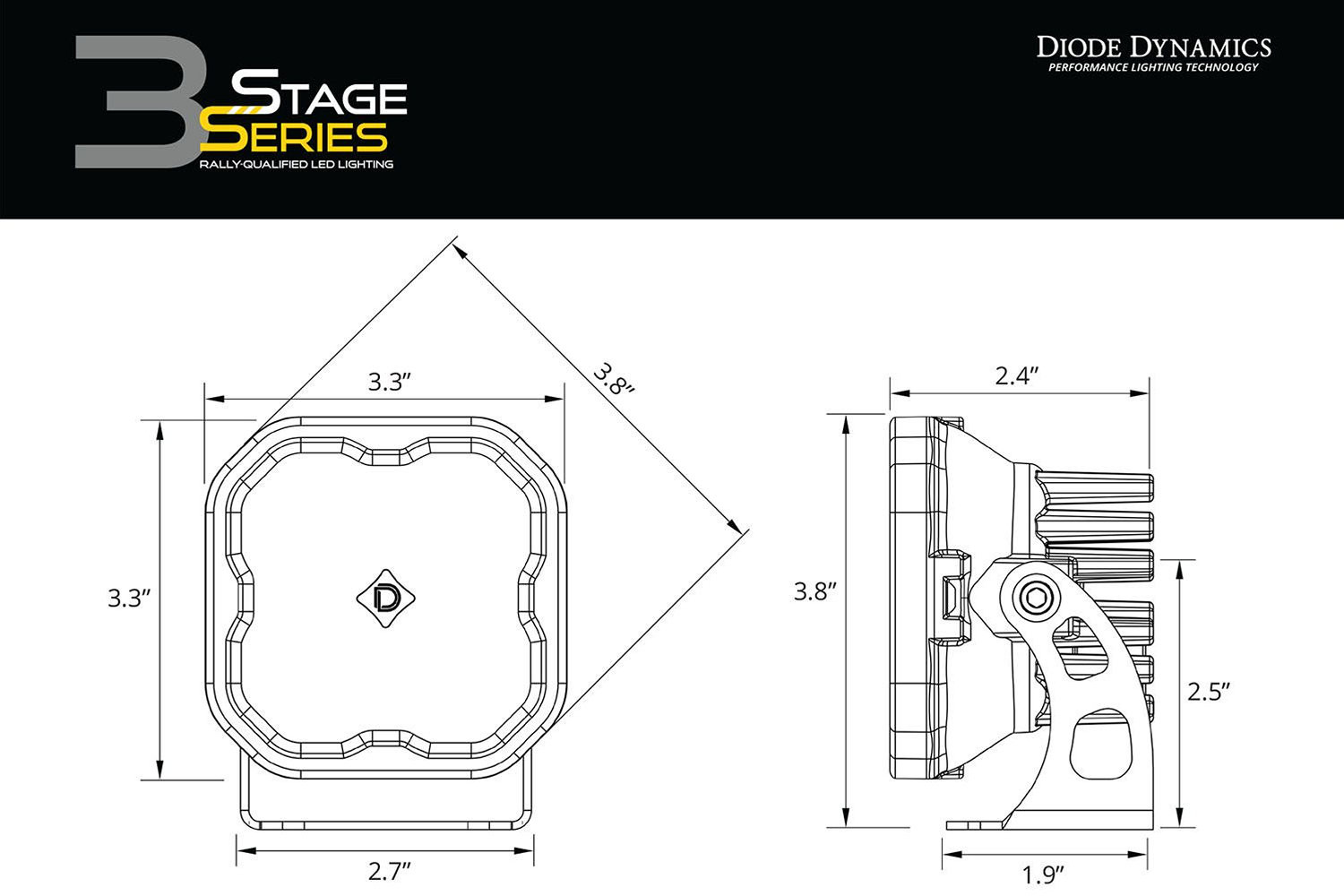

Size	3"
Watts (per kit)	2x36W
Size of mount	1.5"
Beam pattern	combo beam
Bulb type	LED
Series	Stage Series 3 Pro
Location	roll bar
Mount type	pedestal mount
Color/finish	black
Light Color	white
Shape	square
Voltage	9-16V
Amperage	2.7A
Raw lumens	5796; Measured lumens: 3000
Color temperature	6000K
Mount Size	1.5"
Lux @10M	351
Candelas	35100 CD

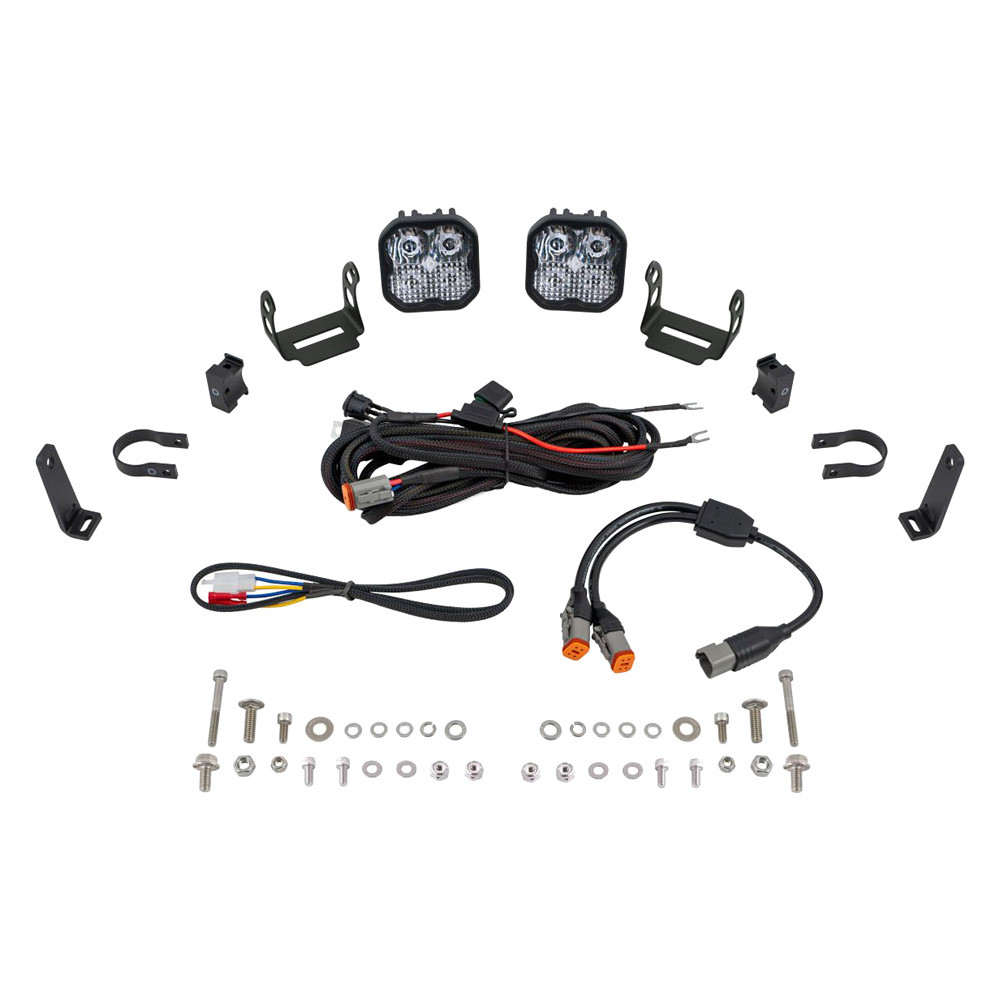

Includes

(2) Stage Pro Series white LED lights
(2) 1.5" Roll bar mount kits
(1) Heavy duty single output 4-pin wiring harness
(1) DT 4-pin splitter
Mounting hardware
Installation guide

Features

Allows you to mount two LED pods in lower bumper area
Bolt-on fitment
Ultra-high intensity, with custom-engineered TIR optics
Torture-tested, heavy-duty construction
Assembled in USA

Product Details

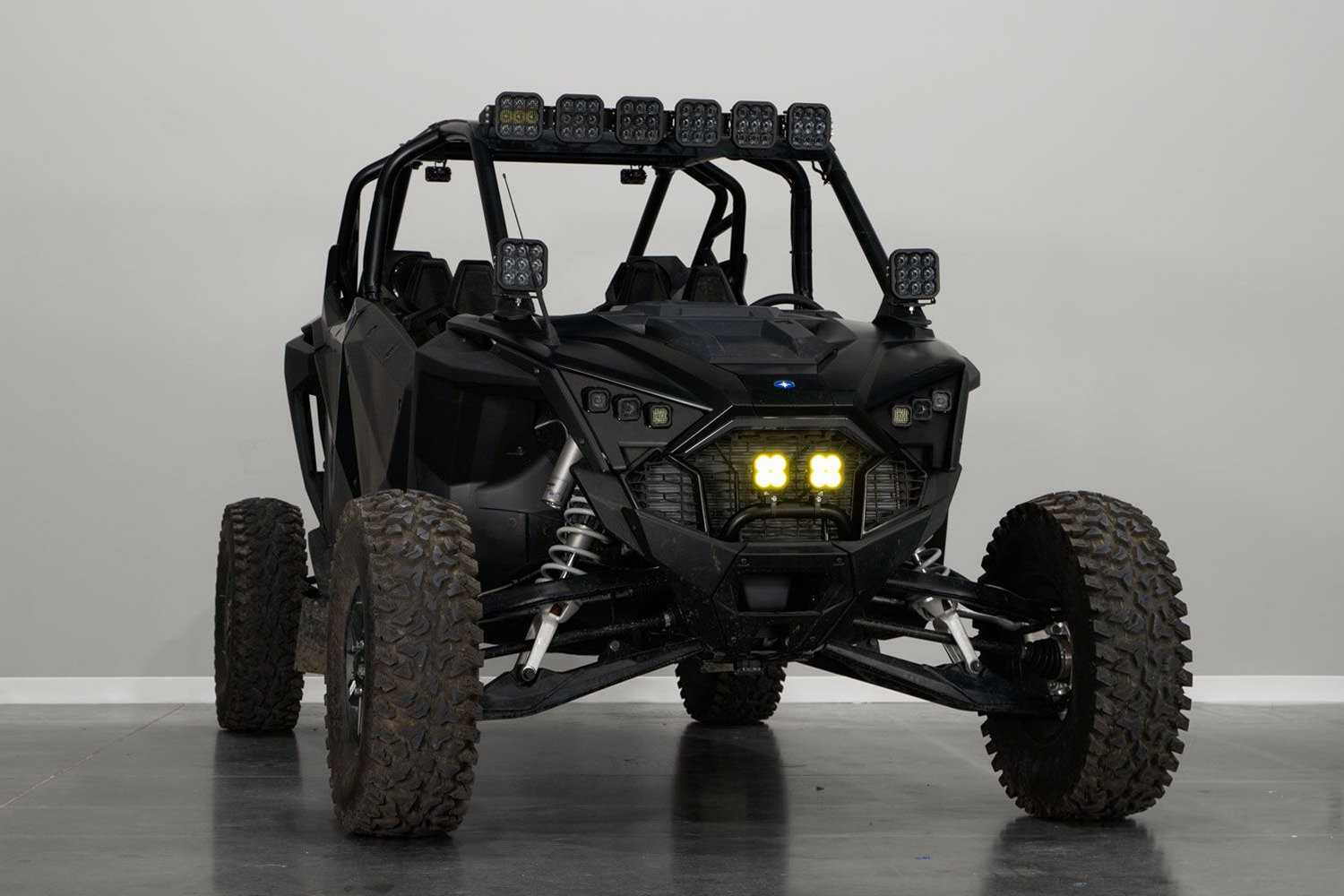

Universal Roll Bar Stage Series 3 Pro 3" 2x36W Square Combo Beam LED Light Kit (DD7656) by Diode Dynamics®. 1 Pair. White light. 9-16V. 2.7A. Raw lumens: 5796; Measured lumens: 3000. 6000K. The Roll Bar LED Pod Kit from Diode Dynamics allows you to mount two SS3 LED pods on the factory roll bar in the lower bumper area without any cutting or drilling. If you ride in dusty conditions, this is the perfect kit for you. The lower mounting point cuts through dust and fog, giving you more visibility in undesirable conditions.

Diode Dynamics® - Roll Bar Stage Series 3 Pro 3" 2x36W Square Combo Beam LED Light Kit, Specifications Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD7656

UPC:

195995132703

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
