Diode Dynamics® DD7811 - Hood Ditch Stage Series 3 Sport 3" 2x14.5W Square Combo Beam LED Light Kit

0 reviews|Item # mpn5201334611

Vehicle SpecificCannot Confirm Fitment

We need more information

Confirm Fitment

Authorized Dealer

$379.95

In Stock (6) - Ships within 24 hrs

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Chevy

Specifications

Size	3"
Watts (per kit)	2x14.5W
Beam pattern	combo beam
Bulb type	LED
Series	Stage Series 3 Sport
Location	hood ditch
Mount type	pedestal mount
Color/finish	black
Light Color	white
Shape	square
Voltage	9-16V
Amperage	1.1A
Raw lumens	2262; Measured lumens: 1520
Color temperature	6000K
Lux @10M	315
Candelas	31500 CD

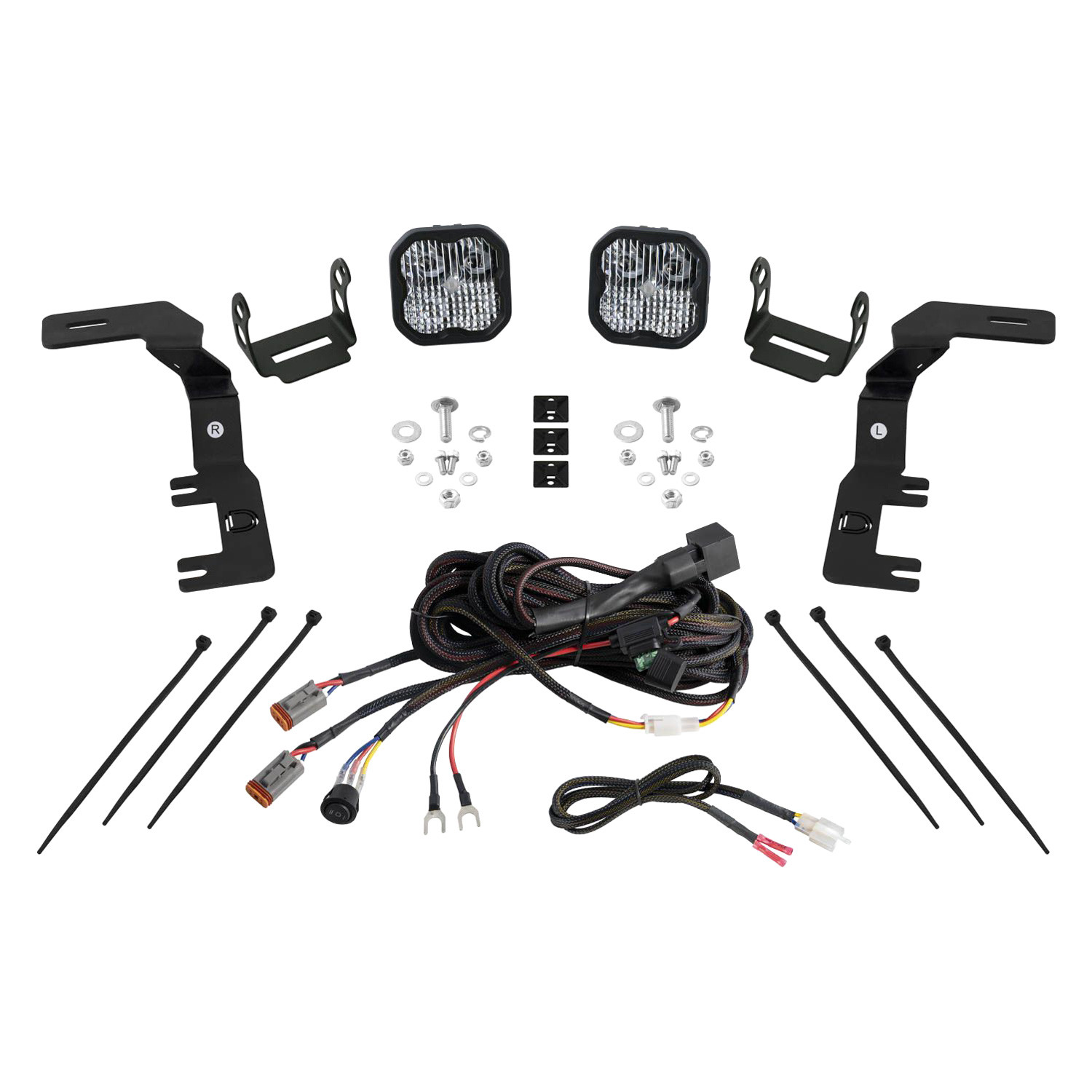

Includes

(2) Stage Sport Series white LED lights

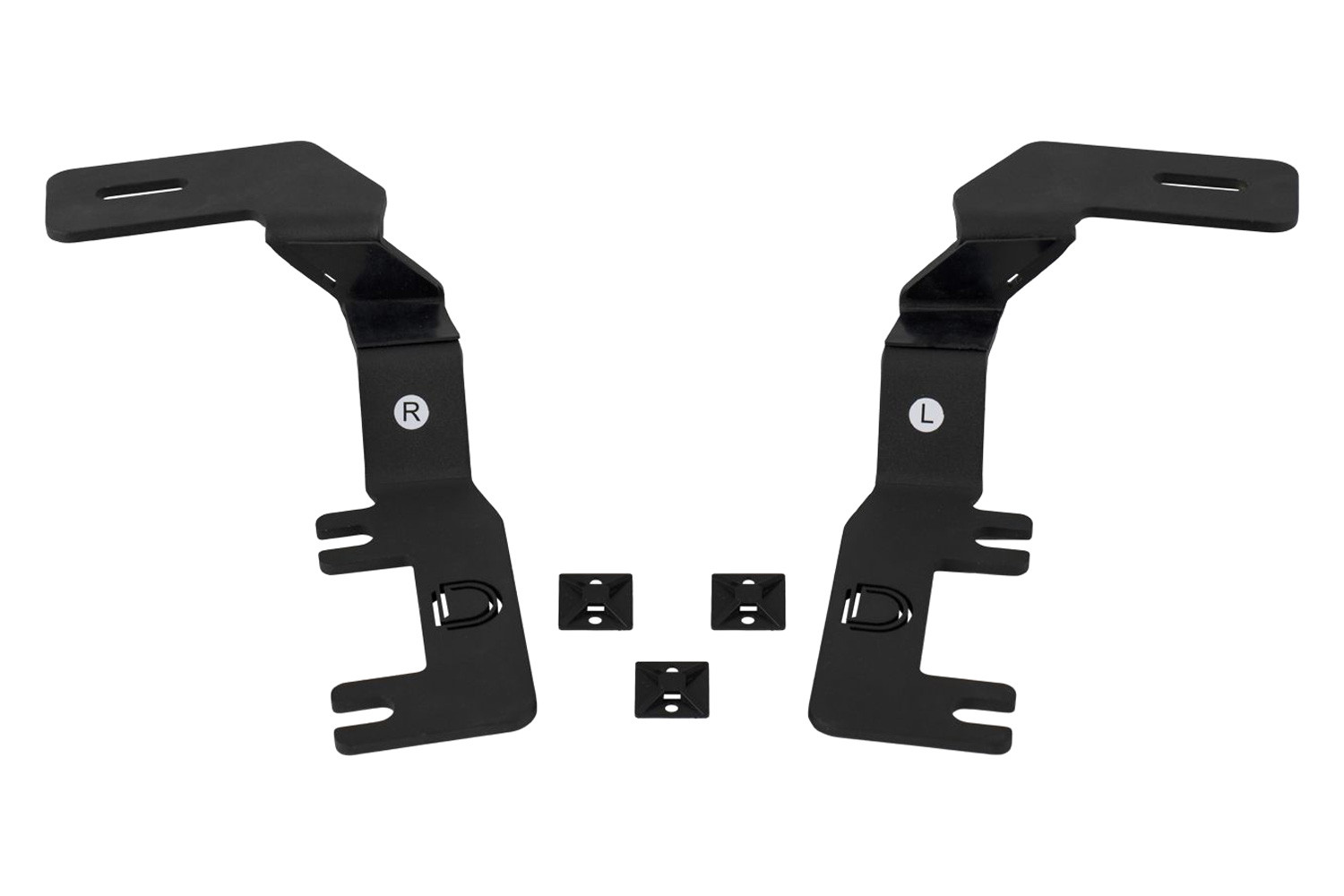

(2) Ditch light brackets
(1) Heavy duty dual output 4-pin wiring harness
Mounting hardware
Mounting guide

Features

Bolt-on fitment

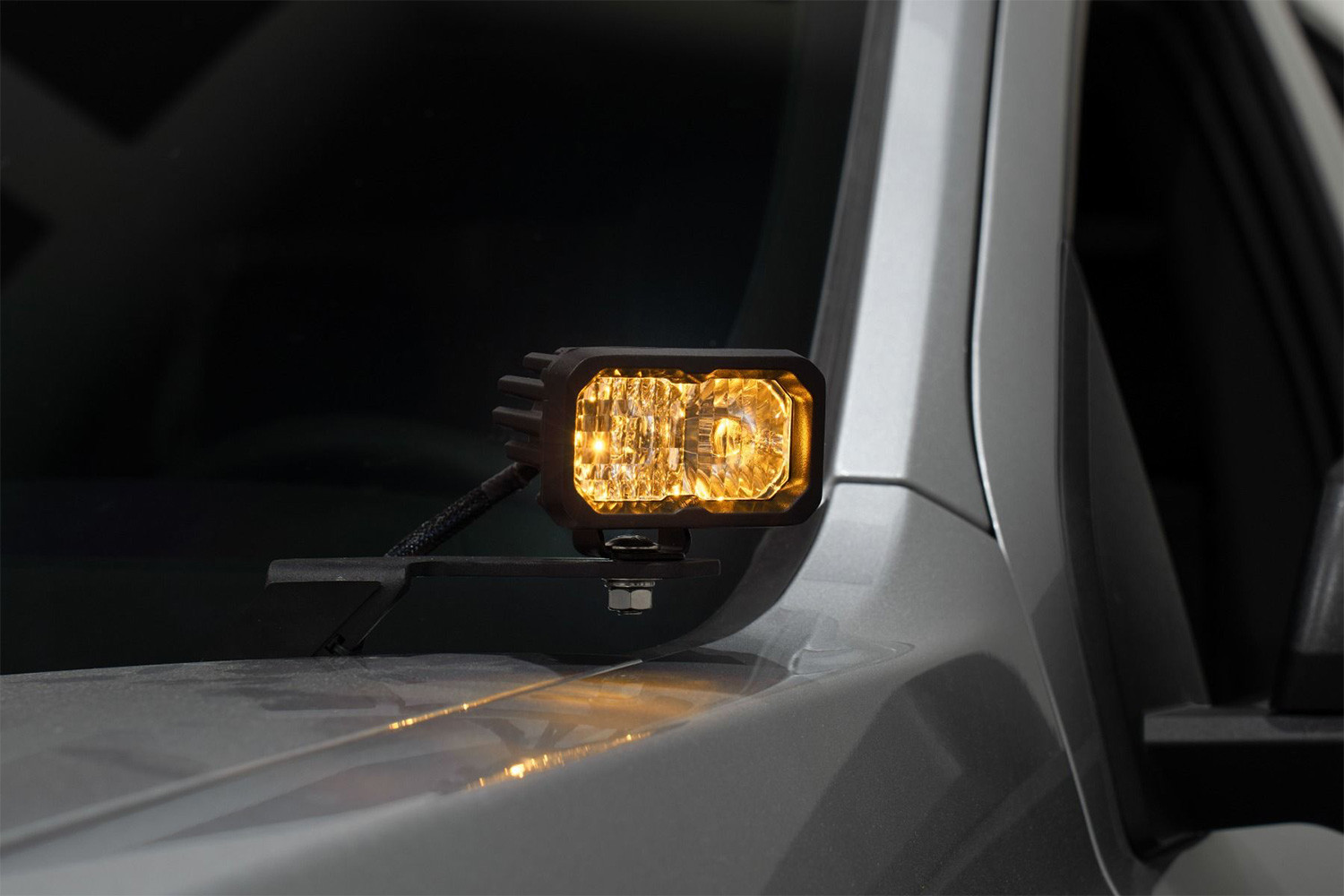

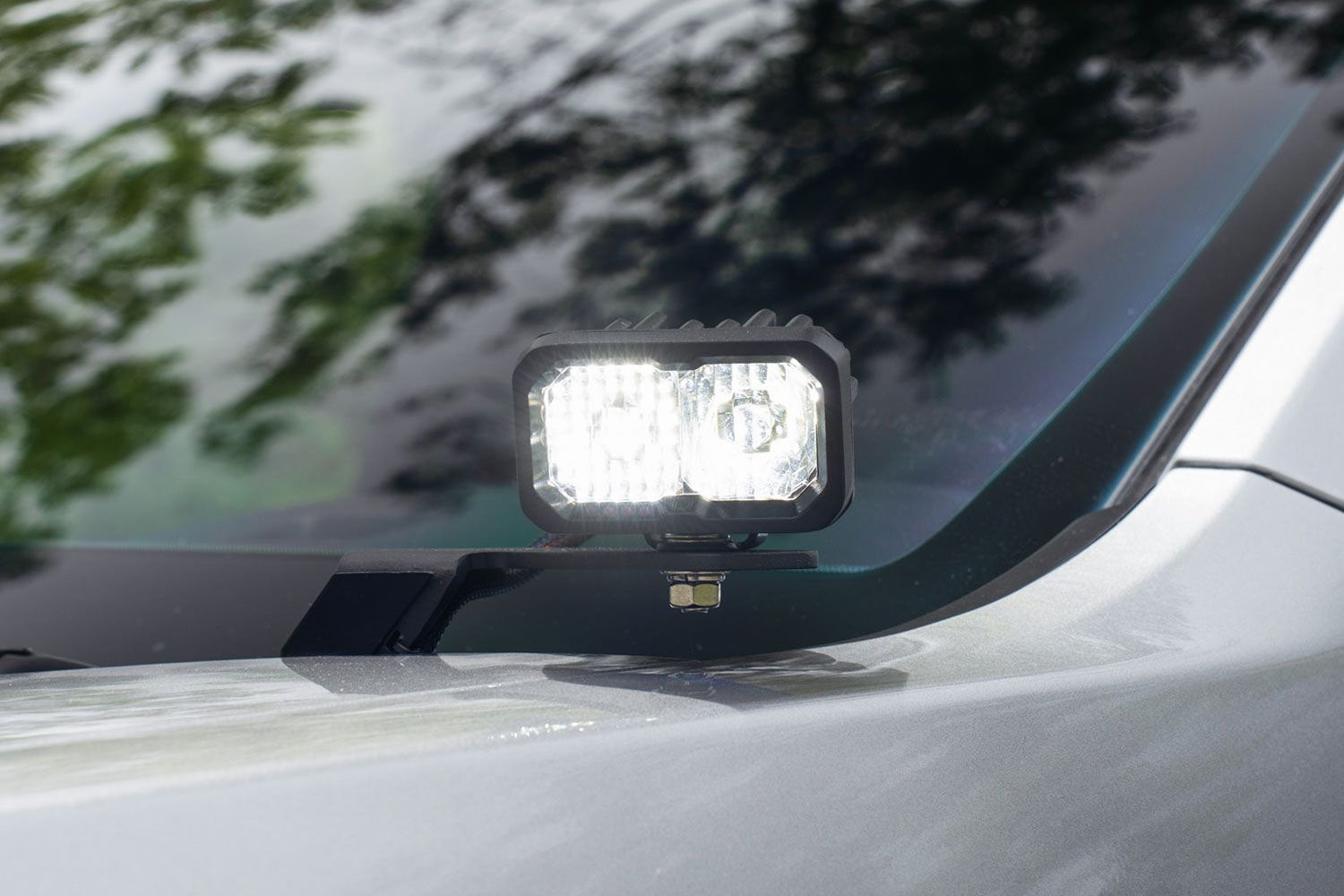

Allows you to mount two Stage Series LED Pods above the hood
Utilizes existing mounting points and hardware for a simple installation
Thick-gauge stainless steel construction
Low-profile design
Assembled in USA

Product Details

Hood Ditch Stage Series 3 Sport 3" 2x14.5W Square Combo Beam LED Light Kit (DD7811) by Diode Dynamics®. 1 Pair. White light. 9-16V. 1.1A. Raw lumens: 2262; Measured lumens: 1520. 6000K. The Stage Series Backlit Ditch Light Kit for your vehicle allows you to easily mount two LED Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. This kit features a low profile design while minimizing glare, and will not interfere with raising or lowering the hood.

Diode Dynamics® - Hood Ditch Stage Series 3 Sport 3" 2x14.5W Square Combo Beam LED Light Kit, Specifications Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD7811

UPC:

195995137616

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
