Diode Dynamics® DD7289 - Front Bumper Stage Pro Series 5" 2x90W Square Combo Beam Yellow LED Light Kit, With RGB Backlight

Name: Diode Dynamics® DD7289 - Front Bumper Stage Pro Series 5" 2x90W Square Combo Beam Yellow LED Light Kit, With RGB Backlight
Brand: Diode Dynamics
SKU: mpn4841901184
Price: 859.95 USD
Availability: InStock

0 reviews|Item # mpn4841901184

Vehicle Specific

Authorized Dealer

$859.95

In Stock (4) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Jeep

Specifications

Size	5"
Watts (per kit)	2x90W

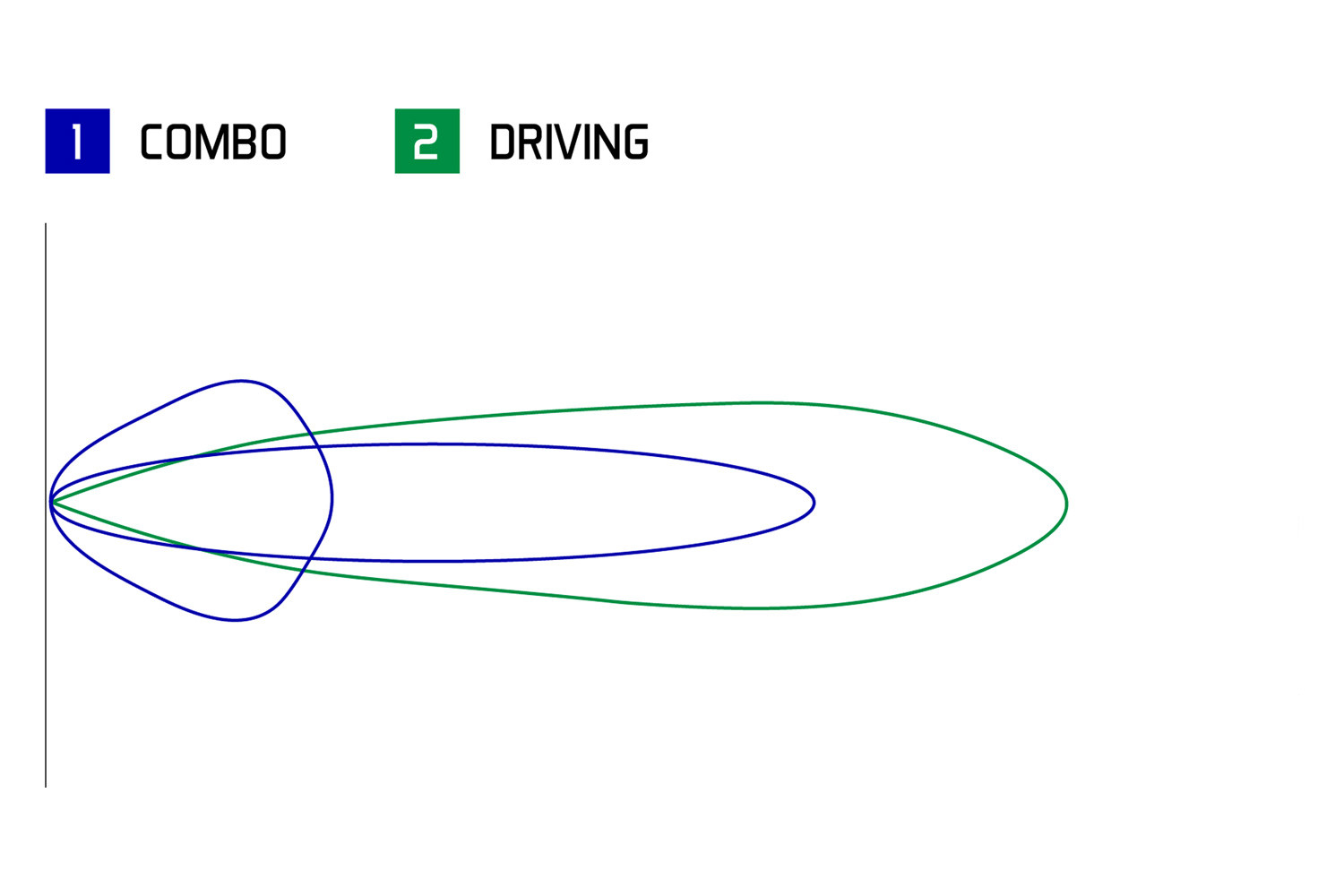

Beam pattern	combo beam
Bulb type	LED
Series	Stage Pro Series
Location	front bumper
Mount type	pedestal mount
Color/finish	black
Light Color	yellow
Shape	square
Voltage	9-16V
Amperage	6A
Raw lumens	8900; Effective lumens: 7900
Color temperature	3000K
Lux @10M	750
Candelas	58500 CD

Includes

(2) Stage Pro Series 5" LED Pods
(2) Application-specific heavy-duty steel brackets
(1) OEM auxiliary switch dual-output harness
(1) Heavy-duty dual-output harness
Installation guide

Features

Bolt-on fitment
Ultra-high intensity, with custom-engineered TIR optics
Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Control through factory aux switch bank using the included harness
Assembled in USA

Product Details

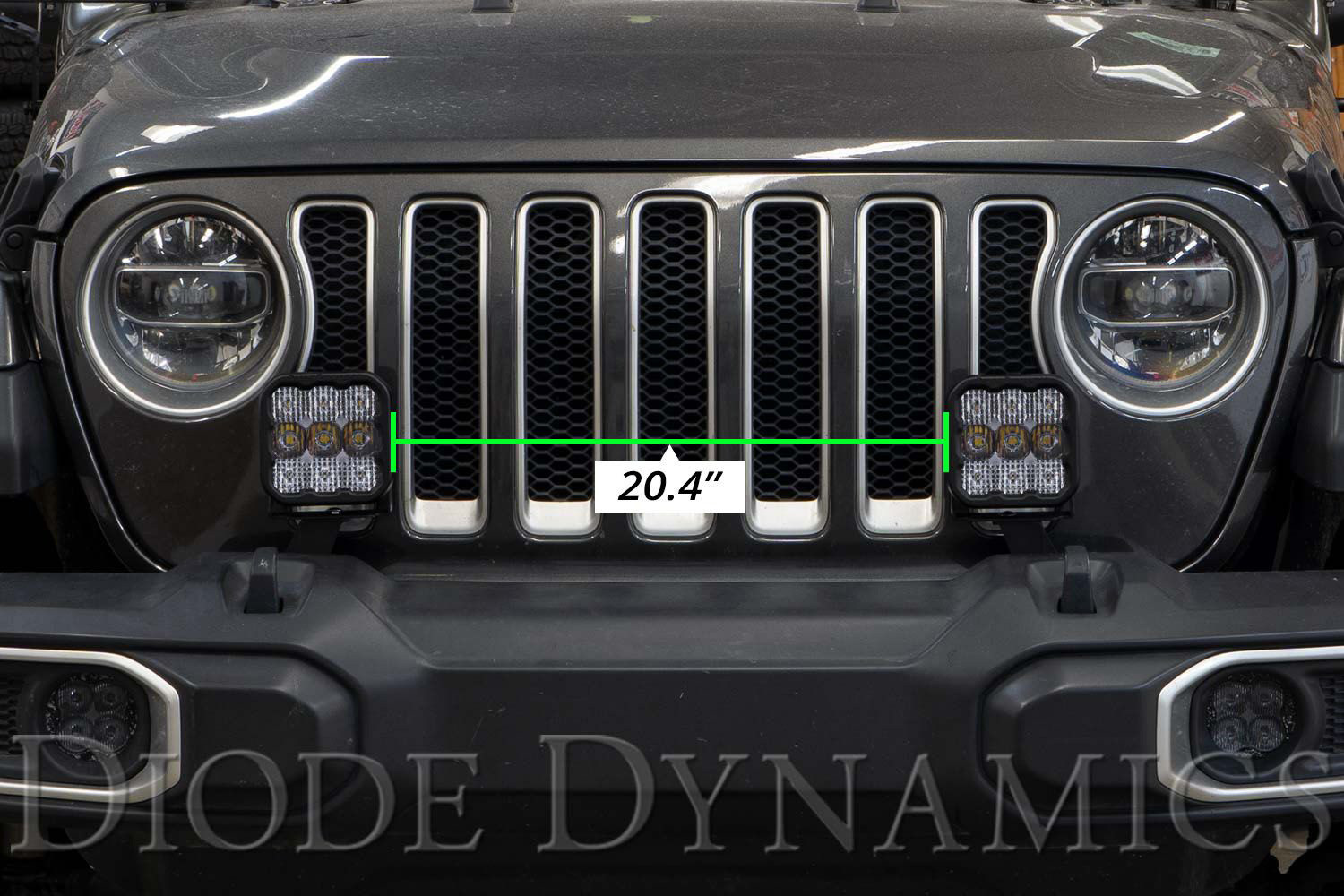

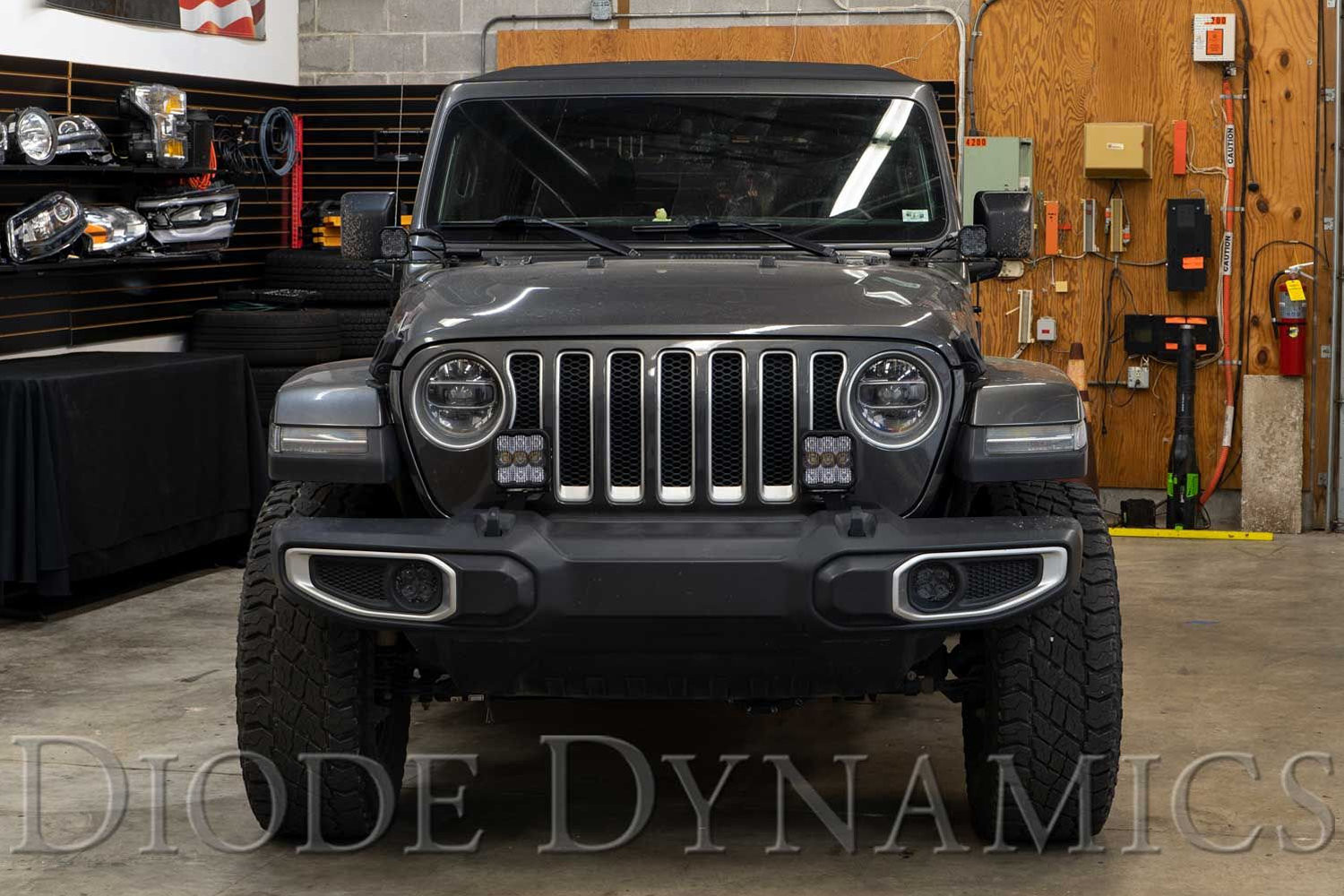

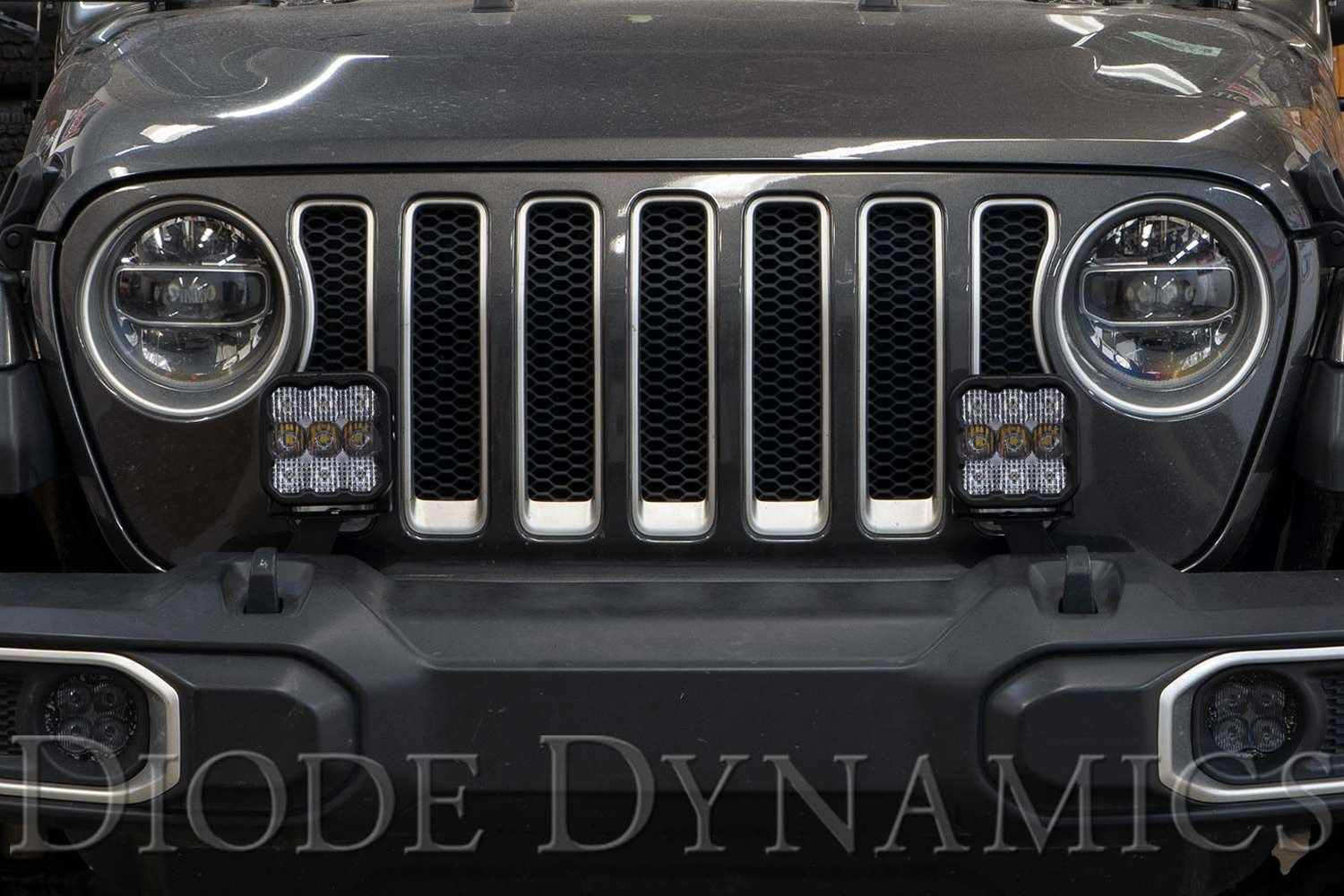

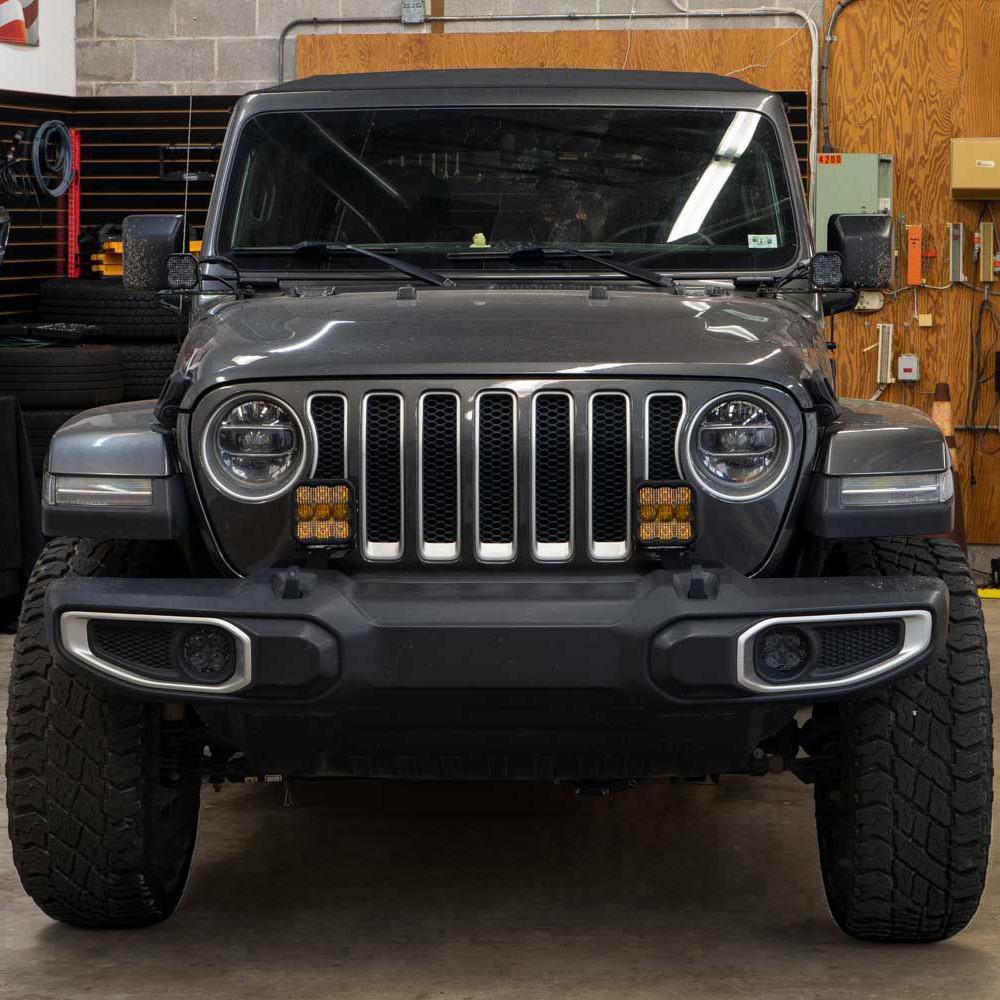

Front Bumper Stage Pro Series 5" 2x90W Square Combo Beam Yellow LED Light Kit, With RGB Backlight (DD7289) by Diode Dynamics®. 1 Pair. 9-16V. 6A. Raw lumens: 8900; Effective lumens: 7900. 3000K. The Bumper LED Pod Light Kit for your vehicle from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points.

Installation

Diode Dynamics® - Front Bumper Stage Pro Series 5" 2x90W Square Combo Beam Yellow LED Light Kit, With RGB Backlight, Installation Instructions

Diode Dynamics® - Front Bumper Stage Pro Series 5" 2x90W Square Combo Beam Yellow LED Light Kit, With RGB Backlight, Installation Instructions Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD7289

UPC:

195995126788

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
