Diode Dynamics® - How To Install 2016-2018 Gmc Sierra 1500 LED Halo Kit

Diode Dynamics® DD2177 - C-Shaped Switchback White/Amber LED Halo Kit

Name: Diode Dynamics® DD2177 - C-Shaped Switchback White/Amber LED Halo Kit
Brand: Diode Dynamics
SKU: mpn4659173370
Price: 219.95 USD
Availability: InStock

0 reviews|Item # mpn4659173370

Vehicle Specific

Notes:

The product features proprietary High Density Halo technology by Diode Dynamics
Professional installation is recommended for this product
Components: AB0218 Sierra 2016 SB Halo Left, AB0219 Sierra 2016 SB Halo Right, WH0022P Harness JST SB LED Board Pair

Authorized Dealer

$219.95

In Stock (1) - Ships Tomorrow 06.12.26

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

GMC

Specifications

Style	Switchback
Light color	white/amber
Light output	670
Color temperature	2000K, 6000K
Power	11.65W
Voltage	9-16V Current (amps at 13.2V): .910 (Switchback Halo - amber Turn Signal)
Operating temperature	-40C to 85C (-40F to 185F)
LED Emitter	Custom-Manufactured Connector(s): JST Inline
Driver Features	External, Waterproof, Constant Current
Materials	FR4 PCB
Cooling	Passive, no heatsink Product dimensions: 14.25" x 8.75" x 2.25"
Remote control	no
Smartphone app control	no
Additional Info	Connectors, T-Tap Inputs

Includes

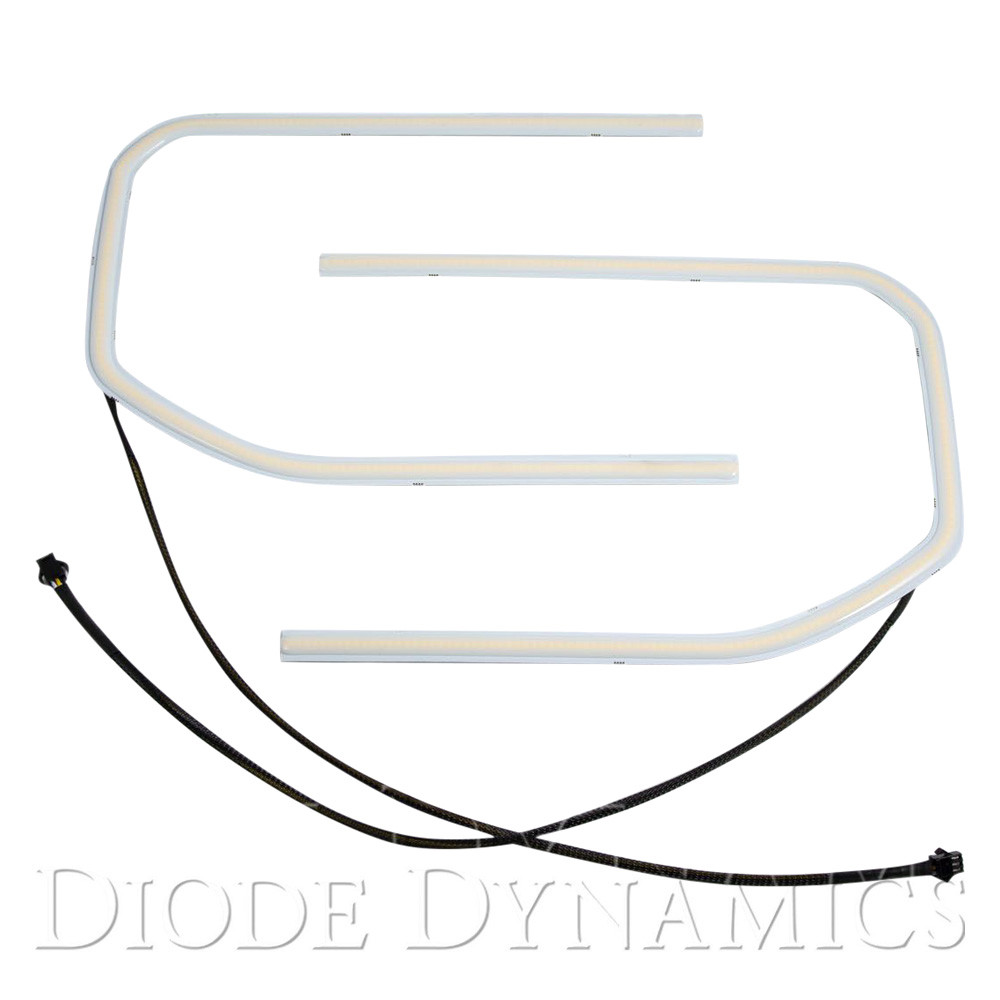

(2) application specific LED Halos
(2) waterproof drivers
(2) input wire pigtails with T-taps
Installation Guide

Features

Huge increase in brightness, with pure white and brilliant amber output
More uniform output, upgrade from segmented factory optics
Made in the USA
100 percent Satisfaction Guarantee
Warranty: 3 years
Will surely fit your lighting needs
Developed for the safest and most efficient lighting solution
Will serve you for as long as possible
Made in USA

Product Details

C-Shaped Switchback White/Amber LED Halo Kit (DD2177) by Diode Dynamics®, 1 Pair. These HD LED halo rings have been designed from the ground-up to be absolutely the brightest, most reliable halos physically possible. Each halo is populated with a large number of high-density (HD) LEDs, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.

Installation

Diode Dynamics® - C-Shaped Switchback White/Amber LED Halo Kit Installation Instructions

Diode Dynamics® - C-Shaped Switchback White/Amber LED Halo Kit Installation Instructions Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD2177

UPC:

691026114224

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
