Diode Dynamics® DD7174 - Fog Light Location Mounted Stage Series C1 2" 2x20W Square Fog Beam LED Light Kit

Name: Diode Dynamics® DD7174 - Fog Light Location Mounted Stage Series C1 2" 2x20W Square Fog Beam LED Light Kit
Brand: Diode Dynamics
SKU: mpn4817403398
Price: 299.95 USD
Availability: InStock

0 reviews|Item # mpn4817403398

Vehicle Specific

Authorized Dealer

$299.95

In Stock (1) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Ford

Specifications

Size	2"
Watts (per kit)	2x20W

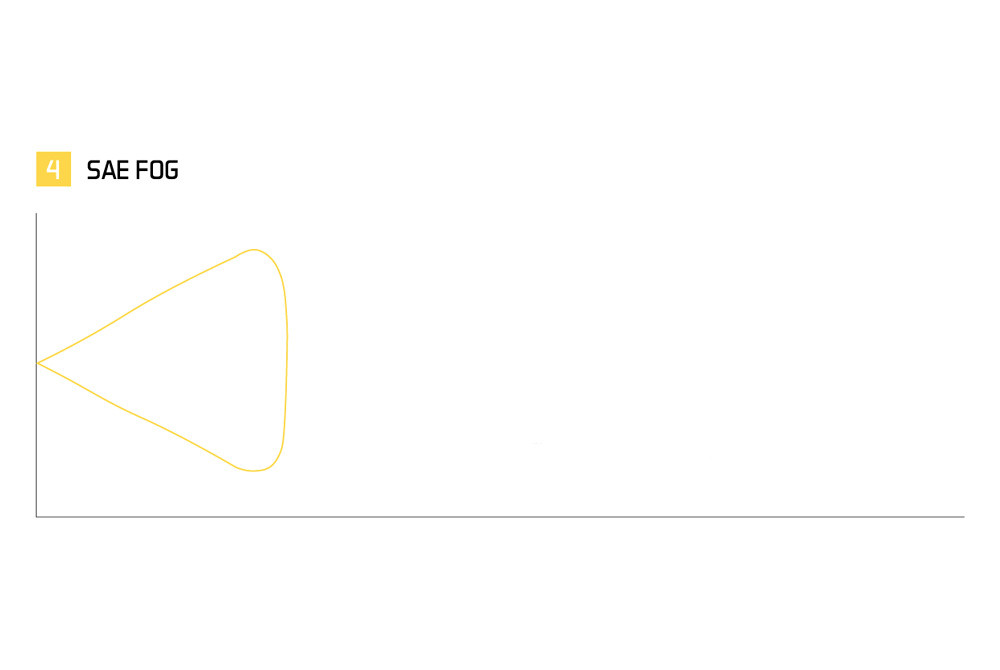

Beam pattern	fog beam
Bulb type	LED
Series	Stage Series C1
Location	fog light location
Color/finish	black
Light Color	white
Shape	square
Voltage	9-16V
Color temperature	6000K

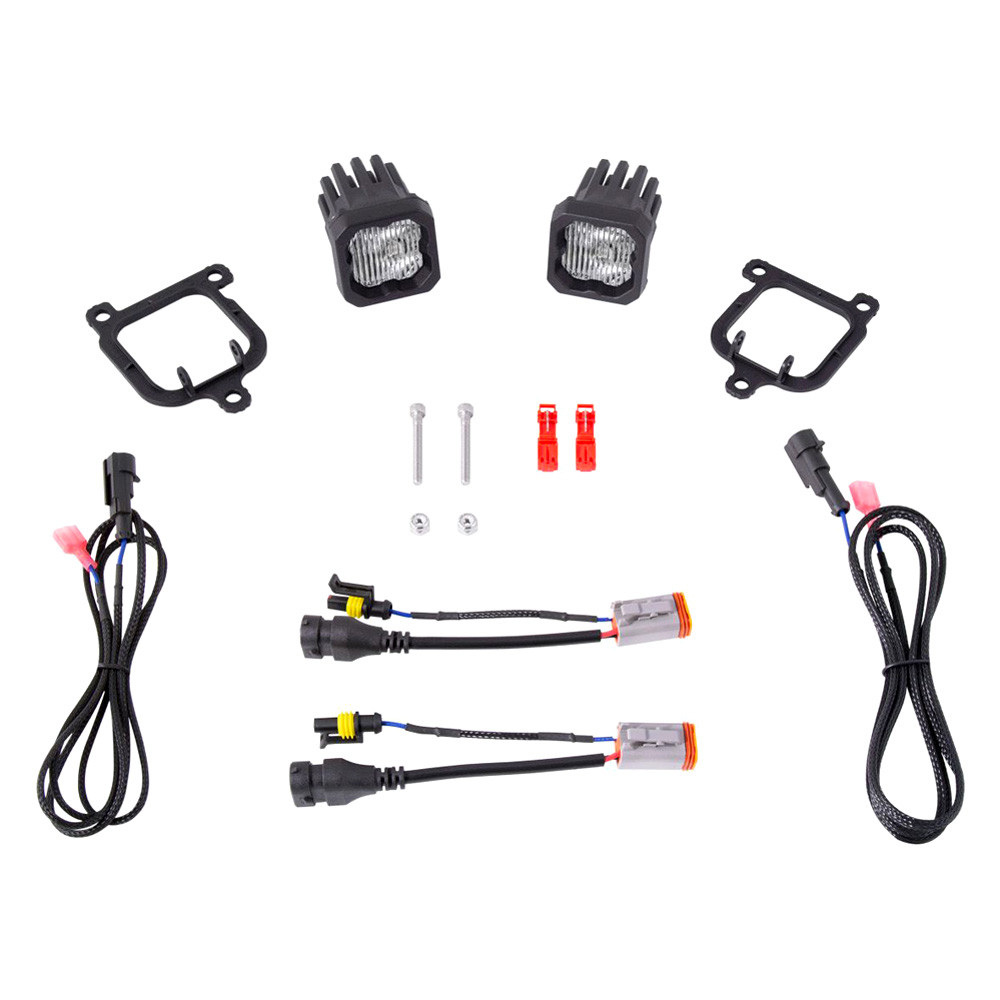

Includes

(2) SSC1 standard white LED pods
(2) T-taps
(2) H11 DT 4-Pin adapters
(2) Type FBS brackets
Mounting hardware

Features

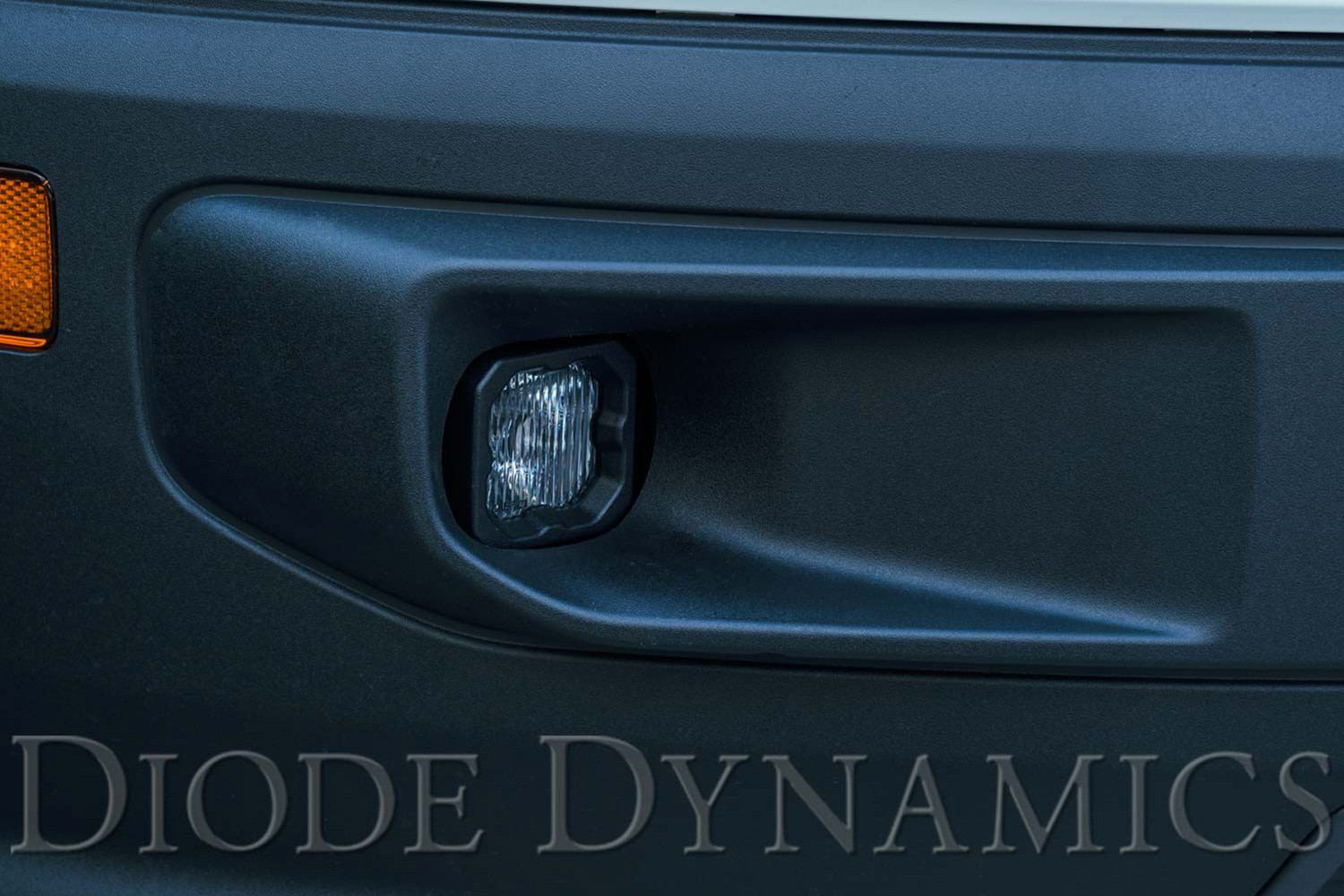

Bolt-on replacement for your factory fog lamps
SAE-compliant road-legal output
Backlight feature provides amber accent light
Plug-and-play wiring, with included harness
Advanced TIR optics, with Osram Boost HX 20W LED chip
Engineered and Assembled in USA

Product Details

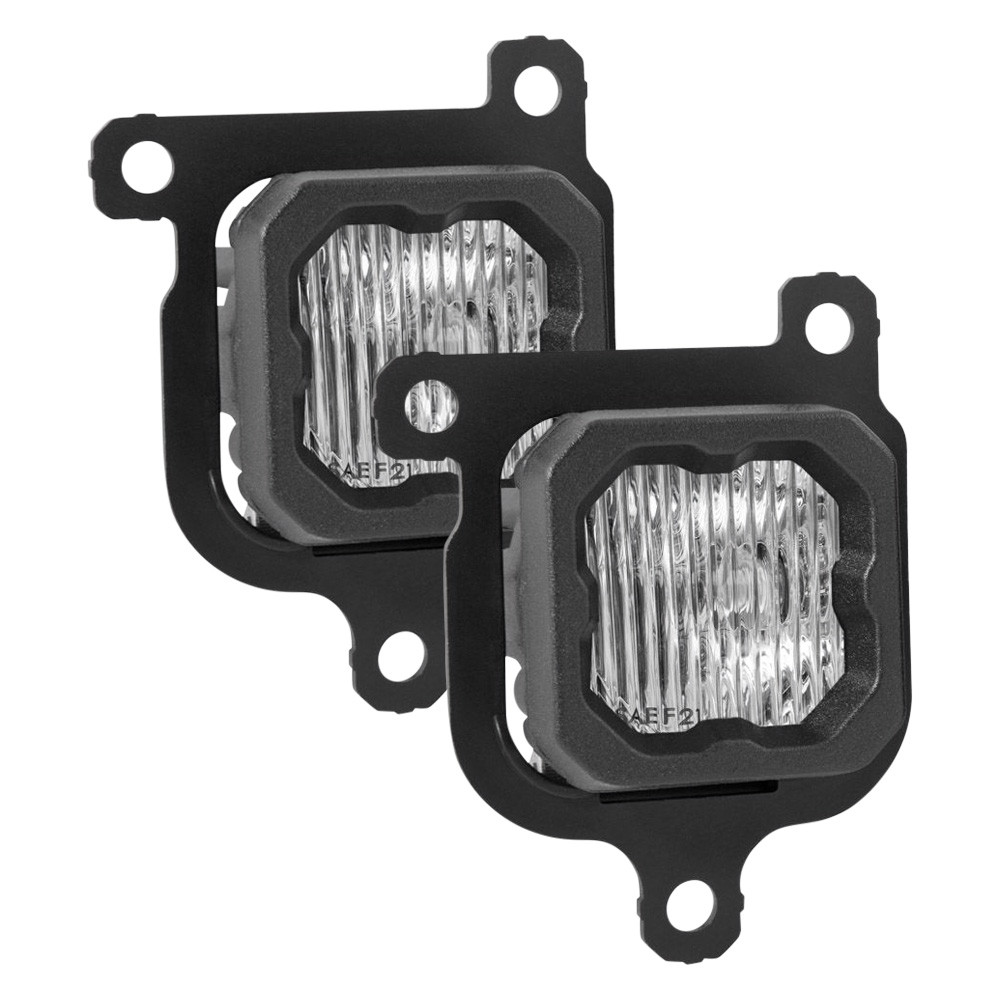

Fog Light Location Mounted Stage Series C1 2" 2x20W Square Fog Beam LED Light Kit (DD7174) by Diode Dynamics®. 1 Pair. White light. 9-16V. 6000K. Upgrade your fog lights with SSC1 Type FBS Fog Light Bracket Kit! Featuring custom-engineered TIR optics combined with the newest LED chip technology, these pods deliver road-legal light output, in most compact, versatile package yet. With the included custom bracket with bezel, the SSC1 Fog Kit has a clean, factory-style appearance, only much brighter!

Installation

Diode Dynamics® - Fog Light Location Stage Series C1 2" 2x20W Square Fog Beam LED Light Kit, Installation Instructions

Diode Dynamics® - Fog Light Location Stage Series C1 2" 2x20W Square Fog Beam LED Light Kit, Installation Instructions Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD7174

UPC:

691025930740

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
