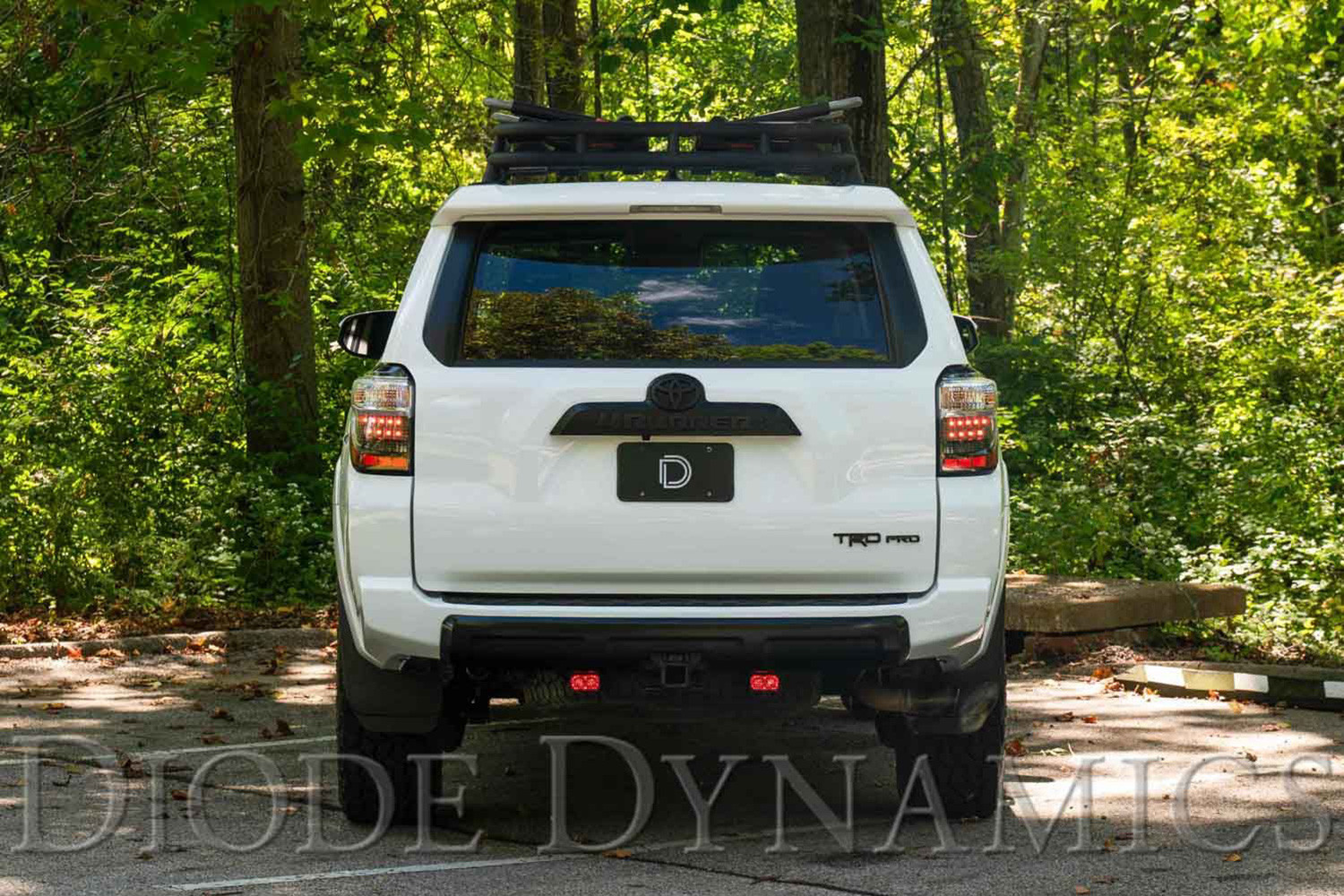

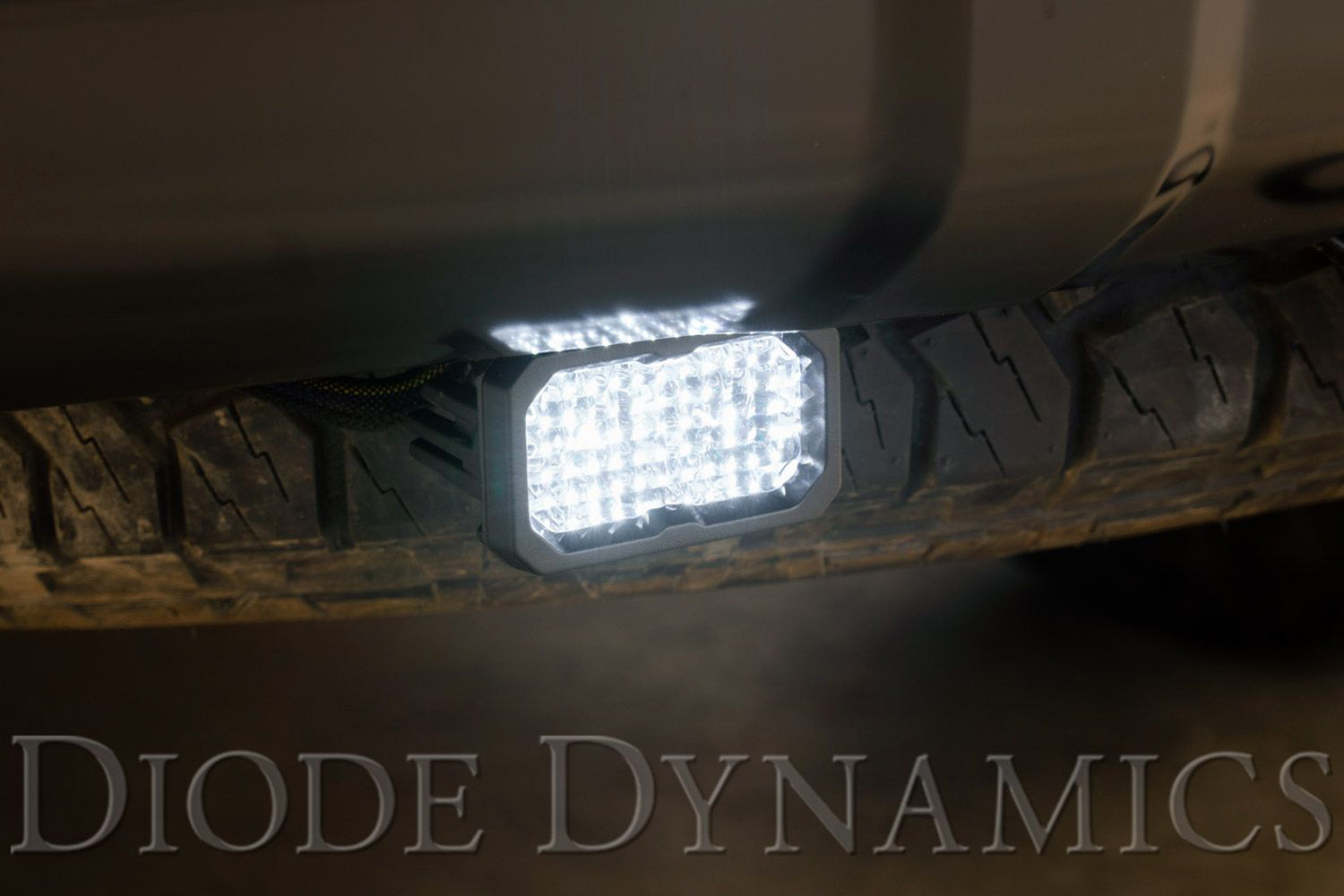

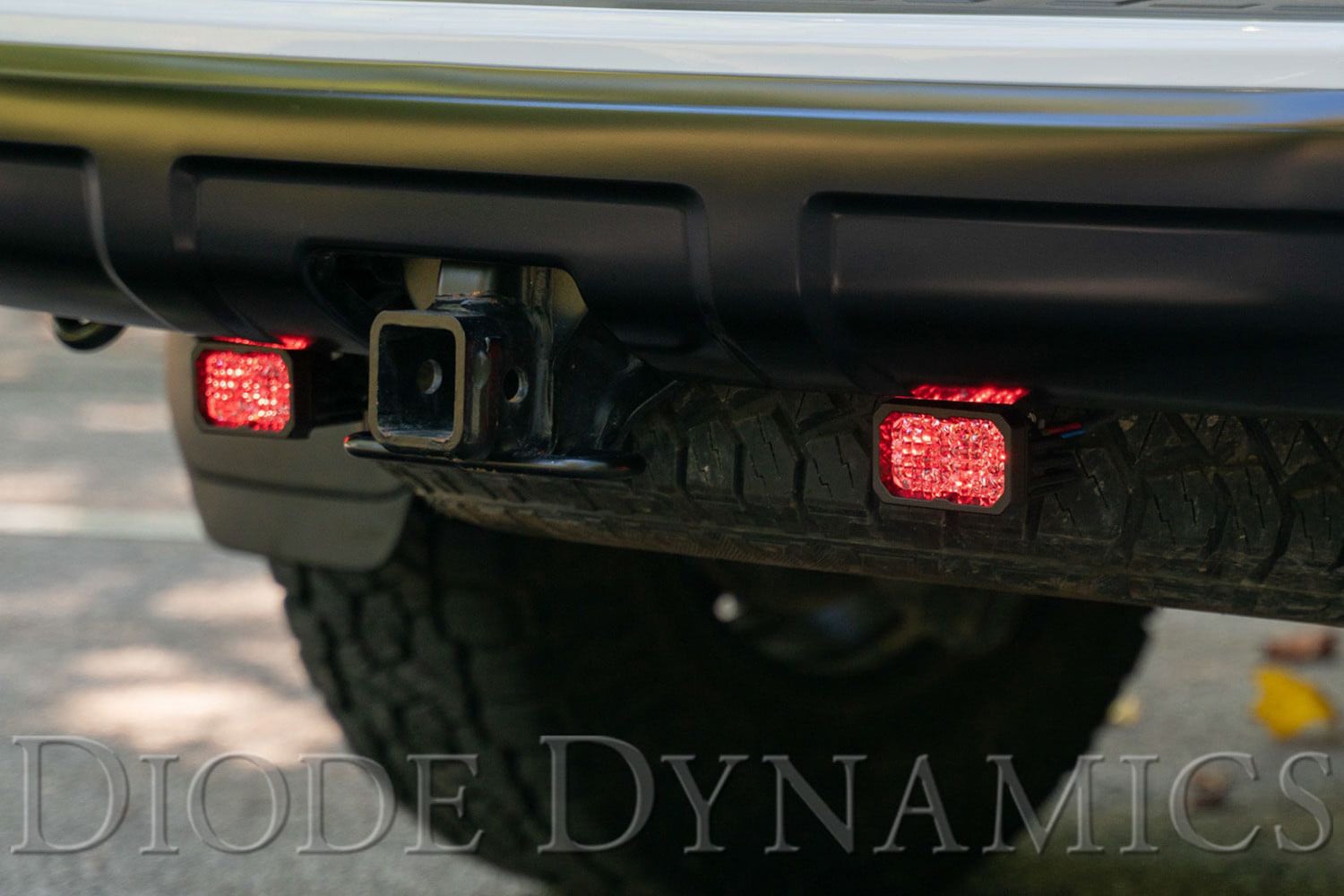

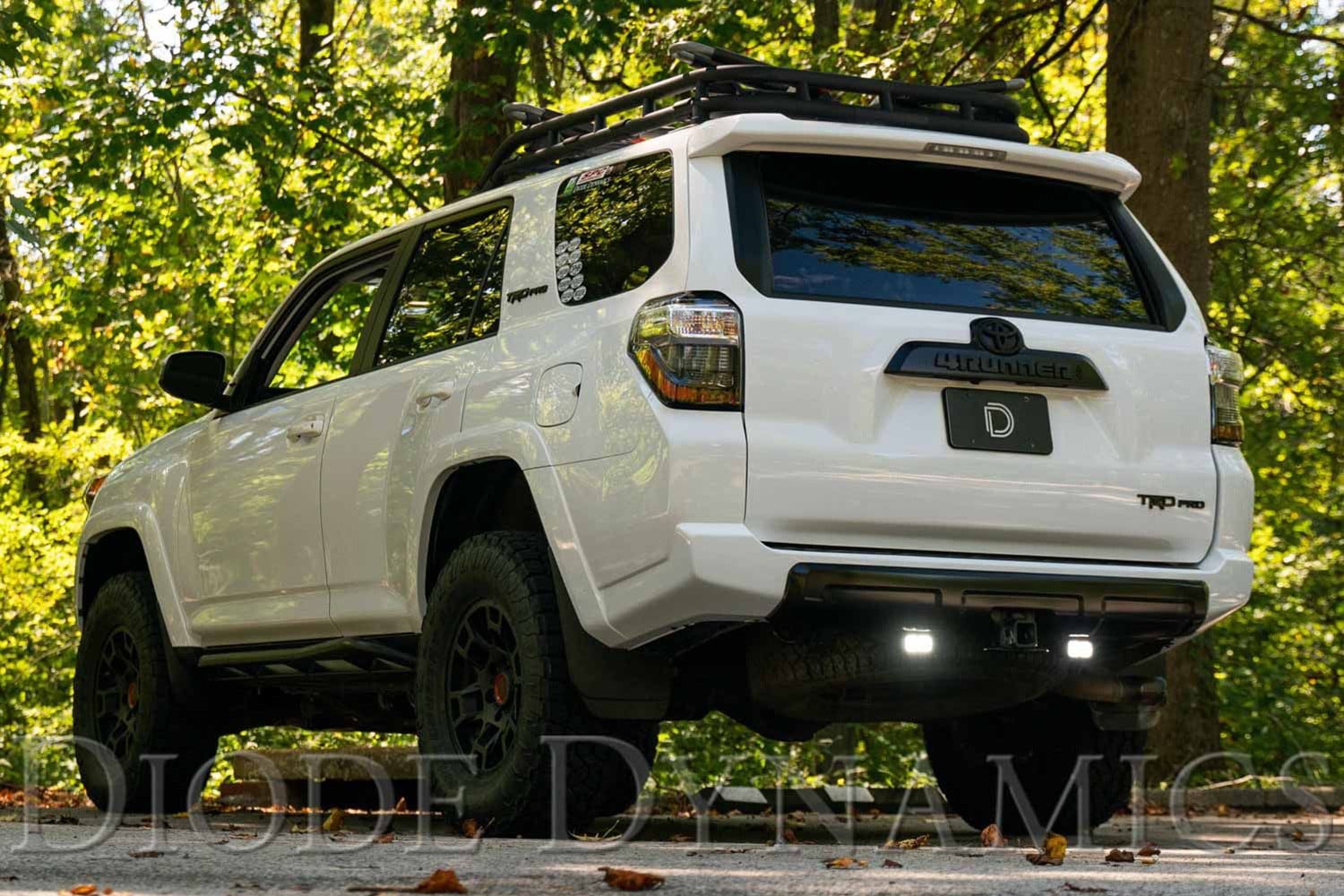

Diode Dynamics® - Rear Bumper Stage Series C1 Pro 2" 2x19.8W Square Flood Beam LED Light Kit, With Red Backlight, Full Set Diode Dynamics® - Rear Bumper Stage Series C1 Pro Square LED Light Kit, Installed Diode Dynamics® - Rear Bumper Stage Series C1 Pro Square LED Light Kit, Installed Diode Dynamics® - Rear Bumper Stage Series C1 Pro Square LED Light Kit, Installed Diode Dynamics® - Rear Bumper Stage Series C1 Pro Square LED Light Kit, Installed

Diode Dynamics® DD7165 - Rear Bumper Stage Series C1 Pro 2" 2x19.8W Square Flood Beam LED Light Kit, With Red Backlight

Name: Diode Dynamics® DD7165 - Rear Bumper Stage Series C1 Pro 2" 2x19.8W Square Flood Beam LED Light Kit, With Red Backlight
Brand: Diode Dynamics
SKU: mpn4841901236
Price: 319.95 USD
Availability: InStock

0 reviews|Item # mpn4841901236

Vehicle Specific

Authorized Dealer

$319.95

In Stock (4) - Ships within 24 hrs

See similar products

Vehicle Fitment

Toyota

Specifications

Size	2"
Watts (per kit)	2x19.8W
Beam pattern	flood beam
Bulb type	LED
Series	Stage Series C1 Pro
Location	rear bumper
Mount type	pedestal mount
Color/finish	black
Light Color	white
Shape	square
Voltage	9-16V
Amperage	1.5A
Raw lumens	2375; Effective lumens: 2300
Color temperature	6000K
Lux @10M	9
Candelas	925 CD

Includes

(2) Stage Series C1 Pro LED Pods
(2) Deutsch-style wire pigtails
(2) Mounting brackets and hardware

Features

Ultra-compact, single-LED form factor
High-intensity LED chip
Backlighting
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA

Product Details

Rear Bumper Stage Series C1 Pro 2" 2x19.8W Square Flood Beam LED Light Kit, With Red Backlight by Diode Dynamics®. 1 Pair. White light. 9-16V. 1.5A. Raw lumens: 2375; Effective lumens: 2300. 6000K. Introducing the Stage Series C1 Pro LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip, these pods have been designed for maximum performance and light output, in most compact, versatile package yet.

Installation

Diode Dynamics® - Rear Bumper Stage Series C1 Pro 2" 2x19.8W Square Flood Beam LED Light Kit, With Red Backlight, Installation Instructions

Diode Dynamics® - Rear Bumper Stage Series C1 Pro 2" 2x19.8W Square Flood Beam LED Light Kit, With Red Backlight, Installation Instructions Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD7165

UPC:

691025931075

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
