Name: Diode Dynamics® DD7170 - Rear Bumper Stage Series C1 Pro 2x19W Square Flood Beam LED Light Kit
Brand: Diode Dynamics
SKU: mpn4952588462
Price: 379.95 USD
Availability: InStock

Vehicle Fitment

Ford

Specifications

Watts (per kit)	2x19W
Beam pattern	flood beam
Bulb type	LED
Series	Stage Series C1 Pro
Location	rear bumper
Mount type	pedestal mount
Color/finish	black
Light Color	white
Shape	square
Voltage	9-16V
Amperage	1.5A
Raw lumens	2375; Measured lumens: 2300
Color temperature	6000K
Lux @10M	9
Candelas	925 CD

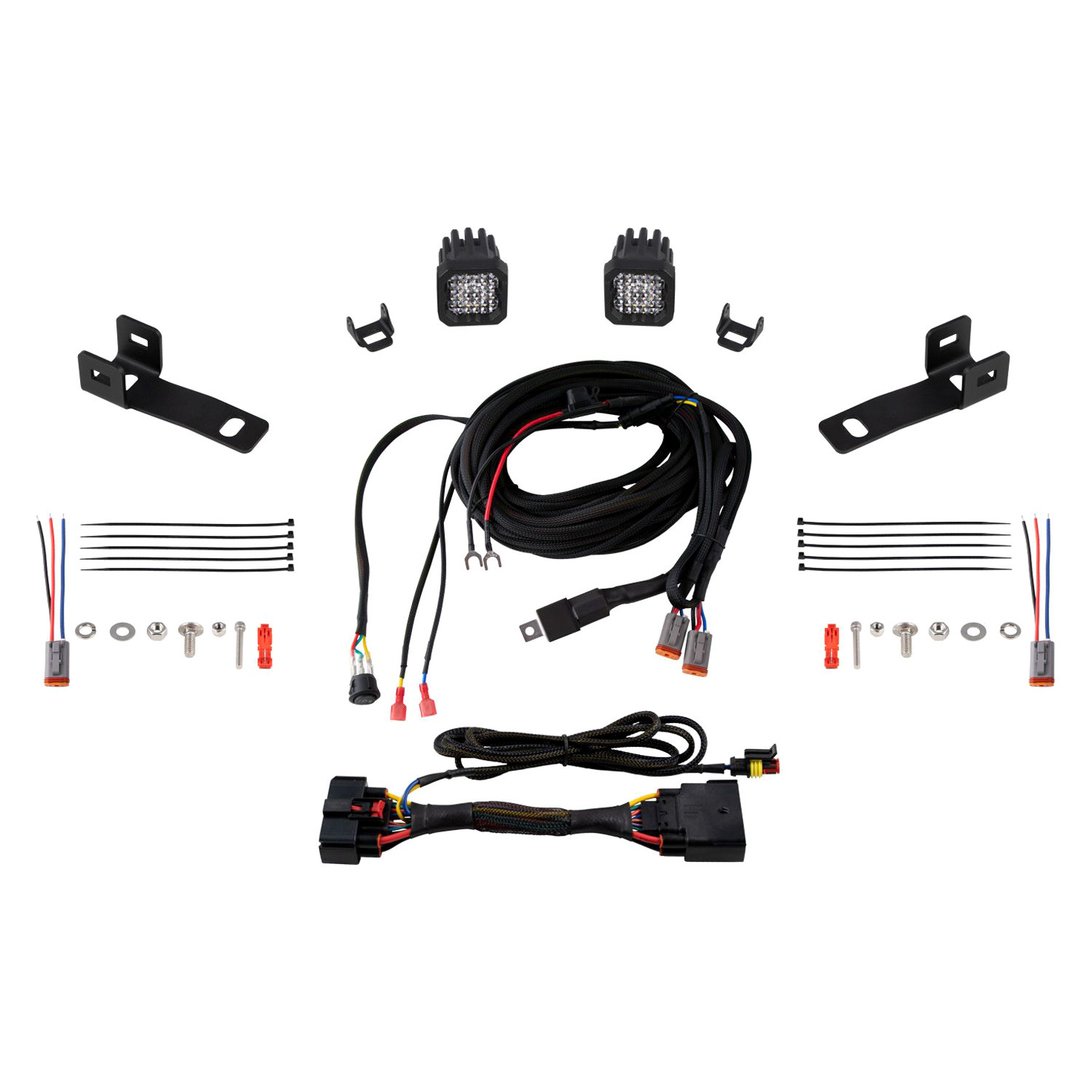

Includes

(2) Stage Series C1 Pro
(1) Adapter harness
(1) Reverse light wiring harness
(2) Mounting brackets
(2) Universal mounting brackets
(10) Zip ties
(2) T-Taps
Mounting hardware

Features

Allows you to mount two LED pods underneath of your vehicle's rear bumper
Plug-and-play wiring harness, with OEM connectors and toggle switch override
Provides high-power reverse light, and red accent light
Designed and assembled in USA

Product Details

Rear Bumper Stage Series C1 Pro 2x19W Square Flood Beam LED Light Kit by Diode Dynamics®. 1 Pair. White light. 9-16V. 1.5A. Raw lumens: 2375; Measured lumens: 2300. 6000K. There's plenty of ways to add light behind your vehicle, but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. This kit includes an integrated red running light, and plug-and-play wiring harness, for trouble-free installation! Thanks to Stage Series TIR optic technology, this kit provides a huge amount of extra reverse light. The included switch allows you to toggle it on any time, or activate it automatically with your reverse lights, for a truly integrated solution.

Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD7170

UPC:

195995128263

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
