Diode Dynamics® DD7422 - Hitch Stage Series C1R Standard 2" Square Flood Beam LED Light

Name: Diode Dynamics® DD7422 - Hitch Stage Series C1R Standard 2" Square Flood Beam LED Light
Brand: Diode Dynamics
SKU: mpn5160074001
Price: 199.95 USD
Availability: InStock

0 reviews|Item # mpn5160074001

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$199.95

In Stock (20) - Ships Tomorrow 06.12.26

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

Size	2"
Beam pattern	flood beam
Bulb type	LED
Series	Stage Series C1R
Location	hitch
Color/finish	black
Light Color	white
Shape	square
Voltage	9-16V
Amperage	1A
Color temperature	6000K

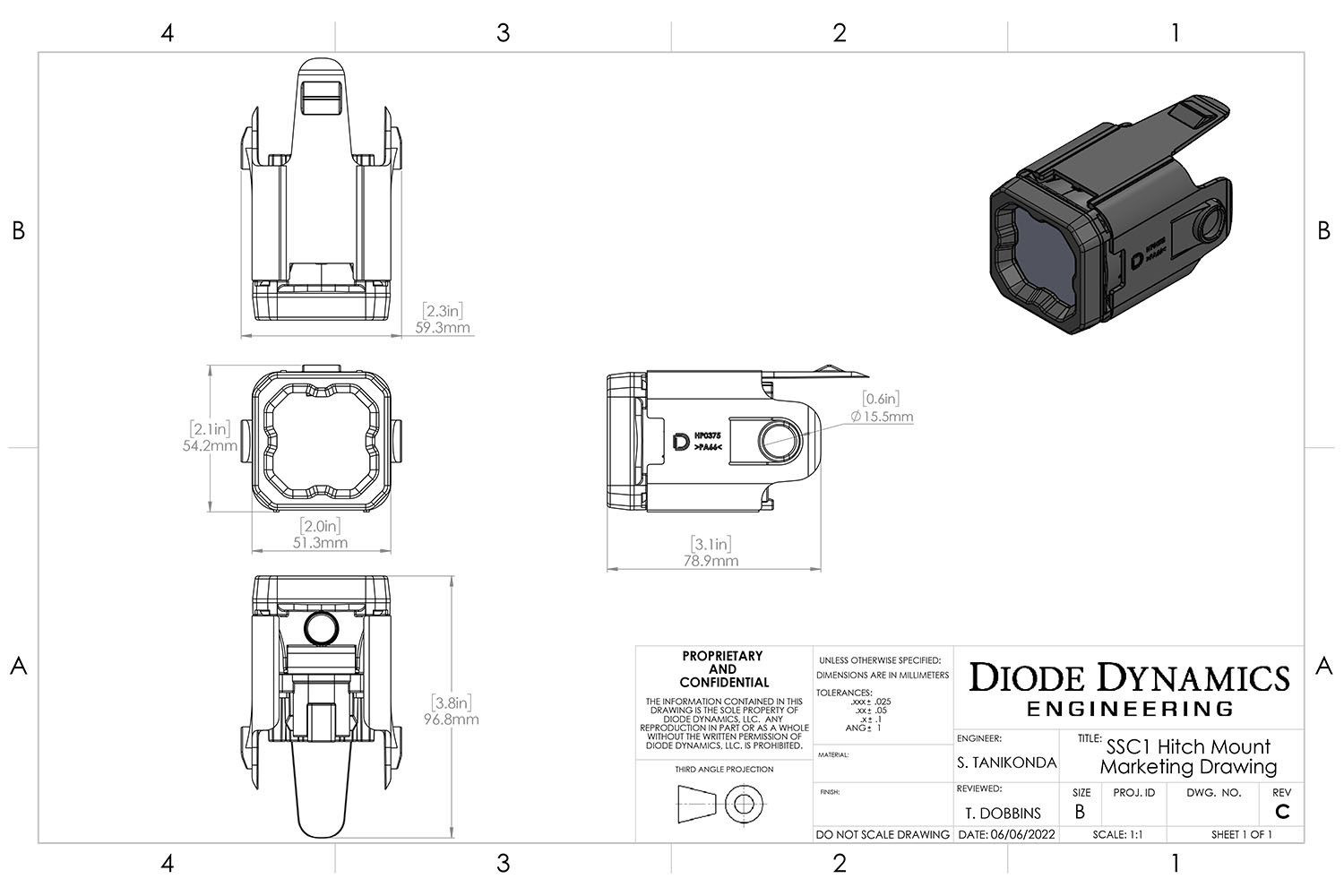

Dimension	2" x 2" x 2.4"

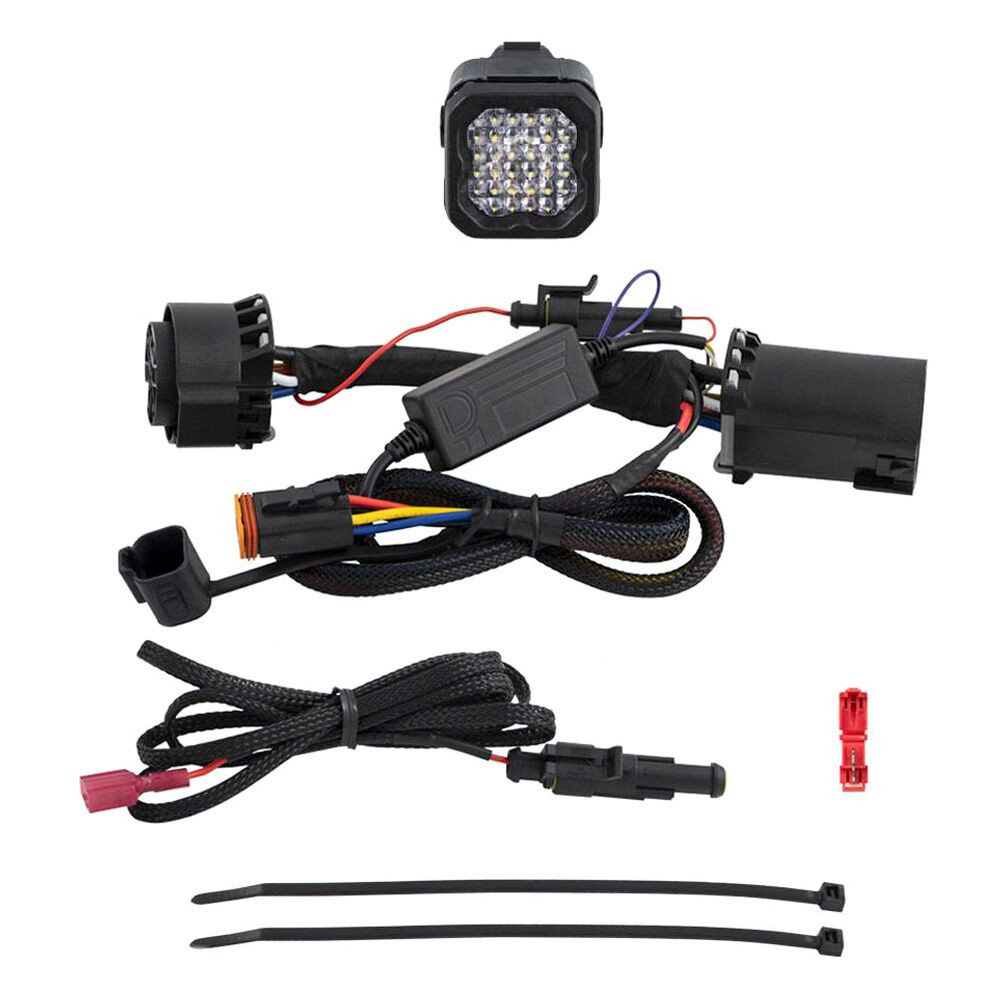

Includes

(1) Stage Series C1R hitch mount LED light
(1) Single output harness
(2) Zip ties
Installation guide

Features

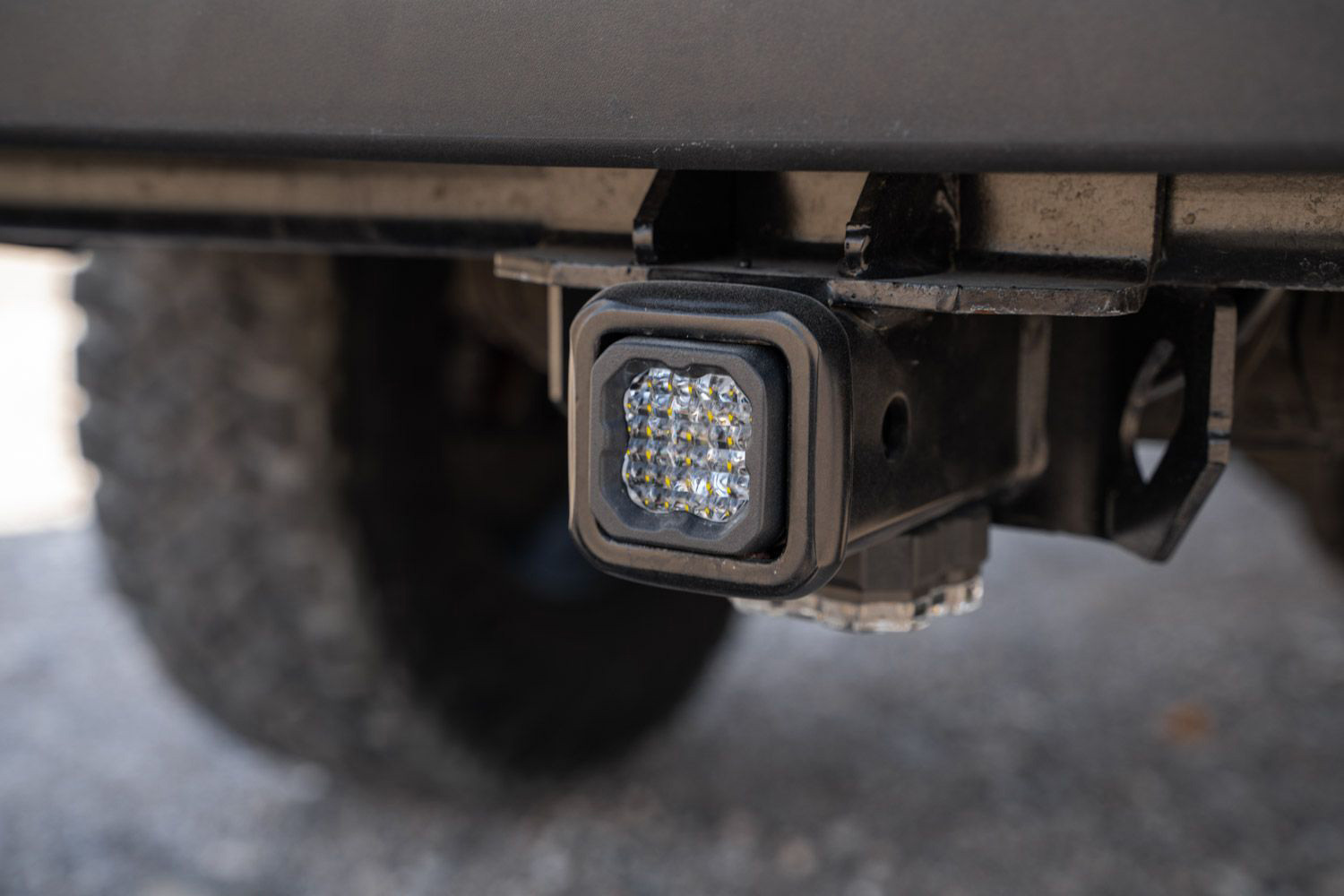

Allows you to mount an C1R LED pod in any 2" trailer hitch receiver

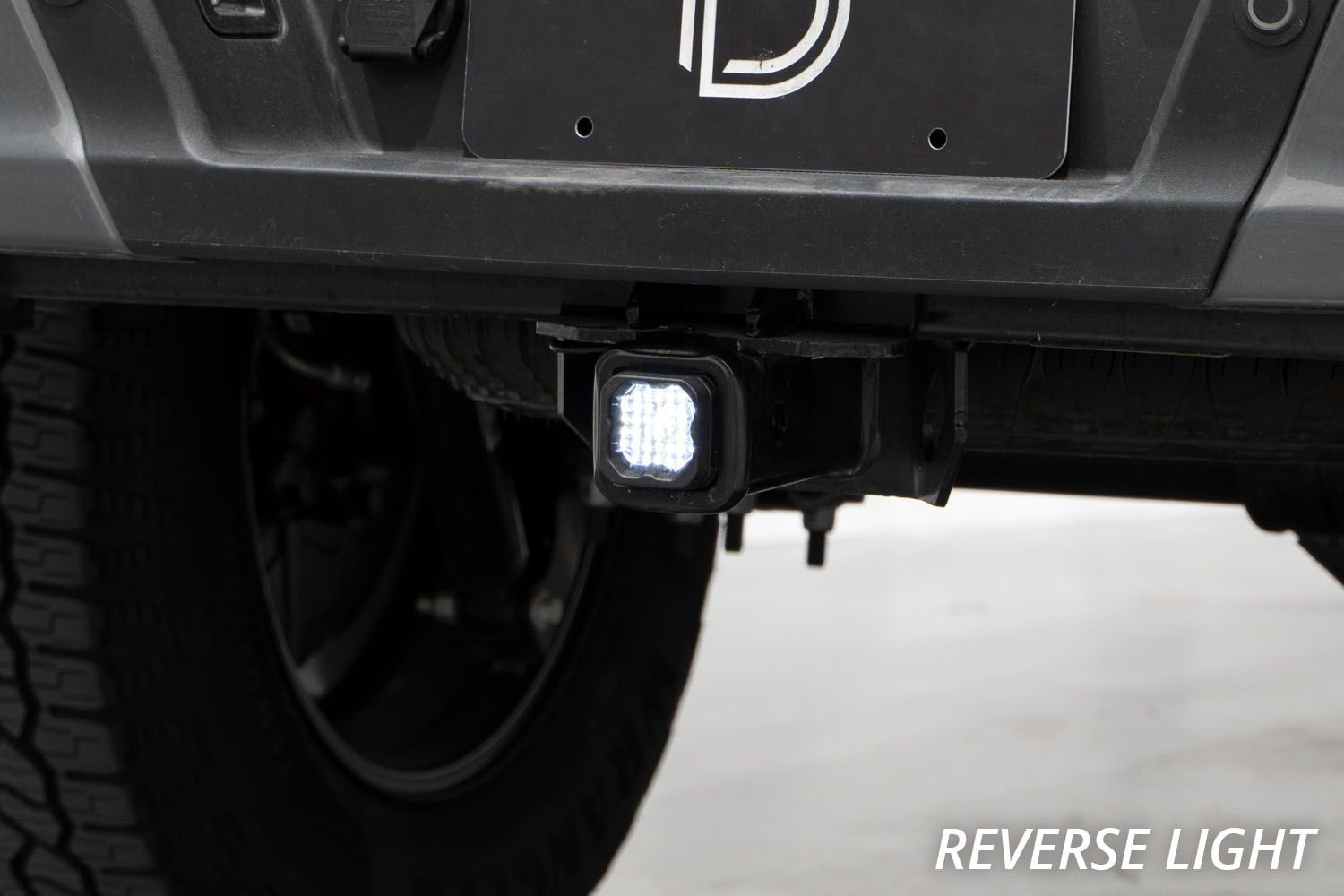

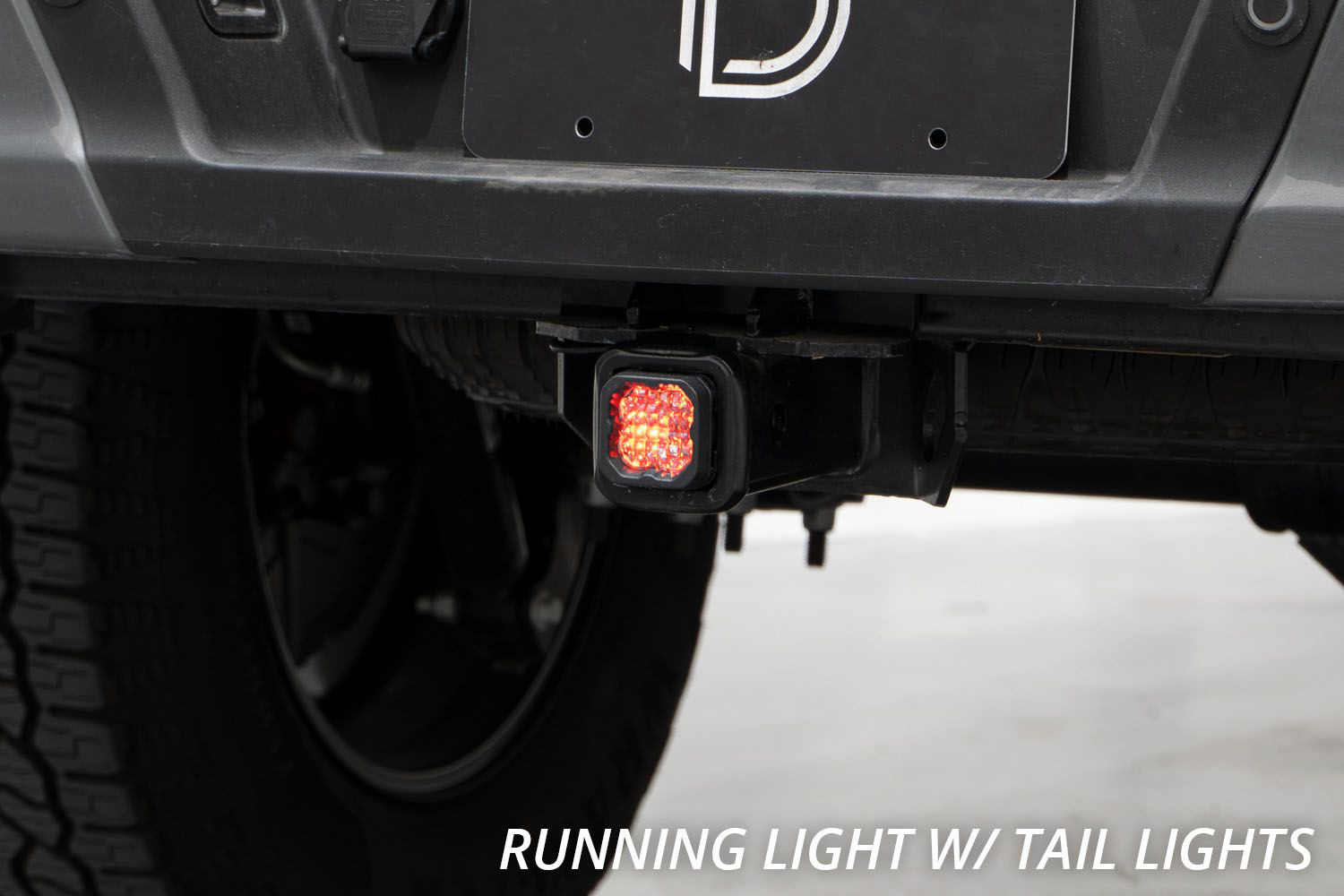

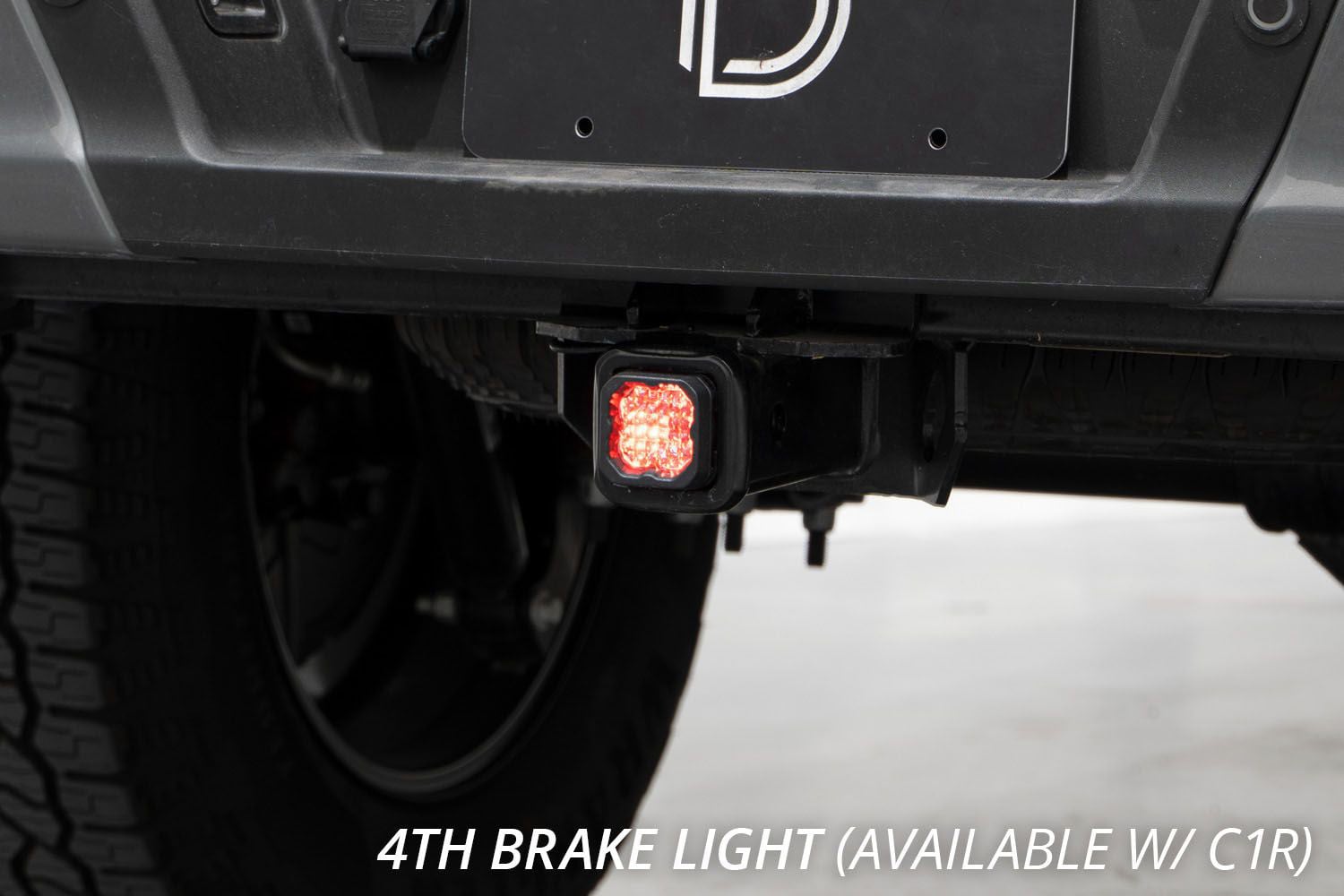

Adds a powerful reverse light, 4th brake light, and additional running light
Simple 5-minute installation, with no need for custom wiring or routing wires
Designed and assembled in USA

Product Details

Universal Hitch Stage Series C1R Standard 2" Square Flood Beam LED Light (DD7422) by Diode Dynamics®. 1 Piece. White light. 9-16V. 1A. 6000K. Add significantly more light output when backing up at night with Stage Series Hitch Mount Reverse Light Kit! This kit allows you to mount one C1R LED pod in your 2" trailer hitch receiver, adding a high-power reverse light, additional running light, and an optional 4th brake light with the C1R option.

Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD7422

UPC:

195995129451

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
