Diode Dynamics® DD7555 - Hood Ditch Stage Series C2 Pro 3.3" 2x25.6W Rectangular Combo Beam Yellow LED Light Kit

Name: Diode Dynamics® DD7555 - Hood Ditch Stage Series C2 Pro 3.3" 2x25.6W Rectangular Combo Beam Yellow LED Light Kit
Brand: Diode Dynamics
SKU: mpn5160073991
Price: 439.95 USD
Availability: InStock

0 reviews|Item # mpn5160073991

Vehicle Specific

Authorized Dealer

$439.95

In Stock (2) - Ships Tomorrow 06.11.26

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Ford

Specifications

Size	3.3"
Watts (per kit)	2x25.6W
Beam pattern	combo beam
Bulb type	LED
Series	Stage Series C2 Pro
Location	hood ditch
Mount type	pedestal mount
Color/finish	black
Light Color	yellow
Shape	rectangular
Voltage	9-16V
Amperage	2A
Raw lumens	2610; Measured lumens: 1858
Color temperature	3000K
Lux @10M	234
Candelas	23388 CD

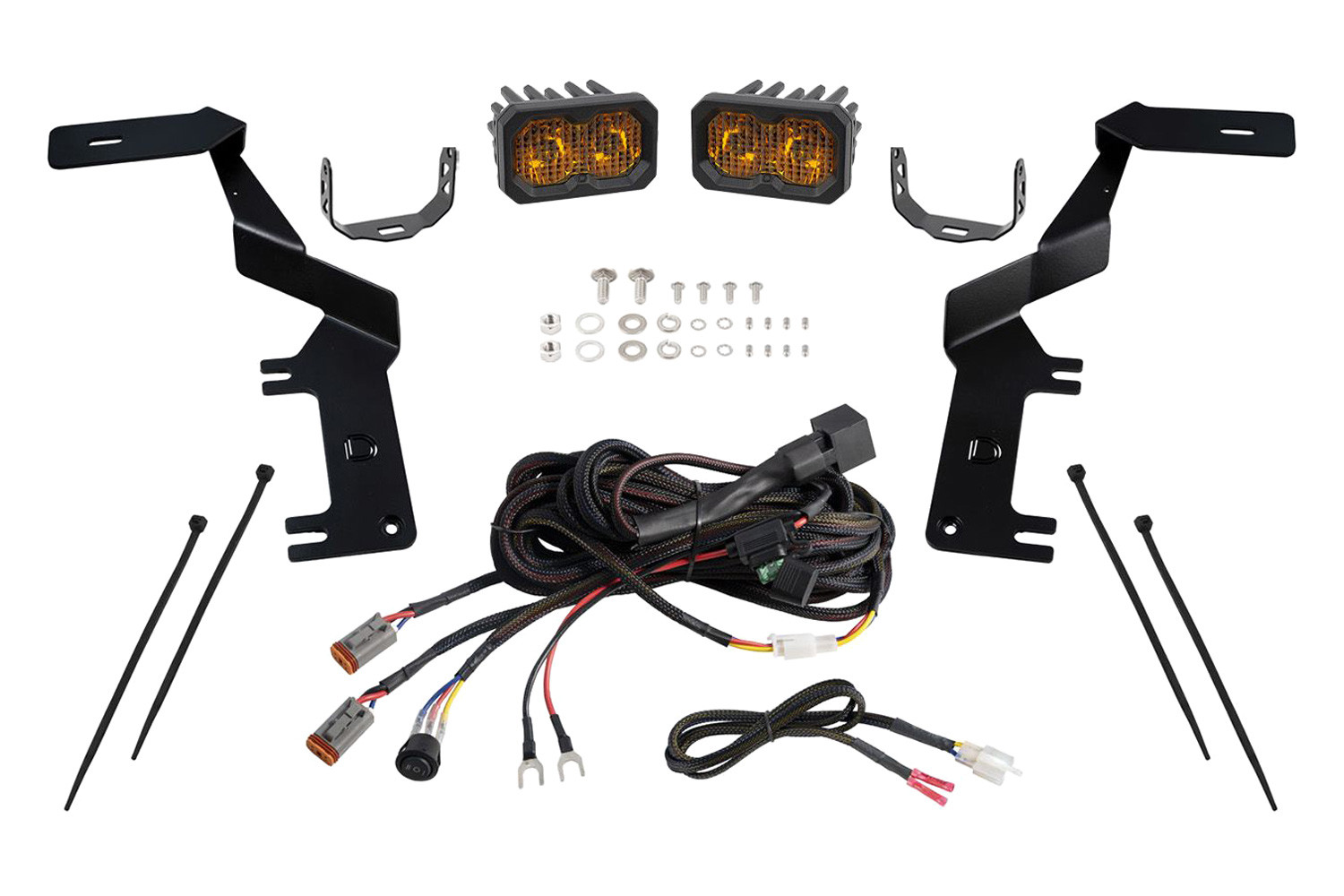

Includes

(2) SSC2 Pro Standard yellow LED pods

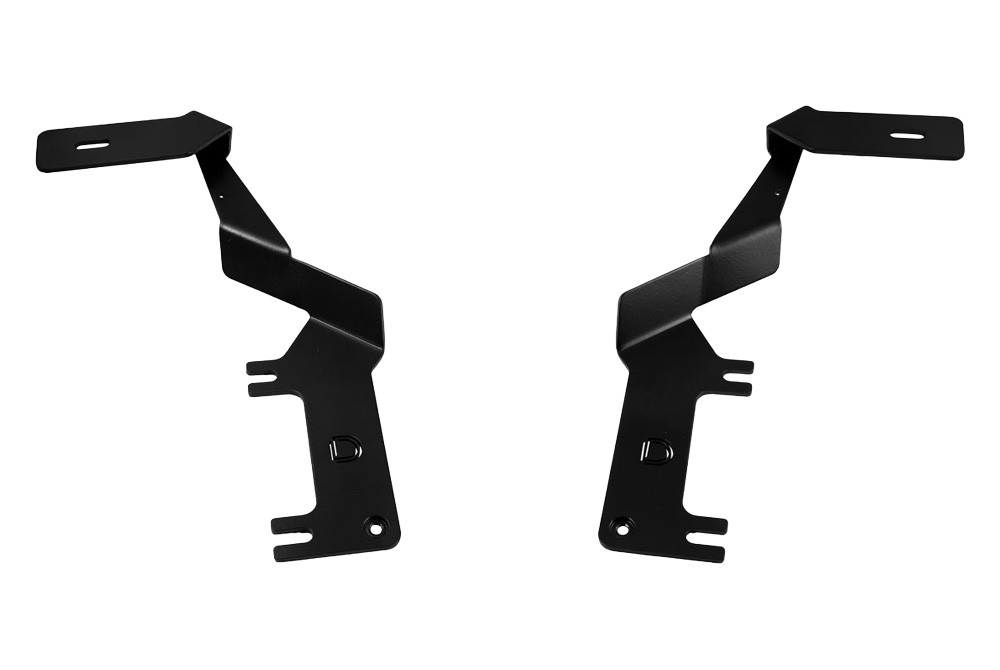

(2) Ditch light brackets
(1) Heavy-duty dual output 4-pin wiring harness
Mounting hardware
Mounting guide

Features

Bolt-on fitment
Allows you to mount two Stage Series LED Pods above the hood
Utilizes existing mounting points and hardware for a simple installation
Thick-gauge stainless steel construction
Low-profile design

Product Details

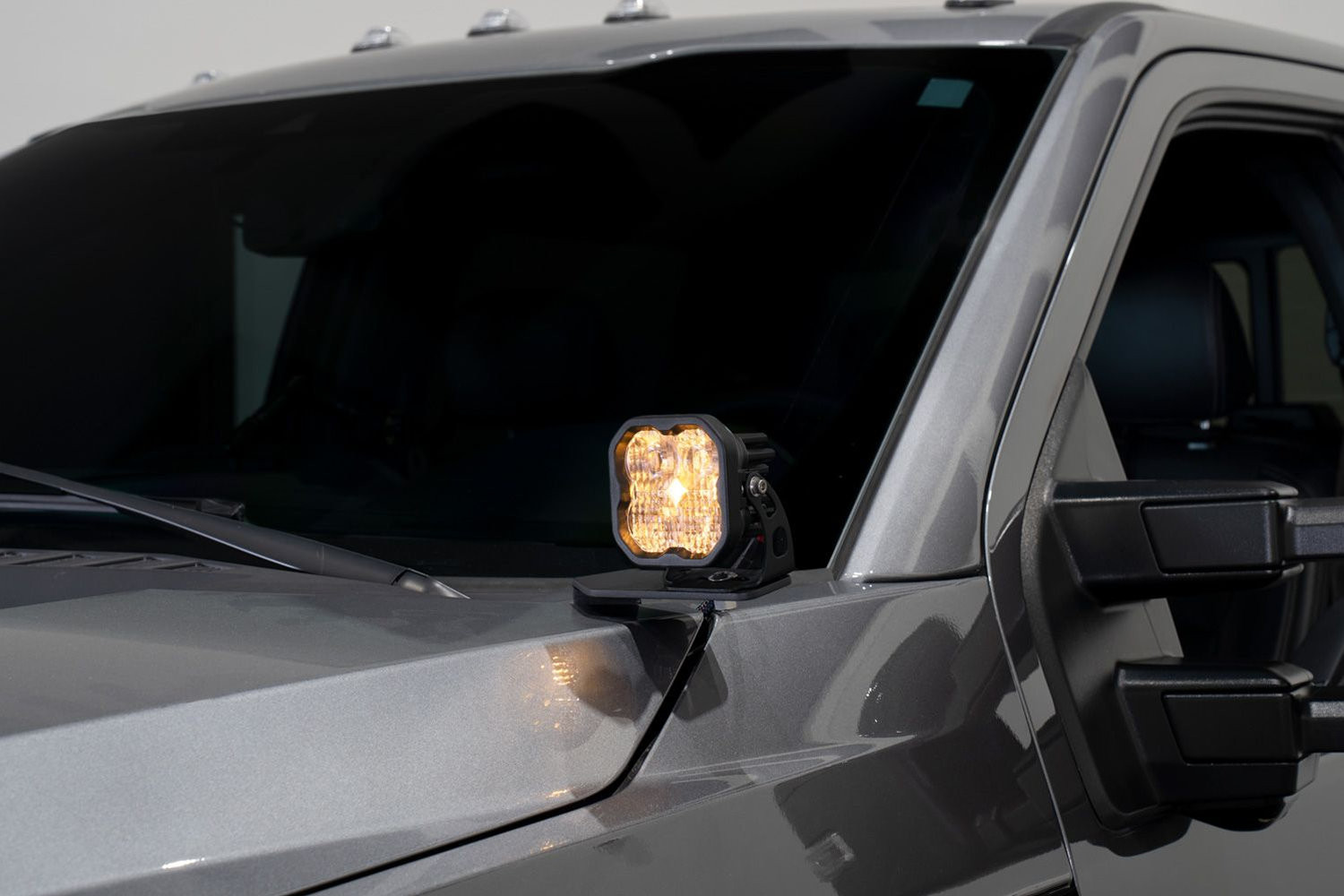

Hood Ditch Stage Series C2 Pro 3.3" 2x25.6W Rectangular Combo Beam Yellow LED Light Kit (DD7555) by Diode Dynamics®. 1 Pair. 9-16V. 2A. Raw lumens: 2610; Measured lumens: 1858. 3000K. The Stage Series Backlit Ditch Light Kit for your vehicle allows you to easily mount two SSC2 Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. This kit features a low profile design while minimizing glare, and will not interfere with raising or lowering the hood.
