Diode Dynamics® DD6006 - Fog Light Location Mounted Stage Series Custom SAE/DOT 12" 2x58.8W Driving Beam LED Light Bar Kit

Name: Diode Dynamics® DD6006 - Fog Light Location Mounted Stage Series Custom SAE/DOT 12" 2x58.8W Driving Beam LED Light Bar Kit
Brand: Diode Dynamics
SKU: mpn4651303700
Price: 639.95 USD
Availability: InStock

0 reviews|Item # mpn4651303700

Vehicle Specific

Authorized Dealer

$639.95

In Stock (1) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Ford

Specifications

Size	12"
Watts (per kit)	2x58.8W
LEDs/bulbs quantity	12-LED

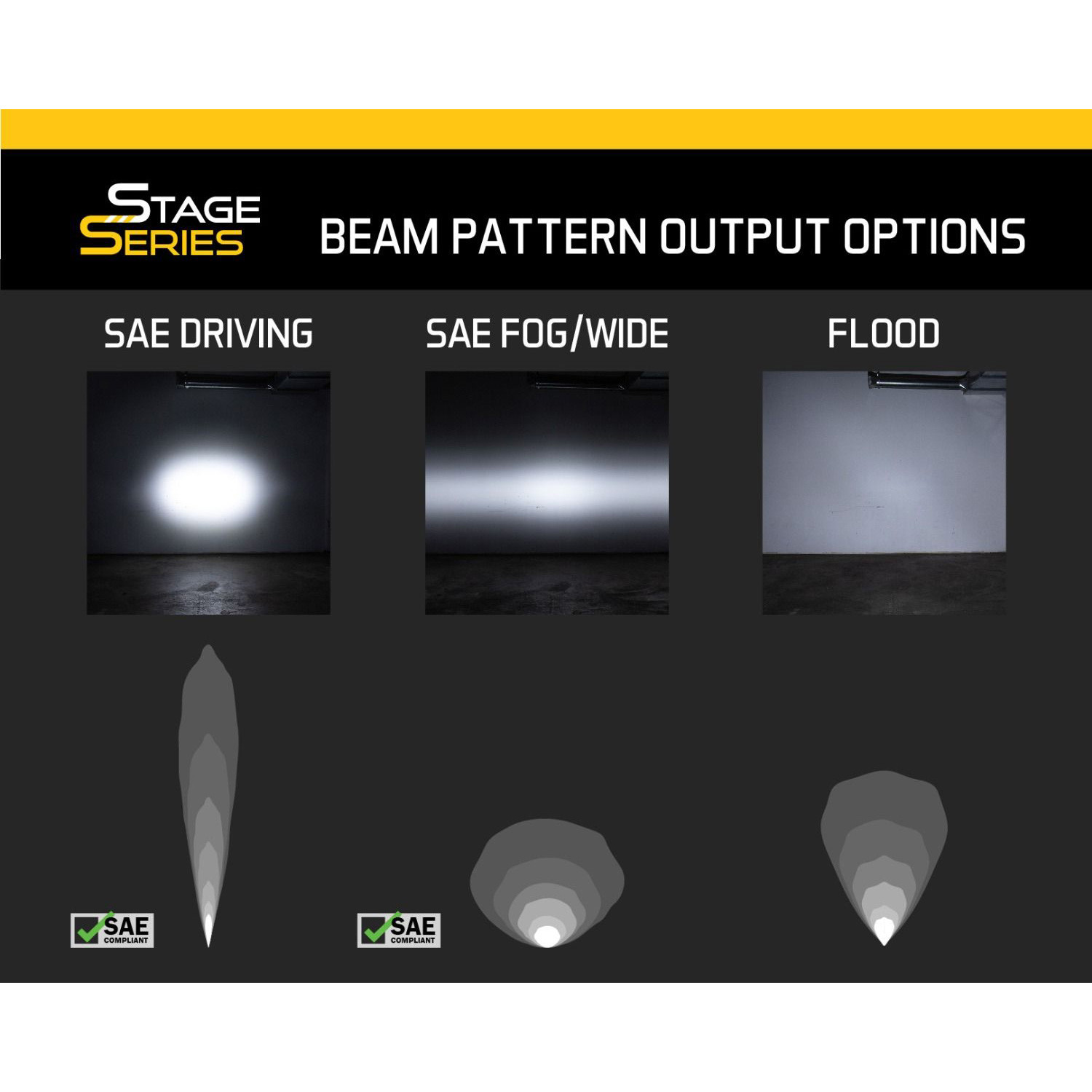

Beam pattern	driving beam
LED rows	single row
Bulb type	LED
Series	Stage Series
Certification	SAE/DOT
Location	fog light location
Housing color	black
Light Color	white
Material	aluminum
Shape	straight
Voltage	9-16V
Amperage	4.2A
Raw lumens output	4560; Effective lumens: 2800
Color temperature	6000K
Lux at 10 meters	1110

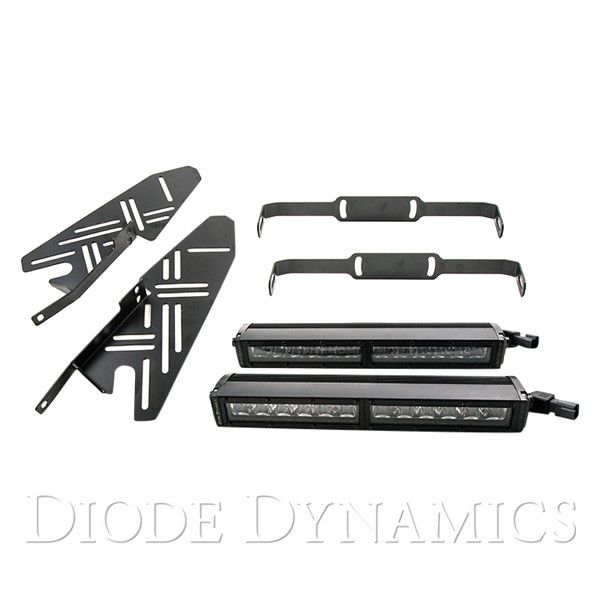

Includes

(2) SS12 Stage Series 12" Light Bars
(3) Application-specific heavy-duty steel brackets
(1) Dual output harness
(1) H4 high-beam adapter
All necessary Hardware
Installation guide

Features

Features multiple mounting points for endless mounting options
Utilizes existing mounting points for easy installation - no cutting or drilling required
100% satisfaction guarantee
Operating temperature: -40C to 85C (-40F to 185F)
Intrusion ratings: IP68 Waterproof
3-year warranty

Product Details

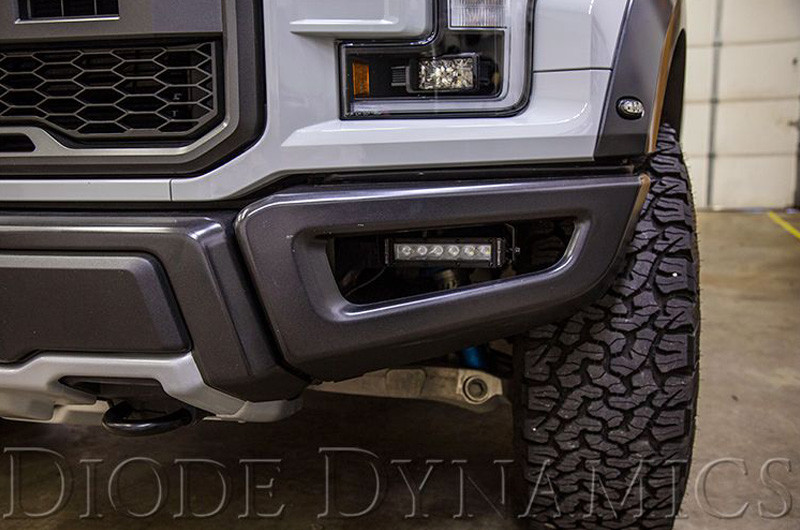

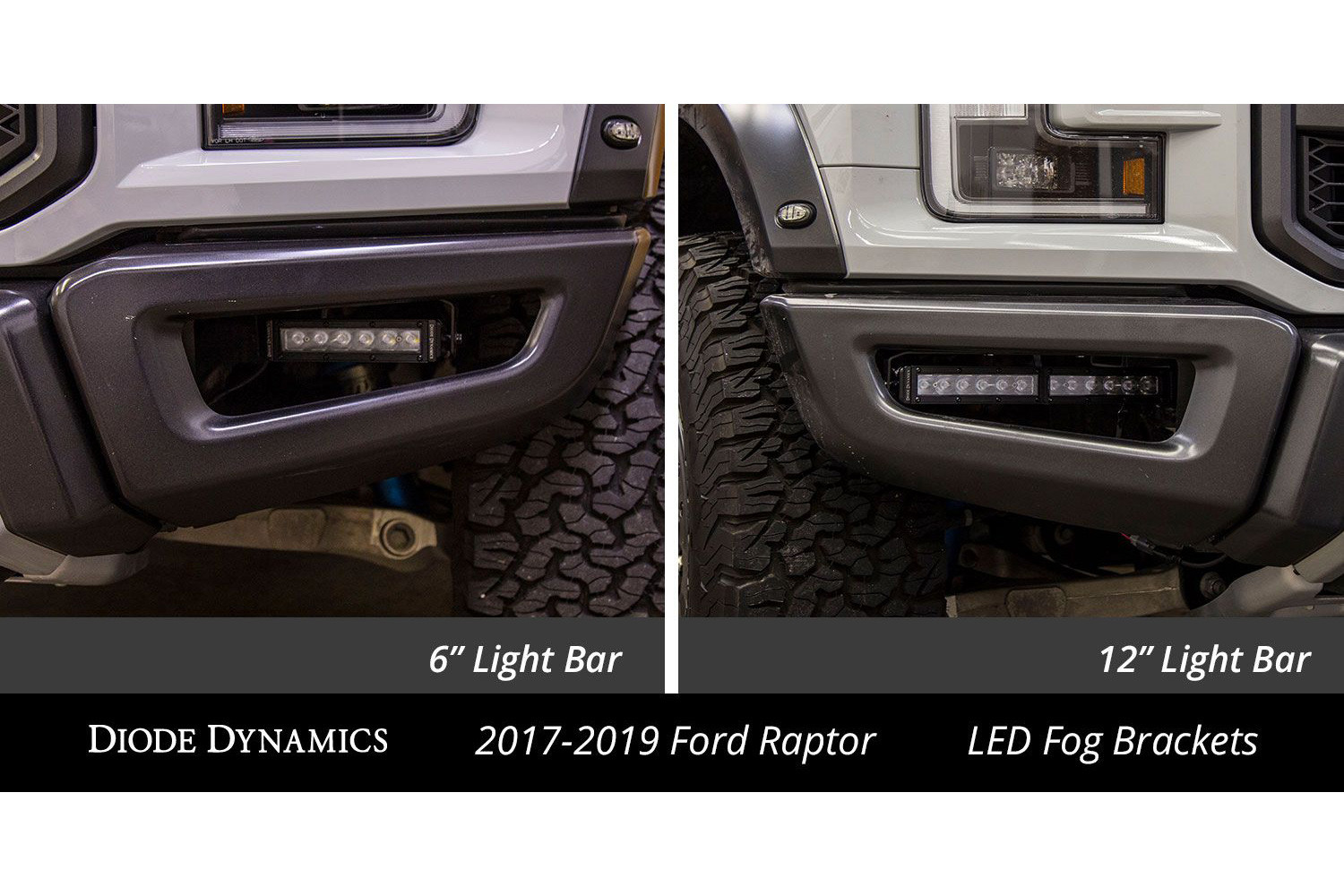

Fog Light Location Mounted Stage Series Custom SAE/DOT 12" 2x58.8W Driving Beam LED Light Bar Kit (DD6006) by Diode Dynamics®. 1 Pair, 12-LED. Black housing, white light. 9-16V. 4.2A. Raw lumens output: 4560; Effective lumens: 2800. 6000K. With polycarbonate lens. The LED fog light bar bracket kit for your vehicle from Diode Dynamics allows you to mount auxiliary lighting in the factory bumper openings. These application-specific brackets were CAD-designed to install using factory mounting points.

Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD6006

UPC:

691026116082

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
